NSP135-AHXGK (2014)

Toyota Vitz

Production Apr 2014 - Jan 2017
Engine 1NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1012-1701)

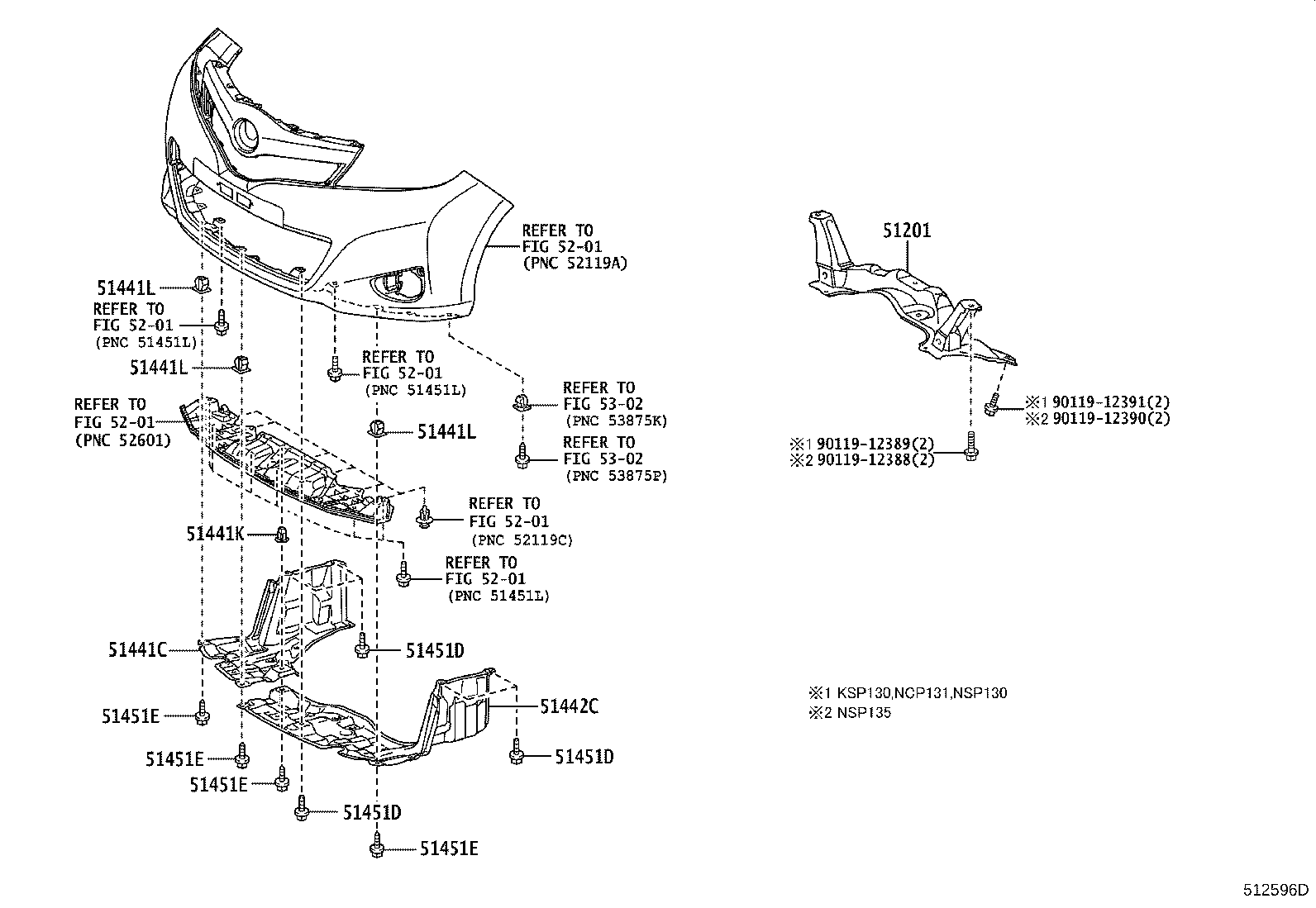

Click highlighted areas on diagram

diagram 51201 51441C 51441K 51441L 51441L 51441L 51442C 51451D 51451D 51451D 51451E 51451E 51451E 51451E 5201 5201 5201 5201 5201 5201 5302 5302 9011912388 9011912389 9011912390 9011912391
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-52100

NSP135..CBU

 1
51201-52107

NSP135..CBU

 1
51441C - COVER, ENGINE UNDER, RH
51441-52180

NCP131,NSP13#..CBU

 1
51441-52330

NCP131,NSP13#..CBU

 1
51441K - GROMMET(FOR ENGINE UNDER COVER)
90189-06076

KSP130,NCP131,NSP13#..CBU

 1
90189-06076

KSP130,NCP131,NSP13#..CBU

 1
51441L - GROMMET, NO.2(FOR ENGINE UNDER COVER)
90189-06237

KSP130,NCP131,NSP13#..CBU

 3
90189-06193

KSP130,NCP131,NSP13#..CBU

 3
51441L - GROMMET, NO.2(FOR ENGINE UNDER COVER)
90189-06237

KSP130,NCP131,NSP13#..CBU

 3
90189-06193

KSP130,NCP131,NSP13#..CBU

 3
51441L - GROMMET, NO.2(FOR ENGINE UNDER COVER)
90189-06237

KSP130,NCP131,NSP13#..CBU

 3
90189-06193

KSP130,NCP131,NSP13#..CBU

 3
51442C - COVER, ENGINE UNDER, LH
51442-52090

KSP130,NCP131,NSP13#..CBU

 1
51442-52160

NCP131,NSP13#..CBU

 1
51451D - SCREW, NO.1
90119-06767

KSP130,NCP131,NSP13#..CBU

 5
90119-06767

KSP130,NCP131,NSP13#..CBU

 5
51451D - SCREW, NO.1
90119-06767

KSP130,NCP131,NSP13#..CBU

 5
90119-06767

KSP130,NCP131,NSP13#..CBU

 5
51451D - SCREW, NO.1
90119-06767

KSP130,NCP131,NSP13#..CBU

 5
90119-06767

KSP130,NCP131,NSP13#..CBU

 5
51451E - SCREW, NO.2
90159-60383

KSP130,NCP131,NSP13#..CBU

 4
90159-60383

KSP130,NCP131,NSP13#..CBU

 4
51451E - SCREW, NO.2
90159-60383

KSP130,NCP131,NSP13#..CBU

 4
90159-60383

KSP130,NCP131,NSP13#..CBU

 4
51451E - SCREW, NO.2
90159-60383

KSP130,NCP131,NSP13#..CBU

 4
90159-60383

KSP130,NCP131,NSP13#..CBU

 4
51451E - SCREW, NO.2
90159-60383

KSP130,NCP131,NSP13#..CBU

 4
90159-60383

KSP130,NCP131,NSP13#..CBU

 4
Common parts
90119-12388
90119-12389
90119-12390
90119-12391
Linked diagrams
5201
5302
