NSP135-AHXGK (2014)
Toyota Vitz
Production
Apr 2014
-
Jan 2017
Engine
1NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1404- )NSP135

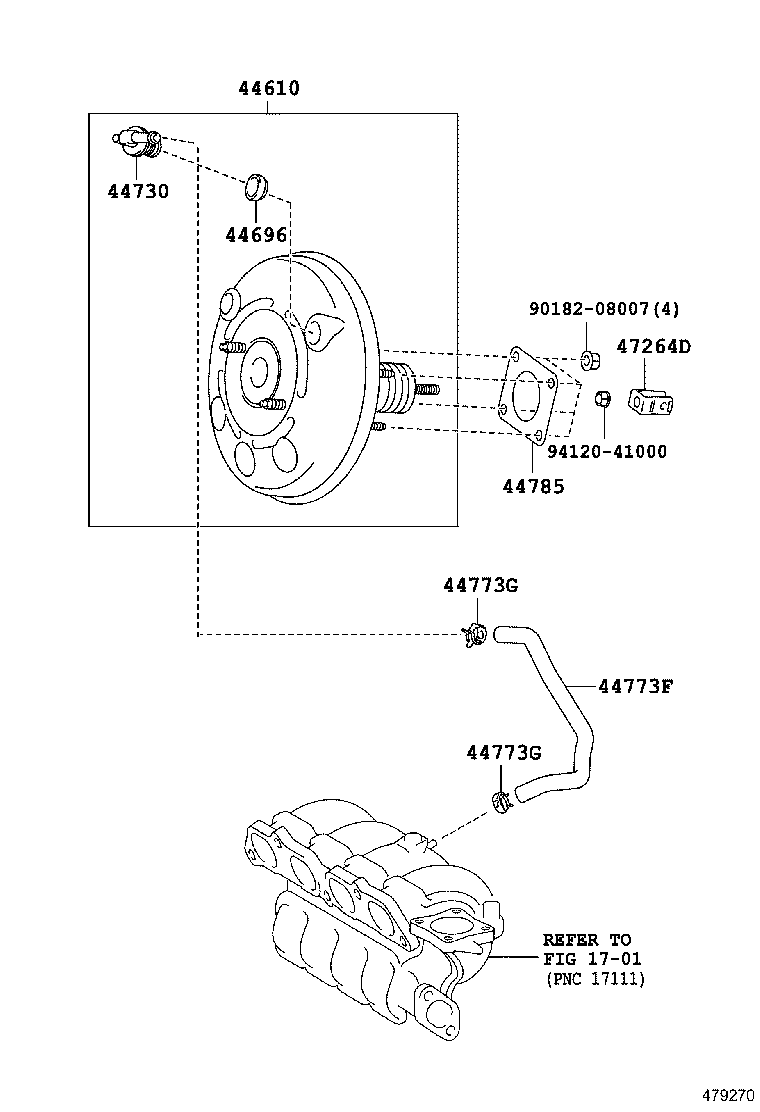

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-52A60 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 44610-52F50 |
NCP131,NSP135..(F,JEWL,U)..CBU |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
NCP131,NSP135..CBU |
1 | ||
| 90480-24439 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20170 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 44730-20170 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-52240 |
NSP135..CBU |
1 | ||
| 44773-52240 |
NSP13#..CBU |
1 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16014 |
NSP135..CBU |
2 | ||
| 90467-16014 |
KSP130,NSP13#..CBU |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16014 |
NSP135..CBU |
2 | ||
| 90467-16014 |
KSP130,NSP13#..CBU |
2 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-16020 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 44785-16020 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-52040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 47264-52040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| Common parts | ||||
| 90182-08007 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 1701 | ||||
