NSP135-AHXGK (2010)

Toyota Vitz

Production Dec 2010 - Apr 2014
Engine 1NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1012-1701)

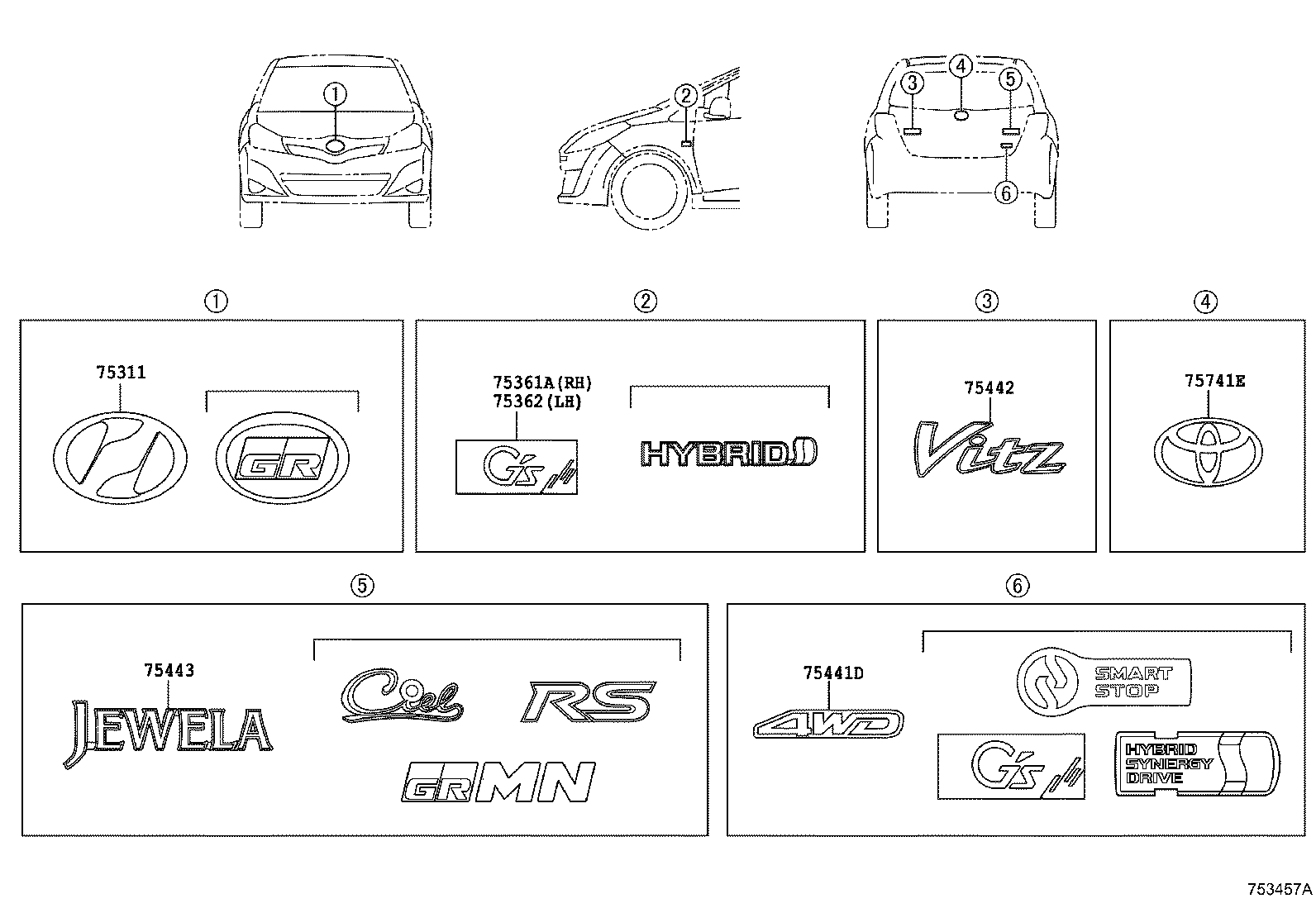

Click highlighted areas on diagram

diagram 75311 75361A 75362 75441D 75442 75443 75741E
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75301-52100

KSP130,NCP131,NSP13#..CBU

 1
75441D - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1
75441-16320

NSP135..CBU

4WD

 1
75442 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2
75442-52360

KSP130,NCP131,NSP13#..CBU

VITZ

 1
75443 - PLATE, BACK DOOR NAME, NO.3
75443-52250

KSP130,NSP13#..F..CBU

CIEL,“Ciel”(内装色=ﾌﾞﾗｯｸ)*(D)or*(E)

 1
75443-52180

KSP130,NSP13#..JEWL

JEWELA

 1
75443-52240

KSP130,NSP13#..F..CBU

CIEL,“Ciel”(内装色=ﾍﾞｰｼﾞｭ)*(D)or*(E)

 1
75741E - EMBLEM, SYMBOL
90975-02071

KSP130,NCP131,NSP13#..CBU

 1
