NSP135-AHXGK (2010)
Toyota Vitz
Production
Dec 2010
-
Apr 2014
Engine
1NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

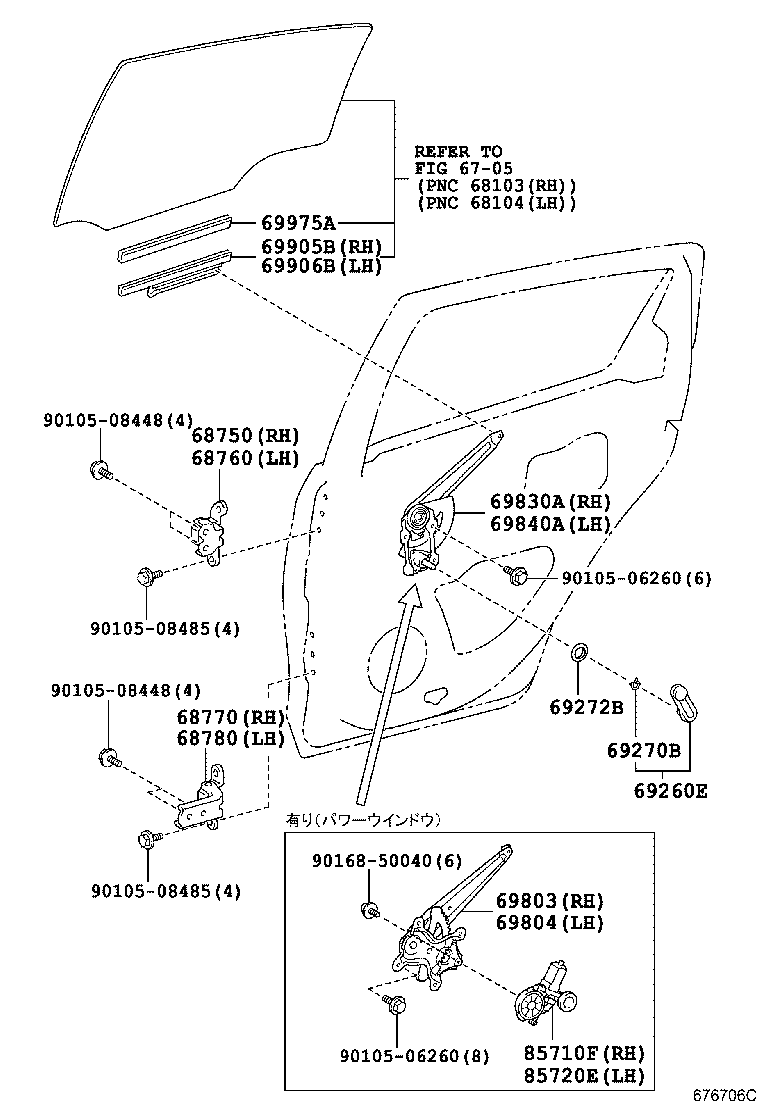

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68750 - HINGE ASSY, REAR DOOR, UPPER RH | ||||
| 68750-20121 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 68750-20122 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 68760 - HINGE ASSY, REAR DOOR, UPPER LH | ||||
| 68760-20122 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 68760-20121 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 68770 - HINGE ASSY, REAR DOOR, LOWER RH | ||||
| 68770-52031 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 68780 - HINGE ASSY, REAR DOOR, LOWER LH | ||||
| 68780-52031 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69803-52090 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69804-52100 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH | ||||
| 69905-52060 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH | ||||
| 69906-52060 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 69975A - FILLER, REAR DOOR GLASS CHANNEL | ||||
| 69975-52010 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH | ||||
| 85720-52150 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH | ||||
| 85710-52160 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| Common parts | ||||
| 90105-06260 | ||||
| 90105-08448 | ||||
| 90105-08485 | ||||
| 90168-50040 | ||||
| Linked diagrams | ||||
| 6705 | ||||
