NSP135-AHXGK (2010)
Toyota Vitz
(1012- )

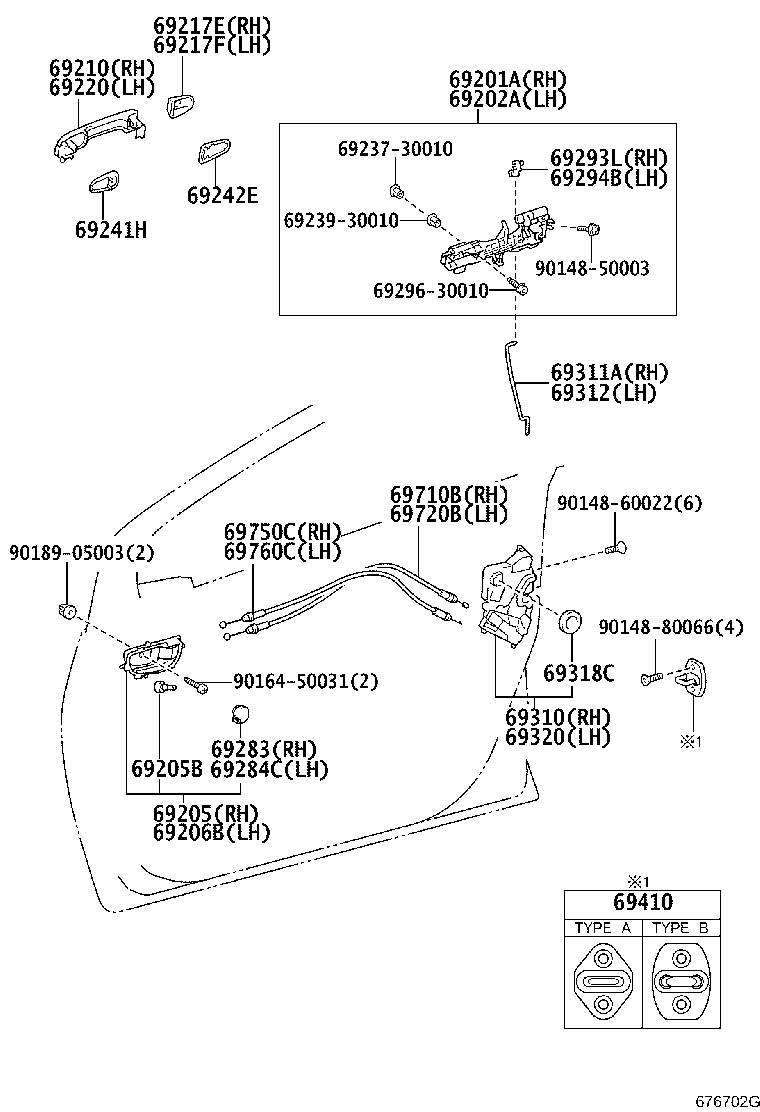

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-52130 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-52070 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-52180C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 69205-52170C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 69205-52170C0 |
KSP130,NSP13#..JEWL BLACK,TRIM1#,4# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04027 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-52170C0 |
KSP130,NSP13#..JEWL BLACK,TRIM1#,4# |
1 | ||
| 69206-52170C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 69206-52180C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-52100D1 |
NCP131,NSP13#..U..CBU ROSE ME.OP.,3P3 |
1 | ||
| 69210-52100A1 |
KSP130,NSP13#..(F,JEWL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),WHITE PEARL CS.,070 |
1 | ||
| 69210-52100A0 |
NCP131..5F;KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),SUPER WHITE 2,040 |
1 | ||
| 69210-52100A1 |
NCP131,NSP13#..U..CBU WHITE PEARL CS.,070 |
1 | ||
| 69210-52100A0 |
NCP131,NSP13#..CVT..(RS,U)..CBU SUPER WHITE 2,040 |
1 | ||
| 69210-52100B0 |
NCP131,NSP13#..CVT..(RS,U)..CBU SILVER ME.,1F7 |
1 | ||
| 69210-52100B0 |
NCP131..5F;KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),SILVER ME.,1F7 |
1 | ||
| 69210-52100B0 |
KSP130,NSP13#..JEWL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),SILVER ME.,070 ,1F7 ,209 ,3P0 ,3P3 ,3Q8 ,3S7 ,4U3 ,6U1 ,777 ,8S7 ,8T0 ,9AC |
1 | ||
| 69210-52100D1 |
KSP130,NSP13#..(F,JEWL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),ROSEME.OP.,3P3 |
1 | ||
| 69210-52100D0 |
NCP131..5F;KSP130,NSP13#..(F,JEWL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),SUPER RED 5,3P0 |
1 | ||
| 69210-52100E0 |
KSP130,NSP13#..(F,JEWL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),DK. BROWN M.M.,4U3 |
1 | ||
| 69210-52100B2 |
NCP131,NSP13#..CVT..(RS,U)..CBU GIN BUCK ME.,1J1 |
1 | ||
| 69210-52100B1 |
NCP131,NSP13#..CVT..(RS,U)..CBU GRAY ME.,1G3 |
1 | ||
| 69211-52100D1 |
KSP130,NSP13#..(F,JEWL)..CBU ROSE ME.OP.,3P3 |
1 | ||
| 69210-52100D2 |
KSP130,NSP13#..JEWL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),CHERRY PEARL CS.,3S7 |
1 | ||
| 69210-52100B0 |
KSP130,NSP13#..JEWL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ｱｳﾀﾐﾗｰ−*57 & ｼﾙﾊﾞｰ塗装,SILVER ME.,070 ,209 ,3P0 ,3P3 ,3Q8 ,3S7 ,4S9 ,4T4 ,4U3 ,5A6 ,6U1 ,777 ,8S7 ,8S9 ,8T0 ,8T1 ,9AC |
1 | ||
| 69210-52100D0 |
NCP131,NSP13#..CVT..(RS,U)..CBU SUPER RED 5,3P0 |
1 | ||
| 69210-52100B2 |
NCP131..5F;KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),GIN BUCK ME.,1J1 |
1 | ||
| 69210-52100B1 |
NCP131..5F;KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),GRAYME.,1G3 |
1 | ||
| 69210-52100J0 |
NCP131,NSP13#..U..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 69210-52100C0 |
NCP131..5F;KSP130,NSP13#..(F,JEWL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),BLACK MC.,209 |
1 | ||
| 69210-52100C0 |
NCP131,NSP13#..CVT..(RS,U)..CBU BLACK MC.,209 |
1 | ||
| 69211-52100A1 |
NCP131..5F;KSP130,NSP13#..(F,JEWL)..CBU WHITE PEARL CS.,070 |
1 | ||
| 69211-52100A0 |
NCP131..5F;KSP130,NSP13#..F..CBU SUPER WHITE 2,040 |
1 | ||
| 69211-52100B0 |
NCP131..5F;KSP130,NSP13#..(F,JEWL)..CBU SILVER ME.,1F7 |
1 | ||
| 69211-52100B2 |
NCP131..5F;KSP130,NSP13#..F..CBU GIN BUCK ME.,1J1 |
1 | ||
| 69211-52100B1 |
NCP131..5F;KSP130,NSP13#..F..CBU GRAY ME.,1G3 |
1 | ||
| 69210-52100J0 |
KSP130,NSP13#..(F,JEWL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),LT.BLUE M.M.,8S7 |
1 | ||
| 69211-52100D2 |
KSP130,NSP13#..JEWL CHERRY PEARL CS.,3S7 |
1 | ||
| 69211-52100J0 |
KSP130,NSP13#..(F,JEWL)..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 69211-52100E0 |
KSP130,NSP13#..JEWL DK. BROWN M.M.,4U3 |
1 | ||
| 69211-52100D0 |
NCP131..5F;KSP130,NSP13#..(F,JEWL)..CBU SUPER RED 5,3P0 |
1 | ||
| 69211-52100B0 |
KSP130,NSP13#..JEWL ｱｳﾀﾐﾗｰ−*57 & ｼﾙﾊﾞｰ塗装,SILVER ME.,070 ,1F7 ,209 ,3P0 ,3P3 ,3Q8 ,3S7 ,4S9 ,4T4 ,4U3 ,5A6 ,6U1 ,777 ,8S7 ,8S9 ,8T0 ,8T1 ,9AC |
1 | ||
| 69211-52100C0 |
NCP131..5F;KSP130,NSP13#..(F,JEWL)..CBU BLACK MC.,209 |
1 | ||
| 69210-52100K2 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),LT.PURPLE M.M.,9AE |
1 | ||
| 69210-52100J7 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),DK.BLUE MC.,8S6 |
1 | ||
| 69210-52100D6 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),DEEPRED M.M.,3R9 |
1 | ||
| 69210-52100F2 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),SILKY GOLD M.M.,5A7 |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69217-52030B0 |
KSP130,NSP13#..JEWL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ｱｳﾀﾐﾗｰ−*57 & ｼﾙﾊﾞｰ塗装,SILVER ME.,070 ,209 ,3P0 ,3P3 ,3Q8 ,3S7 ,4S9 ,4T4 ,4U3 ,5A6 ,6U1 ,777 ,8S7 ,8S9 ,8T0 ,8T1 ,9AC |
1 | ||
| 69217-52030B2 |
KSP130,NCP131,NSP13#..(F,RS,U)..CBU GIN BUCK ME.,1J1 |
1 | ||
| 69217-52030D1 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU ROSE ME.OP.,3P3 |
1 | ||
| 69217-52030B0 |
KSP130,NSP13#..JEWL ｱｳﾀﾐﾗｰ−*57 & ｼﾙﾊﾞｰ塗装,SILVER ME.,070 ,1F7 ,209 ,3P0 ,3P3 ,3Q8 ,3S7 ,4S9 ,4T4 ,4U3 ,5A6 ,6U1 ,777 ,8S7 ,8S9 ,8T0 ,8T1 ,9AC |
1 | ||
| 69217-52030A0 |
KSP130,NCP131,NSP13#..(F,RS,U)..CBU SUPER WHITE 2,040 |
1 | ||
| 69217-52030B1 |
KSP130,NCP131,NSP13#..(F,RS,U)..CBU GRAY ME.,1G3 |
1 | ||
| 69217-52030A1 |
NCP131..5F;KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU WHITE PEARL CS.,070 |
1 | ||
| 69217-52030B0 |
KSP130,NCP131,NSP13#..CBU SILVER ME.,1F7 |
1 | ||
| 69217-52030D2 |
KSP130,NSP13#..JEWL CHERRY PEARL CS.,3S7 |
1 | ||
| 69217-52030J0 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 69217-52030K2 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),LT.PURPLE M.M.,9AE |
1 | ||
| 69217-52030D0 |
KSP130,NCP131,NSP13#..CBU SUPER RED 5,3P0 |
1 | ||
| 69217-52030D6 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),DEEPRED M.M.,3R9 |
1 | ||
| 69217-52030C0 |
KSP130,NCP131,NSP13#..CBU BLACK MC.,209 |
1 | ||
| 69217-52030E0 |
KSP130,NSP13#..JEWL DK. BROWN M.M.,4U3 |
1 | ||
| 69217-52030J6 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),DK.BLUE MC.,8S6 |
1 | ||
| 69217-52030E0 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),DK. BROWN M.M.,4U3 |
1 | ||
| 69217-52030F2 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),SILKY GOLD M.M.,5A7 |
1 | ||
| 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69217-52040B0 |
KSP130,NCP131,NSP13#..CBU SILVER ME.,1F7 |
1 | ||
| 69217-52040B1 |
KSP130,NCP131,NSP13#..(F,RS,U)..CBU GRAY ME.,1G3 |
1 | ||
| 69217-52040A1 |
NCP131..5F;KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU WHITE PEARL CS.,070 |
1 | ||
| 69217-52040D1 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU ROSE ME.OP.,3P3 |
1 | ||
| 69217-52040A0 |
KSP130,NCP131,NSP13#..(F,RS,U)..CBU SUPER WHITE 2,040 |
1 | ||
| 69217-52040B0 |
KSP130,NSP13#..JEWL ｱｳﾀﾐﾗｰ−*57 & ｼﾙﾊﾞｰ塗装,SILVER ME.,070 ,1F7 ,209 ,3P0 ,3P3 ,3Q8 ,3S7 ,4S9 ,4T4 ,4U3 ,5A6 ,6U1 ,777 ,8S7 ,8S9 ,8T0 ,8T1 ,9AC |
1 | ||
| 69217-52040B2 |
KSP130,NCP131,NSP13#..(F,RS,U)..CBU GIN BUCK ME.,1J1 |
1 | ||
| 69217-52040B0 |
KSP130,NSP13#..JEWL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ｱｳﾀﾐﾗｰ−*57 & ｼﾙﾊﾞｰ塗装,SILVER ME.,070 ,209 ,3P0 ,3P3 ,3Q8 ,3S7 ,4S9 ,4T4 ,4U3 ,5A6 ,6U1 ,777 ,8S7 ,8S9 ,8T0 ,8T1 ,9AC |
1 | ||
| 69217-52040D0 |
KSP130,NCP131,NSP13#..CBU SUPER RED 5,3P0 |
1 | ||
| 69217-52040D2 |
KSP130,NSP13#..JEWL CHERRY PEARL CS.,3S7 |
1 | ||
| 69217-52040J0 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 69217-52040E0 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),DK. BROWN M.M.,4U3 |
1 | ||
| 69217-52040D6 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),DEEPRED M.M.,3R9 |
1 | ||
| 69217-52040C0 |
KSP130,NCP131,NSP13#..CBU BLACK MC.,209 |
1 | ||
| 69217-52040F2 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),SILKY GOLD M.M.,5A7 |
1 | ||
| 69217-52040K2 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),LT.PURPLE M.M.,9AE |
1 | ||
| 69217-52040E0 |
KSP130,NSP13#..JEWL DK. BROWN M.M.,4U3 |
1 | ||
| 69217-52040J6 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),DK.BLUE MC.,8S6 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-52100A0 |
NCP131,NSP13#..CVT..(RS,U)..CBU SUPER WHITE 2,040 |
1 | ||
| 69210-52100D1 |
NCP131,NSP13#..U..CBU ROSE ME.OP.,3P3 |
1 | ||
| 69210-52100A0 |
NCP131..5F;KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),SUPER WHITE 2,040 |
1 | ||
| 69210-52100B0 |
KSP130,NSP13#..JEWL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),SILVER ME.,070 ,1F7 ,209 ,3P0 ,3P3 ,3Q8 ,3S7 ,4U3 ,6U1 ,777 ,8S7 ,8T0 ,9AC |
1 | ||
| 69211-52100D1 |
KSP130,NSP13#..(F,JEWL)..CBU ROSE ME.OP.,3P3 |
1 | ||
| 69210-52100B0 |
NCP131..5F;KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),SILVER ME.,1F7 |
1 | ||
| 69210-52100A1 |
KSP130,NSP13#..(F,JEWL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),WHITE PEARL CS.,070 |
1 | ||
| 69210-52100A1 |
NCP131,NSP13#..U..CBU WHITE PEARL CS.,070 |
1 | ||
| 69210-52100B2 |
NCP131,NSP13#..CVT..(RS,U)..CBU GIN BUCK ME.,1J1 |
1 | ||
| 69210-52100D0 |
NCP131,NSP13#..CVT..(RS,U)..CBU SUPER RED 5,3P0 |
1 | ||
| 69210-52100D1 |
KSP130,NSP13#..(F,JEWL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),ROSEME.OP.,3P3 |
1 | ||
| 69210-52100E0 |
KSP130,NSP13#..(F,JEWL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),DK. BROWN M.M.,4U3 |
1 | ||
| 69210-52100B0 |
KSP130,NSP13#..JEWL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ｱｳﾀﾐﾗｰ−*57 & ｼﾙﾊﾞｰ塗装,SILVER ME.,070 ,209 ,3P0 ,3P3 ,3Q8 ,3S7 ,4S9 ,4T4 ,4U3 ,5A6 ,6U1 ,777 ,8S7 ,8S9 ,8T0 ,8T1 ,9AC |
1 | ||
| 69210-52100B0 |
NCP131,NSP13#..CVT..(RS,U)..CBU SILVER ME.,1F7 |
1 | ||
| 69210-52100B2 |
NCP131..5F;KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),GIN BUCK ME.,1J1 |
1 | ||
| 69210-52100C0 |
NCP131..5F;KSP130,NSP13#..(F,JEWL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),BLACK MC.,209 |
1 | ||
| 69210-52100B1 |
NCP131,NSP13#..CVT..(RS,U)..CBU GRAY ME.,1G3 |
1 | ||
| 69210-52100C0 |
NCP131,NSP13#..CVT..(RS,U)..CBU BLACK MC.,209 |
1 | ||
| 69210-52100B1 |
NCP131..5F;KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),GRAYME.,1G3 |
1 | ||
| 69210-52100J0 |
NCP131,NSP13#..U..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 69210-52100D0 |
NCP131..5F;KSP130,NSP13#..(F,JEWL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),SUPER RED 5,3P0 |
1 | ||
| 69211-52100A0 |
NCP131..5F;KSP130,NSP13#..F..CBU SUPER WHITE 2,040 |
1 | ||
| 69210-52100D2 |
KSP130,NSP13#..JEWL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),CHERRY PEARL CS.,3S7 |
1 | ||
| 69210-52100J0 |
KSP130,NSP13#..(F,JEWL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),LT.BLUE M.M.,8S7 |
1 | ||
| 69211-52100A1 |
NCP131..5F;KSP130,NSP13#..(F,JEWL)..CBU WHITE PEARL CS.,070 |
1 | ||
| 69211-52100B1 |
NCP131..5F;KSP130,NSP13#..F..CBU GRAY ME.,1G3 |
1 | ||
| 69211-52100B0 |
NCP131..5F;KSP130,NSP13#..(F,JEWL)..CBU SILVER ME.,1F7 |
1 | ||
| 69211-52100J0 |
KSP130,NSP13#..(F,JEWL)..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 69211-52100C0 |
NCP131..5F;KSP130,NSP13#..(F,JEWL)..CBU BLACK MC.,209 |
1 | ||
| 69211-52100E0 |
KSP130,NSP13#..JEWL DK. BROWN M.M.,4U3 |
1 | ||
| 69211-52100D0 |
NCP131..5F;KSP130,NSP13#..(F,JEWL)..CBU SUPER RED 5,3P0 |
1 | ||
| 69211-52100B2 |
NCP131..5F;KSP130,NSP13#..F..CBU GIN BUCK ME.,1J1 |
1 | ||
| 69211-52100B0 |
KSP130,NSP13#..JEWL ｱｳﾀﾐﾗｰ−*57 & ｼﾙﾊﾞｰ塗装,SILVER ME.,070 ,1F7 ,209 ,3P0 ,3P3 ,3Q8 ,3S7 ,4S9 ,4T4 ,4U3 ,5A6 ,6U1 ,777 ,8S7 ,8S9 ,8T0 ,8T1 ,9AC |
1 | ||
| 69211-52100D2 |
KSP130,NSP13#..JEWL CHERRY PEARL CS.,3S7 |
1 | ||
| 69210-52100K2 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),LT.PURPLE M.M.,9AE |
1 | ||
| 69210-52100J7 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),DK.BLUE MC.,8S6 |
1 | ||
| 69210-52100D6 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),DEEPRED M.M.,3R9 |
1 | ||
| 69210-52100F2 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),SILKY GOLD M.M.,5A7 |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-52020 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-52030 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-52010C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 69283-52010C0 |
KSP130,NSP13#..JEWL BLACK,TRIM1#,4# |
1 | ||
| 69283-52010C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69283-52010C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 69283-52010C0 |
KSP130,NSP13#..JEWL BLACK,TRIM1#,4# |
1 | ||
| 69283-52010C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 69293L - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12030 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-52290 |
NCP131,NSP13#..CVT..(RS,U)..CBU |
1 | ||
| 69030-52290 |
NCP131..5F;KSP130,NSP13#..(F,JEWL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 69030-47050 |
NCP131..5F;KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-52200 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-52190 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-47010 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-47090 |
NCP131,NSP13#..CVT..(RS,U)..CBU |
1 | ||
| 69040-47050 |
NCP131..5F;KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 69040-47090 |
NCP131..5F;KSP130,NSP13#..(F,JEWL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-33010 |
KSP130,NCP131,NSP13#..CBU TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-52180 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-52180 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-52110 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69750-52110 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| Common parts | ||||
| 69237-30010 | ||||
| 69239-30010 | ||||
| 69296-30010 | ||||
| 90148-50003 | ||||
| 90148-60022 | ||||
| 90148-80066 | ||||
| 90164-50031 | ||||
| 90189-05003 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
