NSP135-AHXGK (2010)
Toyota Vitz

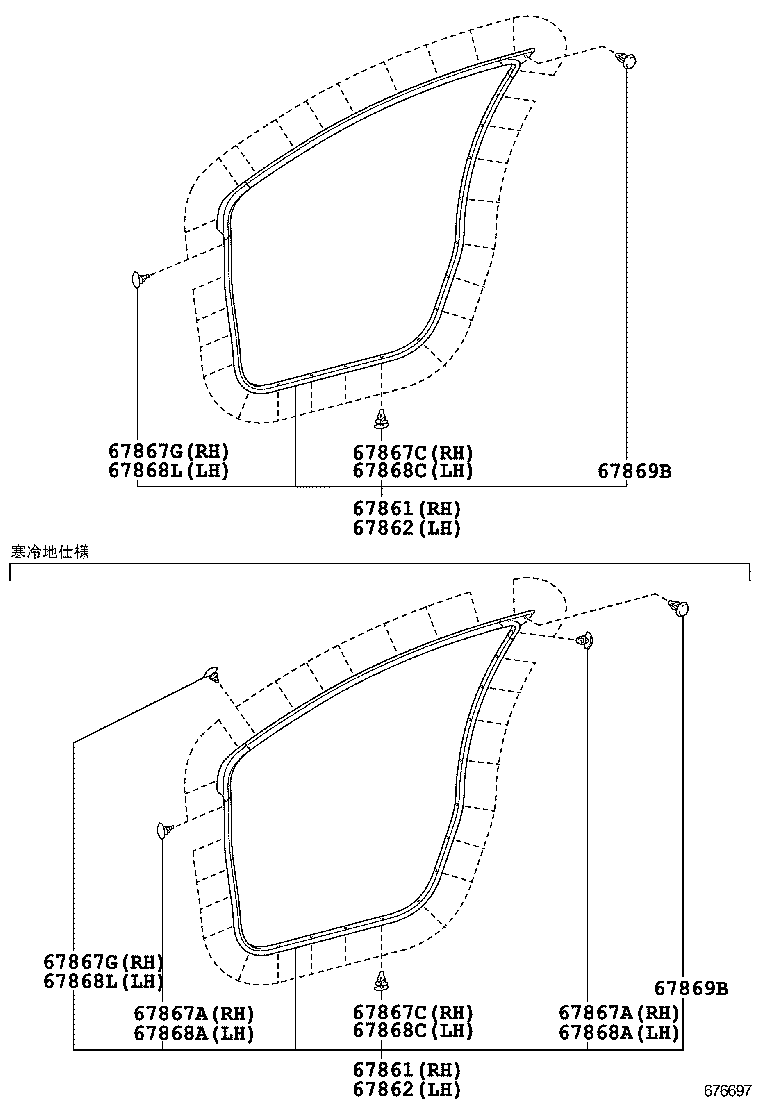

ILLUST NO. 2 OF 3(1012- )
ﾄﾞｱｳｴｻﾞｽﾄﾘｯﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-52250 |
KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
1 | ||
| 67861-52230 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 67861-52251 |
KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
1 | ||
| 67861-52231 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-52250 |
KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
1 | ||
| 67861-52230 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 67861-52251 |
KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
1 | ||
| 67861-52231 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-52241 |
KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
1 | ||
| 67862-52221 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 67862-52220 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 67862-52240 |
KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-52241 |
KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
1 | ||
| 67862-52221 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 67862-52220 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 67862-52240 |
KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
1 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67867-52010 |
KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
5 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67867-52010 |
KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
5 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
KSP130,NCP131,NSP13#..CBU |
17 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
KSP130,NCP131,NSP13#..CBU |
17 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-52040 |
KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
7 | ||
| 67867-52040 |
KSP130,NCP131,NSP13#..CBU |
12 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-52040 |
KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
7 | ||
| 67867-52040 |
KSP130,NCP131,NSP13#..CBU |
12 | ||
| 67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67867-52010 |
KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
5 | ||
| 67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67867-52010 |
KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
5 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
KSP130,NCP131,NSP13#..CBU |
17 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
KSP130,NCP131,NSP13#..CBU |
17 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-52030 |
KSP130,NCP131,NSP13#..CBU |
12 | ||
| 67867-52030 |
KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
7 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-52030 |
KSP130,NCP131,NSP13#..CBU |
12 | ||
| 67867-52030 |
KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
7 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 90467-06084 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 90467-06084 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
ILLUST NO. 3 OF 3(1012-1404)
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-52R60F0 |
KSP130,NSP13#..F..CBU GINGER/BLACK,TRIM5# |
1 | ||
| 67610-52R61E0 |
KSP130,NSP13#..JEWL TRUFEE/BLACK,TRIM4# |
1 | ||
| 67610-52R70B1 |
NCP131,NSP13#..U..CBU GRAY/BLACK,TRIM1# |
1 | ||
| 67610-52R60E0 |
KSP130,NSP13#..JEWL TRUFFE/BLACK,TRIM4# |
1 | ||
| 67610-52R60B0 |
KSP130,NSP13#..(F,JEWL)..CBU GRAY/BLACK,TRIM1# |
1 | ||
| 67610-52R61B0 |
KSP130,NSP13#..(F,JEWL)..CBU GRAY/BLACK,TRIM1# |
1 | ||
| 67610-52R71B1 |
NCP131,NSP13#..U..CBU GRAY/BLACK,TRIM1# |
1 | ||
| 67610-52R62E0 |
KSP130,NSP13#..JEWL TRUFFE/BLACK,TRIM4# |
1 | ||
| 67610-52R61F0 |
KSP130,NSP13#..F..CBU GINGER/BLACK,TRIM5# |
1 | ||
| 67610-52R62B0 |
KSP130,NSP13#..JEWL GRAY/BLACK,TRIM1# |
1 | ||
| 67610-52R62B0 |
KSP130,NSP13#..F..CBU GRAY/BLACK,TRIM1# |
1 | ||
| 67610-52R72B1 |
NCP131,NSP13#..U..CBU GRAY/BLACK,TRIM1# |
1 | ||
| 67610-52R62F0 |
KSP130,NSP13#..F..CBU GINGER/BLACK,TRIM5# |
1 | ||
| 67610-52R62A0 |
KSP130,NSP13#..F..CBU MELLOW WHITE/BLACK,TRIM4# |
1 | ||
| 67610-52R62B0 |
KSP130,NSP13#..F..CBU GRAY/BLACK,TRIM10 |
1 | ||
| 67610-52R62B1 |
KSP130,NSP13#..F..CBU MD.GRAY/BLACK,TRIM13 |
1 | ||
| 67610-52R62C0 |
KSP130,NSP13#..F..CBU BLACK/BLACK,TRIM2# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
KSP130,NCP131,NSP13#..CBU |
14 | ||
| 90467-09206 |
KSP130,NCP131,NSP13#..CBU |
14 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-5C830F0 |
KSP130,NSP13#..F..CBU GINGER/BLACK,TRIM5# |
1 | ||
| 67620-5C830B0 |
KSP130,NSP13#..(F,JEWL)..CBU GRAY/BLACK,TRIM1# |
1 | ||
| 67620-5C840B1 |
NCP131,NSP13#..U..CBU GRAY/BLACK,TRIM1# |
1 | ||
| 67620-5C831F0 |
KSP130,NSP13#..F..CBU GINGER/BLACK,TRIM5# |
1 | ||
| 67620-5C841B1 |
NCP131,NSP13#..U..CBU GRAY/BLACK,TRIM1# |
1 | ||
| 67620-5C830E0 |
KSP130,NSP13#..JEWL TRUFFE/BLACK,TRIM4# |
1 | ||
| 67620-5C831E0 |
KSP130,NSP13#..JEWL TRUFEE/BLACK,TRIM4# |
1 | ||
| 67620-5C832E0 |
KSP130,NSP13#..JEWL TRUFFE/BLACK,TRIM4# |
1 | ||
| 67620-5C831B0 |
KSP130,NSP13#..(F,JEWL)..CBU GRAY/BLACK,TRIM1# |
1 | ||
| 67620-5C832B0 |
KSP130,NSP13#..F..CBU GRAY/BLACK,TRIM1# |
1 | ||
| 67620-5C832B0 |
KSP130,NSP13#..JEWL GRAY/BLACK,TRIM1# |
1 | ||
| 67620-5C842B1 |
NCP131,NSP13#..U..CBU GRAY/BLACK,TRIM1# |
1 | ||
| 67620-5C832F0 |
KSP130,NSP13#..F..CBU GINGER/BLACK,TRIM5# |
1 | ||
| 67620-5C832B1 |
KSP130,NSP13#..F..CBU MD.GRAY/BLACK,TRIM13 |
1 | ||
| 67620-5C832A0 |
KSP130,NSP13#..F..CBU MELLOW WHITE/BLACK,TRIM4# |
1 | ||
| 67620-5C832B0 |
KSP130,NSP13#..F..CBU GRAY/BLACK,TRIM10 |
1 | ||
| 67620-5C832C0 |
KSP130,NSP13#..F..CBU BLACK/BLACK,TRIM2# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-52210 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-52180 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| Common parts | ||||
| 90189-06130 | ||||
| 93567-55020 | ||||
| Linked diagrams | ||||
| 7401 | ||||

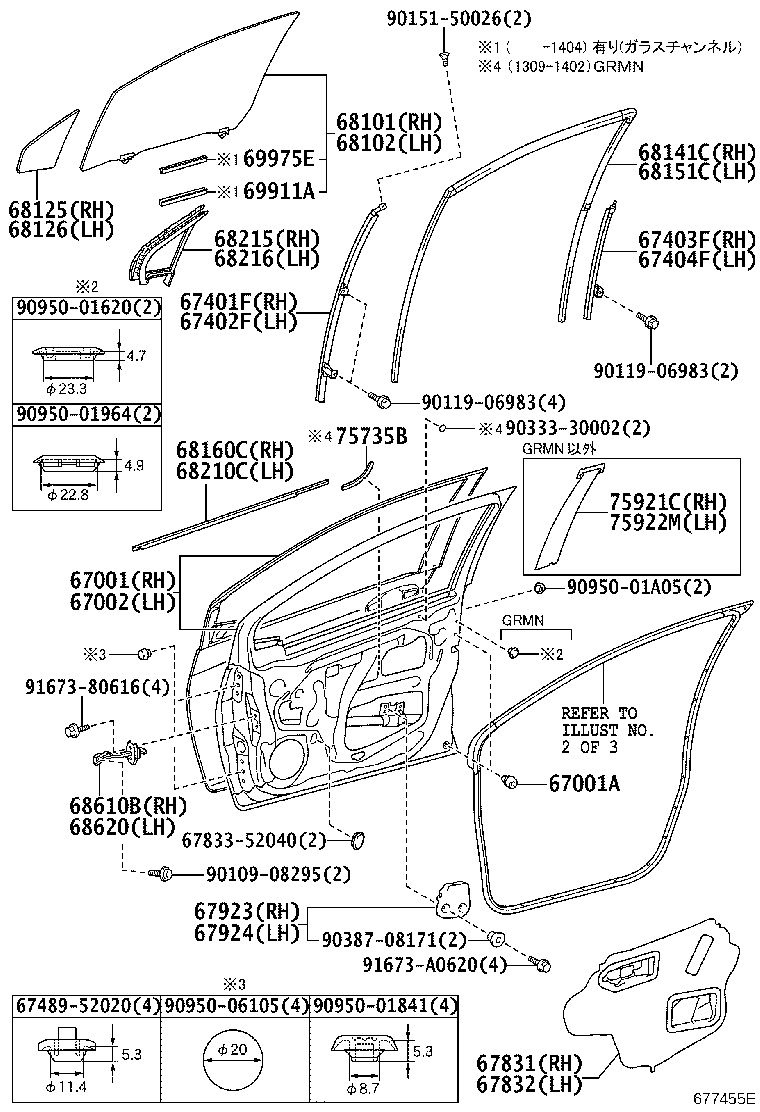

ILLUST NO. 1 OF 3(1012- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-52500 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09124 |
KSP130,NCP131,NSP13#..CBU |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-52480 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-52160 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-52150 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-52240 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-52210 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-52400 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 67831-52450 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-52260 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 67832-52320 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-52180 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-52190 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68110-52440 |
KSP130,NSP13#..F..CBU *UVIRCT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾌﾛﾝﾄｻｲﾄﾞｶﾞﾗｽ−ｽｰﾊﾟｰUVｶｯﾄ普@IRｶｯﾄ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀ[ﾄ付き) |
1 | ||
| 68110-52400 |
KSP130,NSP13#..JEWL *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68110-52310 |
NCP131,NSP13#..(RS,U)..CBU *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68110-52400 |
KSP130,NCP131,NSP13#..(F,RS,U)..CBU *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾌﾛﾝﾄｻｲﾄﾞｶﾞﾗｽ−ｽｰﾊﾟｰUVｶｯﾄ |
1 | ||
| 68110-52340 |
KSP130,NSP13#..F..CBU *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68120-52400 |
KSP130,NCP131,NSP13#..(F,RS,U)..CBU *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾌﾛﾝﾄｻｲﾄﾞｶﾞﾗｽ−ｽｰﾊﾟｰUVｶｯﾄ |
1 | ||
| 68120-52400 |
KSP130,NSP13#..JEWL *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68120-52310 |
NCP131,NSP13#..(RS,U)..CBU *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68120-52370 |
KSP130,NSP13#..F..CBU *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68120-52440 |
KSP130,NSP13#..F..CBU *UVIRCT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾌﾛﾝﾄｻｲﾄﾞｶﾞﾗｽ−ｽｰﾊﾟｰUVｶｯﾄ普@IRｶｯﾄ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀ[ﾄ付き) |
1 | ||
| 68125 - GLASS, FRONT DOOR FIX WINDOW, RH | ||||
| 68125-52030 |
KSP130,NCP131,NSP13#..CBU *TEM,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68126 - GLASS, FRONT DOOR FIX WINDOW, LH | ||||
| 68126-52030 |
KSP130,NCP131,NSP13#..CBU *TEM,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-52240 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-52220 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68160-52180 |
KSP130,NCP131,NSP13#..(F,RS,U)..CBU |
1 | ||
| 68160-52200 |
KSP130,NSP13#..JEWL |
1 | ||
| 68160-52181 |
KSP130,NCP131,NSP13#..(F,RS,U)..CBU |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68210-52180 |
KSP130,NCP131,NSP13#..(F,RS,U)..CBU |
1 | ||
| 68210-52181 |
KSP130,NCP131,NSP13#..(F,RS,U)..CBU |
1 | ||
| 68210-52200 |
KSP130,NSP13#..JEWL |
1 | ||
| 68215 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH | ||||
| 68215-52060 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 68215-52061 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 68215-52020 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 68216 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH | ||||
| 68216-52020 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 68216-52051 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 68216-52050 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-52130 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-52120 |
KSP130,NSP13#..(F,U)..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ) |
1 | ||
| 68610-52130 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 68620-52120 |
KSP130,NSP13#..(F,U)..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ & ｸﾚｰﾝ) |
1 | ||
| 69911A - CHANNEL, FRONT DOOR GLASS, NO.1 | ||||
| 69955-47010 |
KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU |
2 | ||
| 69955-47010 |
KSP130,NSP13#..F..CBU ﾌﾛﾝﾄｻｲﾄﾞｶﾞﾗｽ−ｽｰﾊﾟｰUVｶｯﾄ |
2 | ||
| 69975E - FILLER, FRONT DOOR GLASS CHANNEL, NO.1 | ||||
| 69975-47010 |
KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU |
2 | ||
| 69975-47010 |
KSP130,NSP13#..F..CBU ﾌﾛﾝﾄｻｲﾄﾞｶﾞﾗｽ−ｽｰﾊﾟｰUVｶｯﾄ |
2 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-52130 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-52130 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| Common parts | ||||
| 67489-52020 | ||||
| 67833-52040 | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90151-50026 | ||||
| 90333-30002 | ||||
| 90387-08171 | ||||
| 90950-01620 | ||||
| 90950-01841 | ||||
| 90950-01964 | ||||
| 90950-01A05 | ||||
| 90950-06105 | ||||
| 91673-80616 | ||||
| 91673-A0620 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
