NSP135-AHXGK (2010)
Toyota Vitz
(1012-1810)

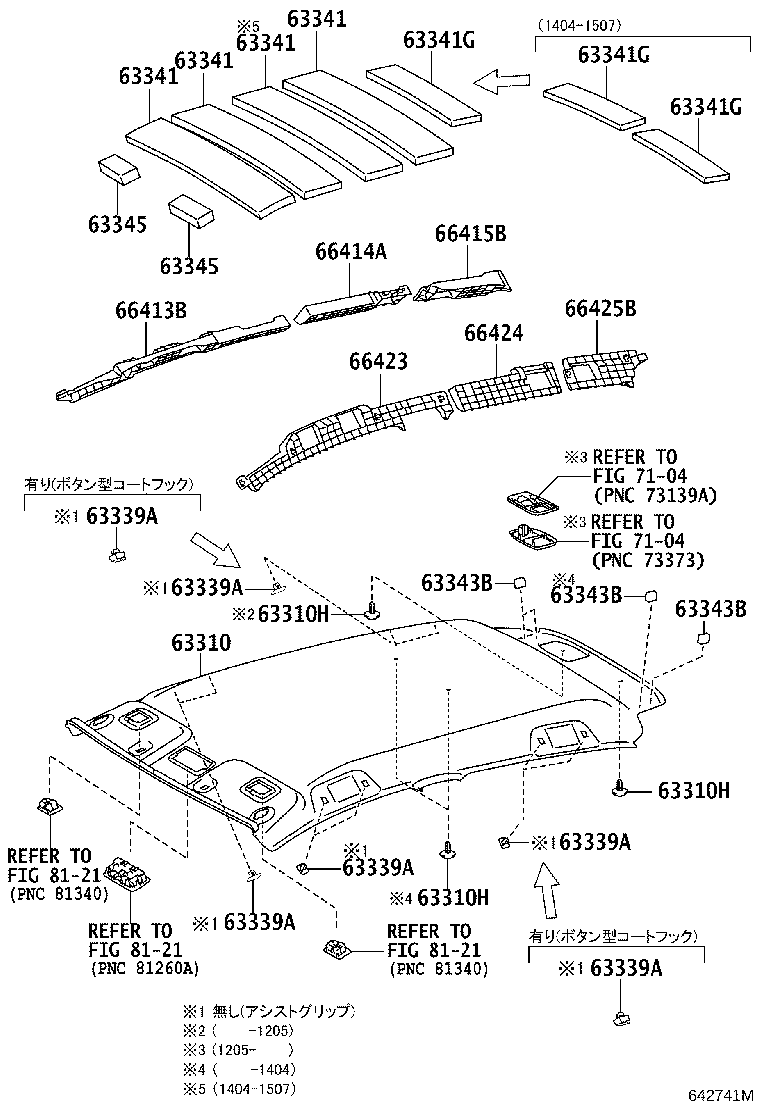

ﾅｼ(SRS ｶｰﾃﾝｼｰﾙﾄﾞ ｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-52A80B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
1 | ||
| 63310-52A60B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
1 | ||
| 63310-52A60B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,5# |
1 | ||
| 63310-52A70B0 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4# |
1 | ||
| 63310-52A81B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
1 | ||
| 63310-52E91B0 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4# |
1 | ||
| 63310-52A81B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5# |
1 | ||
| 63310-52A80B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,5# |
1 | ||
| 63310-52E90B0 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4# |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-05164B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5# |
3 | ||
| 90467-05164B0 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4# |
4 | ||
| 90467-05164B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
4 | ||
| 90467-05164B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,5# |
4 | ||
| 90467-05164B0 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4# |
3 | ||
| 90467-05164B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
3 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-05164B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5# |
3 | ||
| 90467-05164B0 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4# |
4 | ||
| 90467-05164B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
4 | ||
| 90467-05164B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,5# |
4 | ||
| 90467-05164B0 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4# |
3 | ||
| 90467-05164B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
3 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-05164B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5# |
3 | ||
| 90467-05164B0 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4# |
4 | ||
| 90467-05164B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
4 | ||
| 90467-05164B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,5# |
4 | ||
| 90467-05164B0 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4# |
3 | ||
| 90467-05164B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
3 | ||
| 63339A - COVER, ROOF HEADLINING SERVICE HOLE | ||||
| 74631-52060B1 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5#,ｺｰﾄﾌｯｸ付き |
1 | ||
| 63339-52030B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5# |
5 | ||
| 63339-52030B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
2 | ||
| 63339-52030B0 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4# |
5 | ||
| 74631-52060B1 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4#,ｺｰﾄﾌｯｸ付き |
1 | ||
| 63339A - COVER, ROOF HEADLINING SERVICE HOLE | ||||
| 63339-52030B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5# |
5 | ||
| 63339-52030B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
2 | ||
| 74631-52060B1 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5#,ｺｰﾄﾌｯｸ付き |
1 | ||
| 63339-52030B0 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4# |
5 | ||
| 74631-52060B1 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4#,ｺｰﾄﾌｯｸ付き |
1 | ||
| 63339A - COVER, ROOF HEADLINING SERVICE HOLE | ||||
| 63339-52030B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5# |
5 | ||
| 63339-52030B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
2 | ||
| 74631-52060B1 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5#,ｺｰﾄﾌｯｸ付き |
1 | ||
| 63339-52030B0 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4# |
5 | ||
| 74631-52060B1 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4#,ｺｰﾄﾌｯｸ付き |
1 | ||
| 63339A - COVER, ROOF HEADLINING SERVICE HOLE | ||||
| 63339-52030B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5# |
5 | ||
| 63339-52030B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
2 | ||
| 74631-52060B1 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5#,ｺｰﾄﾌｯｸ付き |
1 | ||
| 63339-52030B0 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4# |
5 | ||
| 74631-52060B1 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4#,ｺｰﾄﾌｯｸ付き |
1 | ||
| 63339A - COVER, ROOF HEADLINING SERVICE HOLE | ||||
| 74631-52060B1 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5#,ｺｰﾄﾌｯｸ付き |
1 | ||
| 63339-52030B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5# |
5 | ||
| 63339-52030B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
2 | ||
| 63339-52030B0 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4# |
5 | ||
| 74631-52060B1 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4#,ｺｰﾄﾌｯｸ付き |
1 | ||
| 63339A - COVER, ROOF HEADLINING SERVICE HOLE | ||||
| 74631-52060B1 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5#,ｺｰﾄﾌｯｸ付き |
1 | ||
| 63339-52030B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5# |
5 | ||
| 63339-52030B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
2 | ||
| 63339-52030B0 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4# |
5 | ||
| 74631-52060B1 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4#,ｺｰﾄﾌｯｸ付き |
1 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-52250 |
KSP130,NCP131,NSP13#..CBU |
3 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-52250 |
KSP130,NCP131,NSP13#..CBU |
3 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-52250 |
KSP130,NCP131,NSP13#..CBU |
3 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-52250 |
KSP130,NCP131,NSP13#..CBU |
3 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63341-52290 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63341-52290 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63341-52290 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 63343B - PAD, ROOF SILENCER, REAR | ||||
| 63343-52080 |
KSP130,NCP131,NSP13#..CBU |
4 | ||
| 63343B - PAD, ROOF SILENCER, REAR | ||||
| 63343-52080 |
KSP130,NCP131,NSP13#..CBU |
4 | ||
| 63343B - PAD, ROOF SILENCER, REAR | ||||
| 63343-52080 |
KSP130,NCP131,NSP13#..CBU |
4 | ||
| 63345 - PAD, ROOF SILENCER, NO.5 | ||||
| 63345-52010 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 63345 - PAD, ROOF SILENCER, NO.5 | ||||
| 63345-52010 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66416-52040 |
KSP130,NCP131,NSP13#..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 66413-52290 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 66416-52040 |
KSP130,NSP13#..(F,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-52280 |
KSP130,NSP13#..(F,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| 66414-52300 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 66414-52280 |
KSP130,NCP131,NSP13#..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66414-52310 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66426-52030 |
KSP130,NCP131,NSP13#..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 66426-52030 |
KSP130,NSP13#..(F,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| 66423-52290 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-52220 |
KSP130,NSP13#..(F,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| 66424-52290 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 66424-52220 |
KSP130,NCP131,NSP13#..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66424-52300 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| Linked diagrams | ||||
| 7104 | ||||
| 8121 | ||||
(1012-1810)

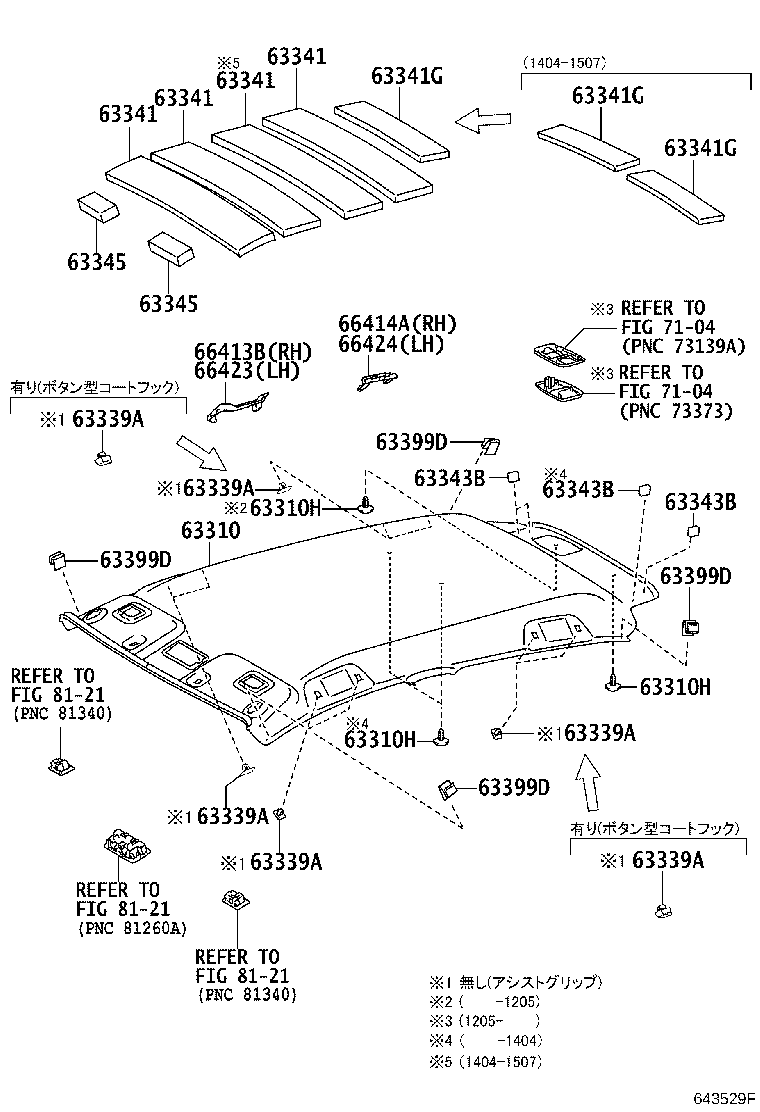

ｱﾘ(SRS ｶｰﾃﾝｼｰﾙﾄﾞ ｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-52A80B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
1 | ||
| 63310-52A60B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
1 | ||
| 63310-52A60B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,5# |
1 | ||
| 63310-52A70B0 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4# |
1 | ||
| 63310-52A81B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
1 | ||
| 63310-52E91B0 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4# |
1 | ||
| 63310-52A81B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5# |
1 | ||
| 63310-52A80B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,5# |
1 | ||
| 63310-52E90B0 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4# |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-05164B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5# |
3 | ||
| 90467-05164B0 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4# |
4 | ||
| 90467-05164B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
4 | ||
| 90467-05164B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,5# |
4 | ||
| 90467-05164B0 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4# |
3 | ||
| 90467-05164B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
3 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-05164B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5# |
3 | ||
| 90467-05164B0 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4# |
4 | ||
| 90467-05164B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
4 | ||
| 90467-05164B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,5# |
4 | ||
| 90467-05164B0 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4# |
3 | ||
| 90467-05164B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
3 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-05164B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5# |
3 | ||
| 90467-05164B0 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4# |
4 | ||
| 90467-05164B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
4 | ||
| 90467-05164B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,5# |
4 | ||
| 90467-05164B0 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4# |
3 | ||
| 90467-05164B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
3 | ||
| 63339A - COVER, ROOF HEADLINING SERVICE HOLE | ||||
| 74631-52060B1 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5#,ｺｰﾄﾌｯｸ付き |
1 | ||
| 63339-52030B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5# |
5 | ||
| 63339-52030B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
2 | ||
| 63339-52030B0 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4# |
5 | ||
| 74631-52060B1 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4#,ｺｰﾄﾌｯｸ付き |
1 | ||
| 63339A - COVER, ROOF HEADLINING SERVICE HOLE | ||||
| 74631-52060B1 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5#,ｺｰﾄﾌｯｸ付き |
1 | ||
| 63339-52030B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5# |
5 | ||
| 63339-52030B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
2 | ||
| 63339-52030B0 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4# |
5 | ||
| 74631-52060B1 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4#,ｺｰﾄﾌｯｸ付き |
1 | ||
| 63339A - COVER, ROOF HEADLINING SERVICE HOLE | ||||
| 74631-52060B1 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5#,ｺｰﾄﾌｯｸ付き |
1 | ||
| 63339-52030B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5# |
5 | ||
| 63339-52030B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
2 | ||
| 63339-52030B0 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4# |
5 | ||
| 74631-52060B1 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4#,ｺｰﾄﾌｯｸ付き |
1 | ||
| 63339A - COVER, ROOF HEADLINING SERVICE HOLE | ||||
| 74631-52060B1 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5#,ｺｰﾄﾌｯｸ付き |
1 | ||
| 63339-52030B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5# |
5 | ||
| 63339-52030B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
2 | ||
| 63339-52030B0 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4# |
5 | ||
| 74631-52060B1 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4#,ｺｰﾄﾌｯｸ付き |
1 | ||
| 63339A - COVER, ROOF HEADLINING SERVICE HOLE | ||||
| 74631-52060B1 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5#,ｺｰﾄﾌｯｸ付き |
1 | ||
| 63339-52030B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5# |
5 | ||
| 63339-52030B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
2 | ||
| 63339-52030B0 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4# |
5 | ||
| 74631-52060B1 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4#,ｺｰﾄﾌｯｸ付き |
1 | ||
| 63339A - COVER, ROOF HEADLINING SERVICE HOLE | ||||
| 63339-52030B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5# |
5 | ||
| 63339-52030B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
2 | ||
| 74631-52060B1 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5#,ｺｰﾄﾌｯｸ付き |
1 | ||
| 63339-52030B0 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4# |
5 | ||
| 74631-52060B1 |
KSP130,NSP13#..JEWL LT.GRAY,TRIM1#,4#,ｺｰﾄﾌｯｸ付き |
1 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-52250 |
KSP130,NCP131,NSP13#..CBU |
3 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-52250 |
KSP130,NCP131,NSP13#..CBU |
3 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-52250 |
KSP130,NCP131,NSP13#..CBU |
3 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-52250 |
KSP130,NCP131,NSP13#..CBU |
3 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63341-52290 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63341-52290 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63341-52290 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 63343B - PAD, ROOF SILENCER, REAR | ||||
| 63343-52080 |
KSP130,NCP131,NSP13#..CBU |
4 | ||
| 63343B - PAD, ROOF SILENCER, REAR | ||||
| 63343-52080 |
KSP130,NCP131,NSP13#..CBU |
4 | ||
| 63343B - PAD, ROOF SILENCER, REAR | ||||
| 63343-52080 |
KSP130,NCP131,NSP13#..CBU |
4 | ||
| 63345 - PAD, ROOF SILENCER, NO.5 | ||||
| 63345-52010 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 63345 - PAD, ROOF SILENCER, NO.5 | ||||
| 63345-52010 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-52020 |
KSP130,NSP13#..(F,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
4 | ||
| 63399-52020 |
KSP130,NCP131,NSP13#..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
4 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-52020 |
KSP130,NSP13#..(F,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
4 | ||
| 63399-52020 |
KSP130,NCP131,NSP13#..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
4 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-52020 |
KSP130,NSP13#..(F,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
4 | ||
| 63399-52020 |
KSP130,NCP131,NSP13#..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
4 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-52020 |
KSP130,NSP13#..(F,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
4 | ||
| 63399-52020 |
KSP130,NCP131,NSP13#..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
4 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66416-52040 |
KSP130,NCP131,NSP13#..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 66413-52290 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 66416-52040 |
KSP130,NSP13#..(F,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-52280 |
KSP130,NSP13#..(F,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| 66414-52300 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 66414-52280 |
KSP130,NCP131,NSP13#..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66426-52030 |
KSP130,NCP131,NSP13#..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 66426-52030 |
KSP130,NSP13#..(F,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| 66423-52290 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-52220 |
KSP130,NSP13#..(F,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| 66424-52290 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 66424-52220 |
KSP130,NCP131,NSP13#..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| Linked diagrams | ||||
| 7104 | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
