NSP135-AHXGK (2010)

Toyota Vitz

Production Dec 2010 - Apr 2014
Engine 1NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )1NRFE..NSP135

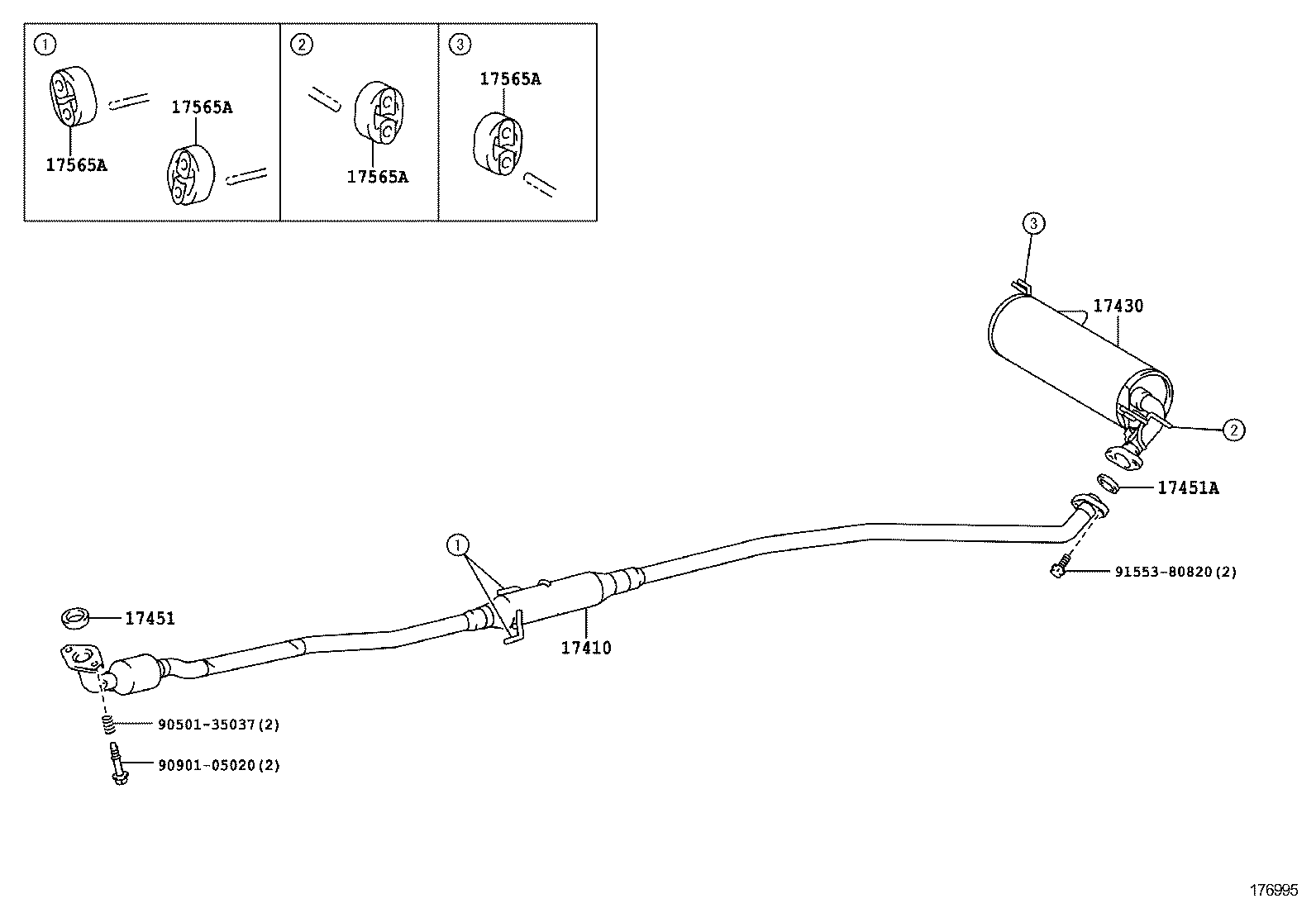

Click highlighted areas on diagram

diagram 17410 17430 17451 17451A 17565A 17565A 17565A 17565A 9050135037 9090105020 9155380820
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-47160

1NRFE..NSP135..CBU

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-47120

1NRFE..NSP135..CBU

 1
17451 - GASKET, EXHAUST PIPE
17451-21070

1N#..NCP131,NSP13#..CBU

 1
17451A - GASKET, EXHAUST PIPE, NO.2
90917-06039

1NRFE..NSP13#..CBU

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-47010

1KRFE,1NRFE..KSP130,NSP13#..CBU

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-47010

1KRFE,1NRFE..KSP130,NSP13#..CBU

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-47010

1KRFE,1NRFE..KSP130,NSP13#..CBU

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-47010

1KRFE,1NRFE..KSP130,NSP13#..CBU

 4
Common parts
90501-35037
90901-05020
91553-80820
