NSP135-AHXEK (2014)
Toyota Vitz

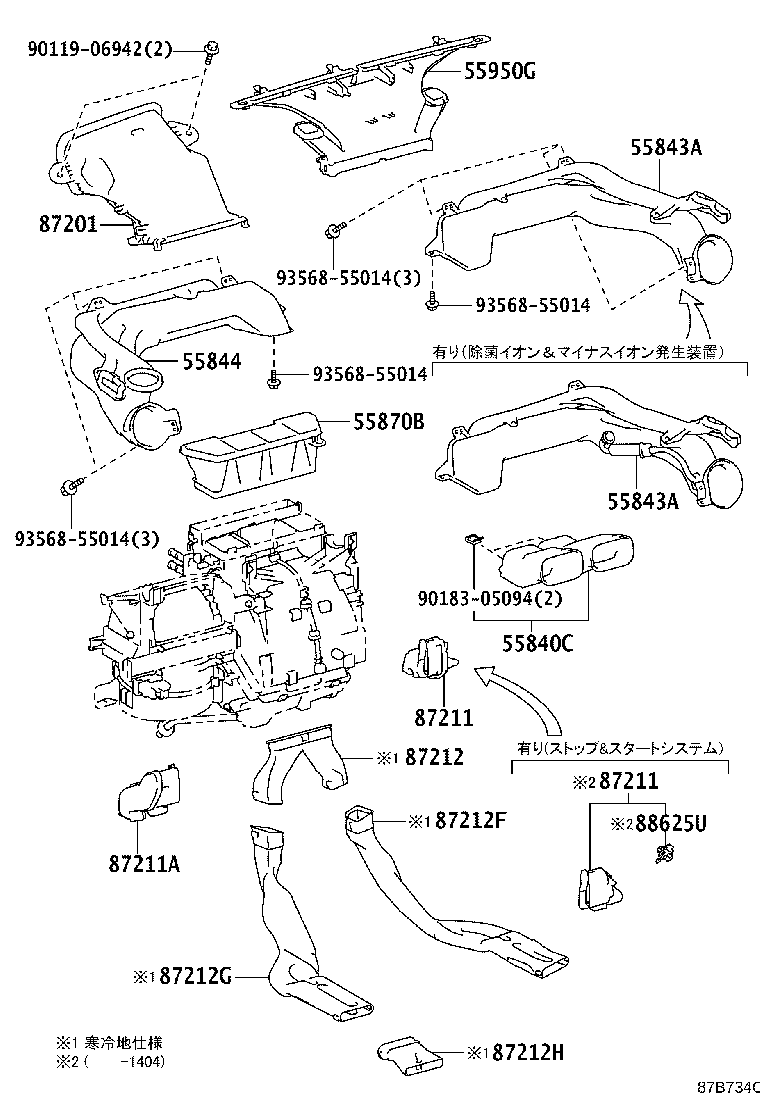

ILLUST NO. 2 OF 3(1012-1701)
ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55840C - DUCT ASSY, HEATER TO REGISTER, NO.6 | ||||
| 55840-52100 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55840-52101 |
NCP131,NSP135..CBU |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-52350 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55084-52120 |
NCP131,NSP135..(JEWL,U)..CBU |
1 | ||
| 55084-52110 |
NCP131,NSP135..(F,RS)..CBU |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-52350 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55084-52120 |
NCP131,NSP135..(JEWL,U)..CBU |
1 | ||
| 55084-52110 |
NCP131,NSP135..(F,RS)..CBU |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-52260 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55085-52050 |
NCP131,NSP135..CBU |
1 | ||
| 55870B - DUCT ASSY, HEATER TO REGISTER | ||||
| 55870-52040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55870-52040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-52170 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55950-52170 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-52140 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 87201-52140 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-52080 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 87211-52080 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-52080 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 87211-52080 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-52050 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 87211-52050 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87215-52050 |
KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
1 | ||
| 87215-52050 |
KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87212-52100 |
KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
1 | ||
| 87212-52100 |
KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87213-52070 |
KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
1 | ||
| 87213-52070 |
KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87216-52040 |
KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
1 | ||
| 87216-52040 |
KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
1 | ||
| Common parts | ||||
| 90119-06942 | ||||
| 90183-05094 | ||||
| 93568-55014 | ||||
