NSP135-AHXEK (2014)

Toyota Vitz

Production Apr 2014 - Jan 2017
Engine 1NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )

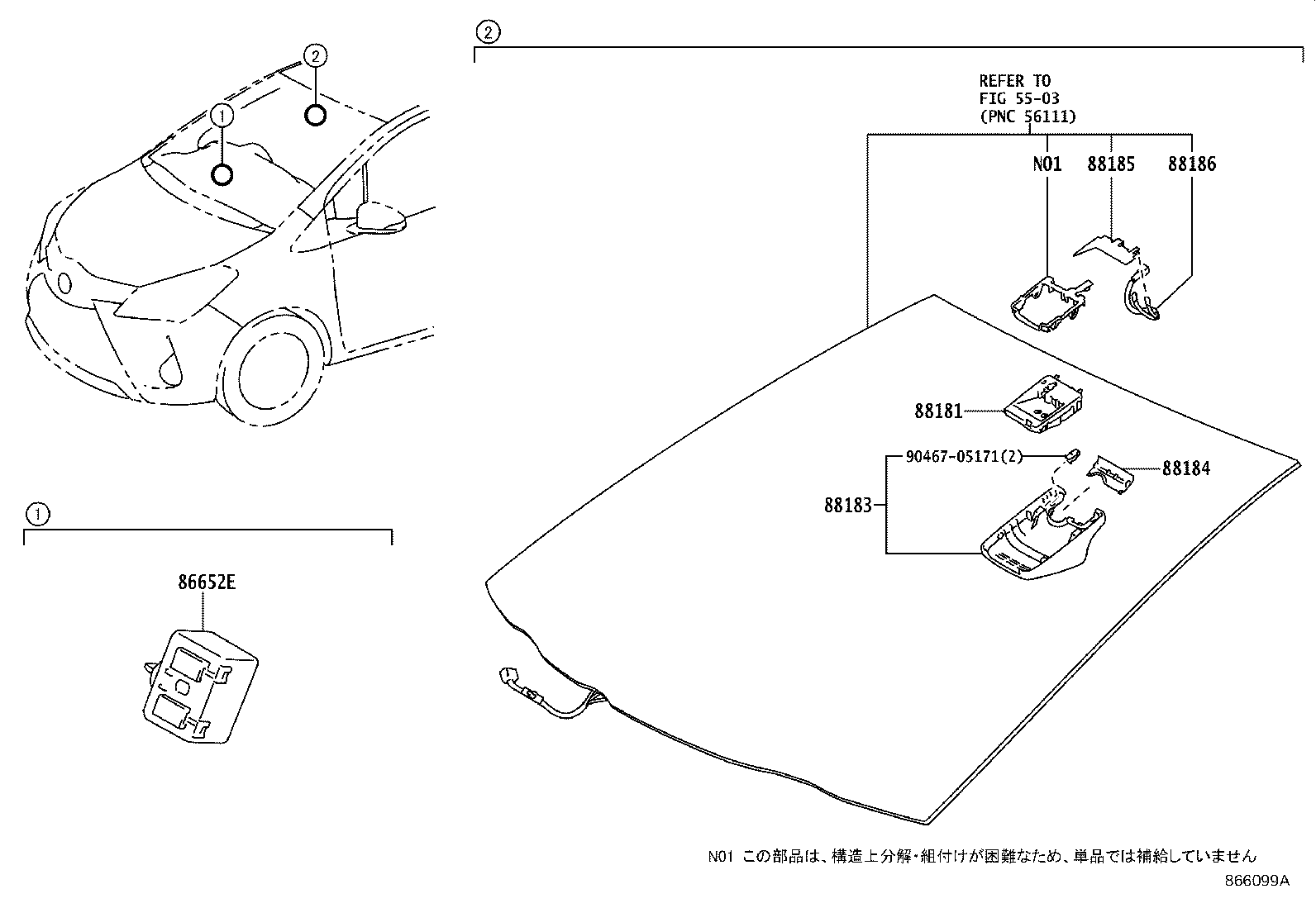

Click highlighted areas on diagram

diagram 5503 86652E 88181 88183 88184 88185 88186 9046705171
Part # Description Qty Price
86652E - BUZZER, PRE-COLLISION CITY
86652-50010

KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU

 1
86652-50010

KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU

Toyota Safety Sense−無し

 1
86652-50010

KSP130,NSP13#..F..CBU

Toyota Safety Sense−有り

 1
88181 - SENSOR, PRE-COLLISION CITY
88181-0D010

KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU

Toyota Safety Sense−無し

 1
88181-0D010

KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU

Toyota Safety Sense−無し,(L)

 1
88181-52030

KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU

(J)

 1
88181-0D010

KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU

(L)

 1
88181-0D010

KSP130,NSP13#..F..CBU

Toyota Safety Sense−有り

 1
88181-52030

KSP130,NSP13#..F..CBU

Toyota Safety Sense−有り,(J)

 1
88181-0D010

KSP130,NSP13#..F..CBU

Toyota Safety Sense−有り,(L)

 1
88181-0D010

KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU

 1
88183 - COVER, PRE-COLLISION CITY
88183-52020

KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU

 1
88183-52020

KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU

Toyota Safety Sense−無し

 1
88183-52020

KSP130,NSP13#..F..CBU

Toyota Safety Sense−有り

 1
88184 - COVER, PRE-COLLISION CITY, 2ND
88184-52020

KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU

Toyota Safety Sense−無し

 1
88184-52020

KSP130,NSP13#..F..CBU

Toyota Safety Sense−有り

 1
88184-52020

KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU

 1
Common parts
90467-05171
Linked diagrams
5503
