NSP135-AHXEK (2010)

Toyota Vitz

Production Dec 2010 - Apr 2014
Engine 1NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )NSP135

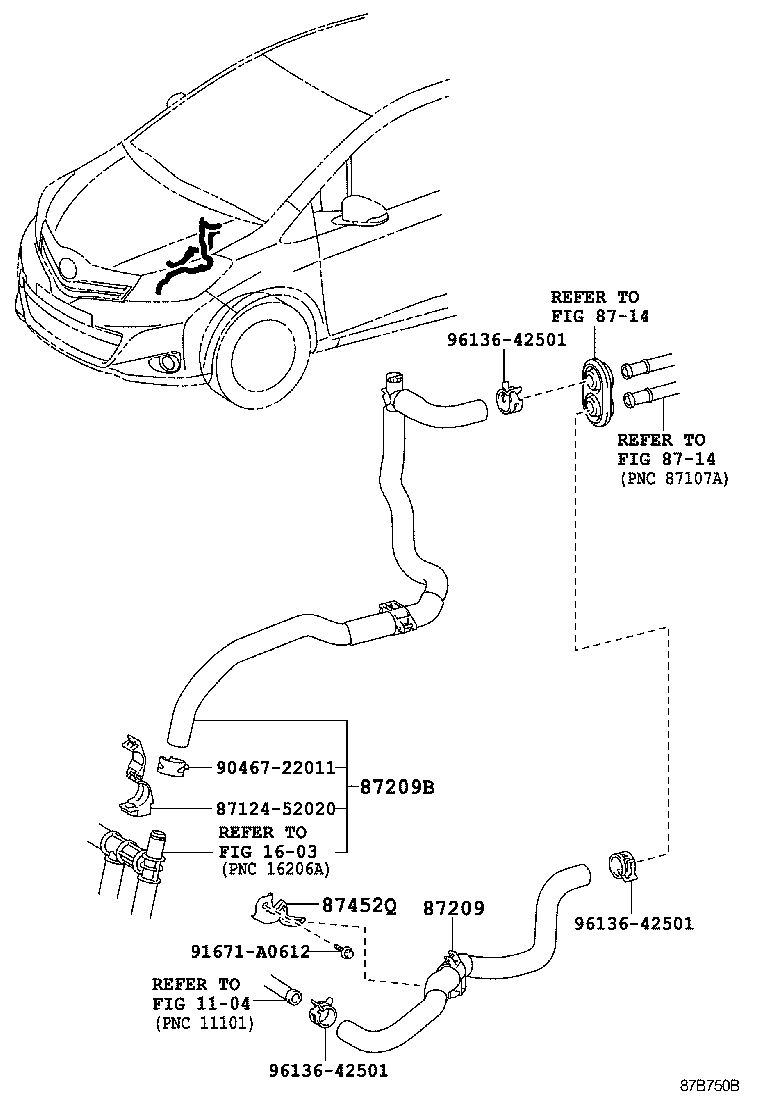

Click highlighted areas on diagram

diagram 1104 1603 8712452020 8714 8714 87209 87209B 87452Q 9046722011 91671A0612 9613642501 9613642501 9613642501
Part # Description Qty Price
87209 - HOSE SUB-ASSY, WATER
87209-52260

NSP13#..CBU

 1
87209B - HOSE SUB-ASSY, WATER, B
87209-52290

NSP135..CBU

 1
87452Q - BRACKET, HEATER, NO.1
87452-52070

NSP13#..CBU

 1
Common parts
87124-52020
90467-22011
91671-A0612
96136-42501
Linked diagrams
1104
1603
8714
