NSP135-AHXEK (2010)
Toyota Vitz

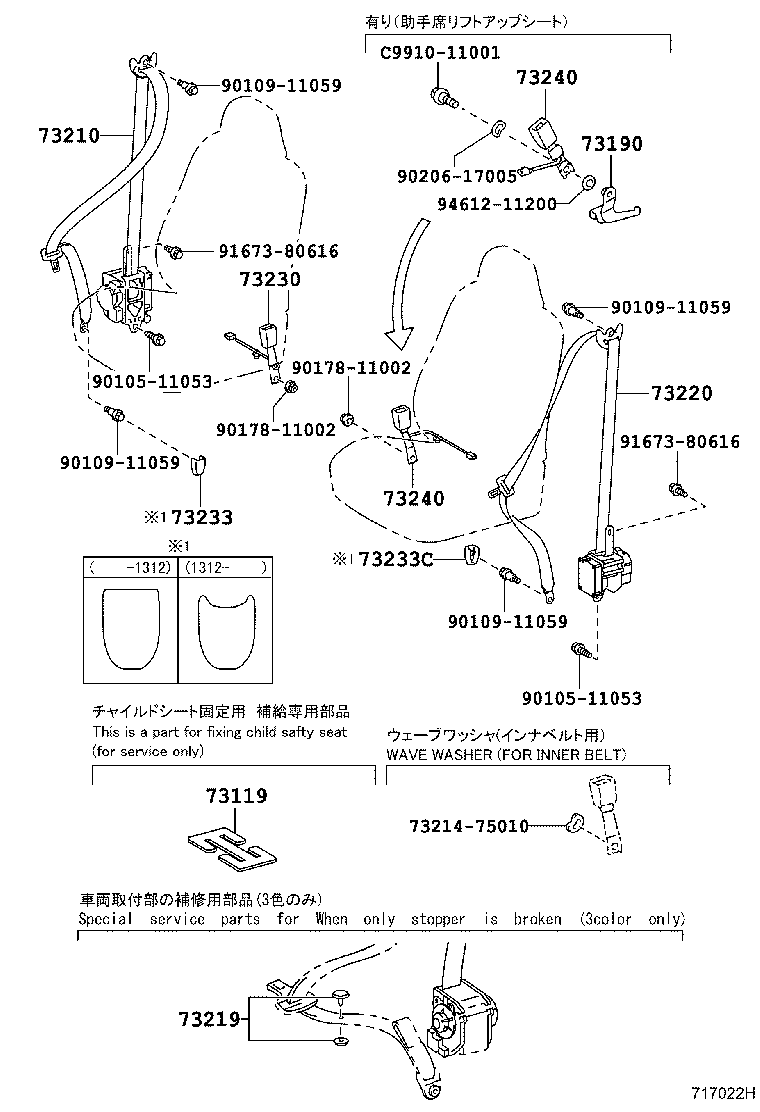

ILLUST NO. 1 OF 2(1012- )
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-52690C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 73210-52690C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
KSP130,NCP131,NSP13#..CBU ﾌﾞﾗｯｸ |
1 | ||
| 73219-33030 |
KSP130,NCP131,NSP13#..CBU ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33020 |
KSP130,NCP131,NSP13#..CBU ｸﾞﾚｰ |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-52830C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 73220-52830C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-52550C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,5# |
1 | ||
| 73230-52550C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 73230-52550C0 |
NSP13#..U..CBU ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ),BLACK,TRIM1# |
1 | ||
| 73230-52550C0 |
NSP13#..U..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),BLACK,TRIM1# |
1 | ||
| 73230-52550C0 |
NSP13#..U..CBU ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ & ｸﾚｰﾝ),BLACK,TRIM1# |
1 | ||
| 73230-52850C0 |
NCP131,NSP13#..U..CBU BLACK,TRIM1# |
1 | ||
| 73230-52850C0 |
NSP13#..U..CBU ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ&運転席ﾊﾟﾜｰｼｰﾄ),BLACK,TRIM1# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1#,ｲﾗｽﾄ参照 |
1 | ||
| 73233-52010C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1#,ｲﾗｽﾄ参照 |
1 | ||
| 73233-52010C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,2#,4#,5#,ｲﾗｽﾄ参照 |
1 | ||
| 73233-60020C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,2#,4#,5#,ｲﾗｽﾄ参照 |
1 | ||
| 73233C - COVER, LAP BELT OUTER ANCHOR, LH | ||||
| 73233-52010C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,2#,4#,5#,ｲﾗｽﾄ参照 |
1 | ||
| 73233-52010C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1#,ｲﾗｽﾄ参照 |
1 | ||
| 73233-60020C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,2#,4#,5#,ｲﾗｽﾄ参照 |
1 | ||
| 73233-60020C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1#,ｲﾗｽﾄ参照 |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-52830C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,5# |
1 | ||
| 73230-52830C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 73230-52680C0 |
NSP13#..U..CBU ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ&運転席ﾊﾟﾜｰｼｰﾄ),BLACK,TRIM1# |
1 | ||
| 73230-52830C0 |
NSP13#..U..CBU ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ&運転席ﾊﾟﾜｰｼｰﾄ),BLACK,TRIM1# |
1 | ||
| 73230-52680C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 73230-52680C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-52830C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,5# |
1 | ||
| 73230-52830C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 73230-52680C0 |
NSP13#..U..CBU ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ&運転席ﾊﾟﾜｰｼｰﾄ),BLACK,TRIM1# |
1 | ||
| 73230-52830C0 |
NSP13#..U..CBU ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ&運転席ﾊﾟﾜｰｼｰﾄ),BLACK,TRIM1# |
1 | ||
| 73230-52680C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 73230-52680C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-11053 | ||||
| 90109-11059 | ||||
| 90178-11002 | ||||
| 90206-17005 | ||||
| 91673-80616 | ||||
| 94612-11200 | ||||
| C9910-11001 | ||||

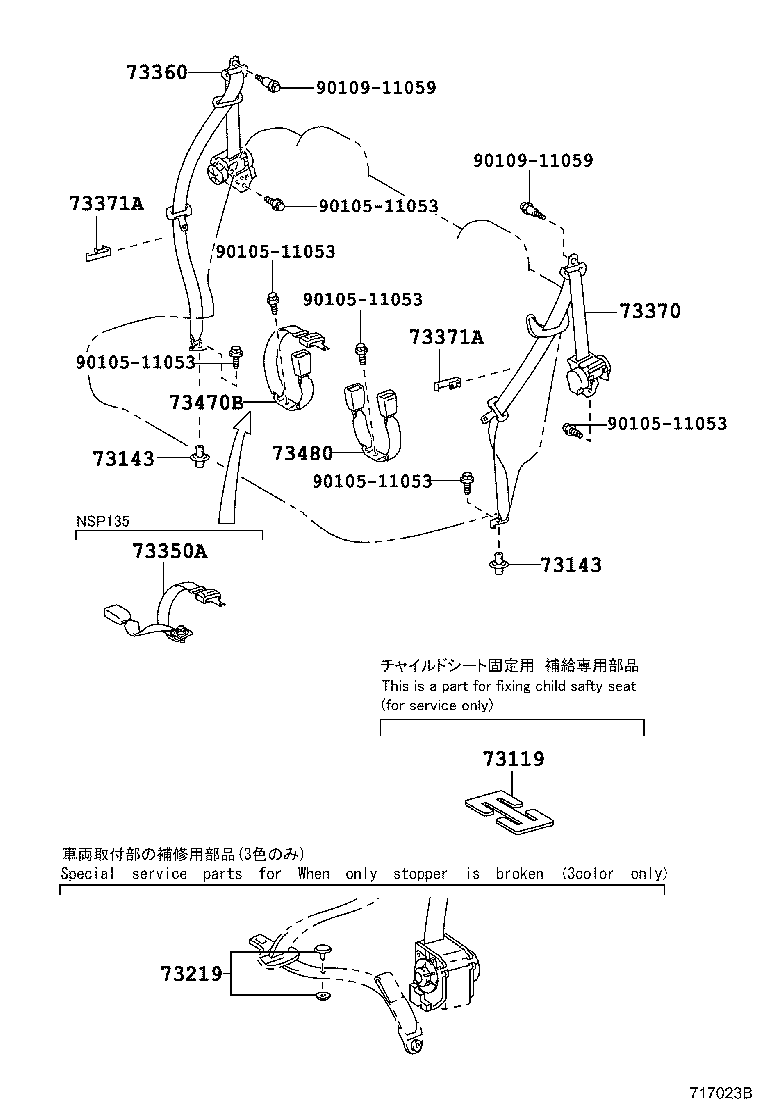

ILLUST NO. 2 OF 2(1012-1205)
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 73143 - SEAL, SEAT BELT HOLE | ||||
| 73143-52010 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 73143 - SEAL, SEAT BELT HOLE | ||||
| 73143-52010 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
KSP130,NCP131,NSP13#..CBU ﾌﾞﾗｯｸ |
1 | ||
| 73219-33030 |
KSP130,NCP131,NSP13#..CBU ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33020 |
KSP130,NCP131,NSP13#..CBU ｸﾞﾚｰ |
1 | ||
| 73350A - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER | ||||
| 73300-52220C1 |
NSP135..U..CBU BLACK,TRIM1# |
1 | ||
| 73300-52220C1 |
NSP135..F..CBU BLACK,TRIM1#,5# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-52330C2 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,5# |
1 | ||
| 73360-52330C1 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 73360-52330C2 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 73360-52330C1 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 73360-52330C2 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-52290C2 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 73370-52290C2 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,5# |
1 | ||
| 73370-52290C2 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 73370-52290C1 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 73370-52290C1 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-44020C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,5# |
2 | ||
| 73371-44020C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
2 | ||
| 73371-44020C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,2#,4#,5# |
2 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-44020C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,5# |
2 | ||
| 73371-44020C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
2 | ||
| 73371-44020C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,2#,4#,5# |
2 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-52520C0 |
NSP135..U..CBU BLACK,TRIM1# |
1 | ||
| 73470-52520C0 |
NSP135..F..CBU BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-52370C1 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 73480-52370C1 |
NSP135..F..CBU BLACK,TRIM1#,2#,4#,5# |
1 | ||
| Common parts | ||||
| 90105-11053 | ||||
| 90109-11059 | ||||

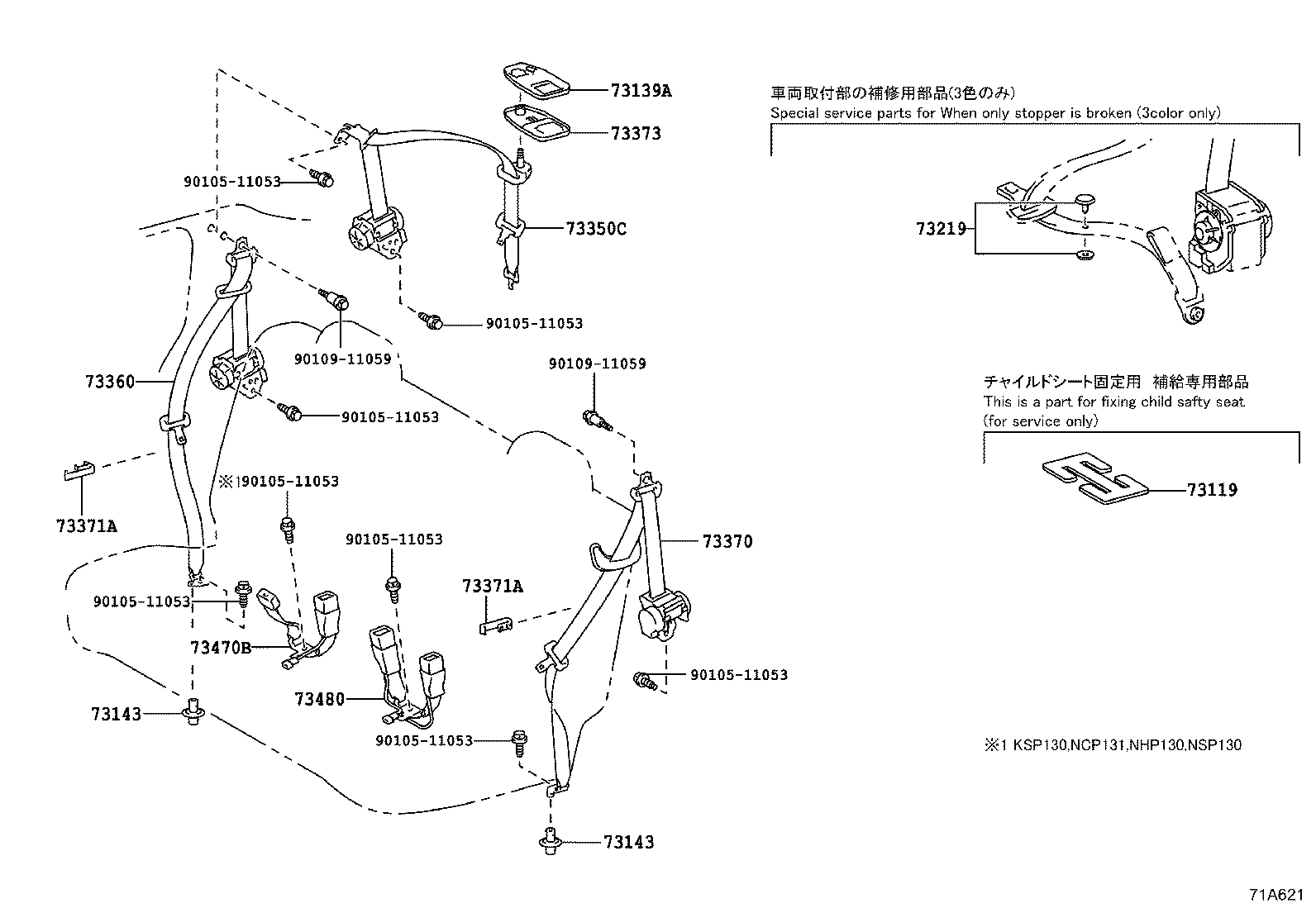

ILLUST NO. 2 OF 2(1205- )
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 73139A - COVER, SEAT BELT ANCHOR | ||||
| 73139-52060B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
1 | ||
| 73139-52060B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5# |
1 | ||
| 73143 - SEAL, SEAT BELT HOLE | ||||
| 73143-52010 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 73143 - SEAL, SEAT BELT HOLE | ||||
| 73143-52010 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
KSP130,NCP131,NSP13#..CBU ﾌﾞﾗｯｸ |
1 | ||
| 73219-33030 |
KSP130,NCP131,NSP13#..CBU ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33020 |
KSP130,NCP131,NSP13#..CBU ｸﾞﾚｰ |
1 | ||
| 73350C - BELT ASSY, REAR SEAT, OUTER CENTER | ||||
| 73310-52070C1 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 73310-52070C1 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-52330C2 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,5# |
1 | ||
| 73360-52330C1 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 73360-52330C2 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 73360-52330C1 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 73360-52330C2 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-52290C2 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 73370-52290C2 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,5# |
1 | ||
| 73370-52290C2 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 73370-52290C1 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 73370-52290C1 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-44020C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,5# |
2 | ||
| 73371-44020C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
2 | ||
| 73371-44020C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,2#,4#,5# |
2 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-44020C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,5# |
2 | ||
| 73371-44020C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
2 | ||
| 73371-44020C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,2#,4#,5# |
2 | ||
| 73373 - COVER, REAR SEAT SHOULDER BELT | ||||
| 73137-52060B0 |
KSP130,NSP13#..F..CBU LT.GRAY,TRIM1#,2#,4#,5# |
1 | ||
| 73137-52060B0 |
NCP131,NSP13#..(RS,U)..CBU LT.GRAY,TRIM1# |
1 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-52520C0 |
NSP135..U..CBU BLACK,TRIM1# |
1 | ||
| 73470-52520C0 |
NSP135..F..CBU BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-52370C1 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 73480-52370C1 |
NSP135..F..CBU BLACK,TRIM1#,2#,4#,5# |
1 | ||
| Common parts | ||||
| 90105-11053 | ||||
| 90109-11059 | ||||
