NSP135-AHXEK (2010)

Toyota Vitz

Production Dec 2010 - Apr 2014
Engine 1NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1012-1701)F,JEWL,U

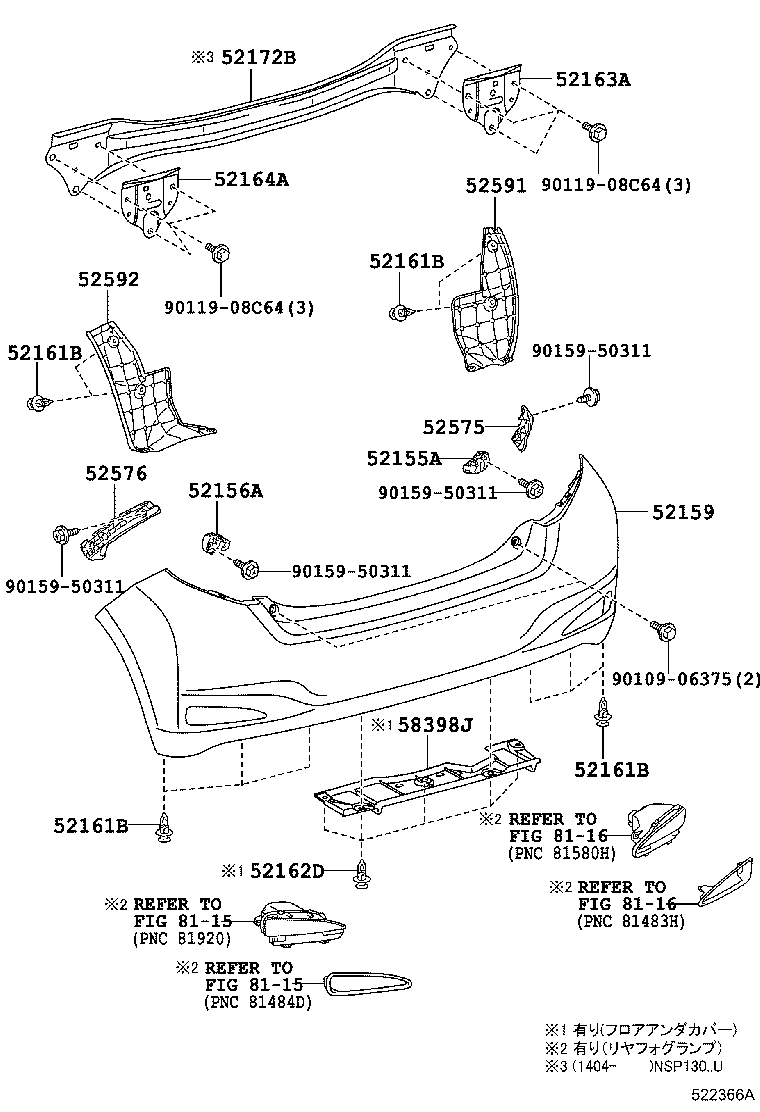

Click highlighted areas on diagram

diagram 52155A 52156A 52159 52161B 52161B 52161B 52161B 52162D 52163A 52164A 52172B 52575 52576 52591 52592 58398J 8115 8115 8116 8116 9010906375 9011908C64 9011908C64 9015950311 9015950311 9015950311 9015950311
Part # Description Qty Price
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-52120

KSP130,NCP131,NSP13#..CBU

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-52120

KSP130,NCP131,NSP13#..CBU

 1
52159 - COVER, REAR BUMPER
52159-52740D0

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

SUPER RED 5,3P0

 1
52159-52740D1

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

ROSE ME.OP.,3P3

 1
52159-52740A0

KSP130,NCP131,NSP13#..(F,U)..CBU

SUPER WHITE 2,040

 1
52159-52740B2

KSP130,NCP131,NSP13#..(F,U)..CBU

GIN BUCK ME.,1J1

 1
52159-52740B1

KSP130,NCP131,NSP13#..(F,U)..CBU

GRAY ME.,1G3

 1
52159-52740J0

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

LT.BLUE M.M.,8S7

 1
52159-52740C0

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

BLACK MC.,209

 1
52159-52740A1

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

WHITE PEARL CS.,070

 1
52159-52740E0

KSP130,NSP13#..(F,JEWL)..CBU

DK. BROWN M.M.,4U3

 1
52159-52740B0

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

SILVER ME.,1F7

 1
52159-52740J4

KSP130,NSP13#..F..CBU

DK.BLUE MC.,8S6

 1
52159-52740K1

KSP130,NSP13#..F..CBU

LT.PURPLE M.M.,9AE

 1
52159-52740F1

KSP130,NSP13#..F..CBU

SILKY GOLD M.M.,5A7

 1
52159-52740D4

KSP130,NSP13#..F..CBU

DEEP RED M.M.,3R9

 1
52161B - PIECE, REAR BUMPER
52161-16010

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

 10
52161B - PIECE, REAR BUMPER
52161-16010

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

 10
52161B - PIECE, REAR BUMPER
52161-16010

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

 10
52161B - PIECE, REAR BUMPER
52161-16010

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

 10
52163A - PLATE, REAR BUMPER, RH
52163-52080

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

 1
52164A - PLATE, REAR BUMPER, LH
52164-52080

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-52171

KSP130,NCP131,NSP13#..CBU

 1
52575-52170

KSP130,NCP131,NSP13#..CBU

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-52150

KSP130,NCP131,NSP13#..CBU

 1
52576-52151

KSP130,NCP131,NSP13#..CBU

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-52300

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-52290

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

 1
Common parts
90109-06375
90119-08C64
90159-50311
Linked diagrams
8115
8116
