Toyota Vitz NSP135 BRAKE TUBE & CLAMP

Manufacturers Home
Toyota
JP
VITZ
NSP135-AHXEK (2010)
4708 - BRAKE TUBE & CLAMP

NSP135-AHXEK (2010)

Toyota Vitz

Production Dec 2010 - Apr 2014

Engine 1NRFE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

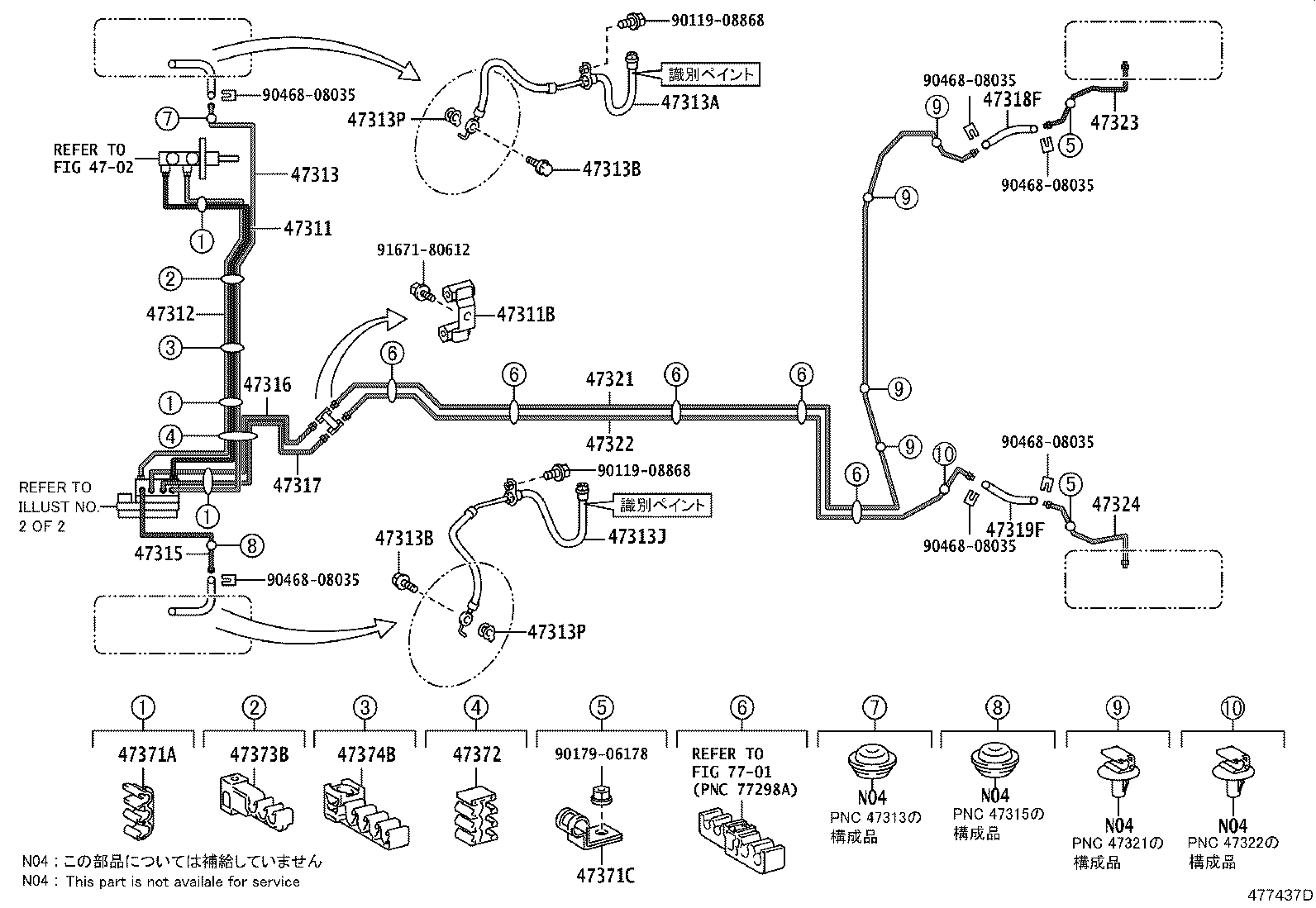

ILLUST NO. 1 OF 2(1012-1404)NSP135

Click highlighted areas on diagram

ﾌﾞﾚｰｷﾁｭｰﾌﾞ,ｱﾘ(ABS)

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-52470	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10260	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-52430	KSP130,NCP131,NSP13#..CBU	12/2010 - 08/2011	1
47312-52700	KSP130,NCP131,NSP13#..CBU	08/2011 - 04/2014	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-52220	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E07	KSP130,NCP131,NSP13#..CBU 識別ﾍﾟｲﾝﾄ=ｸﾞﾘｰﾝ	12/2010 - 11/2011	1
90947-02G34	KSP130,NCP131,NSP13#..CBU *601	11/2011 - 04/2014	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02E08	KSP130,NCP131,NSP13#..CBU 識別ﾍﾟｲﾝﾄ=ﾋﾟﾝｸ	12/2010 - 11/2011	1
90947-02G35	KSP130,NCP131,NSP13#..CBU 識別ﾍﾟｲﾝﾄ=ﾗｲﾄﾌﾞﾙｰ	11/2011 - 04/2014	1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	2
47315 - TUBE, FRONT BRAKE, NO.5
47315-52220	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-52150	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-52150	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02E12	NSP135..CBU	12/2010 - 04/2014	1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02E13	NSP135..CBU	12/2010 - 04/2014	1
47321 - TUBE, REAR BRAKE, NO.1
47321-52360	NSP135..CBU	12/2010 - 04/2014	1
47322 - TUBE, REAR BRAKE, NO.2
47322-52340	NSP135..CBU	12/2010 - 04/2014	1
47323 - TUBE, REAR BRAKE, NO.3
47323-52120	NSP135..CBU	12/2010 - 04/2014	1
47324 - TUBE, REAR BRAKE, NO.4
47324-52110	NSP135..CBU	12/2010 - 04/2014	1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00868	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	3
47371C - CLAMP, BRAKE TUBE, NO.7
90461-10781	NSP135..CBU	12/2010 - 04/2014	2
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01969	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D02	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D83	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
Common parts
90119-08868
90179-06178
90468-08035
91671-80612
Linked diagrams
4702
7701

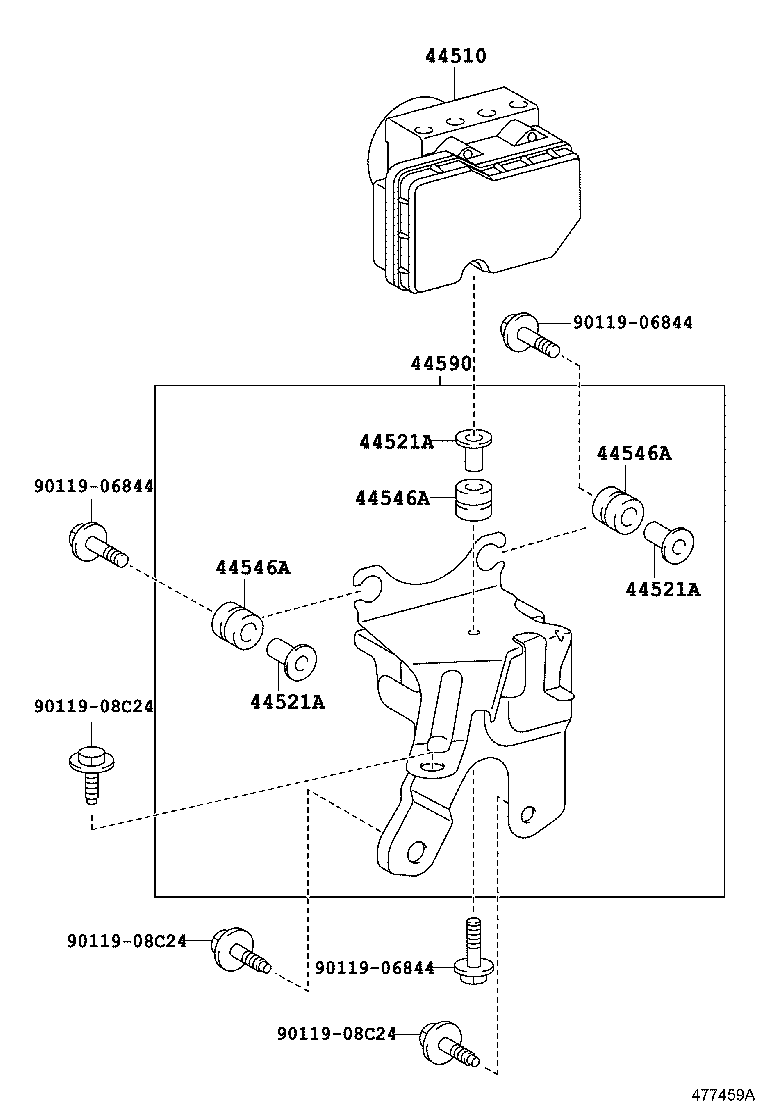

ILLUST NO. 2 OF 2(1012- )KSP130,NCP131,NSP13#..F,JEWL,RS,U..HTWC

Click highlighted areas on diagram

ﾌﾞﾚｰｷｱｸﾁｭｴｰﾀ,ｱﾘ(ABS)

Part #	Description	Period	Qty
44510 - ACTUATOR ASSY, BRAKE
44050-52E80	NSP135..U..CBU	12/2010 - 04/2014	1
44050-52E70	NSP135..(F,JEWL)..CBU	12/2010 - 04/2014	1
44050-52E80	NSP135..(F,JEWL)..CBU ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ	12/2010 - 04/2014	1
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12050	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12050	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12050	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-52180	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
Common parts
90119-06844
90119-08C24

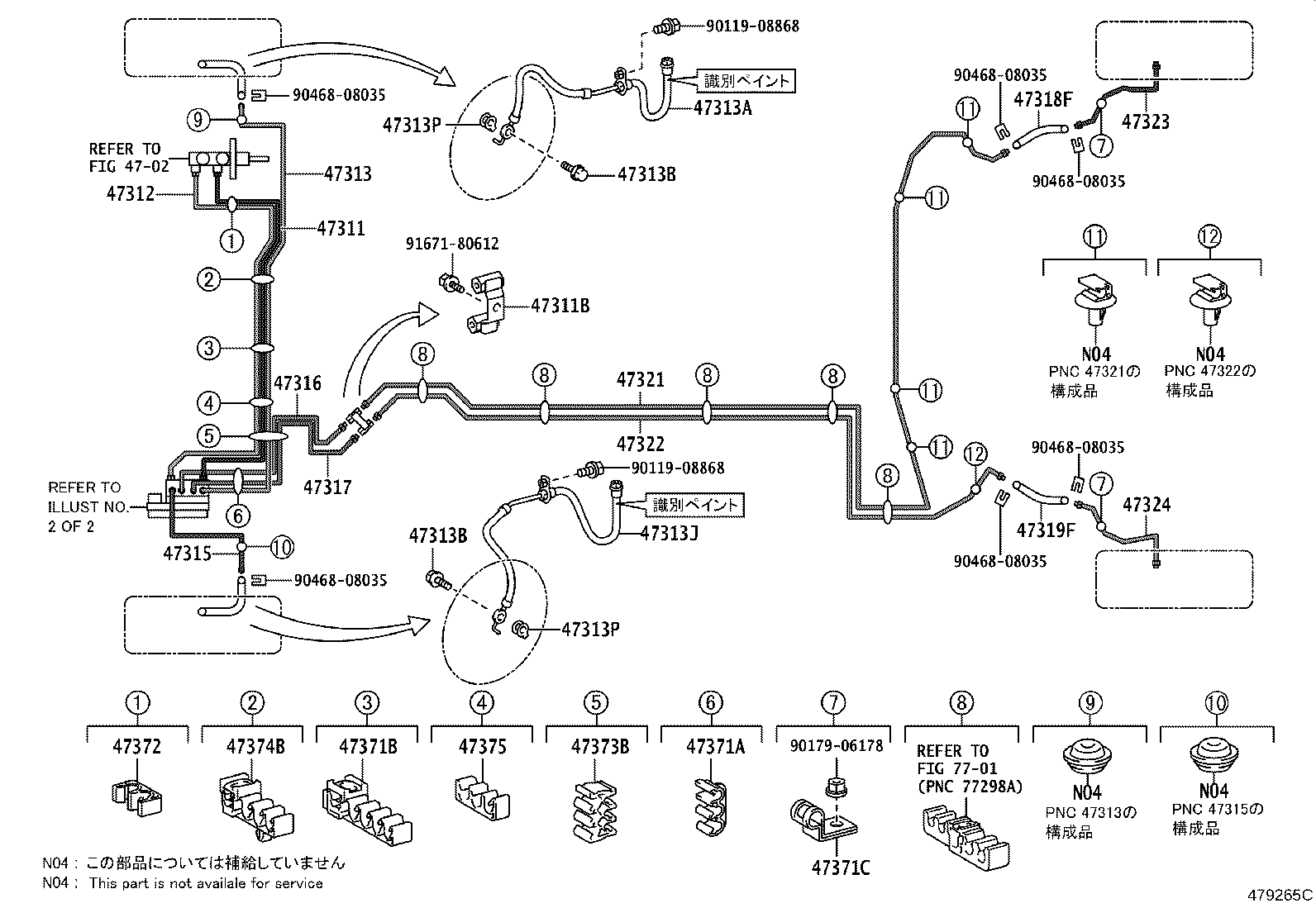

ILLUST NO. 1 OF 2(1012- )NSP135

Click highlighted areas on diagram

ﾌﾞﾚｰｷﾁｭｰﾌﾞ,ｱﾘ(VSC)

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-52470	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10260	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-52430	KSP130,NCP131,NSP13#..CBU	12/2010 - 08/2011	1
47312-52700	KSP130,NCP131,NSP13#..CBU	08/2011 - 04/2014	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-52220	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E07	KSP130,NCP131,NSP13#..CBU 識別ﾍﾟｲﾝﾄ=ｸﾞﾘｰﾝ	12/2010 - 11/2011	1
90947-02G34	KSP130,NCP131,NSP13#..CBU *601	11/2011 - 04/2014	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02E08	KSP130,NCP131,NSP13#..CBU 識別ﾍﾟｲﾝﾄ=ﾋﾟﾝｸ	12/2010 - 11/2011	1
90947-02G35	KSP130,NCP131,NSP13#..CBU 識別ﾍﾟｲﾝﾄ=ﾗｲﾄﾌﾞﾙｰ	11/2011 - 04/2014	1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	2
47315 - TUBE, FRONT BRAKE, NO.5
47315-52220	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-52150	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-52150	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02E12	NSP135..CBU	12/2010 - 04/2014	1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02E13	NSP135..CBU	12/2010 - 04/2014	1
47321 - TUBE, REAR BRAKE, NO.1
47321-52360	NSP135..CBU	12/2010 - 04/2014	1
47322 - TUBE, REAR BRAKE, NO.2
47322-52340	NSP135..CBU	12/2010 - 04/2014	1
47323 - TUBE, REAR BRAKE, NO.3
47323-52120	NSP135..CBU	12/2010 - 04/2014	1
47324 - TUBE, REAR BRAKE, NO.4
47324-52110	NSP135..CBU	12/2010 - 04/2014	1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00868	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	3
47371C - CLAMP, BRAKE TUBE, NO.7
90461-10781	NSP135..CBU	12/2010 - 04/2014	2
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01969	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D02	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D83	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
Common parts
90119-08868
90179-06178
90468-08035
91671-80612
Linked diagrams
4702
7701

ILLUST NO. 2 OF 2(1012- )KSP130,NCP131,NSP13#

Click highlighted areas on diagram

ﾌﾞﾚｰｷｱｸﾁｭｴｰﾀ,ｱﾘ(VSC)

Part #	Description	Period	Qty
44510 - ACTUATOR ASSY, BRAKE
44050-52E80	NSP135..U..CBU	12/2010 - 04/2014	1
44050-52E70	NSP135..(F,JEWL)..CBU	12/2010 - 04/2014	1
44050-52E80	NSP135..(F,JEWL)..CBU ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ	12/2010 - 04/2014	1
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12050	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12050	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12050	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-52180	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
Common parts
90119-06844
90119-08C24
