NSP135-AHXEK (2010)

Toyota Vitz

Production Dec 2010 - Apr 2014
Engine 1NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )1NRFE

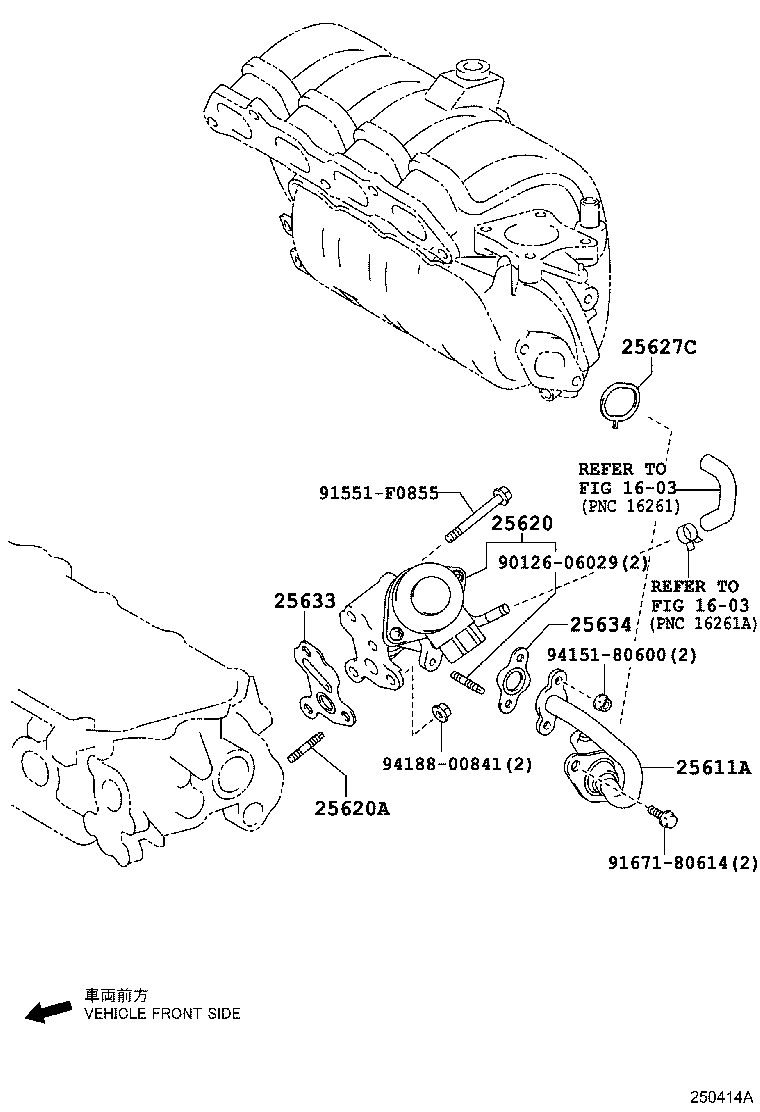

Click highlighted areas on diagram

diagram 1603 1603 25611A 25620 25620A 25627C 25633 25634 9012606029 91551F0855 9167180614 9415180600 9418800841
Part # Description Qty Price
25611A - PIPE, EGR, NO.1
25611-47011

1NRFE..NSP13#..CBU

 1
25620 - VALVE ASSY, EGR
25620-47020

1NRFE..NSP13#..CBU

 1
25620A - BOLT, STUD(FOR EGR VALVE)
90126-08063

1NRFE..NSP13#..CBU

 2
25627C - GASKET(FOR EGR PIPE NO.2)
25629-47010

1NRFE..NSP13#..CBU

 1
25633 - GASKET, EGR VALVE
25633-47010

1NRFE..NSP13#..CBU

 1
25634 - GASKET, EGR PIPE
25634-47010

1NRFE..NSP13#..CBU

 1
Common parts
90126-06029
91551-F0855
91671-80614
94151-80600
94188-00841
Linked diagrams
1603
