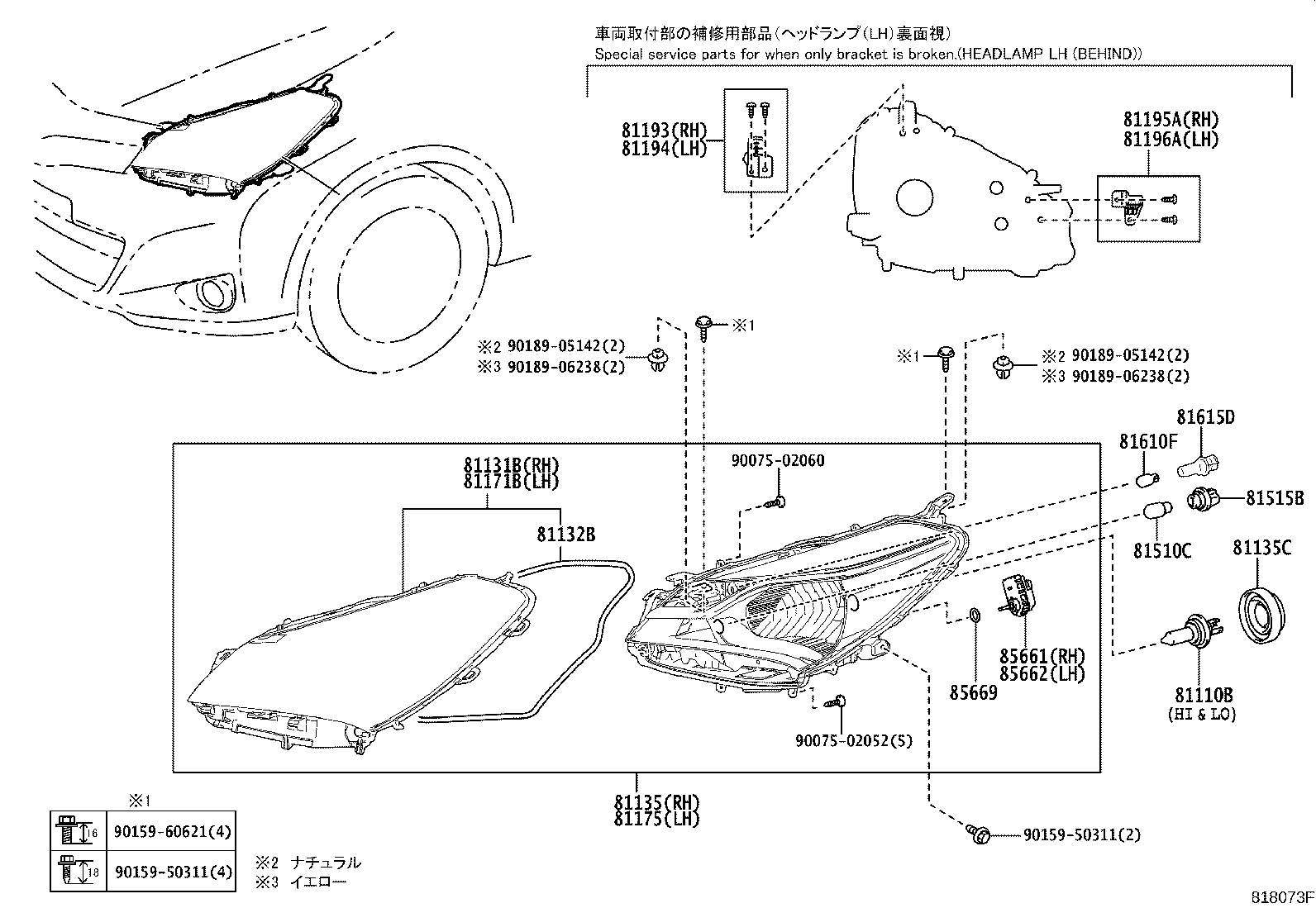

NSP135-AHXEK (2017)
Toyota Vitz
(1701- )KSP130,NCP131,NSP13#
ﾊﾛｹﾞﾝﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13058 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13075 |
KSP130,NCP131,NSP13#..(F,U)..CBU 12V 55W,ﾊﾛｹﾞﾝ,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90981-13058 |
KSP130,NSP13#..CBU 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81131B - HEAD LAMP LENS, RH | ||||
| 81131-52L30 |
NSP13#..U..CBU |
1 | ||
| 81131-52L40 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 81131-52L80 |
KSP130,NHP130,NSP13#..(F,JEWL,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−Bi−Beam LED(ﾒｯｷ + 塗装) |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-50590 |
KSP130,NHP130,NSP13#..(F,JEWL,U)..CBU |
2 | ||
| 81132-30E40 |
KSP130,NHP130,NSP13#..(F,JEWL,U)..CBU |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-52L30 |
NSP13#..U..CBU |
1 | ||
| 81105-52L80 |
KSP130,NHP130,NSP13#..(F,JEWL,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−Bi−Beam LED(ﾒｯｷ + 塗装) |
1 | ||
| 81130-52L40 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 81135C - COVER, HEADLAMP BACK, NO.1 | ||||
| 90075-65002 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
2 | ||
| 90075-65002 |
KSP130,NSP13#..CBU |
2 | ||
| 81171B - HEAD LAMP LENS, LH | ||||
| 81171-52L30 |
NSP13#..U..CBU |
1 | ||
| 81171-52L40 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 81171-52L80 |
KSP130,NHP130,NSP13#..(F,JEWL,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−Bi−Beam LED(ﾒｯｷ + 塗装) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-52L30 |
NSP13#..U..CBU |
1 | ||
| 81170-52L40 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 81106-52L80 |
KSP130,NHP130,NSP13#..(F,JEWL,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−Bi−Beam LED(ﾒｯｷ + 塗装) |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-52200 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 81193-52290 |
KSP130,NCP131,NHP130,NSP13#..CBU |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-52200 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 81194-52280 |
KSP130,NCP131,NHP130,NSP13#..CBU |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-52160 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 81195-52220 |
KSP130,NCP131,NHP130,NSP13#..CBU |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-52160 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 81196-52200 |
KSP130,NCP131,NHP130,NSP13#..CBU |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
KSP130,NCP131,NSP13#..CBU 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-15021 |
KSP130,NCP131,NHP130,NSP13#..CBU 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 90075-60028 |
KSP130,NCP131,NHP130,NSP13#..CBU |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
KSP130,NCP131,NSP13#..CBU 12V 5W |
2 | ||
| 99132-12050 |
KSP130,NHP130,NSP13#..(F,JEWL,U)..CBU 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60089 |
KSP130,NHP130,NSP13#..(F,JEWL,U)..CBU |
2 | ||
| 90075-60077 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 85661-12020 |
KSP130,NCP131,NSP13#..(F,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 85661-12010 |
KSP130,NHP130,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 85661-12020 |
KSP130,NHP130,NSP13#..(F,JEWL,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−Bi−Beam LED(ﾒｯｷ + 塗装) |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 85661-12010 |
KSP130,NHP130,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 85661-12020 |
KSP130,NCP131,NSP13#..(F,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 85661-12020 |
KSP130,NHP130,NSP13#..(F,JEWL,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−Bi−Beam LED(ﾒｯｷ + 塗装) |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
KSP130,NCP131,NHP130,NSP13#..CBU |
2 | ||
| 90075-99120 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| Common parts | ||||
| 90075-02052 | ||||
| 90075-02060 | ||||
| 90159-50311 | ||||
| 90159-60621 | ||||
| 90189-05142 | ||||
| 90189-06238 | ||||

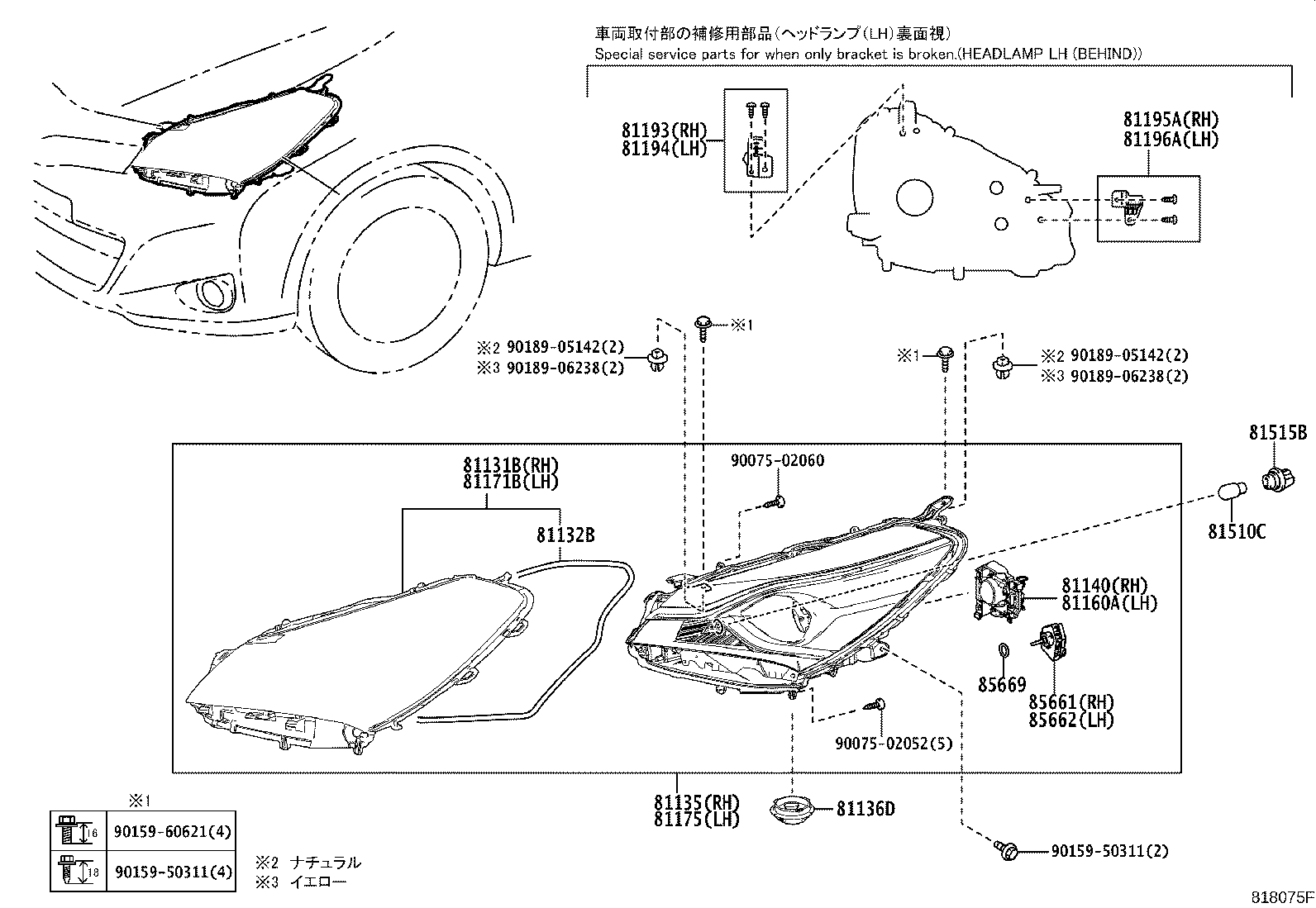

(1701- )
LEDﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81131B - HEAD LAMP LENS, RH | ||||
| 81131-52L30 |
NSP13#..U..CBU |
1 | ||
| 81131-52L40 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 81131-52L80 |
KSP130,NHP130,NSP13#..(F,JEWL,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−Bi−Beam LED(ﾒｯｷ + 塗装) |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-50590 |
KSP130,NHP130,NSP13#..(F,JEWL,U)..CBU |
2 | ||
| 81132-30E40 |
KSP130,NHP130,NSP13#..(F,JEWL,U)..CBU |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-52L30 |
NSP13#..U..CBU |
1 | ||
| 81105-52L80 |
KSP130,NHP130,NSP13#..(F,JEWL,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−Bi−Beam LED(ﾒｯｷ + 塗装) |
1 | ||
| 81130-52L40 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 81136D - COVER, HEADLAMP | ||||
| 90075-66016 |
KSP130,NHP130,NSP13#..(F,JEWL,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−Bi−Beam LED(ﾒｯｷ + 塗装) |
2 | ||
| 81140 - UNIT ASSY, HEADLAMP LED, RH | ||||
| 81130-52L80 |
KSP130,NHP130,NSP13#..(F,JEWL,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−Bi−Beam LED(ﾒｯｷ + 塗装) |
1 | ||
| 81160A - UNIT ASSY, HEADLAMP LED, LH | ||||
| 81170-52L80 |
KSP130,NHP130,NSP13#..(F,JEWL,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−Bi−Beam LED(ﾒｯｷ + 塗装) |
1 | ||
| 81171B - HEAD LAMP LENS, LH | ||||
| 81171-52L30 |
NSP13#..U..CBU |
1 | ||
| 81171-52L40 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 81171-52L80 |
KSP130,NHP130,NSP13#..(F,JEWL,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−Bi−Beam LED(ﾒｯｷ + 塗装) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-52L30 |
NSP13#..U..CBU |
1 | ||
| 81170-52L40 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 81106-52L80 |
KSP130,NHP130,NSP13#..(F,JEWL,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−Bi−Beam LED(ﾒｯｷ + 塗装) |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-52290 |
KSP130,NCP131,NHP130,NSP13#..CBU |
1 | ||
| 81193-52200 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-52200 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 81194-52280 |
KSP130,NCP131,NHP130,NSP13#..CBU |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-52160 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 81195-52220 |
KSP130,NCP131,NHP130,NSP13#..CBU |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-52160 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 81196-52200 |
KSP130,NCP131,NHP130,NSP13#..CBU |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
KSP130,NCP131,NSP13#..CBU 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-15021 |
KSP130,NCP131,NHP130,NSP13#..CBU 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 90075-60028 |
KSP130,NCP131,NHP130,NSP13#..CBU |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 85661-12020 |
KSP130,NCP131,NSP13#..(F,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 85661-12010 |
KSP130,NHP130,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 85661-12020 |
KSP130,NHP130,NSP13#..(F,JEWL,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−Bi−Beam LED(ﾒｯｷ + 塗装) |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 85661-12010 |
KSP130,NHP130,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 85661-12020 |
KSP130,NCP131,NSP13#..(F,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 85661-12020 |
KSP130,NHP130,NSP13#..(F,JEWL,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−Bi−Beam LED(ﾒｯｷ + 塗装) |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
KSP130,NCP131,NHP130,NSP13#..CBU |
2 | ||
| 90075-99120 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| Common parts | ||||
| 90075-02052 | ||||
| 90075-02060 | ||||
| 90159-50311 | ||||
| 90159-60621 | ||||
| 90189-05142 | ||||
| 90189-06238 | ||||
