NSP135-AHXEK (2017)
Toyota Vitz
(1701- )

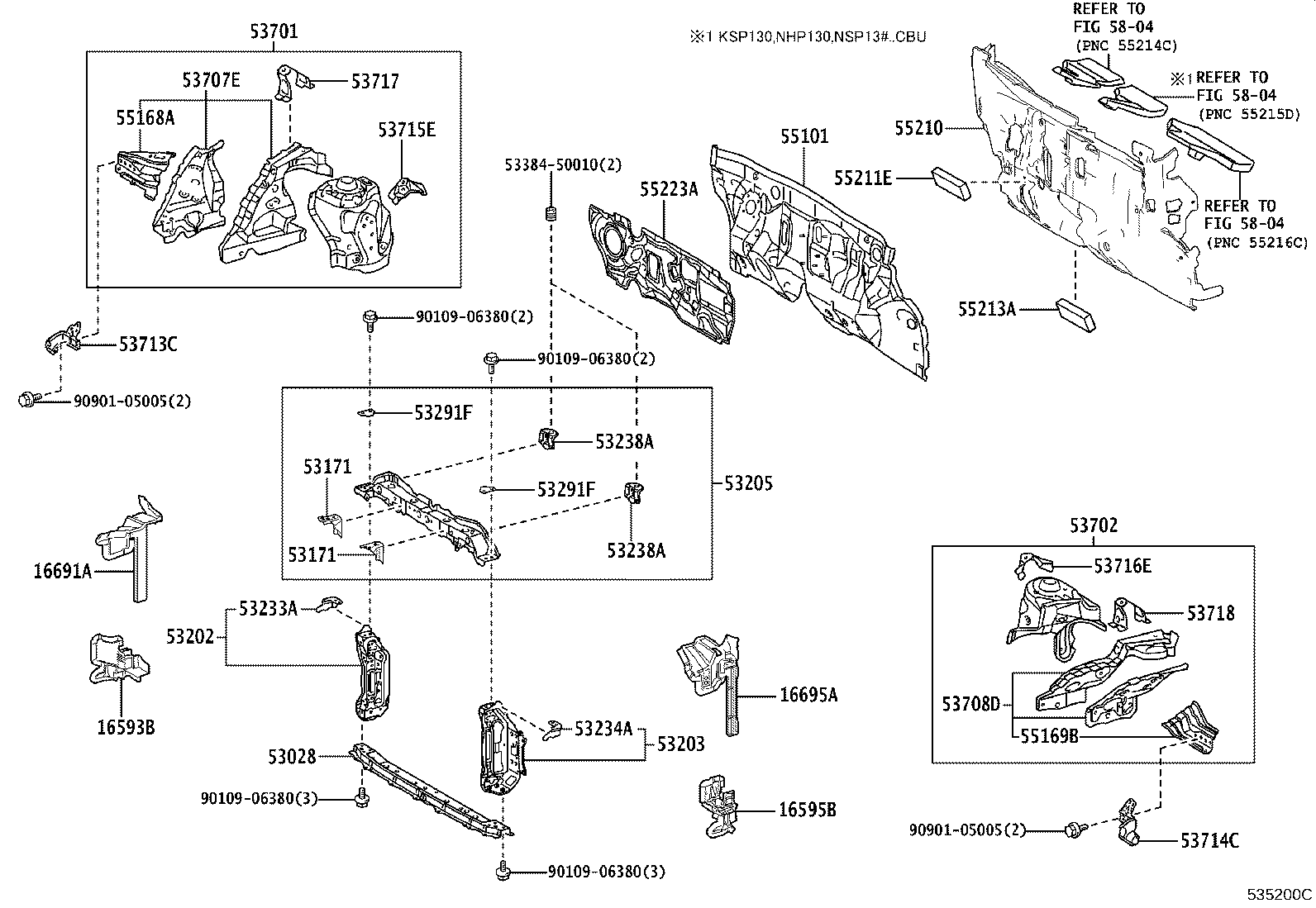

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16593B - GUIDE, RADIATOR AIR, NO.1 RH | ||||
| 16593-40010 |
1KRFE,1NRFE..KSP130,NSP135..CBU |
1 | ||
| 16595B - GUIDE, RADIATOR AIR, NO.1 LH | ||||
| 16595-40010 |
1KRFE,1NRFE..KSP130,NSP135..CBU |
1 | ||
| 16691A - PLATE, RADIATOR SIDE AIR GUIDE, FRONT RH | ||||
| 16691-40010 |
1KRFE,1NRFE..KSP130,NSP135..CBU |
1 | ||
| 16695A - PLATE, RADIATOR SIDE AIR GUIDE, FRONT LH | ||||
| 16695-40010 |
1KRFE,1NRFE..KSP130,NSP135..CBU |
1 | ||
| 53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER | ||||
| 53028-52070 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 53028-52070 |
KSP130,NCP131,NHP130,NSP13#..CBU |
1 | ||
| 53171 - RETAINER, RADIATOR SUPPORT | ||||
| 53171-52110 |
KSP130,NCP131,NHP130,NSP13#..CBU 左側 |
1 | ||
| 53171-52070 |
KSP130,NCP131,NSP13#..CBU 左側 |
1 | ||
| 53171-52030 |
KSP130,NCP131,NSP13#..CBU 右側 |
1 | ||
| 53171-52100 |
KSP130,NCP131,NHP130,NSP13#..CBU 右側 |
1 | ||
| 53171 - RETAINER, RADIATOR SUPPORT | ||||
| 53171-52110 |
KSP130,NCP131,NHP130,NSP13#..CBU 左側 |
1 | ||
| 53171-52070 |
KSP130,NCP131,NSP13#..CBU 左側 |
1 | ||
| 53171-52030 |
KSP130,NCP131,NSP13#..CBU 右側 |
1 | ||
| 53171-52100 |
KSP130,NCP131,NHP130,NSP13#..CBU 右側 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-52908 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 53202-52908 |
KSP130,NCP131,NHP130,NSP13#..CBU |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-52906 |
KSP130,NCP131,NHP130,NSP13#..CBU |
1 | ||
| 53203-52906 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-52910 |
KSP130,NCP131,NHP130,NSP13#..CBU |
1 | ||
| 53205-52904 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 53233A - BRACKET, HEADLAMP, NO.1 RH | ||||
| 53233-52050 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 53233-52050 |
KSP130,NCP131,NHP130,NSP13#..CBU |
1 | ||
| 53234A - BRACKET, HEADLAMP, NO.1 LH | ||||
| 53234-52060 |
KSP130,NCP131,NHP130,NSP13#..CBU |
1 | ||
| 53234-52060 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 53238A - BRACKET, HOOD BUMPER MOUNTING | ||||
| 53238-52030 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 53238-52030 |
KSP130,NCP131,NHP130,NSP13#..CBU |
2 | ||
| 53238A - BRACKET, HOOD BUMPER MOUNTING | ||||
| 53238-52030 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 53238-52030 |
KSP130,NCP131,NHP130,NSP13#..CBU |
2 | ||
| 53291F - PLATE, RADIATOR SUPPORT | ||||
| 53291-52070 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 53291-52070 |
KSP130,NCP131,NHP130,NSP13#..CBU |
2 | ||
| 53291F - PLATE, RADIATOR SUPPORT | ||||
| 53291-52070 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 53291-52070 |
KSP130,NCP131,NHP130,NSP13#..CBU |
2 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-52190 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 53701-52190 |
KSP130,NCP131,NHP130,NSP13#..CBU |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-52190 |
KSP130,NCP131,NHP130,NSP13#..CBU |
1 | ||
| 53702-52190 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 53707E - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53707-52060 |
KSP130,NCP131,NHP130,NSP13#..CBU |
1 | ||
| 53707-52030 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 53708D - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53708-52030 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 53708-52060 |
KSP130,NCP131,NHP130,NSP13#..CBU |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-52070 |
KSP130,NCP131,NHP130,NSP13#..CBU |
1 | ||
| 53713-52070 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53714-52080 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 53714-52100 |
KSP130,NCP131,NHP130,NSP13#..CBU |
1 | ||
| 53715E - EXTENSION, FRONT FENDER APRON, REAR RH | ||||
| 53715-52030 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 53715-52030 |
KSP130,NCP131,NHP130,NSP13#..CBU |
1 | ||
| 53716E - EXTENSION, FRONT FENDER APRON, REAR LH | ||||
| 53716-52030 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 53716-52030 |
KSP130,NCP131,NHP130,NSP13#..CBU |
1 | ||
| 53717 - PLATE, FENDER APRON, RH | ||||
| 53717-52110 |
KSP130,NCP131,NHP130,NSP13#..CBU |
1 | ||
| 53717-52110 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 53718 - PLATE, FENDER APRON, LH | ||||
| 53718-52110 |
KSP130,NCP131,NHP130,NSP13#..CBU |
1 | ||
| 53718-52110 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-52521 |
KSP130,NCP131,NSP13#..CVT..CBU |
1 | ||
| 55101-52521 |
KSP130,NCP131,NSP13#..CVT..CBU |
1 | ||
| 55168A - BRACKET, FRONT FENDER MOUNTING, RH | ||||
| 55168-52130 |
KSP130,NCP131,NHP130,NSP13#..CBU |
1 | ||
| 55168-52130 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55169B - BRACKET, FRONT FENDER MOUNTING, LH | ||||
| 55169-52130 |
KSP130,NCP131,NHP130,NSP13#..CBU |
1 | ||
| 55169-52130 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-52310 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55210-52400 |
KSP130,NCP131,NHP130,NSP13#..CBU |
1 | ||
| 55211E - SILENCER, FRONT PANEL | ||||
| 55213-52190 |
KSP130,NCP131,NHP130,NSP13#..CBU |
1 | ||
| 55211-52160 |
KSP130,NCP131,NHP130,NSP13#..CBU |
1 | ||
| 55213A - PAD, DASH PANEL SILENCER | ||||
| 55213-52190 |
KSP130,NCP131,NHP130,NSP13#..CBU |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-52100 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 55223-52101 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 55223-52120 |
NCP131,NSP13#..(RS,U)..CBU |
1 | ||
| 55223-52121 |
NSP13#..U..CBU;NCP131,NHP130..CBU |
1 | ||
| Common parts | ||||
| 53384-50010 | ||||
| 90109-06380 | ||||
| 90901-05005 | ||||
| Linked diagrams | ||||
| 5804 | ||||
