NSP130-AHXNK (2010)
Toyota Vitz

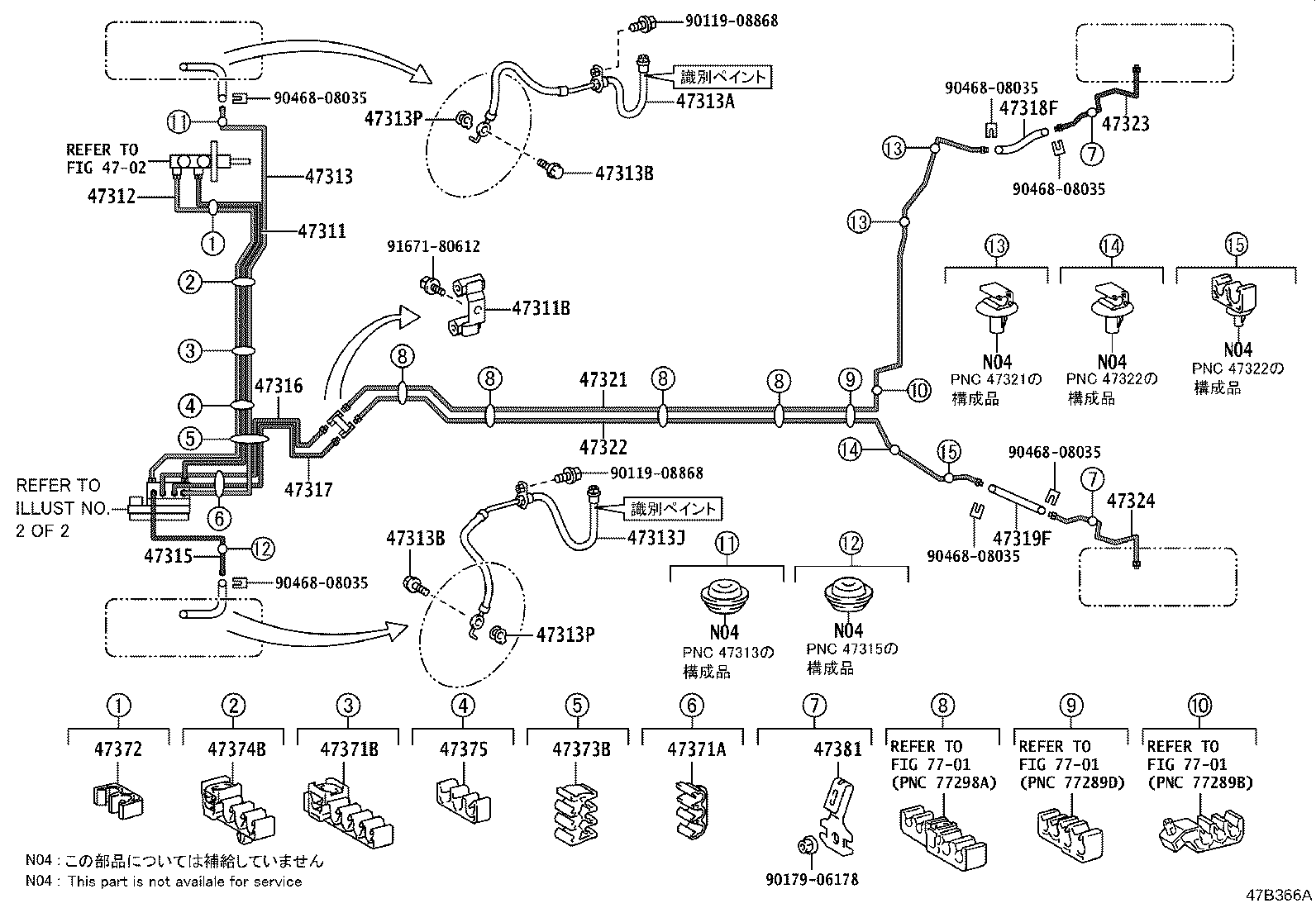

ILLUST NO. 1 OF 2(1012-1404)KSP130,NCP131,NSP130..F,JEWL,U
ﾌﾞﾚｰｷﾁｭｰﾌﾞ,ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52470 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 47311-52480 |
NSP130..(JEWL,U)..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 47311-52480 |
NSP130..F..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52440 |
NSP130..(JEWL,U)..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 47312-52430 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 47312-52440 |
NSP130..F..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 47312-52700 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-52230 |
NSP130..F..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 47313-52220 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 47313-52230 |
NSP130..(JEWL,U)..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02E07 |
KSP130,NCP131,NSP13#..CBU 識別ﾍﾟｲﾝﾄ=ｸﾞﾘｰﾝ |
1 | ||
| 90947-02G34 |
KSP130,NCP131,NSP13#..CBU *601 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02E08 |
KSP130,NCP131,NSP13#..CBU 識別ﾍﾟｲﾝﾄ=ﾋﾟﾝｸ |
1 | ||
| 90947-02G35 |
KSP130,NCP131,NSP13#..CBU 識別ﾍﾟｲﾝﾄ=ﾗｲﾄﾌﾞﾙｰ |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52220 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 47315-52230 |
NSP130..F..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 47315-52230 |
NSP130..(JEWL,U)..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52190 |
NSP130..(JEWL,U)..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 47316-52190 |
NSP130..F..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 47316-52150 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52150 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 47317-52190 |
NSP130..F..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 47317-52190 |
NSP130..(JEWL,U)..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02E09 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02E10 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52340 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52320 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-52160 |
KSP130,NSP130..CBU |
1 | ||
| 47323-52100 |
KSP130,NSP130..CBU |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-52150 |
KSP130,NSP130..CBU |
1 | ||
| 47324-52090 |
KSP130,NSP130..CBU |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00868 |
NSP130..(JEWL,U)..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 90464-00868 |
NSP130..F..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 90464-00868 |
KSP130,NCP131,NSP13#..CBU |
3 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01969 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 90464-00899 |
NSP130..F..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 90464-00899 |
NSP130..(JEWL,U)..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90464-00925 |
NSP130..F..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 90949-01D02 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 90464-00925 |
NSP130..(JEWL,U)..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01D84 |
NSP130..F..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 90949-01D84 |
NSP130..(JEWL,U)..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 90949-01D83 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-52020 |
KSP130,NCP131,NSP130..CBU |
2 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90179-06178 | ||||
| 90468-08035 | ||||
| 91671-80612 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||
ILLUST NO. 2 OF 2(1012- )KSP130,NCP131,NSP13#..F,JEWL,RS,U..HTWC
ﾌﾞﾚｰｷｱｸﾁｭｴｰﾀ,ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-52E20 |
KSP130,NSP130..(F,JEWL)..CBU |
1 | ||
| 44050-52E30 |
KSP130,NSP130..(F,JEWL)..CBU ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ |
1 | ||
| 44050-52E30 |
NSP130..U..CBU |
1 | ||
| 44050-52F20 |
NSP130..F..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ |
1 | ||
| 44050-52E51 |
NCP131,NSP130..U..CBU |
1 | ||
| 44050-52B80 |
NSP130..(F,JEWL)..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I)&ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5.5J ｱﾙﾐ |
1 | ||
| 44050-52F20 |
NSP130..U..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 44050-52B50 |
NSP130..(F,JEWL)..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 44050-52F10 |
NSP130..F..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 44050-52E21 |
KSP130,NSP130..(F,JEWL)..CBU |
1 | ||
| 44050-52B80 |
NSP130..U..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 44050-52E51 |
KSP130,NSP130..(F,JEWL)..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5.5J ｱﾙﾐ |
1 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
KSP130,NCP131,NSP13#..CBU |
3 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
KSP130,NCP131,NSP13#..CBU |
3 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
KSP130,NCP131,NSP13#..CBU |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
KSP130,NCP131,NSP13#..CBU |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
KSP130,NCP131,NSP13#..CBU |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
KSP130,NCP131,NSP13#..CBU |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-52180 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 44590-52230 |
NSP130..F..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 44590-52230 |
NSP130..(JEWL,U)..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| Common parts | ||||
| 90119-06844 | ||||
| 90119-08C24 | ||||
ILLUST NO. 2 OF 2(1012- )KSP130,NCP131,NSP13#
ﾌﾞﾚｰｷｱｸﾁｭｴｰﾀ,ｱﾘ(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-52E20 |
KSP130,NSP130..(F,JEWL)..CBU |
1 | ||
| 44050-52E30 |
KSP130,NSP130..(F,JEWL)..CBU ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ |
1 | ||
| 44050-52E30 |
NSP130..U..CBU |
1 | ||
| 44050-52F20 |
NSP130..F..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ |
1 | ||
| 44050-52E51 |
NCP131,NSP130..U..CBU |
1 | ||
| 44050-52B80 |
NSP130..(F,JEWL)..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I)&ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5.5J ｱﾙﾐ |
1 | ||
| 44050-52F20 |
NSP130..U..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 44050-52B50 |
NSP130..(F,JEWL)..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 44050-52F10 |
NSP130..F..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 44050-52E21 |
KSP130,NSP130..(F,JEWL)..CBU |
1 | ||
| 44050-52B80 |
NSP130..U..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 44050-52E51 |
KSP130,NSP130..(F,JEWL)..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5.5J ｱﾙﾐ |
1 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
KSP130,NCP131,NSP13#..CBU |
3 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
KSP130,NCP131,NSP13#..CBU |
3 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
KSP130,NCP131,NSP13#..CBU |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
KSP130,NCP131,NSP13#..CBU |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
KSP130,NCP131,NSP13#..CBU |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
KSP130,NCP131,NSP13#..CBU |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-52180 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 44590-52230 |
NSP130..F..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 44590-52230 |
NSP130..(JEWL,U)..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| Common parts | ||||
| 90119-06844 | ||||
| 90119-08C24 | ||||

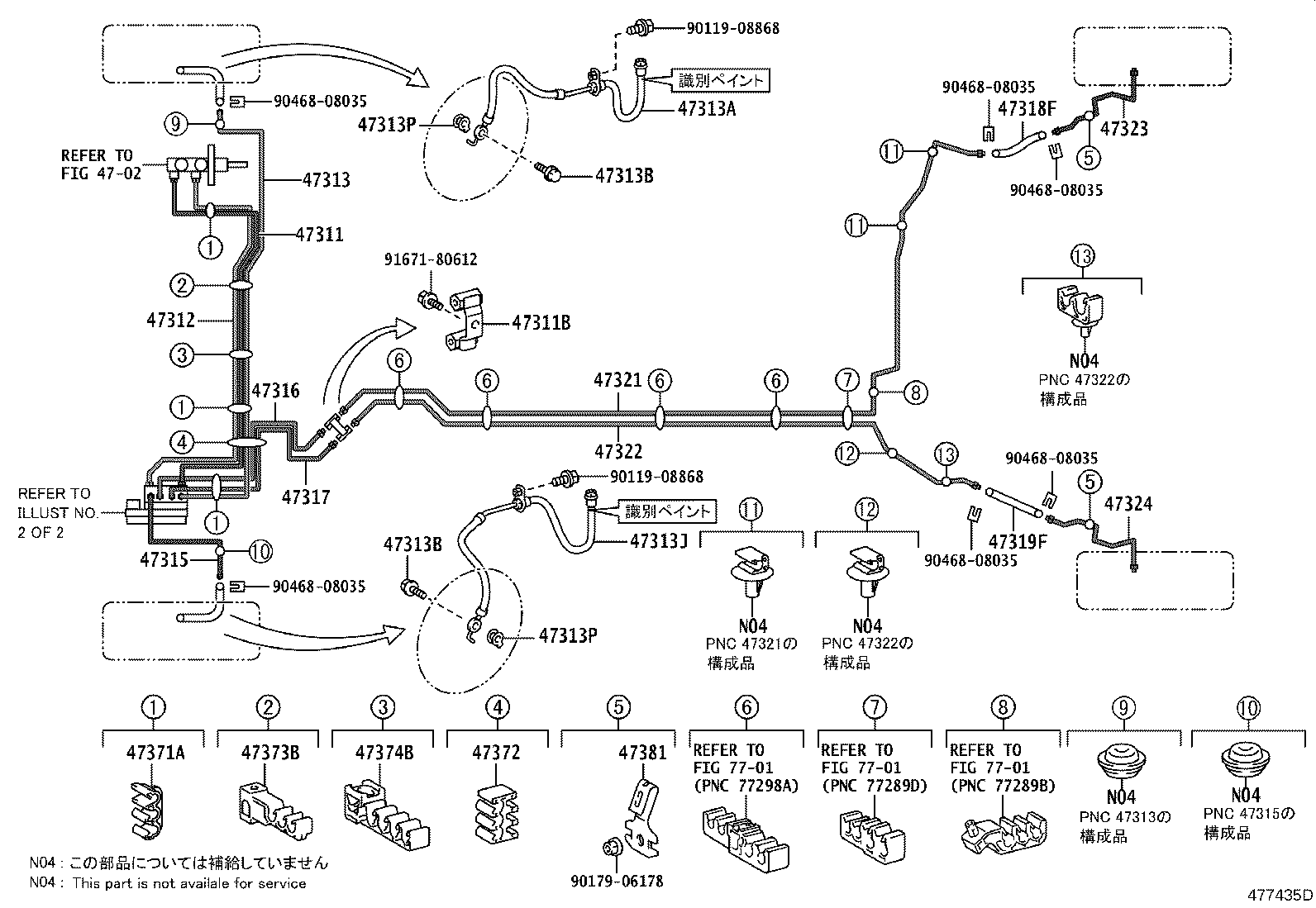

ILLUST NO. 1 OF 2(1012-1404)NSP130..F ; (1108-1404)NSP130..JEWL,U; (1404- )KSP130,NCP131,NSP130.
ﾌﾞﾚｰｷﾁｭｰﾌﾞ,ｱﾘ(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52470 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 47311-52480 |
NSP130..(JEWL,U)..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 47311-52480 |
NSP130..F..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52440 |
NSP130..(JEWL,U)..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 47312-52430 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 47312-52440 |
NSP130..F..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 47312-52700 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-52230 |
NSP130..F..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 47313-52220 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 47313-52230 |
NSP130..(JEWL,U)..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02E07 |
KSP130,NCP131,NSP13#..CBU 識別ﾍﾟｲﾝﾄ=ｸﾞﾘｰﾝ |
1 | ||
| 90947-02G34 |
KSP130,NCP131,NSP13#..CBU *601 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02E08 |
KSP130,NCP131,NSP13#..CBU 識別ﾍﾟｲﾝﾄ=ﾋﾟﾝｸ |
1 | ||
| 90947-02G35 |
KSP130,NCP131,NSP13#..CBU 識別ﾍﾟｲﾝﾄ=ﾗｲﾄﾌﾞﾙｰ |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52220 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 47315-52230 |
NSP130..F..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 47315-52230 |
NSP130..(JEWL,U)..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52190 |
NSP130..(JEWL,U)..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 47316-52190 |
NSP130..F..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 47316-52150 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52150 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 47317-52190 |
NSP130..F..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 47317-52190 |
NSP130..(JEWL,U)..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02E09 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02E10 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52340 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52320 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-52160 |
KSP130,NSP130..CBU |
1 | ||
| 47323-52100 |
KSP130,NSP130..CBU |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-52150 |
KSP130,NSP130..CBU |
1 | ||
| 47324-52090 |
KSP130,NSP130..CBU |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00868 |
NSP130..(JEWL,U)..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 90464-00868 |
NSP130..F..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 90464-00868 |
KSP130,NCP131,NSP13#..CBU |
3 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-01D85 |
NSP130..(JEWL,U)..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 90949-01D85 |
NSP130..F..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01969 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 90464-00899 |
NSP130..F..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 90464-00899 |
NSP130..(JEWL,U)..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90464-00925 |
NSP130..F..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 90949-01D02 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 90464-00925 |
NSP130..(JEWL,U)..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01D84 |
NSP130..F..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 90949-01D84 |
NSP130..(JEWL,U)..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 90949-01D83 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90464-00929 |
NSP130..F..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 90464-00929 |
NSP130..(JEWL,U)..CBU ”SMART STOPﾊﾟｯｹｰｼﾞ”*(I) |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-52020 |
KSP130,NCP131,NSP130..CBU |
2 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90179-06178 | ||||
| 90468-08035 | ||||
| 91671-80612 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
