NSP130-AHXNK (2010)
Toyota Vitz

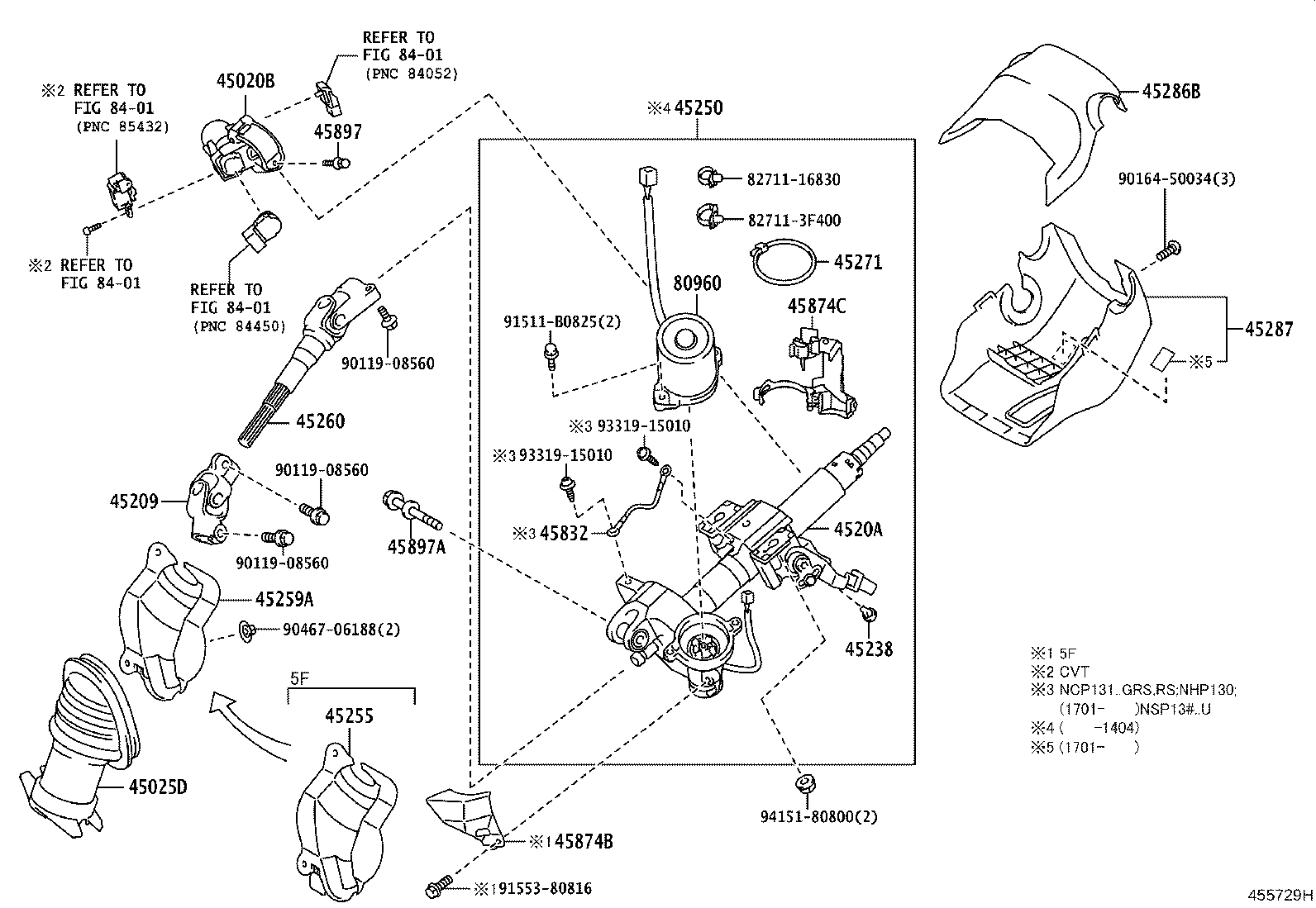

(1012- )
W/O(PUSH START)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK | ||||
| 45280-52100 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-52140 |
NCP131,NSP130..(RS,U)..CBU |
1 | ||
| 45025-52170 |
NCP131,NSP130..(RS,U)..CBU |
1 | ||
| 45025-52120 |
KSP130,NSP130..(F,JEWL)..CBU |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-52050 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING | ||||
| 4520A-52070 |
KSP130,NSP13#..(F,JEWL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 4520A-52060 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 4520A-52070 |
NCP131,NSP13#..U..CBU |
1 | ||
| 4520A-52071 |
KSP130,NSP13#..(F,JEWL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 4520A-52120 |
NSP13#..U..CBU ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 4520A-52062 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 4520A-52121 |
NSP13#..U..CBU ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 4520A-52071 |
NCP131,NSP13#..U..CBU |
1 | ||
| 4520A-52072 |
NCP131,NSP13#..U..CBU |
1 | ||
| 4520A-52061 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 4520A-52072 |
KSP130,NSP13#..(F,JEWL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 4520A-52122 |
NSP13#..U..CBU ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45238-52010 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-52722 |
KSP130,NSP13#..(F,JEWL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 45250-52712 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 45250-52722 |
NCP131,NSP13#..U..CBU |
1 | ||
| 45250-52782 |
NSP13#..U..CBU ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 45250-52723 |
KSP130,NSP13#..(F,JEWL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 45250-52783 |
NSP13#..U..CBU ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 45250-52714 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 45250-52724 |
KSP130,NSP13#..(F,JEWL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 45250-52723 |
NCP131,NSP13#..U..CBU |
1 | ||
| 45250-52724 |
NCP131,NSP13#..U..CBU |
1 | ||
| 45250-52784 |
NSP13#..U..CBU ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 45250-52713 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-52010 |
KSP130,NCP131,NSP13#..CVT..CBU |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-52201 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-52040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-52160C0 |
NCP131,NSP13#..CVT..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 45286-52160C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,5# |
1 | ||
| 45286-52160C0 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),BLACK,TRIM1#,5# |
1 | ||
| 45286-52190C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,5# |
1 | ||
| 45286-52190C0 |
NCP131,NSP13#..CVT..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 45286-52190C0 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-52190C0 |
NCP131,NSP13#..CVT..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 45287-52190C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,5# |
1 | ||
| 45287-52230C0 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 45287-52190C0 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),BLACK,TRIM1#,5# |
1 | ||
| 45287-52230C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,5# |
1 | ||
| 45287-52230C0 |
NCP131,NSP13#..CVT..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 45874C - PROTECTOR, STEERING COLUMN, NO.1 | ||||
| 45874-52040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-42010 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 90119-10980 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 80960 - MOTOR ASSY, POWER STEERING | ||||
| 80960-52100 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 80960-52070 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 80960-52110 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 80960-52080 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| Common parts | ||||
| 82711-16830 | ||||
| 82711-3F400 | ||||
| 90119-08560 | ||||
| 90164-50034 | ||||
| 90467-06188 | ||||
| 91511-B0825 | ||||
| 91553-80816 | ||||
| 93319-15010 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

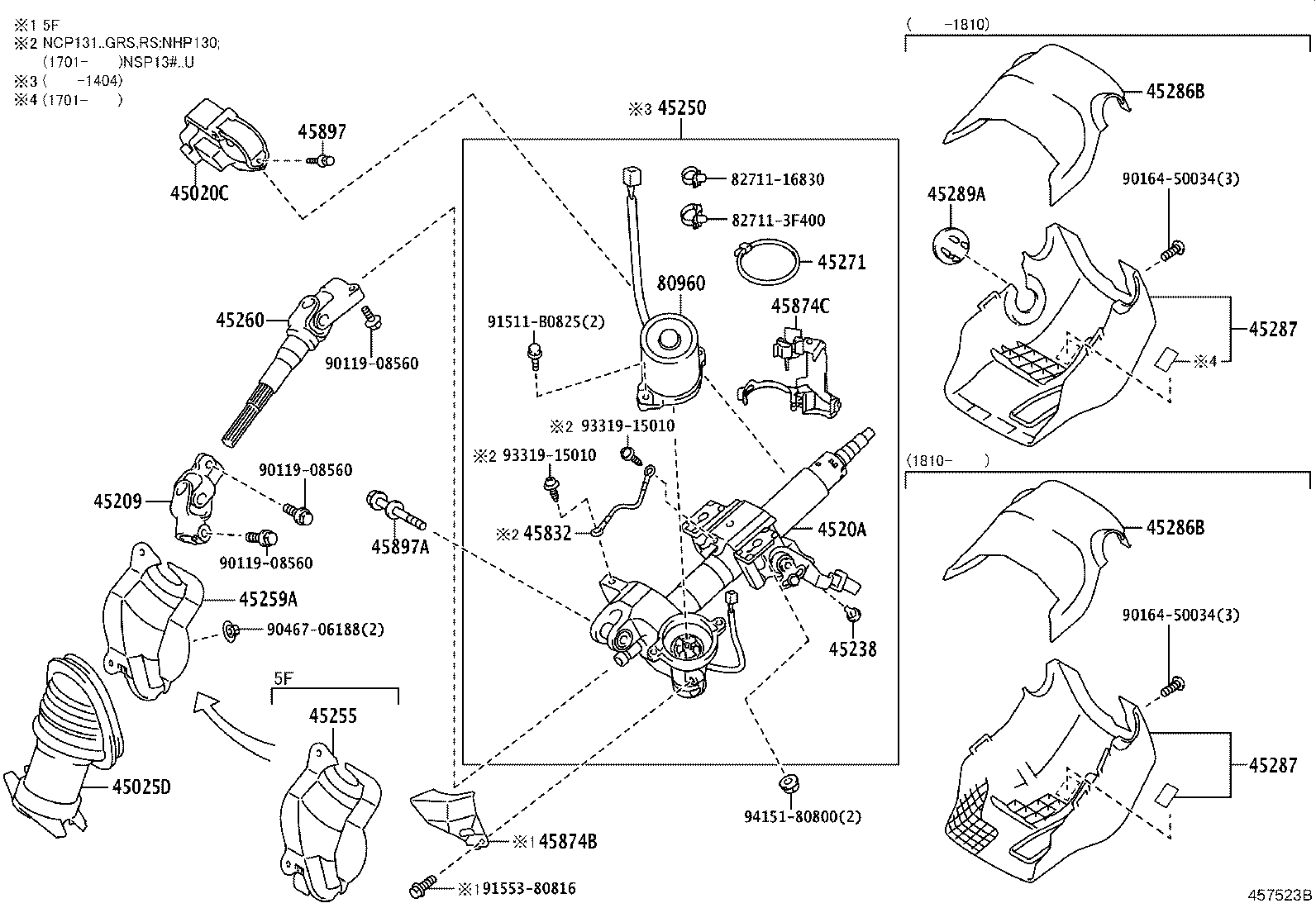

(1012- )
W(PUSH START)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020C - ACTUATOR ASSY, STEERING LOCK(W/ECU) | ||||
| 45020-52170 |
NCP131,NSP13#..CVT..(RS,U)..CBU |
1 | ||
| 45020-52170 |
NCP131..5F;KSP130,NSP13#..(F,JEWL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-52140 |
NCP131,NSP130..(RS,U)..CBU |
1 | ||
| 45025-52170 |
NCP131,NSP130..(RS,U)..CBU |
1 | ||
| 45025-52120 |
KSP130,NSP130..(F,JEWL)..CBU |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-52050 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING | ||||
| 4520A-52070 |
KSP130,NSP13#..(F,JEWL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 4520A-52060 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 4520A-52070 |
NCP131,NSP13#..U..CBU |
1 | ||
| 4520A-52071 |
KSP130,NSP13#..(F,JEWL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 4520A-52120 |
NSP13#..U..CBU ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 4520A-52062 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 4520A-52121 |
NSP13#..U..CBU ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 4520A-52071 |
NCP131,NSP13#..U..CBU |
1 | ||
| 4520A-52072 |
NCP131,NSP13#..U..CBU |
1 | ||
| 4520A-52061 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 4520A-52072 |
KSP130,NSP13#..(F,JEWL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 4520A-52122 |
NSP13#..U..CBU ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45238-52010 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-52722 |
KSP130,NSP13#..(F,JEWL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 45250-52712 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 45250-52722 |
NCP131,NSP13#..U..CBU |
1 | ||
| 45250-52782 |
NSP13#..U..CBU ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 45250-52723 |
KSP130,NSP13#..(F,JEWL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 45250-52783 |
NSP13#..U..CBU ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 45250-52714 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 45250-52724 |
KSP130,NSP13#..(F,JEWL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 45250-52723 |
NCP131,NSP13#..U..CBU |
1 | ||
| 45250-52724 |
NCP131,NSP13#..U..CBU |
1 | ||
| 45250-52784 |
NSP13#..U..CBU ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 45250-52713 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-52010 |
KSP130,NCP131,NSP13#..CVT..CBU |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-52201 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-52040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-52160C0 |
NCP131,NSP13#..CVT..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 45286-52160C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,5# |
1 | ||
| 45286-52160C0 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),BLACK,TRIM1#,5# |
1 | ||
| 45286-52190C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,5# |
1 | ||
| 45286-52190C0 |
NCP131,NSP13#..CVT..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 45286-52190C0 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-52160C0 |
NCP131,NSP13#..CVT..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 45286-52160C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,5# |
1 | ||
| 45286-52160C0 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),BLACK,TRIM1#,5# |
1 | ||
| 45286-52190C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,5# |
1 | ||
| 45286-52190C0 |
NCP131,NSP13#..CVT..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 45286-52190C0 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-52190C0 |
NCP131,NSP13#..CVT..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 45287-52190C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,5# |
1 | ||
| 45287-52230C0 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 45287-52190C0 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),BLACK,TRIM1#,5# |
1 | ||
| 45287-52230C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,5# |
1 | ||
| 45287-52230C0 |
NCP131,NSP13#..CVT..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-52190C0 |
NCP131,NSP13#..CVT..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 45287-52190C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,5# |
1 | ||
| 45287-52230C0 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 45287-52190C0 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),BLACK,TRIM1#,5# |
1 | ||
| 45287-52230C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,5# |
1 | ||
| 45287-52230C0 |
NCP131,NSP13#..CVT..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 45289A - SUPPORT, STEERING COLUMN COVER | ||||
| 45289-52010C0 |
KSP130,NSP13#..F..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 45289-52010C0 |
NCP131,NSP13#..CVT..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 45874C - PROTECTOR, STEERING COLUMN, NO.1 | ||||
| 45874-52040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-42010 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 90119-10980 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 80960 - MOTOR ASSY, POWER STEERING | ||||
| 80960-52100 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 80960-52070 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 80960-52110 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 80960-52080 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| Common parts | ||||
| 82711-16830 | ||||
| 82711-3F400 | ||||
| 90119-08560 | ||||
| 90164-50034 | ||||
| 90467-06188 | ||||
| 91511-B0825 | ||||
| 91553-80816 | ||||
| 93319-15010 | ||||
| 94151-80800 | ||||
