NSP130-AHXNB (2017)
Toyota Vitz
Production
Jan 2017
-
Jan 2020
Engine
1NRFKE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

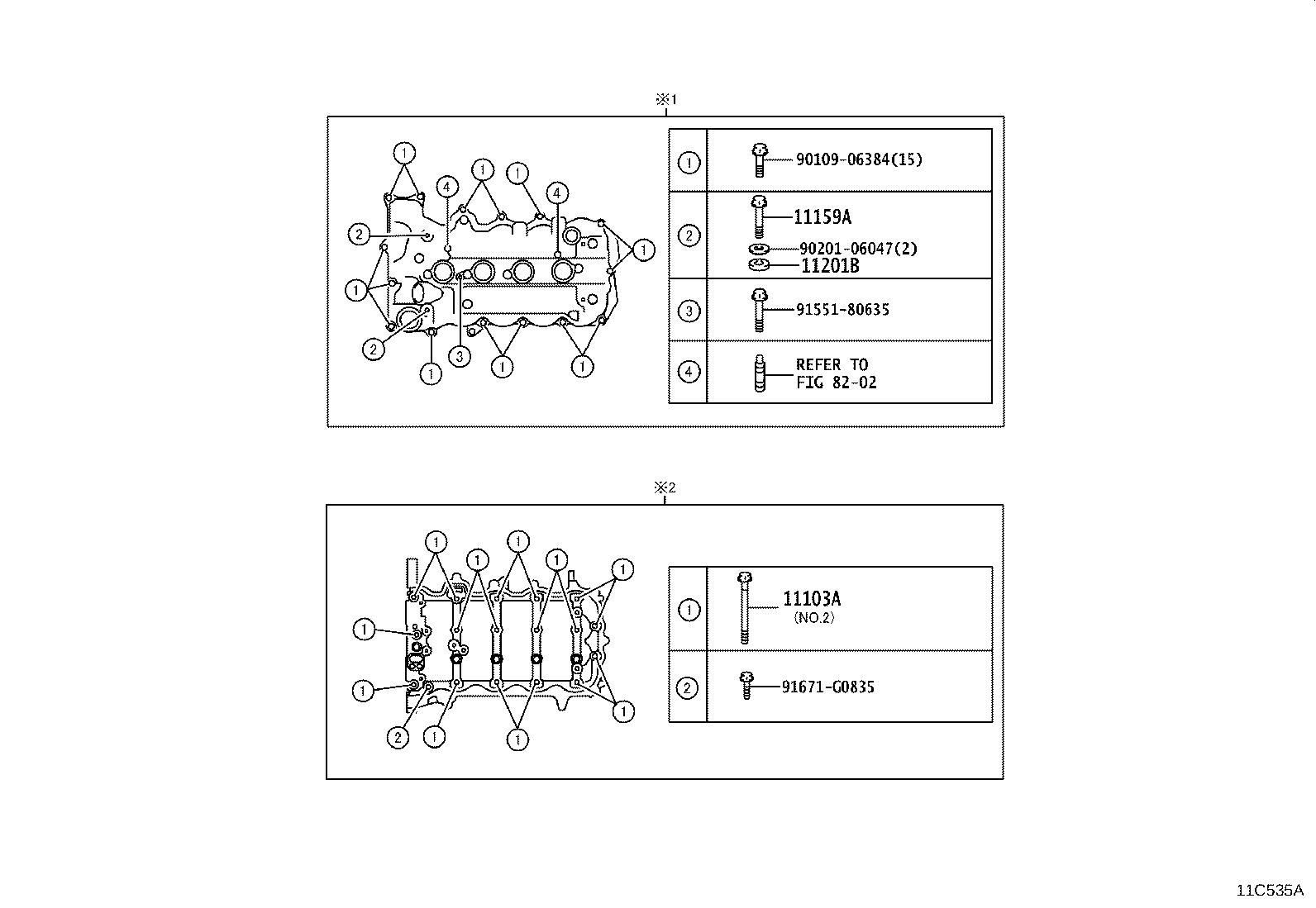

ILLUST NO. 2 OF 2(1701- )1NRFKE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11103A - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 90119-07009 |
1NR#..NSP13#..CBU NO.1 |
5 | ||
| 90105-08455 |
1NR#..NSP13#..CBU NO.2 |
17 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 91551-80635 |
1NR#..NSP13#..CBU |
2 | ||
| 90105-06360 |
1NR#..NSP13#..CBU |
2 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-12011 |
1NR#..NSP13#..CBU |
2 | ||
| Common parts | ||||
| 90109-06384 | ||||
| 90201-06047 | ||||
| 91551-80635 | ||||
| 91671-G0835 | ||||
| Linked diagrams | ||||
| 8202 | ||||
