NSP130-AHXNB (2014)
Toyota Vitz

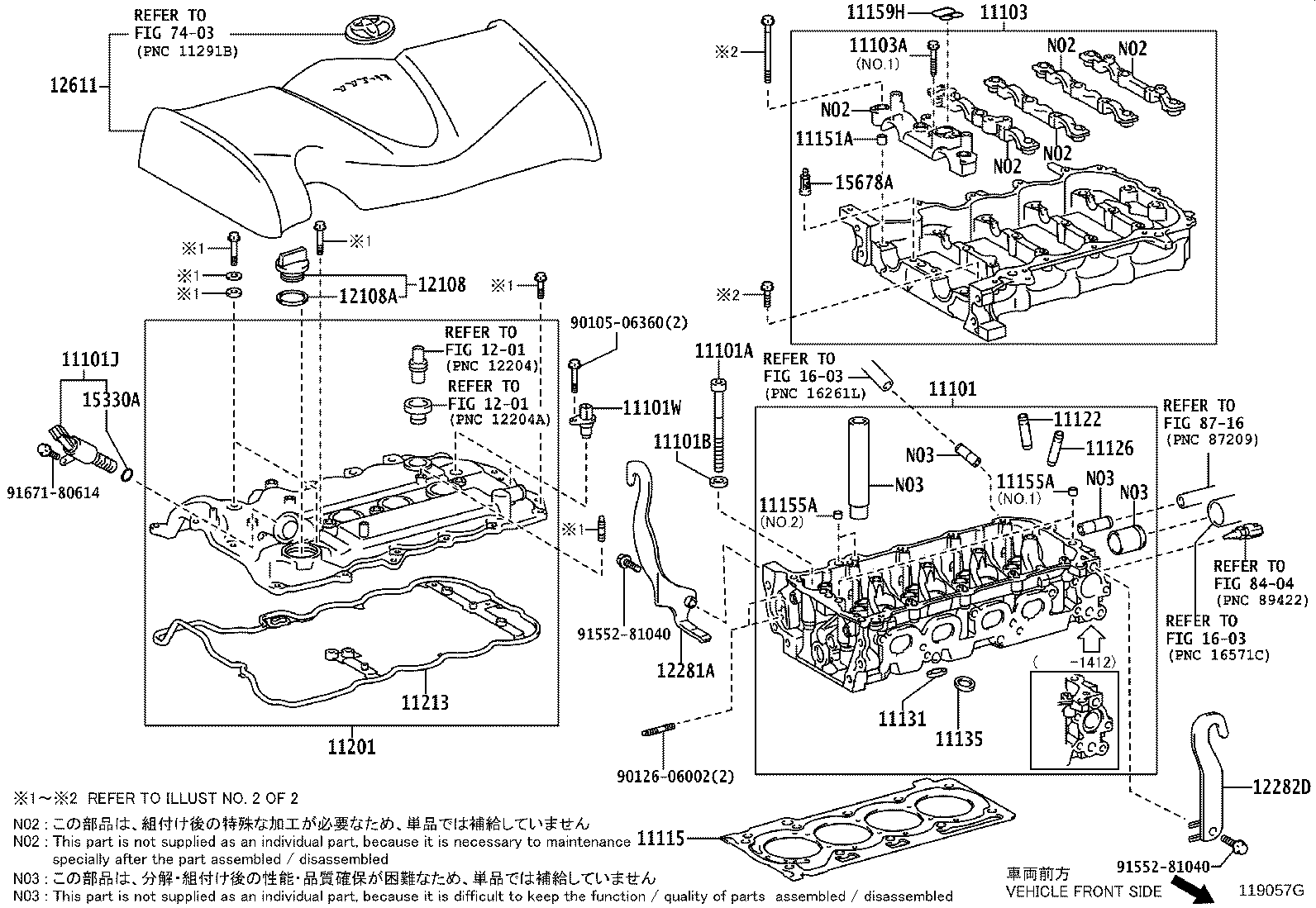

ILLUST NO. 1 OF 2(1404- )1NRFKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-49505 |
1NRFKE..NSP130 |
1 | ||
| 11101-49506 |
1NRFKE..NSP130 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02174 |
1NR#..NSP13#..CBU |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-10344 |
1NR#..NSP13#..CBU |
10 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-47020 |
1NRFKE..NSP130 |
1 | ||
| 11101W - SENSOR, CRANK POSITION, NO.1 | ||||
| 90919-05060 |
1NR#..NSP13#..CBU |
2 | ||
| 11103 - HOUSING SUB-ASSY, CAMSHAFT | ||||
| 11103-47902 |
1NRFKE..NSP130 |
1 | ||
| 11103A - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 90105-08455 |
1NR#..NSP13#..CBU NO.2 |
17 | ||
| 90119-07009 |
1NR#..NSP13#..CBU NO.1 |
5 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-47080 |
1NRFKE..NSP130 |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-31041 |
1NR#..NSP13#..CBU STD |
8 | ||
| 11123-31041 |
1NR#..NSP13#..CBU O/S 0.05 |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-31041 |
1NR#..NSP13#..CBU STD |
8 | ||
| 11123-31041 |
1NR#..NSP13#..CBU O/S 0.05 |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-47010 |
1NR#..NSP13#..CBU STD |
8 | ||
| 11132-47010 |
1NR#..NSP13#..CBU O/S 0.03 |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-47010 |
1NRFKE..NSP130 STD |
8 | ||
| 11136-47010 |
1NRFKE..NSP130 O/S 0.03 |
8 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-13005 |
1NR#..NSP13#..CBU 長さ=12.5,外径=8 |
10 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11004 |
1NRFKE..NSP130 NO.1 |
2 | ||
| 90253-12002 |
1NRFKE..NSP130 NO.2 |
2 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11004 |
1NRFKE..NSP130 NO.1 |
2 | ||
| 90253-12002 |
1NRFKE..NSP130 NO.2 |
2 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 11159-47020 |
1NRFKE..NSP130 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-47150 |
1NRFKE..NSP130 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-47040 |
1NRFKE..NSP130 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-38010 |
1NZFE,1NR#..NCP131,NSP13#..CBU |
1 | ||
| 12180-38010 |
1N#..NCP131,NSP13#..CBU |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-35001 |
1NZFE,1NR#..NCP131,NSP13#..CBU |
1 | ||
| 90430-35001 |
1N#..NCP131,NSP13#..CBU |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-47023 |
1NR#..NSP13#..CBU |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-47010 |
1NR#..NSP13#..CBU |
1 | ||
| 12611 - COVER, ENGINE, NO.1 | ||||
| 12611-47080 |
1NRFKE..NSP130 |
1 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
1NRFKE..NSP130 |
1 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-31020 |
1NR#..NSP13#..CBU |
1 | ||
| Common parts | ||||
| 90105-06360 | ||||
| 90126-06002 | ||||
| 91552-81040 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1603 | ||||
| 7403 | ||||
| 8404 | ||||
| 8716 | ||||

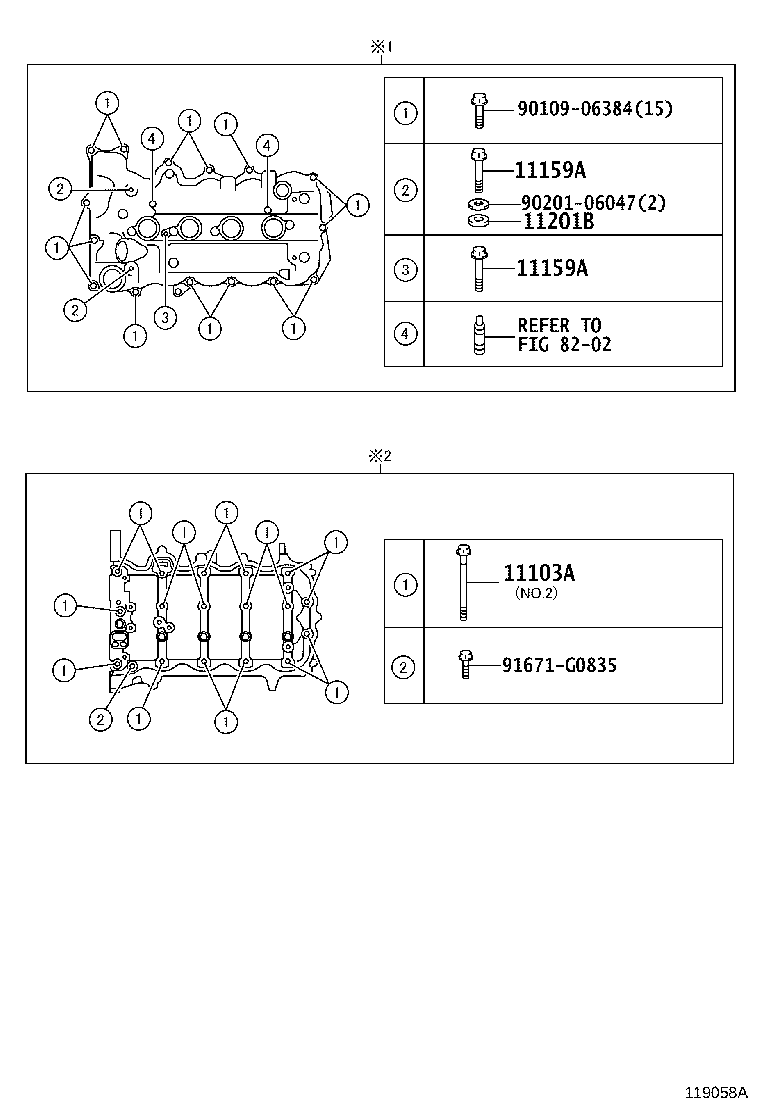

ILLUST NO. 2 OF 2(1404-1701)1NRFKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11103A - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 90105-08455 |
1NR#..NSP13#..CBU NO.2 |
17 | ||
| 90119-07009 |
1NR#..NSP13#..CBU NO.1 |
5 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-06360 |
1NR#..NSP13#..CBU |
3 | ||
| 90105-T0347 |
1NR#..NSP13#..CBU |
3 | ||
| 91551-80635 |
1NRFKE..NSP130 |
3 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-06360 |
1NR#..NSP13#..CBU |
3 | ||
| 90105-T0347 |
1NR#..NSP13#..CBU |
3 | ||
| 91551-80635 |
1NRFKE..NSP130 |
3 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-12011 |
1NR#..NSP13#..CBU |
2 | ||
| Common parts | ||||
| 90109-06384 | ||||
| 90201-06047 | ||||
| 91671-G0835 | ||||
| Linked diagrams | ||||
| 8202 | ||||
