NSP130-AHXGK (2010)

Toyota Vitz

Production Dec 2010 - Apr 2014
Engine 1NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

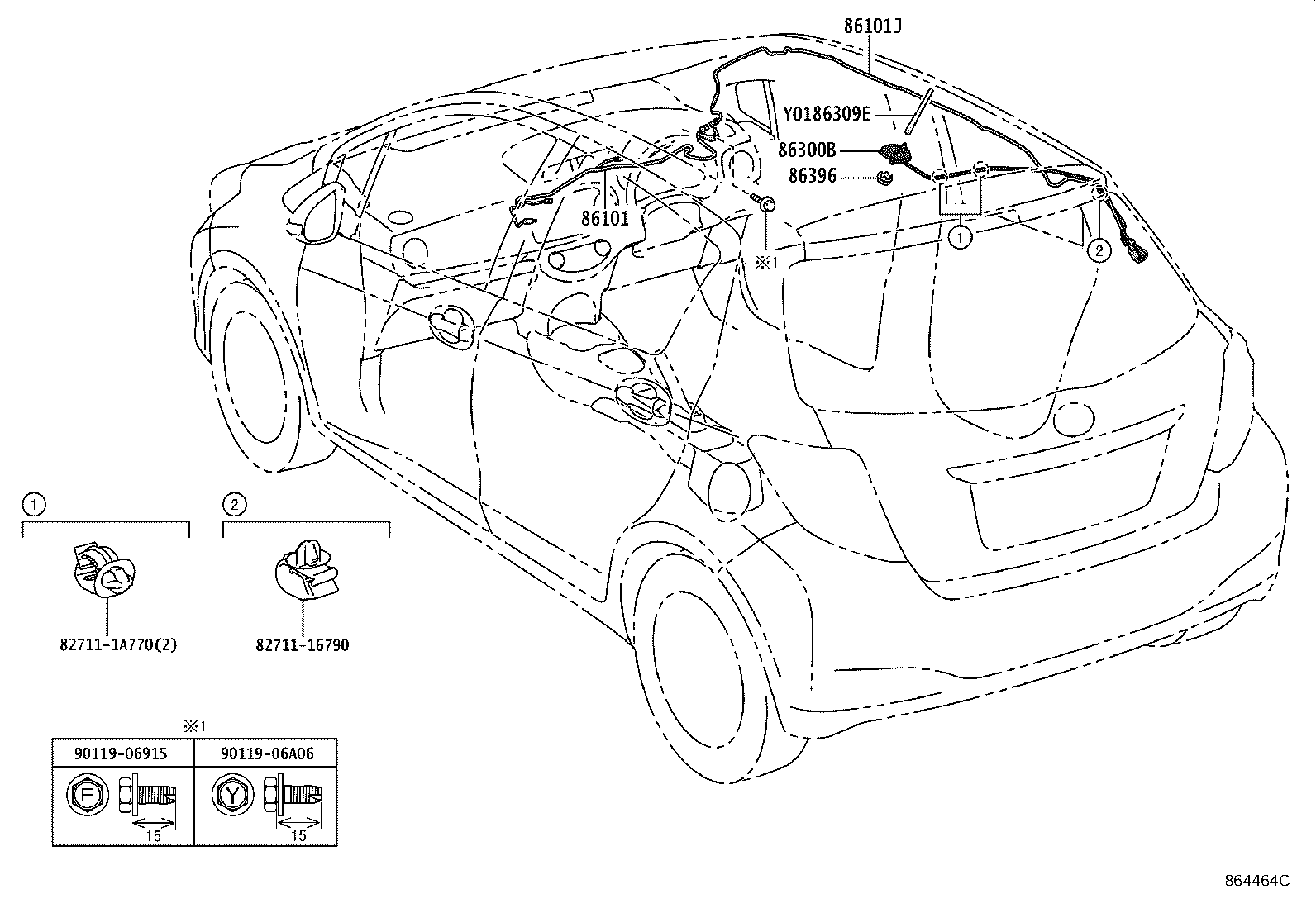

Click highlighted areas on diagram

diagram 8271116790 827111A770 86101 86101J 86300B 86309E 86396 9011906915 9011906A06
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-52860

NCP131,NSP13#..U..CBU

 1
86101-52880

KSP130,NCP131,NSP13#..(F,JEWL,RS)..CBU

 1
86101-52870

KSP130,NCP131,NSP13#..CBU

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾅﾋﾞｹﾞｰｼｮﾝ 4ｽﾋﾟｰｶ

 1
86101-52860

KSP130,NCP131,NSP13#..JEWL,RS

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ

 1
86101-52860

KSP130,NSP13#..F..CBU

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ

 1
86101-52880

NCP131,NSP13#..U..CBU

ｵｰﾃﾞｨｵ(日本仕向け用)−CD ﾗｼﾞｵ 4ｽﾋﾟｰｶ

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-52840

KSP130,NCP131,NSP13#..CBU

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾅﾋﾞｹﾞｰｼｮﾝ 4ｽﾋﾟｰｶ

 1
86101-52830

KSP130,NCP131,NSP13#..CBU

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-52170

KSP130,NCP131,NSP13#..CBU

 1
86300-52580

KSP130,NCP131,NSP13#..CBU

 1
86300-52510

KSP130,NCP131,NSP13#..CBU

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾅﾋﾞｹﾞｰｼｮﾝ 4ｽﾋﾟｰｶ

 1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-52090

KSP130,NCP131,NSP13#..CBU

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾅﾋﾞｹﾞｰｼｮﾝ 4ｽﾋﾟｰｶ

 1
86309-47060

KSP130,NCP131,NSP13#..CBU

 1
86309-42070

KSP130,NCP131,NSP13#..CBU

 1
86396 - NUT, ANTENNA
86396-47010

KSP130,NCP131,NSP13#..CBU

 1
Common parts
82711-16790
82711-1A770
90119-06915
90119-06A06
