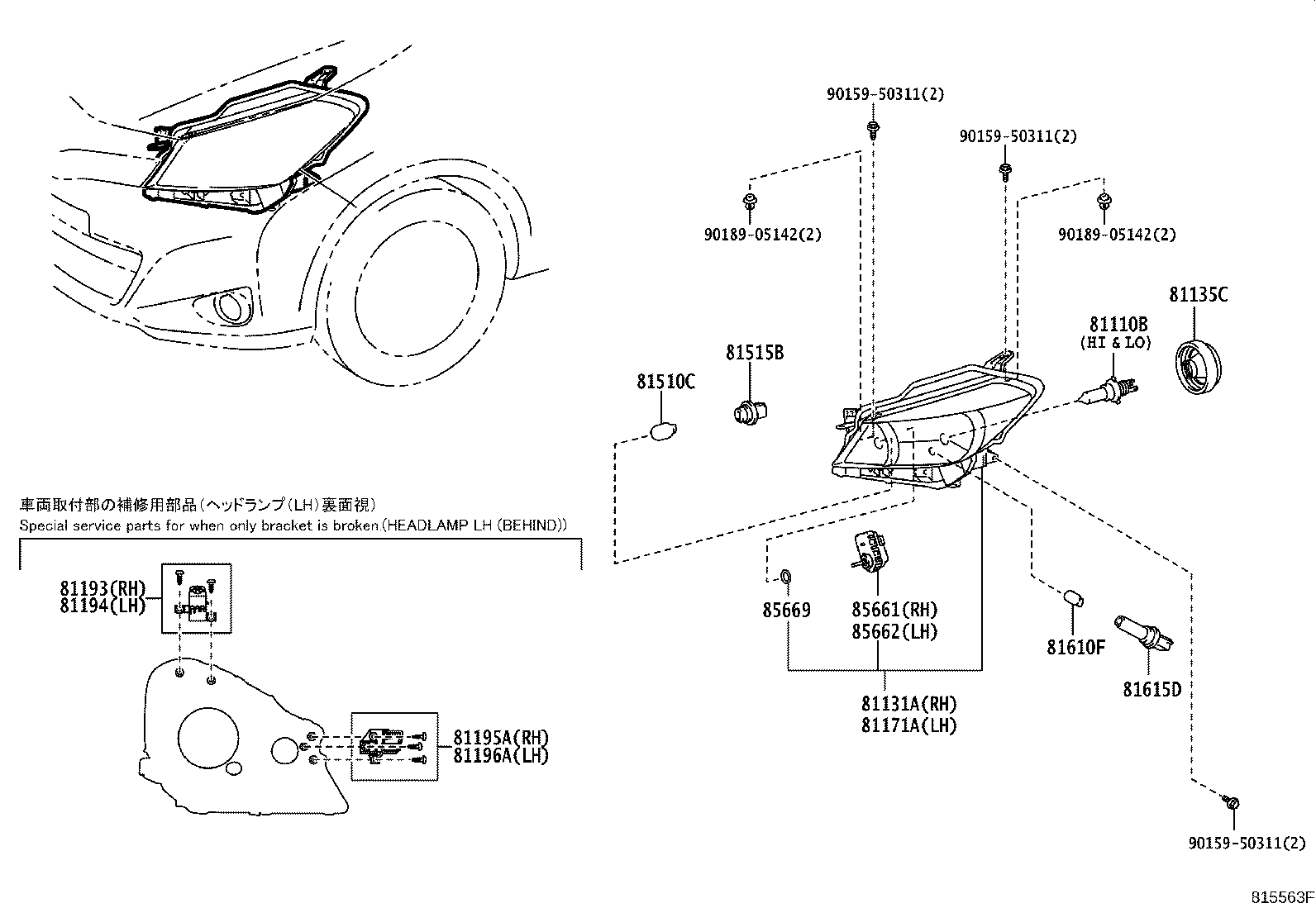

NSP130-AHXGK (2010)
Toyota Vitz
(1012-1404)
ﾊﾛｹﾞﾝﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13058 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13075 |
KSP130,NSP13#..JEWL 12V 55W,ﾊﾛｹﾞﾝ,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90981-13075 |
KSP130,NCP131,NSP13#..(F,U)..CBU 12V 55W,ﾊﾛｹﾞﾝ,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81130-52D20 |
KSP130,NCP131,NSP13#..(F,U)..CBU |
1 | ||
| 81145-52E40 |
KSP130,NSP13#..JEWL ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81145-52D40 |
KSP130,NCP131,NSP13#..(F,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81130-52D80 |
KSP130,NSP13#..JEWL |
1 | ||
| 81135C - COVER, HEADLAMP BACK, NO.1 | ||||
| 90075-65002 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
2 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81170-52D80 |
KSP130,NSP13#..JEWL |
1 | ||
| 81170-52D20 |
KSP130,NCP131,NSP13#..(F,U)..CBU |
1 | ||
| 81185-52D40 |
KSP130,NCP131,NSP13#..(F,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81185-52E40 |
KSP130,NSP13#..JEWL ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-52200 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-52200 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-52160 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-52160 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
KSP130,NCP131,NSP13#..CBU 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
KSP130,NCP131,NSP13#..CBU 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 85661-12020 |
KSP130,NCP131,NSP13#..(F,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 85661-12020 |
KSP130,NSP13#..JEWL ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 85661-12020 |
KSP130,NSP13#..JEWL ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 85661-12020 |
KSP130,NCP131,NSP13#..(F,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90189-05142 | ||||

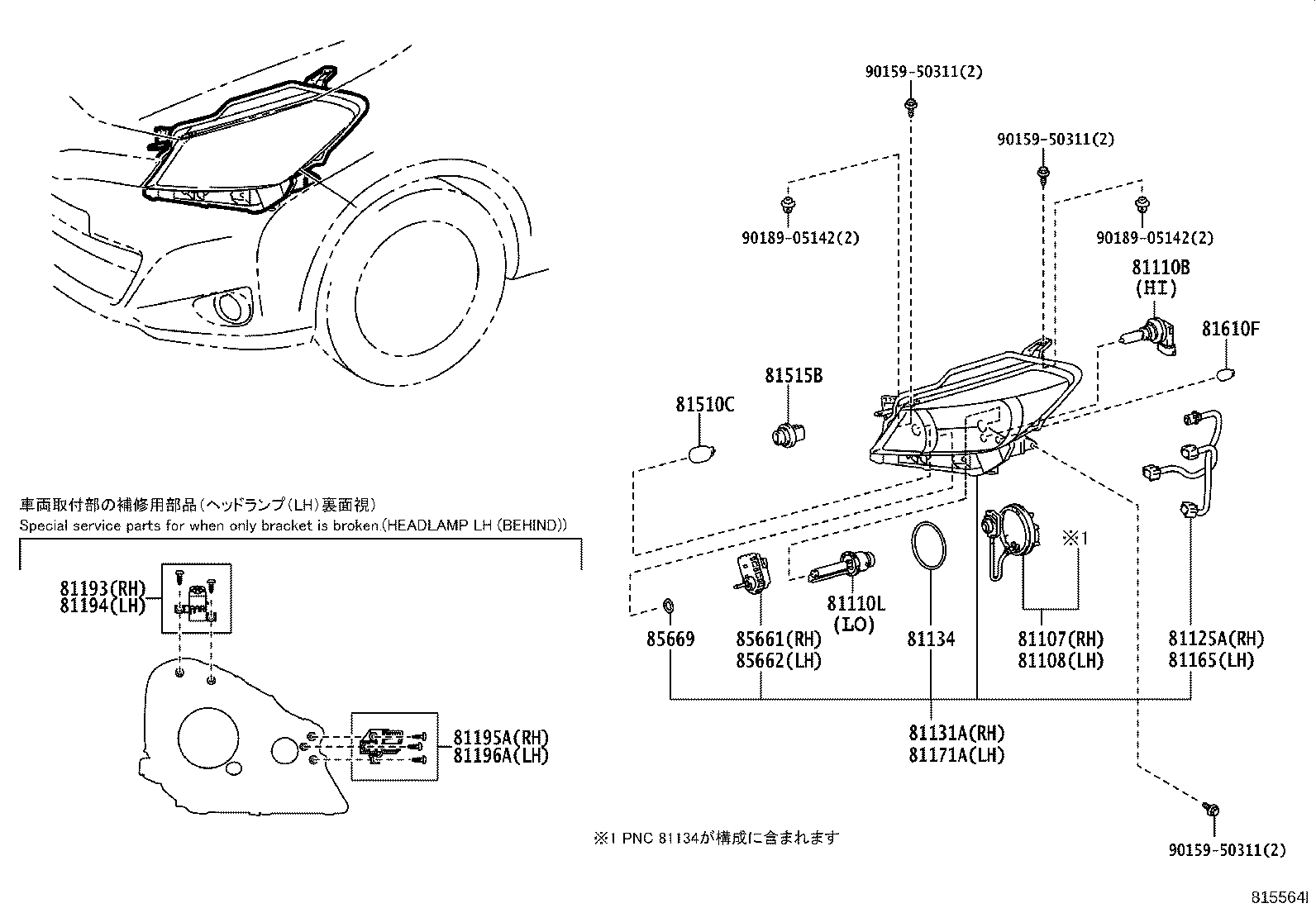

(1012-1404) ; (1404-1701)RS
ﾃﾞｨｽﾁｬｰｼﾞﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-75020 |
KSP130,NCP131,NSP13#..(F,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81107-75020 |
KSP130,NSP13#..JEWL ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-75020 |
KSP130,NSP13#..JEWL ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81107-75020 |
KSP130,NCP131,NSP13#..(F,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13058 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13075 |
KSP130,NSP13#..JEWL 12V 55W,ﾊﾛｹﾞﾝ,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90981-13075 |
KSP130,NCP131,NSP13#..(F,U)..CBU 12V 55W,ﾊﾛｹﾞﾝ,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20029 |
KSP130,NCP131,NSP13#..(F,U)..CBU 43V 35W,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90981-20029 |
KSP130,NSP13#..JEWL 43V 35W,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 81125A - CORD, HEADLAMP, RH | ||||
| 81125-52D40 |
KSP130,NSP13#..JEWL ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81125-52D40 |
KSP130,NCP131,NSP13#..(F,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81130-52D20 |
KSP130,NCP131,NSP13#..(F,U)..CBU |
1 | ||
| 81145-52E40 |
KSP130,NSP13#..JEWL ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81145-52D40 |
KSP130,NCP131,NSP13#..(F,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81130-52D80 |
KSP130,NSP13#..JEWL |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-23002 |
KSP130,NSP13#..JEWL ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90075-23002 |
KSP130,NCP131,NSP13#..(F,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 81165 - CORD, HEADLAMP, LH | ||||
| 81125-52D40 |
KSP130,NSP13#..JEWL ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81125-52D40 |
KSP130,NCP131,NSP13#..(F,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81170-52D80 |
KSP130,NSP13#..JEWL |
1 | ||
| 81170-52D20 |
KSP130,NCP131,NSP13#..(F,U)..CBU |
1 | ||
| 81185-52D40 |
KSP130,NCP131,NSP13#..(F,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81185-52E40 |
KSP130,NSP13#..JEWL ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-52200 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-52200 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-52160 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-52160 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
KSP130,NCP131,NSP13#..CBU 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
KSP130,NCP131,NSP13#..CBU 12V 5W |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 85661-12020 |
KSP130,NCP131,NSP13#..(F,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 85661-12020 |
KSP130,NSP13#..JEWL ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 85661-12020 |
KSP130,NSP13#..JEWL ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 85661-12020 |
KSP130,NCP131,NSP13#..(F,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90189-05142 | ||||
