NSP130-AHXEK (2010)

Toyota Vitz

Production Dec 2010 - Apr 2014
Engine 1NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1012-1404)

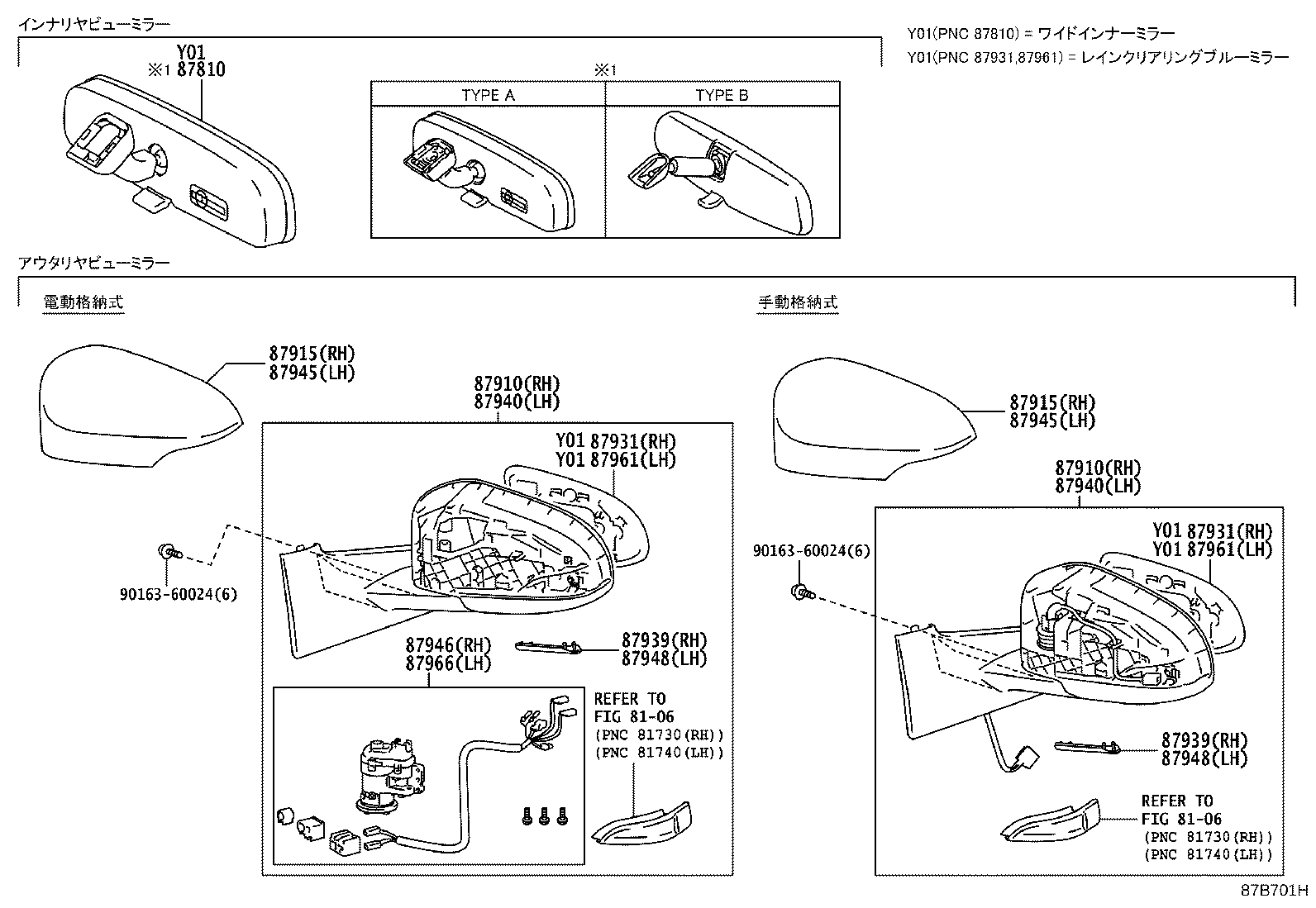

Click highlighted areas on diagram

diagram 8106 8106 87810 87910 87910 87915 87915 87931 87931 87939 87939 87940 87940 87945 87945 87946 87948 87948 87961 87961 87966 9016360024 9016360024
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-52041

KSP130,NCP131,NSP13#..CBU

TYPE A:ｲﾗｽﾄ参照

 1
87810-AA011

KSP130,NCP131,NSP13#..CBU

TYPE B:ｲﾗｽﾄ参照

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-52B90

KSP130,NCP131,NSP13#..CBU

塗装不要

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-52B90

KSP130,NCP131,NSP13#..CBU

塗装不要

 1
87915 - COVER, OUTER MIRROR, RH
87915-52140A0

KSP130,NCP131,NSP13#..(F,RS,U)..CBU

SUPER WHITE 2,040

 1
87915-52140A1

KSP130,NCP131,NSP13#..CBU

WHITE PEARL CS.,070

 1
87915-52140D1

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

ROSE ME.OP.,3P3

 1
87915-52140B2

KSP130,NCP131,NSP13#..(F,RS,U)..CBU

GIN BUCK ME.,1J1

 1
87915-52140D0

KSP130,NCP131,NSP13#..CBU

SUPER RED 5,3P0

 1
87915-52140B0

KSP130,NCP131,NSP13#..CBU

SILVER ME.,1F7

 1
87915-52140D0

NSP130..F..HTWC

“SMILE EDITION”*(A),*(J),SUPER RED 5,040 ,070 ,209

 1
87915-52140C0

KSP130,NCP131,NSP13#..CBU

BLACK MC.,209

 1
87915-52140E0

KSP130,NSP13#..(F,JEWL)..CBU

DK. BROWN M.M.,4U3

 1
87915-52140F0

KSP130,NSP13#..F..CBU

SILKY GOLD M.M.,5A7

 1
87915-52140B1

KSP130,NCP131,NSP13#..(F,RS,U)..CBU

GRAY ME.,1G3

 1
87915-52140J0

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

LT.BLUE M.M.,8S7

 1
87915-52140D4

KSP130,NSP13#..F..CBU

DEEP RED M.M.,3R9

 1
87915-52140K0

KSP130,NSP13#..F..CBU

LT.PURPLE M.M.,9AE

 1
87915-52140J2

KSP130,NSP13#..F..CBU

DK.BLUE MC.,8S6

 1
87915 - COVER, OUTER MIRROR, RH
87915-52140A0

KSP130,NCP131,NSP13#..(F,RS,U)..CBU

SUPER WHITE 2,040

 1
87915-52140A1

KSP130,NCP131,NSP13#..CBU

WHITE PEARL CS.,070

 1
87915-52140D1

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

ROSE ME.OP.,3P3

 1
87915-52140B2

KSP130,NCP131,NSP13#..(F,RS,U)..CBU

GIN BUCK ME.,1J1

 1
87915-52140D0

KSP130,NCP131,NSP13#..CBU

SUPER RED 5,3P0

 1
87915-52140B0

KSP130,NCP131,NSP13#..CBU

SILVER ME.,1F7

 1
87915-52140D0

NSP130..F..HTWC

“SMILE EDITION”*(A),*(J),SUPER RED 5,040 ,070 ,209

 1
87915-52140C0

KSP130,NCP131,NSP13#..CBU

BLACK MC.,209

 1
87915-52140E0

KSP130,NSP13#..(F,JEWL)..CBU

DK. BROWN M.M.,4U3

 1
87915-52140F0

KSP130,NSP13#..F..CBU

SILKY GOLD M.M.,5A7

 1
87915-52140B1

KSP130,NCP131,NSP13#..(F,RS,U)..CBU

GRAY ME.,1G3

 1
87915-52140J0

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

LT.BLUE M.M.,8S7

 1
87915-52140D4

KSP130,NSP13#..F..CBU

DEEP RED M.M.,3R9

 1
87915-52140K0

KSP130,NSP13#..F..CBU

LT.PURPLE M.M.,9AE

 1
87915-52140J2

KSP130,NSP13#..F..CBU

DK.BLUE MC.,8S6

 1
87931 - OUTER MIRROR, RH
87931-52B90

KSP130,NCP131,NSP13#..CBU

 1
87931 - OUTER MIRROR, RH
87931-52B90

KSP130,NCP131,NSP13#..CBU

 1
87939 - COVER, OUTER MIRROR HOLE, RH
87939-52B90

KSP130,NCP131,NSP13#..CBU

 1
87939 - COVER, OUTER MIRROR HOLE, RH
87939-52B90

KSP130,NCP131,NSP13#..CBU

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-52B30

KSP130,NCP131,NSP13#..CBU

塗装不要

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-52B30

KSP130,NCP131,NSP13#..CBU

塗装不要

 1
87945 - COVER, OUTER MIRROR, LH
87945-52140B0

KSP130,NCP131,NSP13#..CBU

SILVER ME.,1F7

 1
87945-52140B1

KSP130,NCP131,NSP13#..(F,RS,U)..CBU

GRAY ME.,1G3

 1
87945-52140D0

NSP130..F..HTWC

“SMILE EDITION”*(A),*(J),SUPER RED 5,040 ,070 ,209

 1
87945-52140C0

KSP130,NCP131,NSP13#..CBU

BLACK MC.,209

 1
87945-52140A1

KSP130,NCP131,NSP13#..CBU

WHITE PEARL CS.,070

 1
87945-52140D0

KSP130,NCP131,NSP13#..CBU

SUPER RED 5,3P0

 1
87945-52140A0

KSP130,NCP131,NSP13#..(F,RS,U)..CBU

SUPER WHITE 2,040

 1
87945-52140J0

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

LT.BLUE M.M.,8S7

 1
87945-52140E0

KSP130,NSP13#..(F,JEWL)..CBU

DK. BROWN M.M.,4U3

 1
87945-52140D1

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

ROSE ME.OP.,3P3

 1
87945-52140D4

KSP130,NSP13#..F..CBU

DEEP RED M.M.,3R9

 1
87945-52140K0

KSP130,NSP13#..F..CBU

LT.PURPLE M.M.,9AE

 1
87945-52140J2

KSP130,NSP13#..F..CBU

DK.BLUE MC.,8S6

 1
87945-52140F0

KSP130,NSP13#..F..CBU

SILKY GOLD M.M.,5A7

 1
87945-52140B2

KSP130,NCP131,NSP13#..(F,RS,U)..CBU

GIN BUCK ME.,1J1

 1
87945 - COVER, OUTER MIRROR, LH
87945-52140B0

KSP130,NCP131,NSP13#..CBU

SILVER ME.,1F7

 1
87945-52140B1

KSP130,NCP131,NSP13#..(F,RS,U)..CBU

GRAY ME.,1G3

 1
87945-52140D0

NSP130..F..HTWC

“SMILE EDITION”*(A),*(J),SUPER RED 5,040 ,070 ,209

 1
87945-52140C0

KSP130,NCP131,NSP13#..CBU

BLACK MC.,209

 1
87945-52140A1

KSP130,NCP131,NSP13#..CBU

WHITE PEARL CS.,070

 1
87945-52140D0

KSP130,NCP131,NSP13#..CBU

SUPER RED 5,3P0

 1
87945-52140A0

KSP130,NCP131,NSP13#..(F,RS,U)..CBU

SUPER WHITE 2,040

 1
87945-52140J0

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

LT.BLUE M.M.,8S7

 1
87945-52140E0

KSP130,NSP13#..(F,JEWL)..CBU

DK. BROWN M.M.,4U3

 1
87945-52140D1

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

ROSE ME.OP.,3P3

 1
87945-52140D4

KSP130,NSP13#..F..CBU

DEEP RED M.M.,3R9

 1
87945-52140K0

KSP130,NSP13#..F..CBU

LT.PURPLE M.M.,9AE

 1
87945-52140J2

KSP130,NSP13#..F..CBU

DK.BLUE MC.,8S6

 1
87945-52140F0

KSP130,NSP13#..F..CBU

SILKY GOLD M.M.,5A7

 1
87945-52140B2

KSP130,NCP131,NSP13#..(F,RS,U)..CBU

GIN BUCK ME.,1J1

 1
87946 - RETRACTOR, OUTER MIRROR, RH
87946-52B90

KSP130,NCP131,NSP13#..CBU

 1
87948 - COVER, OUTER MIRROR HOLE, LH
87948-52B30

KSP130,NCP131,NSP13#..CBU

 1
87948 - COVER, OUTER MIRROR HOLE, LH
87948-52B30

KSP130,NCP131,NSP13#..CBU

 1
87961 - MIRROR OUTER, LH
87961-52B30

KSP130,NCP131,NSP13#..CBU

 1
87961 - MIRROR OUTER, LH
87961-52B30

KSP130,NCP131,NSP13#..CBU

 1
87966 - RETRACTOR, OUTER MIRROR, LH
87966-52B30

KSP130,NCP131,NSP13#..CBU

 1
Common parts
90163-60024
