NSP130-AHXEK (2010)

Toyota Vitz

Production Dec 2010 - Apr 2014
Engine 1NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )KSP130,NHP130,NSP130

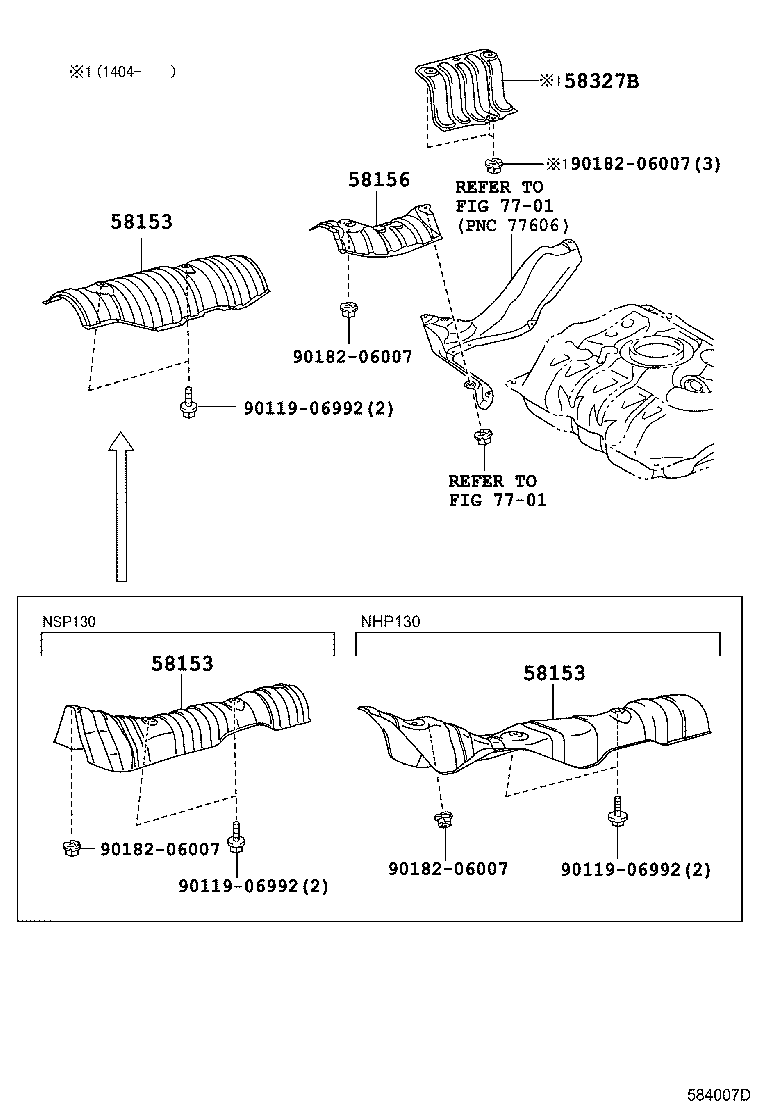

Click highlighted areas on diagram

diagram 58153 58153 58153 58156 58327B 7701 7701 9011906992 9011906992 9011906992 9018206007 9018206007 9018206007 9018206007
Part # Description Qty Price
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-52090

NSP130..CBU

 1
58153-52091

NSP130..CBU

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-52090

NSP130..CBU

 1
58153-52091

NSP130..CBU

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-52090

NSP130..CBU

 1
58153-52091

NSP130..CBU

 1
58156 - INSULATOR, FRONT FLOOR HEAT, NO.4
58156-52010

KSP130,NCP131,NSP130..CBU

 1
Common parts
90119-06992
90182-06007
Linked diagrams
7701
