NSP130-AHXEK (2010)
Toyota Vitz

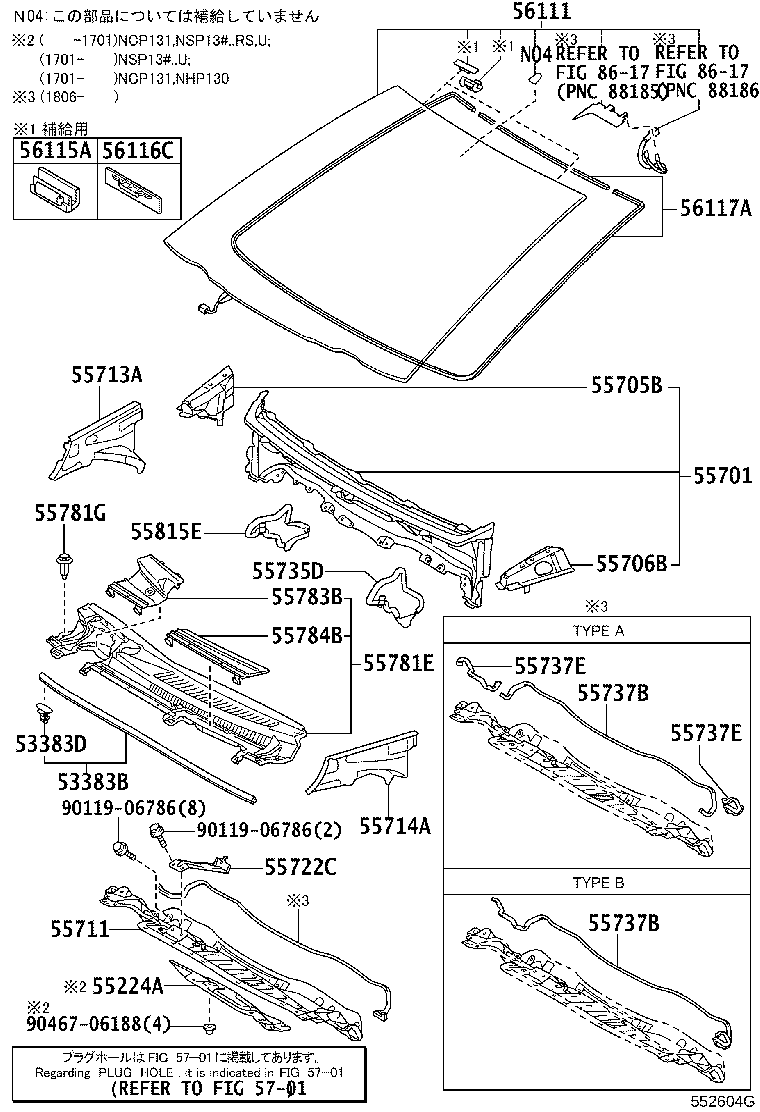

ILLUST NO. 1 OF 2(1012- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383B - SEAL, HOOD TO COWL TOP | ||||
| 53383-52130 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 53383D - CLIP(FOR HOOD TO COWL TOP SEAL) | ||||
| 67867-12150 |
KSP130,NCP131,NSP13#..CBU |
6 | ||
| 55224A - INSULATOR, DASH PANEL, OUTER NO.2 | ||||
| 55224-52020 |
NCP131,NSP13#..(RS,U)..CBU |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-52280 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH | ||||
| 55705-52150 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-52150 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55711 - PANEL, COWL TOP, OUTER | ||||
| 55701-52270 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-52130 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-52130 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55722C - BRACE, COWL TOP TO COWL, INNER | ||||
| 55722-52110 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55735D - SEAL, FRONT AIR SHUTTER, RH | ||||
| 55735-52090 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1 | ||||
| 55737-52010 |
KSP130,NCP131,NSP13#..CBU TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55737-74010 |
KSP130,NCP131,NSP13#..CBU TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1 | ||||
| 55737-52010 |
KSP130,NCP131,NSP13#..CBU TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55737-74010 |
KSP130,NCP131,NSP13#..CBU TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 55737E - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2 | ||||
| 55737-52050 |
KSP130,NCP131,NSP13#..CBU TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 55737E - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2 | ||||
| 55737-52050 |
KSP130,NCP131,NSP13#..CBU TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-52231 |
KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
1 | ||
| 55708-52350 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55708-52360 |
KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
1 | ||
| 55708-52181 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55708-52230 |
KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
1 | ||
| 55708-52180 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-07190C0 |
KSP130,NCP131,NSP13#..CBU BLACK |
2 | ||
| 55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1 | ||||
| 55783-52280 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2 | ||||
| 55784-52110 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55815E - SEAL, FRONT VENTILATOR, NO.1 | ||||
| 55815-52040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-52610 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 56101-52620 |
KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30100 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 56117A - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-50130 |
KSP130,NCP131,NSP13#..CBU *D,L=3186 OR 606 |
1 | ||
| 56117-50130 |
KSP130,NCP131,NSP13#..CBU *D,L=3186 OR 606,寒冷地仕様 |
1 | ||
| Common parts | ||||
| 90119-06786 | ||||
| 90467-06188 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 8617 | ||||
ILLUST NO. 2 OF 2(1012- )
ｱｳﾄｻｲﾄﾞﾓｰﾙﾃﾞｨﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75533G - MOULDING, WINDSHIELD, OUTSIDE | ||||
| 75533-52200 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 75533-52201 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
