NHP130-AHXVB (2017)

Toyota Vitz

Production Sep 2017 - Jan 2020
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1709- )GRS

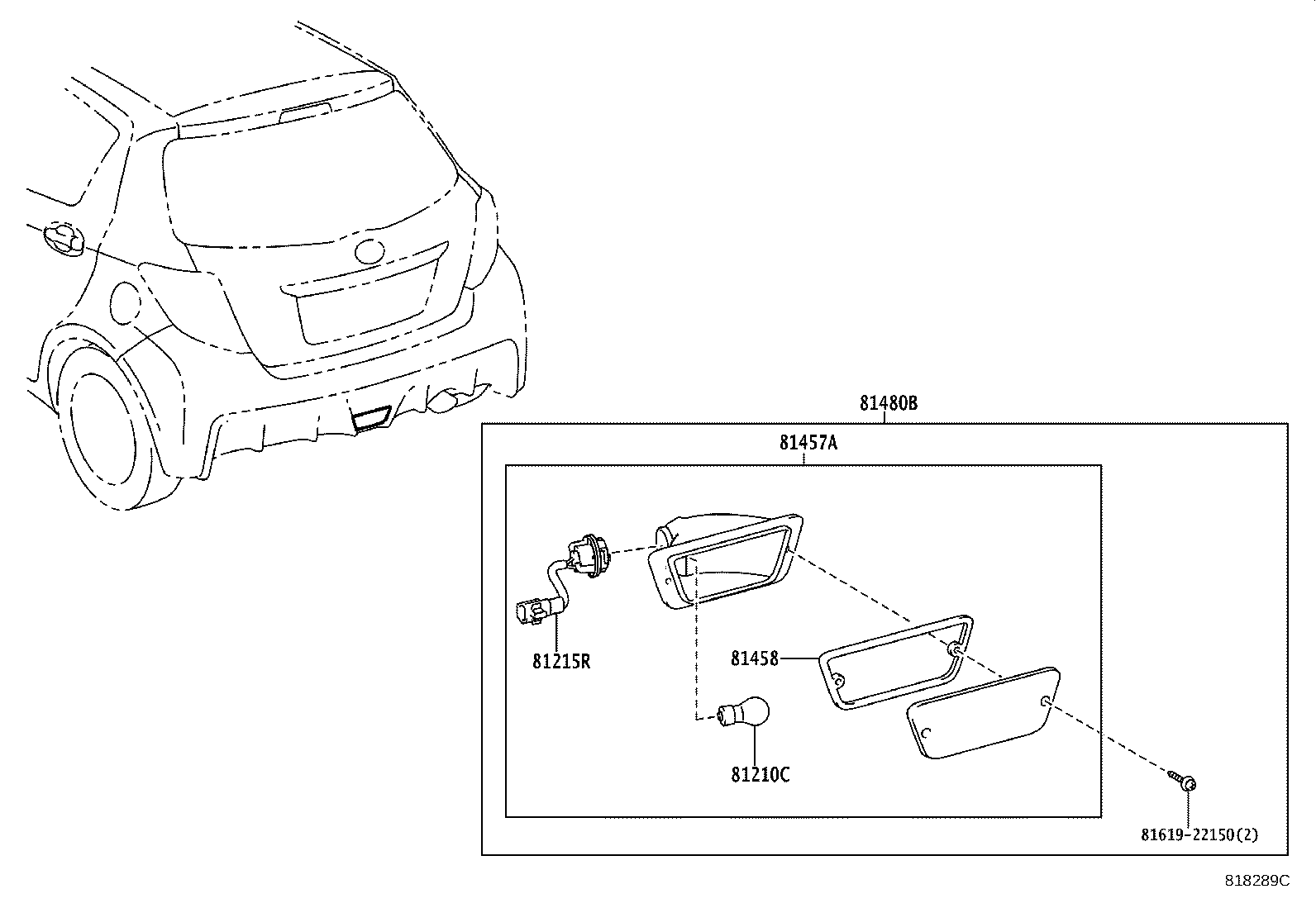

Click highlighted areas on diagram

diagram 81210C 81215R 81457A 81458 81480B 8161922150
Part # Description Qty Price
81210C - BULB, REAR FOG LAMP
99132-11210

NHP130,NSP13#..(F,JEWL,U)..CBU

12V 21W,ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾊﾞﾝﾊﾟ付け)&ｲﾝﾃﾘｼﾞｪﾝﾄ ｸﾘｱﾗﾝXｿﾅｰ−有り

 1
99132-11210

NHP130..GRS

12V 21W,ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(GR−SPORT用(DOP))

 1
81215R - SOCKET & WIRE, REAR FOG LAMP
81459-52110

NHP130..GRS

ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(GR−SPORT用(DOP))

 1
81457A - LENS & BODY, REAR FOG LAMP, RH
81457-52110

NHP130..GRS

ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(GR−SPORT用(DOP))

 1
81458 - PACKING, REAR FOG LAMP
81458-28030

NHP130..GRS

ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(GR−SPORT用(DOP))

 1
81458-28030

NHP130,NSP13#..(F,JEWL,U)..CBU

ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾊﾞﾝﾊﾟ付け)&ｲﾝﾃﾘｼﾞｪﾝﾄ ｸﾘｱﾗﾝｽｿﾅｰ−有り

 1
81480B - LAMP ASSY, REAR FOG
81480-52110

NHP130..GRS

ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(GR−SPORT用(DOP))

 1
81480-13010

NHP130,NSP13#..(F,JEWL,U)..CBU

ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾊﾞﾝﾊﾟ付け)&ｲﾝﾃﾘｼﾞｪﾝﾄ ｸﾘｱﾗﾝｽｿﾅｰ−有り

 1
Common parts
81619-22150
