NHP130-AHXNB (2017)

Toyota Vitz

Production Jan 2017 - Jan 2020
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )F,JEWL,U

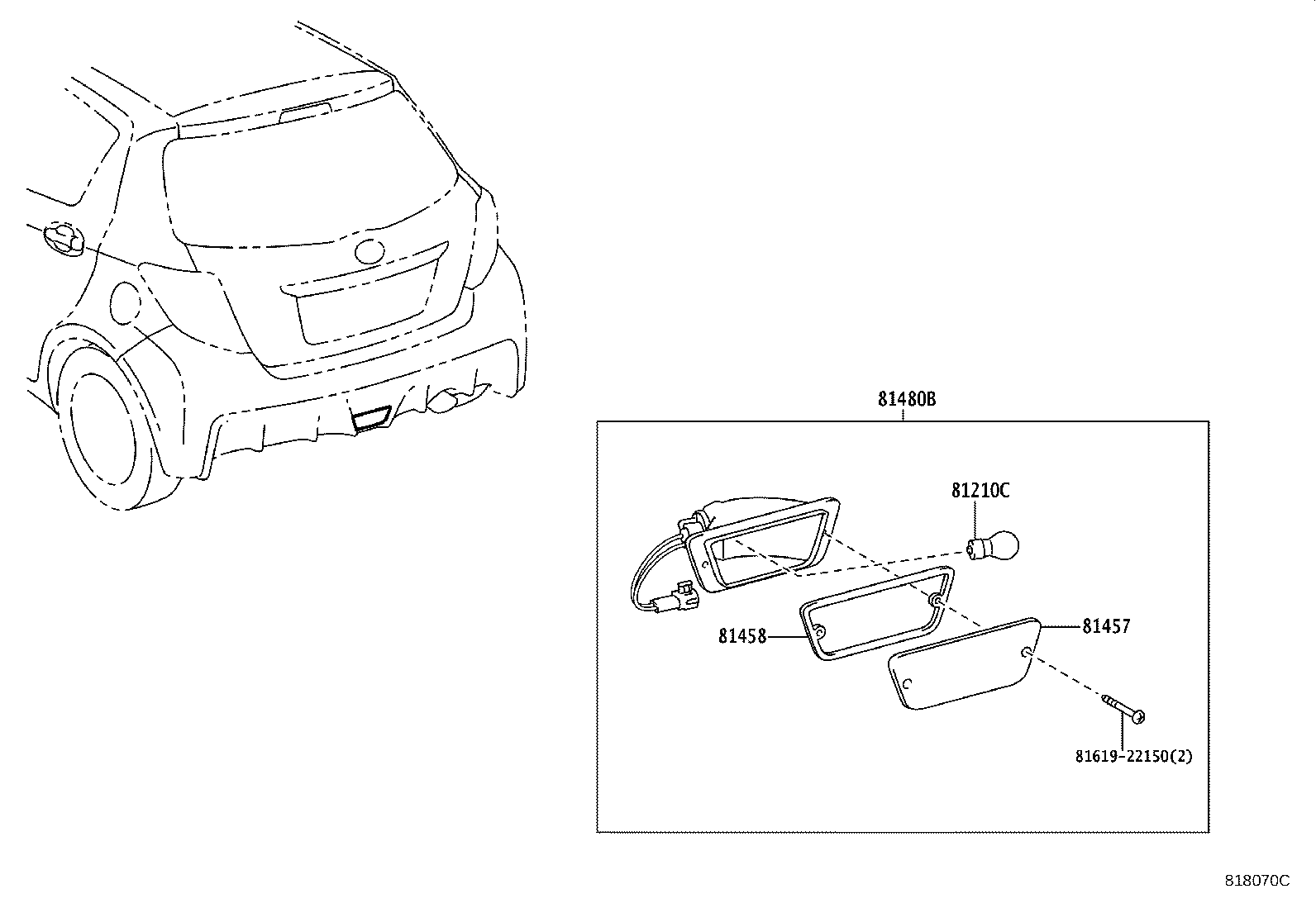

Click highlighted areas on diagram

diagram 81210C 81457 81458 81480B 8161922150
Part # Description Qty Price
81210C - BULB, REAR FOG LAMP
99132-11210

KSP130,NHP130,NSP13#..(F,JEWL,U)..CBU

12V 21W,ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾊﾞﾝﾊﾟ付け)

 1
99132-11210

NHP130,NSP13#..(F,JEWL,U)..CBU

12V 21W,ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾊﾞﾝﾊﾟ付け)&ｲﾝﾃﾘｼﾞｪﾝﾄ ｸﾘｱﾗﾝXｿﾅｰ−有り

 1
81457 - LENS, REAR FOG LAMP
81457-13010

NHP130,NSP13#..(F,JEWL,U)..CBU

ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾊﾞﾝﾊﾟ付け)&ｲﾝﾃﾘｼﾞｪﾝﾄ ｸﾘｱﾗﾝｽｿﾅｰ−有り

 1
81457-13010

KSP130,NHP130,NSP13#..(F,JEWL,U)..CBU

ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾊﾞﾝﾊﾟ付け)

 1
81458 - PACKING, REAR FOG LAMP
81458-28030

KSP130,NHP130,NSP13#..(F,JEWL,U)..CBU

ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾊﾞﾝﾊﾟ付け)

 1
81458-28030

NHP130,NSP13#..(F,JEWL,U)..CBU

ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾊﾞﾝﾊﾟ付け)&ｲﾝﾃﾘｼﾞｪﾝﾄ ｸﾘｱﾗﾝｽｿﾅｰ−有り

 1
81480B - LAMP ASSY, REAR FOG
81480-13010

KSP130,NHP130,NSP13#..(F,JEWL,U)..CBU

ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾊﾞﾝﾊﾟ付け)

 1
81480-13010

NHP130,NSP13#..(F,JEWL,U)..CBU

ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾊﾞﾝﾊﾟ付け)&ｲﾝﾃﾘｼﾞｪﾝﾄ ｸﾘｱﾗﾝｽｿﾅｰ−有り

 1
Common parts
81619-22150
