NHP130-AHXGB (2017)
Toyota Vitz
(1701- )NHP130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-52180C0 |
KSP130,NHP130,NSP13#..F..CBU BLACK,TRIM0#,2# |
1 | ||
| 33504-52160C0 |
NHP130,NSP13#..U..CBU BLACK,TRIM2#,4# |
1 | ||
| 33504-52160C0 |
NHP130,NSP13#..U..CBU ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ),BLACK,TRIM2#,4# |
1 | ||
| 33504-74011C0 |
KSP130,NHP130,NSP13#..JEWL ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ),BLACK,TRIM2#,3# |
1 | ||
| 33504-74011C0 |
KSP130,NHP130,NSP13#..JEWL BLACK,TRIM2#,3# |
1 | ||
| 33504-52180C0 |
KSP130,NHP130,NSP13#..F..CBU ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ),BLACK,TRIM0#,2# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 35955-74010 |
KSP130,NCP131,NHP130,NSP13#..CVT..CBU 12V 1.4W,ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| 35955-74010 |
KSP130,NHP130,NSP13#..F..CBU 12V 1.4W,“SafetyEdition”*(T)or“U”*(S)or“Vh*(V)&ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| 35955-74010 |
KSP130,NHP130,NSP13#..F..CBU 12V 1.4W,“Amie”*(W)&ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞ刀Aﾒｯｷ) |
1 | ||
| 35955-74010 |
KSP130,NCP131,NHP130,NSP13#..CVT..CBU 12V 1.4W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 35956-52010 |
KSP130,NHP130,NSP13#..F..CBU “Amie”*(W)&ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| 35956-52010 |
KSP130,NCP131,NHP130,NSP13#..CVT..CBU |
1 | ||
| 35956-52010 |
KSP130,NHP130,NSP13#..F..CBU “SafetyEdition”*(T)or“U”*(S)or“V”*(V)&ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| 35956-52010 |
KSP130,NCP131,NHP130,NSP13#..CVT..CBU ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| 33554C - COVER, SHIFT LOCK RELEASE BUTTON | ||||
| 33554-52110 |
KSP130,NHP130,NSP13#..F..CBU |
1 | ||
| 33554-52170 |
KSP130,NHP130,NSP13#..(GRS,JEWL,U)..CBU |
1 | ||
| 33554-52110 |
KSP130,NHP130,NSP13#..F..CBU “SafetyEdition”*(T)or“U”*(S)or“V”*(V)&ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| 33554-52170 |
KSP130,NHP130,NSP13#..F..CBU “SafetyEdition”*(T)or“U”*(S)or“V”*(V) |
1 | ||
| 33554-52170 |
KSP130,NHP130,NSP13#..F..CBU “Amie”*(W) |
1 | ||
| 33554-52110 |
KSP130,NHP130,NSP13#..F..CBU “Amie”*(W)&ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| 33554-52170 |
KSP130,NHP130,NSP13#..(GRS,JEWL,U)..CBU ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| 33554-52110 |
KSP130,NHP130,NSP13#..F..CBU ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-52710 |
NHP130..F..CBU “Amie”*(W)&ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| 33560-52710 |
NHP130..F..CBU “SafetyEdition”*(T)or“U”*(S)or“V”*(V)&ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| 33560-52710 |
NHP130..CBU ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| 33560-52710 |
NHP130..CBU |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-52A30 |
NHP130..CBU |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 94151-80800 |
KSP130,NCP131,NHP130,NSP13#..CVT..CBU |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-52140 |
NHP130..CBU |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91671-80816 |
NHP130..CBU |
6 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91671-80816 |
NHP130..CBU |
6 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91671-80816 |
NHP130..CBU |
6 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91671-80816 |
NHP130..CBU |
6 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-52170 |
NHP130..CBU NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 33829-52200 |
NHP130..CBU NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 33829-52190 |
NHP130..CBU NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-52170 |
NHP130..CBU NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 33829-52200 |
NHP130..CBU NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 33829-52190 |
NHP130..CBU NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-52170 |
NHP130..CBU NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 33829-52200 |
NHP130..CBU NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 33829-52190 |
NHP130..CBU NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-52180 |
NHP130..CBU |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-52310 |
NHP130..CBU |
1 | ||
| 35906-52310 |
NHP130..F..CBU “SafetyEdition”*(T)or“U”*(S)or“V”*(V)&ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| 35906-52310 |
NHP130..CBU ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| 35906-52310 |
NHP130..F..CBU “Amie”*(W)&ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-52320 |
NHP130..CBU |
1 | ||
| 35921-52320 |
NHP130..CBU ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| 35921-52320 |
NHP130..F..CBU “Amie”*(W)&ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| 35921-52320 |
NHP130..F..CBU “SafetyEdition”*(T)or“U”*(S)or“V”*(V)&ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| 35971E - HOUSING, POSITION INDICATOR | ||||
| 35971-52760 |
NHP130..F..CBU “Amie”*(W)&ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| 35971-52770 |
NHP130..GRS,JEWL,U ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| 35971-52760 |
NHP130..F..CBU “SafetyEdition”*(T)or“U”*(S)or“V”*(V)&ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| 35971-52760 |
NHP130..F..CBU |
1 | ||
| 35971-52770 |
NHP130..GRS,JEWL,U |
1 | ||
| 35971-52760 |
NHP130..F..CBU ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| 35971-52770 |
NHP130..F..CBU “Amie”*(W) |
1 | ||
| 35971-52770 |
NHP130..F..CBU “SafetyEdition”*(T)or“U”*(S)or“V”*(V) |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-52050 |
KSP130,NHP130,NSP13#..F..CBU “SafetyEdition”*(T)or“U”*(S)or“V”*(V)&ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| 35974-52050 |
KSP130,NHP130,NSP13#..F..CBU “Amie”*(W)&ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| 35974-52050 |
KSP130,NCP131,NHP130,NSP13#..CVT..CBU |
1 | ||
| 35974-52050 |
KSP130,NCP131,NHP130,NSP13#..CVT..CBU ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-52140 |
KSP130,NHP130,NSP13#..F..CBU “SafetyEdition”*(T)or“U”*(S)or“V”*(V)&ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| 35975-52140 |
KSP130,NHP130,NSP13#..F..CBU “Amie”*(W)&ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| 35975-52140 |
KSP130,NCP131,NHP130,NSP13#..CVT..CBU ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| 35975-52140 |
KSP130,NCP131,NHP130,NSP13#..CVT..CBU |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-52140 |
KSP130,NHP130,NSP13#..F..CBU “SafetyEdition”*(T)or“U”*(S)or“V”*(V)&ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| 35976-52140 |
KSP130,NCP131,NHP130,NSP13#..CVT..CBU |
1 | ||
| 35976-52140 |
KSP130,NCP131,NHP130,NSP13#..CVT..CBU ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| 35976-52140 |
KSP130,NHP130,NSP13#..F..CBU “Amie”*(W)&ｼﾌﾄﾚﾊﾞｰ & ﾉﾌﾞ−ﾉﾌﾞ=革巻(ｶｰﾎﾞﾝ､ﾒｯｷ) |
1 | ||
| Common parts | ||||
| 90179-06178 | ||||
| 90468-14016 | ||||
| 91631-60825 | ||||

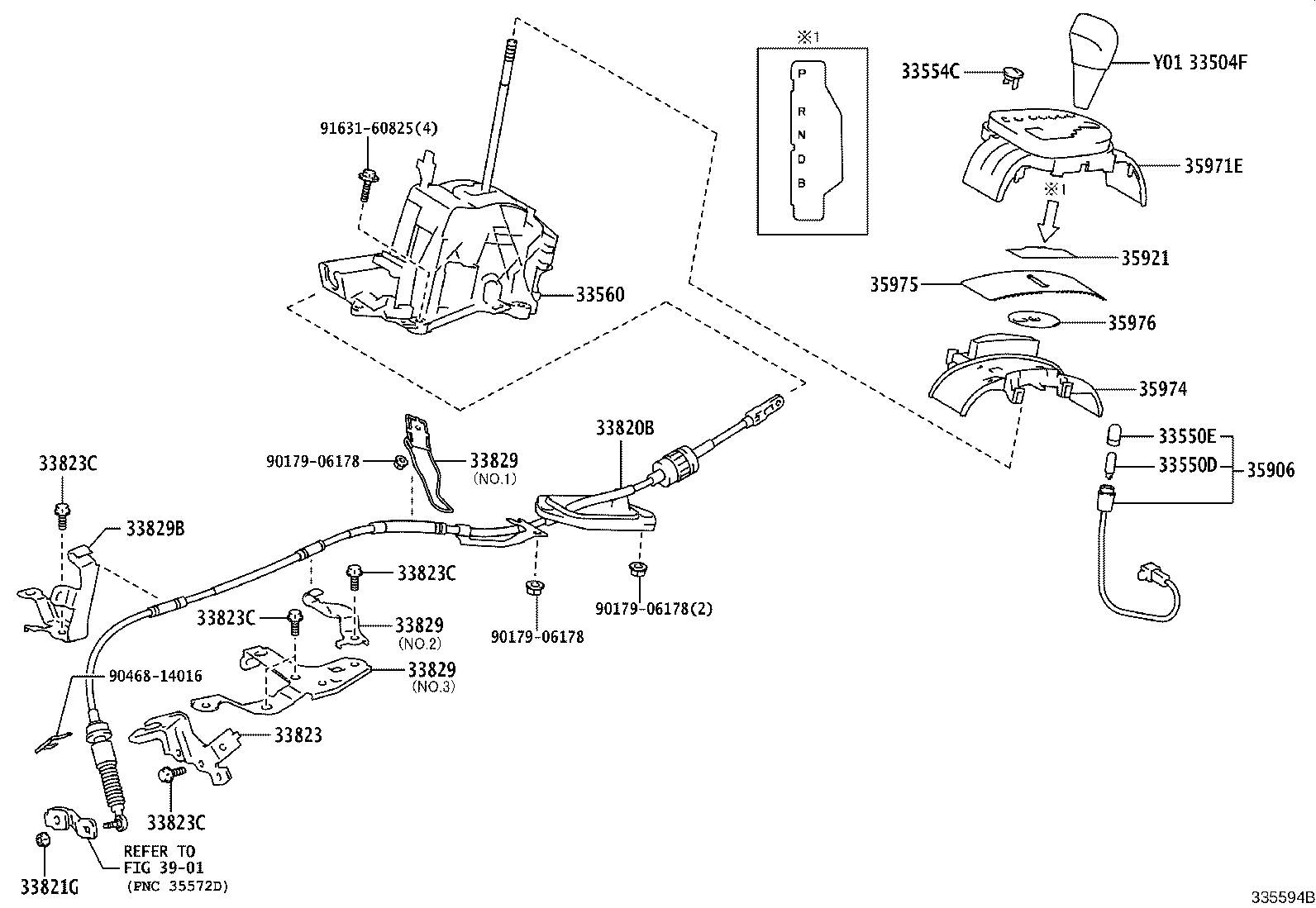

| Linked diagrams | ||||
| 3901 | ||||
