NCP95-AHPNK (2005)

Toyota Vitz

Production Jan 2005 - Aug 2007
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )

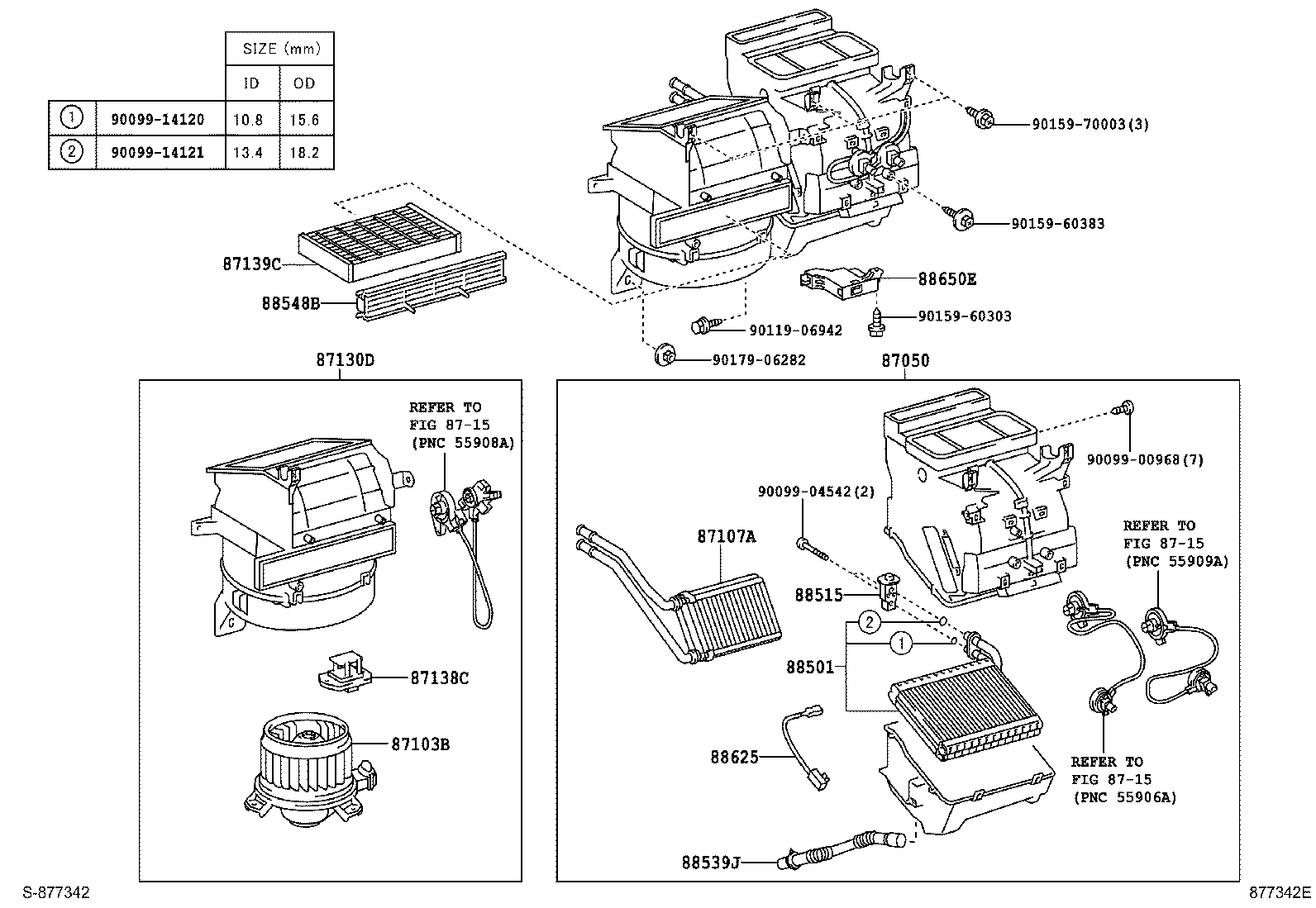

Click highlighted areas on diagram

ﾏﾆｭｱﾙ ｴｱｺﾝ

diagram 87050 87103B 87107A 87130D 87138C 87139C 8715 8715 8715 88501 88515 88539J 88548B 88625 88650E 9009900968 9009904542 9009914120 9009914121 9011906942 9015960303 9015960383 9015970003 9017906282
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-52011

KSP90,NCP9#,SCP90..B,F,RS

 1
87050-52032

KSP90,NCP9#,SCP90..B,F,RS

寒冷地仕様

 1
87050-52033

KSP90,NCP9#,SCP90..B,F,RS

寒冷地仕様

 1
87050-52012

KSP90,NCP9#,SCP90..B,F,RS

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52120

KSP90,NCP9#,SCP90..B,F,RS

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52060

KSP90,NCP9#,SCP90

 1
87130D - BLOWER ASSY
87130-52030

KSP90,NCP9#,SCP90..B,F,RS

 1
87130-52050

KSP90,NCP9#,SCP90..B,F,RS

寒冷地仕様

 1
87130-52031

KSP90,NCP9#,SCP90..B,F,RS

 1
87138C - RESISTOR, BLOWER
87138-52030

KSP90,NCP9#,SCP90..B,F,RS

 1
87139C - FILTER, CLEAN AIR
87139-50100

KSP90,NCP9#,SCP90

脱臭 & 花粉ﾌｨﾙﾀ

 1
87139-30040

KSP90,NCP9#,SCP90

花粉ﾌｨﾙﾀ

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-52090

KSP90,NCP9#,SCP90

 1
88515 - VALVE, COOLER EXPANSION
88515-26070

KSP90,NCP9#,SCP90

 1
88539J - HOSE, DRAIN COOLER
88539-52020

KSP90,NCP9#,SCP90..B,F,RS

 1
88548B - CASE, AIR FILTER
88548-52040

KSP90,NCP9#,SCP90

 1
88625 - THERMISTOR, COOLER, NO.1
88625-26090

KSP90,NCP9#,SCP90

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-52290

KSP90,NCP9#,SCP90..B,F,RS

 1
88650-52360

KSP90,NCP9#,SCP90..B,F,RS

寒冷地仕様

 1
88650-52291

KSP90,NCP9#,SCP90..B,F,RS

 1
88650-52361

KSP90,NCP9#,SCP90..B,F,RS

寒冷地仕様

 1
Common parts
90099-00968
90099-04542
90099-14120
90099-14121
90119-06942
90159-60303
90159-60383
90159-70003
90179-06282
Linked diagrams
8715

(0501- )

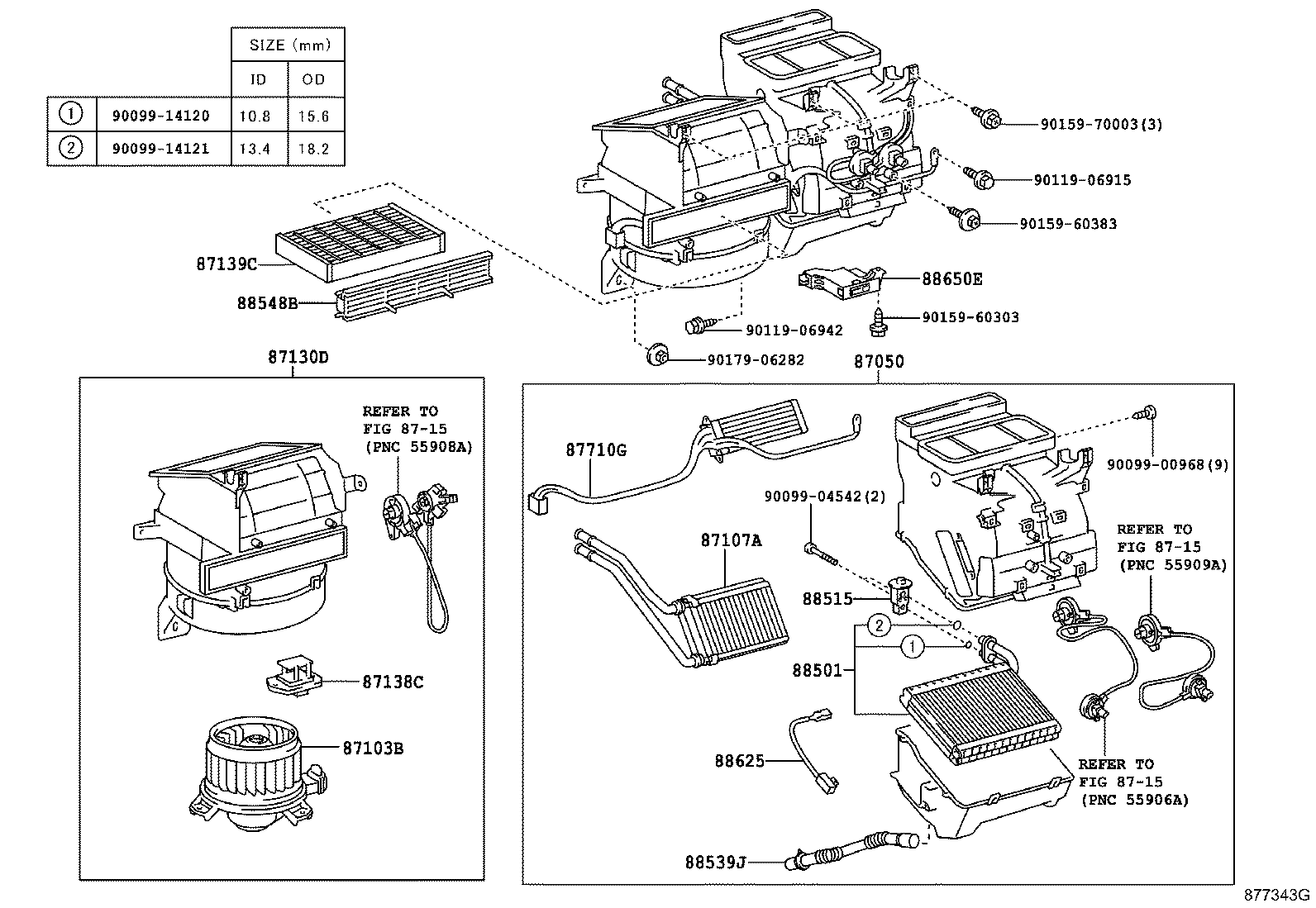

Click highlighted areas on diagram

ﾏﾆｭｱﾙ ｴｱｺﾝ---ｶﾝﾚｲﾁ ｼﾖｳ

diagram 87050 87103B 87107A 87130D 87138C 87139C 8715 8715 8715 87710G 88501 88515 88539J 88548B 88625 88650E 9009900968 9009904542 9009914120 9009914121 9011906915 9011906942 9015960303 9015960383 9015970003 9017906282
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-52011

KSP90,NCP9#,SCP90..B,F,RS

 1
87050-52032

KSP90,NCP9#,SCP90..B,F,RS

寒冷地仕様

 1
87050-52033

KSP90,NCP9#,SCP90..B,F,RS

寒冷地仕様

 1
87050-52012

KSP90,NCP9#,SCP90..B,F,RS

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52120

KSP90,NCP9#,SCP90..B,F,RS

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52060

KSP90,NCP9#,SCP90

 1
87130D - BLOWER ASSY
87130-52030

KSP90,NCP9#,SCP90..B,F,RS

 1
87130-52050

KSP90,NCP9#,SCP90..B,F,RS

寒冷地仕様

 1
87130-52031

KSP90,NCP9#,SCP90..B,F,RS

 1
87138C - RESISTOR, BLOWER
87138-52030

KSP90,NCP9#,SCP90..B,F,RS

 1
87139C - FILTER, CLEAN AIR
87139-50100

KSP90,NCP9#,SCP90

脱臭 & 花粉ﾌｨﾙﾀ

 1
87139-30040

KSP90,NCP9#,SCP90

花粉ﾌｨﾙﾀ

 1
87710G - QUICK HEATER ASSY
87710-52031

KSP90,NCP9#,SCP90..B,F,RS

寒冷地仕様

 1
87710-52060

KSP90,NCP9#,SCP90

寒冷地仕様

 1
87710-52031

KSP90,NCP9#,SCP90..B,F,RS

寒冷地仕様

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-52090

KSP90,NCP9#,SCP90

 1
88515 - VALVE, COOLER EXPANSION
88515-26070

KSP90,NCP9#,SCP90

 1
88539J - HOSE, DRAIN COOLER
88539-52020

KSP90,NCP9#,SCP90..B,F,RS

 1
88548B - CASE, AIR FILTER
88548-52040

KSP90,NCP9#,SCP90

 1
88625 - THERMISTOR, COOLER, NO.1
88625-26090

KSP90,NCP9#,SCP90

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-52290

KSP90,NCP9#,SCP90..B,F,RS

 1
88650-52360

KSP90,NCP9#,SCP90..B,F,RS

寒冷地仕様

 1
88650-52291

KSP90,NCP9#,SCP90..B,F,RS

 1
88650-52361

KSP90,NCP9#,SCP90..B,F,RS

寒冷地仕様

 1
Common parts
90099-00968
90099-04542
90099-14120
90099-14121
90119-06915
90119-06942
90159-60303
90159-60383
90159-70003
90179-06282
Linked diagrams
8715

(0501- )

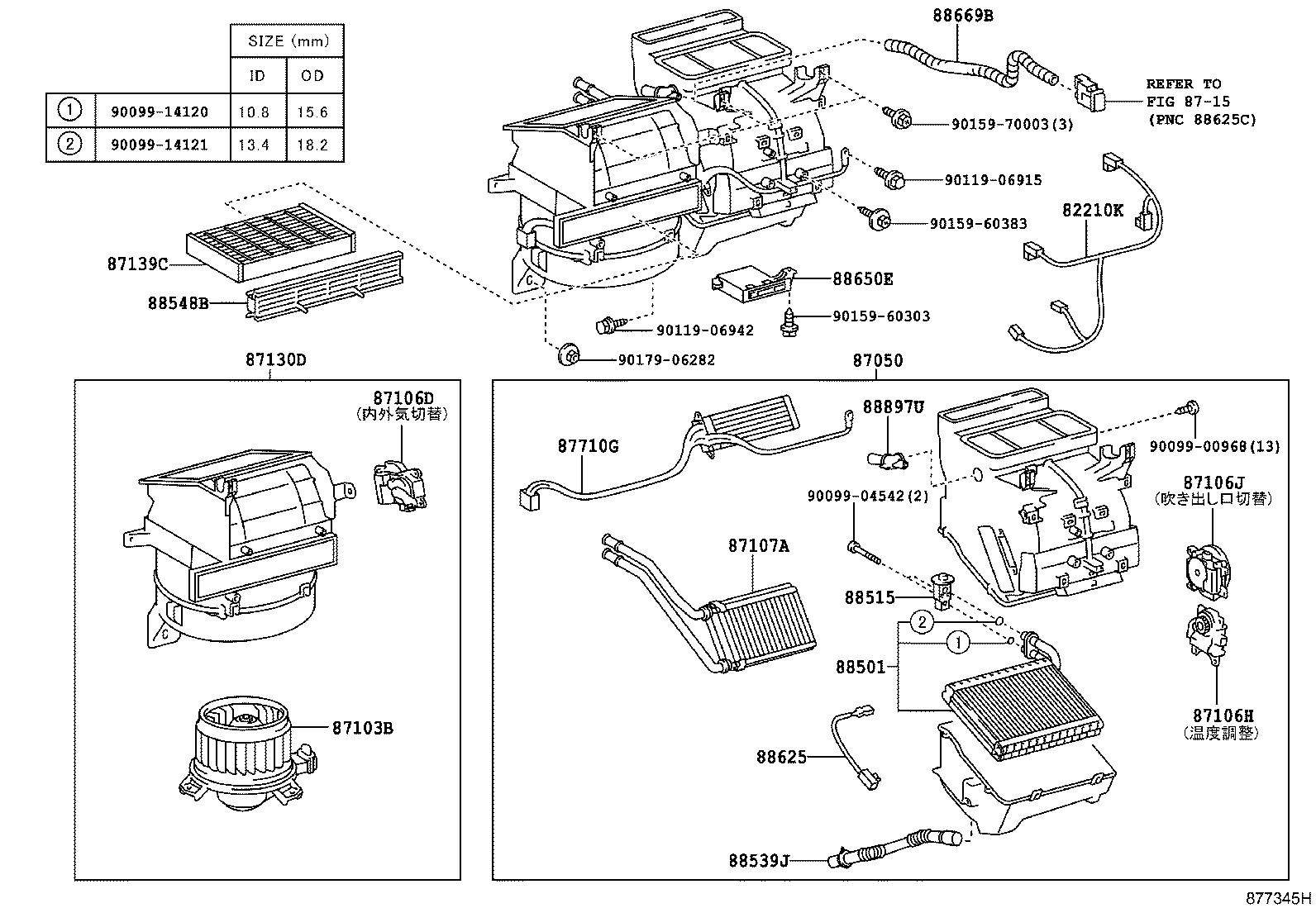

Click highlighted areas on diagram

ｵｰﾄ ｴｱｺﾝ

diagram 82210K 87050 87103B 87106D 87106H 87106J 87107A 87130D 87139C 8715 88501 88515 88539J 88548B 88625 88650E 88669B 88897U 9009900968 9009904542 9009914120 9009914121 9011906942 9015960303 9015960383 9015970003 9017906282
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-52011

KSP90,NCP9#,SCP90..B,F,RS

 1
87050-52032

KSP90,NCP9#,SCP90..B,F,RS

寒冷地仕様

 1
87050-52033

KSP90,NCP9#,SCP90..B,F,RS

寒冷地仕様

 1
87050-52012

KSP90,NCP9#,SCP90..B,F,RS

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52120

KSP90,NCP9#,SCP90..B,F,RS

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52060

KSP90,NCP9#,SCP90

 1
87130D - BLOWER ASSY
87130-52030

KSP90,NCP9#,SCP90..B,F,RS

 1
87130-52050

KSP90,NCP9#,SCP90..B,F,RS

寒冷地仕様

 1
87130-52031

KSP90,NCP9#,SCP90..B,F,RS

 1
87139C - FILTER, CLEAN AIR
87139-50100

KSP90,NCP9#,SCP90

脱臭 & 花粉ﾌｨﾙﾀ

 1
87139-30040

KSP90,NCP9#,SCP90

花粉ﾌｨﾙﾀ

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-52090

KSP90,NCP9#,SCP90

 1
88515 - VALVE, COOLER EXPANSION
88515-26070

KSP90,NCP9#,SCP90

 1
88539J - HOSE, DRAIN COOLER
88539-52020

KSP90,NCP9#,SCP90..B,F,RS

 1
88548B - CASE, AIR FILTER
88548-52040

KSP90,NCP9#,SCP90

 1
88625 - THERMISTOR, COOLER, NO.1
88625-26090

KSP90,NCP9#,SCP90

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-52290

KSP90,NCP9#,SCP90..B,F,RS

 1
88650-52360

KSP90,NCP9#,SCP90..B,F,RS

寒冷地仕様

 1
88650-52291

KSP90,NCP9#,SCP90..B,F,RS

 1
88650-52361

KSP90,NCP9#,SCP90..B,F,RS

寒冷地仕様

 1
Common parts
90099-00968
90099-04542
90099-14120
90099-14121
90119-06942
90159-60303
90159-60383
90159-70003
90179-06282
Linked diagrams
8715

(0501- )

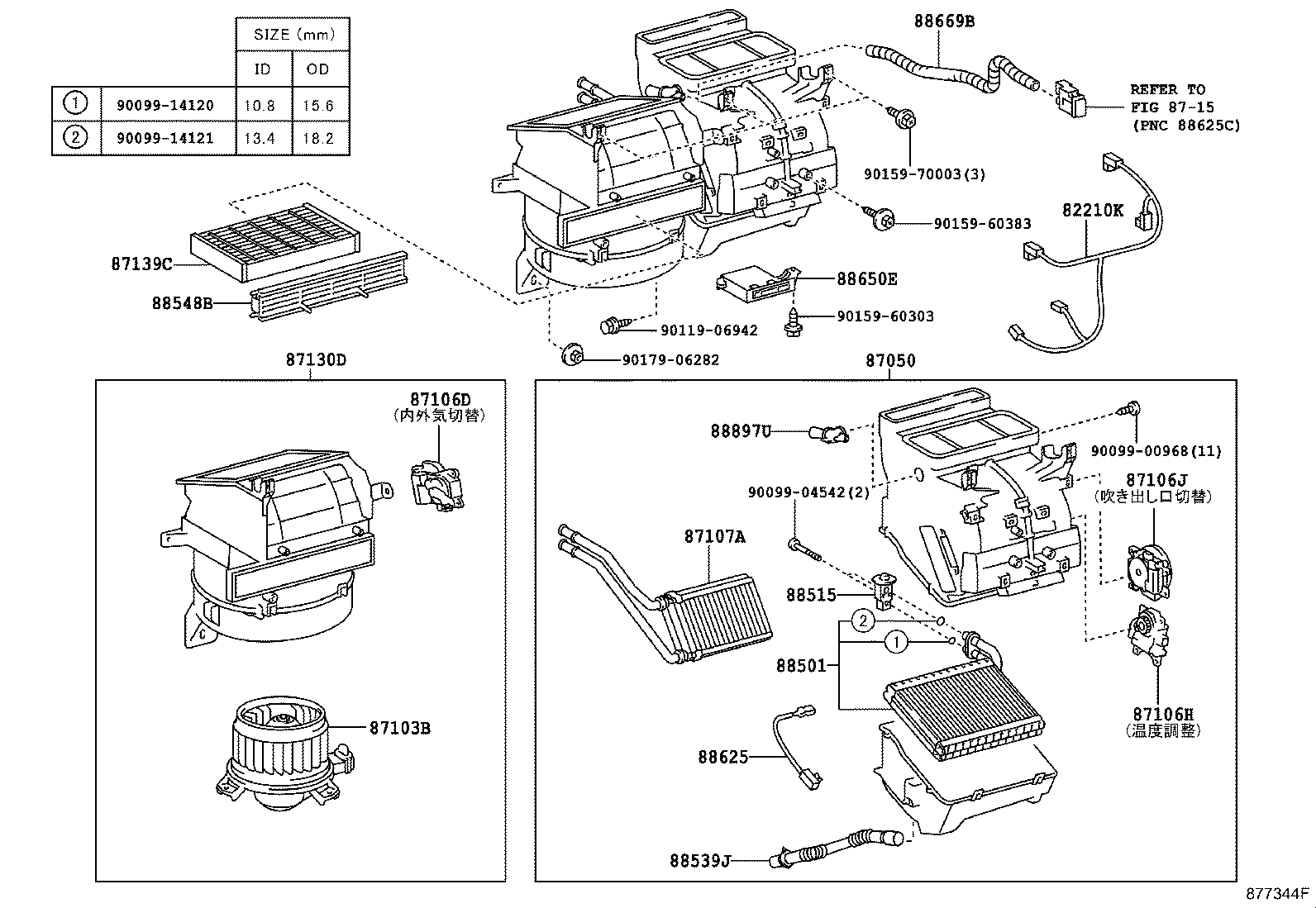

Click highlighted areas on diagram

ｵｰﾄ ｴｱｺﾝ---ｶﾝﾚｲﾁ ｼﾖｳ

diagram 82210K 87050 87103B 87106D 87106H 87106J 87107A 87130D 87139C 8715 87710G 88501 88515 88539J 88548B 88625 88650E 88669B 88897U 9009900968 9009904542 9009914120 9009914121 9011906915 9011906942 9015960303 9015960383 9015970003 9017906282
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-52011

KSP90,NCP9#,SCP90..B,F,RS

 1
87050-52032

KSP90,NCP9#,SCP90..B,F,RS

寒冷地仕様

 1
87050-52033

KSP90,NCP9#,SCP90..B,F,RS

寒冷地仕様

 1
87050-52012

KSP90,NCP9#,SCP90..B,F,RS

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52120

KSP90,NCP9#,SCP90..B,F,RS

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52060

KSP90,NCP9#,SCP90

 1
87130D - BLOWER ASSY
87130-52030

KSP90,NCP9#,SCP90..B,F,RS

 1
87130-52050

KSP90,NCP9#,SCP90..B,F,RS

寒冷地仕様

 1
87130-52031

KSP90,NCP9#,SCP90..B,F,RS

 1
87139C - FILTER, CLEAN AIR
87139-50100

KSP90,NCP9#,SCP90

脱臭 & 花粉ﾌｨﾙﾀ

 1
87139-30040

KSP90,NCP9#,SCP90

花粉ﾌｨﾙﾀ

 1
87710G - QUICK HEATER ASSY
87710-52031

KSP90,NCP9#,SCP90..B,F,RS

寒冷地仕様

 1
87710-52060

KSP90,NCP9#,SCP90

寒冷地仕様

 1
87710-52031

KSP90,NCP9#,SCP90..B,F,RS

寒冷地仕様

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-52090

KSP90,NCP9#,SCP90

 1
88515 - VALVE, COOLER EXPANSION
88515-26070

KSP90,NCP9#,SCP90

 1
88539J - HOSE, DRAIN COOLER
88539-52020

KSP90,NCP9#,SCP90..B,F,RS

 1
88548B - CASE, AIR FILTER
88548-52040

KSP90,NCP9#,SCP90

 1
88625 - THERMISTOR, COOLER, NO.1
88625-26090

KSP90,NCP9#,SCP90

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-52290

KSP90,NCP9#,SCP90..B,F,RS

 1
88650-52360

KSP90,NCP9#,SCP90..B,F,RS

寒冷地仕様

 1
88650-52291

KSP90,NCP9#,SCP90..B,F,RS

 1
88650-52361

KSP90,NCP9#,SCP90..B,F,RS

寒冷地仕様

 1
Common parts
90099-00968
90099-04542
90099-14120
90099-14121
90119-06915
90119-06942
90159-60303
90159-60383
90159-70003
90179-06282
Linked diagrams
8715
