NCP95-AHPNK (2005)
Toyota Vitz

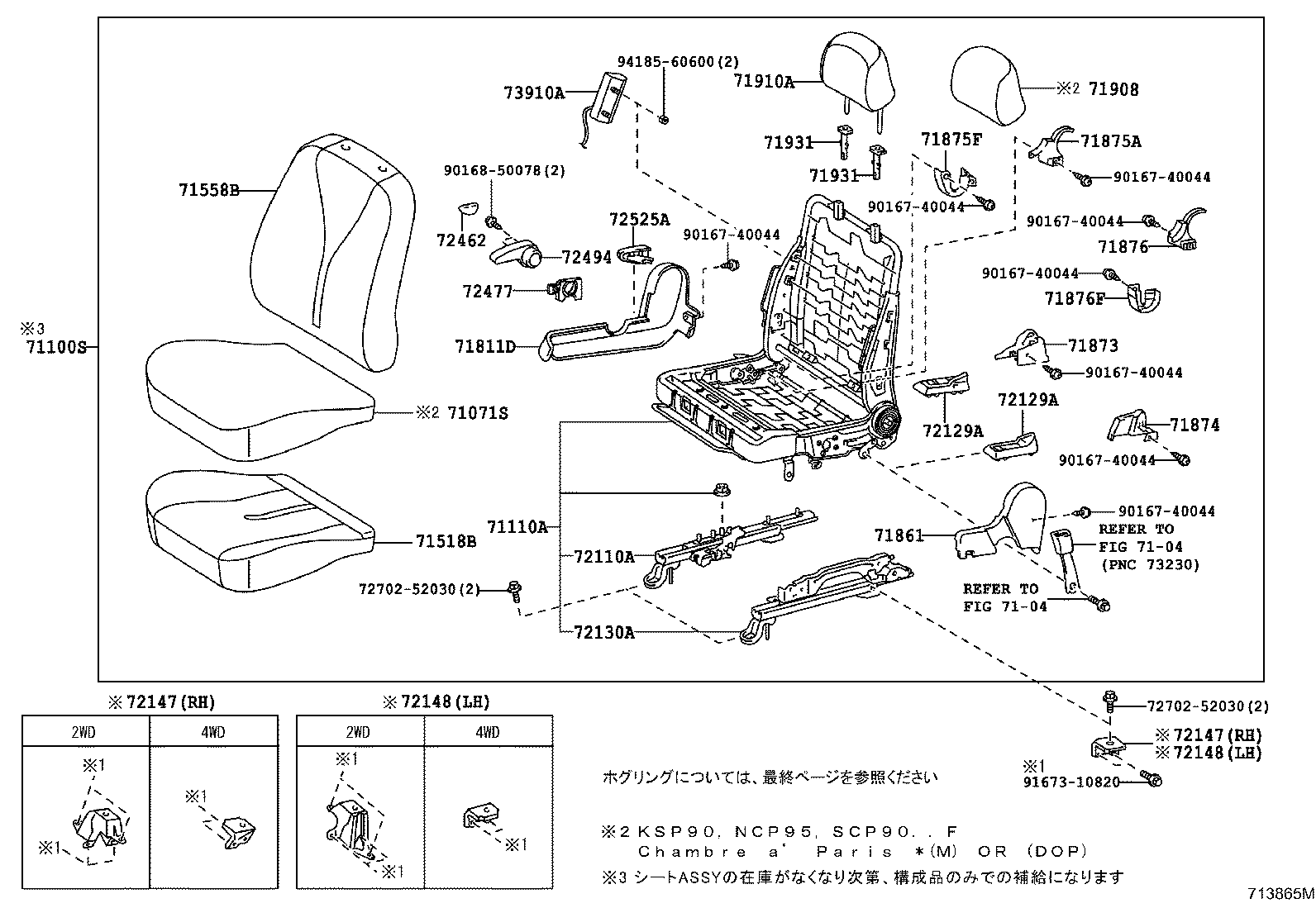

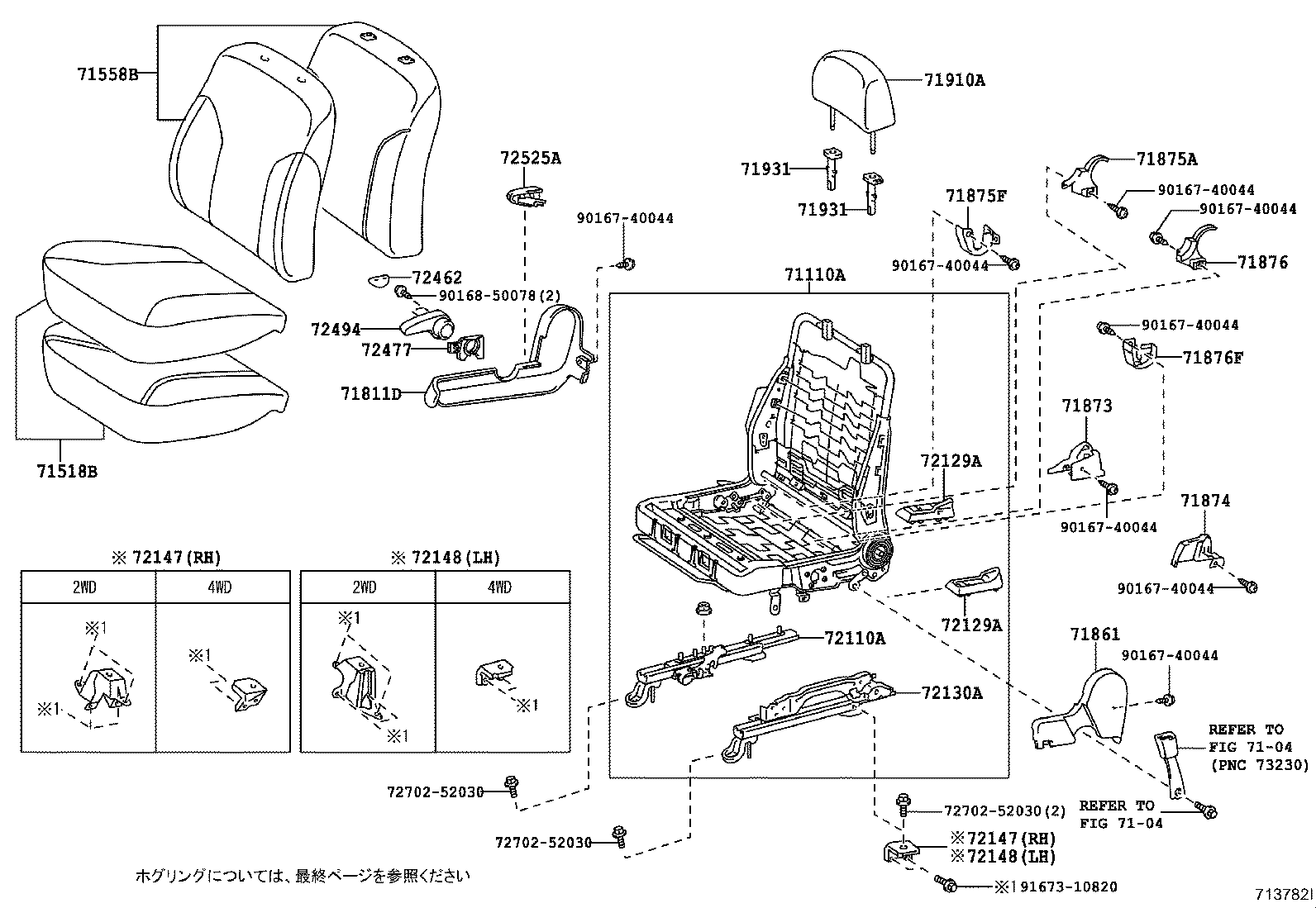

(0501-0708)B,F,RS,X ; (0708-0808)B,RS
ｳﾝﾃﾝｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-52350 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 71110-52660 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH | ||||
| 71518-52D00E0 |
KSP90,NCP9#,SCP90..B,F,X GREGE,TRIM4# |
1 | ||
| 71518-52D10C0 |
KSP90,NCP9#,SCP90..B,F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM1# |
1 | ||
| 71518-52D10E0 |
KSP90,NCP9#,SCP90..B,F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GREGE,TRIM4# |
1 | ||
| 71518-52D00C0 |
KSP90,NCP9#,SCP90..B,F,X BLACK,TRIM1# |
1 | ||
| 71558B - PAD, FRONT SEAT BACK W/COVER, RH | ||||
| 71558-52B40E0 |
KSP90,NCP9#,SCP90..B,F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GREGE,TRIM4# |
1 | ||
| 71558-52B30E0 |
KSP90,NCP9#,SCP90..B,F,X GREGE,TRIM4# |
1 | ||
| 71558-52B30C1 |
KSP90,NCP9#,SCP90..B,F,X BLACK,TRIM1# |
1 | ||
| 71558-52B40C0 |
KSP90,NCP9#,SCP90..B,F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52210B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52200B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-52090B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52110B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52090B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-52170B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52090B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-52160B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52510C0 |
KSP90,NCP95,SCP90..F ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),BLACK,TRIM1# |
1 | ||
| 71910-52510E0 |
KSP90,NCP95,SCP90..F ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71910-52510C0 |
KSP90,NCP95,SCP90..F ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),BLACK,TRIM1# |
1 | ||
| 71910-52510E0 |
KSP90,NCP9#,SCP90..B,F,X GREGE,TRIM4# |
2 | ||
| 71910-52510C0 |
KSP90,NCP9#,SCP90..B,F,X BLACK,TRIM1# |
2 | ||
| 71910-52510E0 |
KSP90,NCP95,SCP90..F ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71930-47010E3 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-47010B2 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010E4 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
KSP90,NCP9#,SCP90..B,F,ILL,X ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-44020B0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71930-47010E3 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-44020B0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71931-47010E4 |
KSP90,NCP9#,SCP90..B,F,ILL,X ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71930-44020E0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71931-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71930-44020E0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-44020B0 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71931-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71930-47010E3 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-47010B2 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010E4 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
KSP90,NCP9#,SCP90..B,F,ILL,X ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-44020B0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71930-47010E3 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-44020B0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71931-47010E4 |
KSP90,NCP9#,SCP90..B,F,ILL,X ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71930-44020E0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71931-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71930-44020E0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-44020B0 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71931-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-52020 |
KSP90,NCP9#,SCP90 |
1 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-52030 |
KSP90,NCP95,SCP90..F ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ) |
4 | ||
| 72129-52030 |
KSP90,NCP95,SCP90..F ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ) |
4 | ||
| 72129-52030 |
KSP90,NCP9#,SCP90 |
8 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-52030 |
KSP90,NCP95,SCP90..F ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ) |
4 | ||
| 72129-52030 |
KSP90,NCP95,SCP90..F ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ) |
4 | ||
| 72129-52030 |
KSP90,NCP9#,SCP90 |
8 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-52110 |
KSP90,NCP9#,SCP90 |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52030 |
NCP95 |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52030 |
NCP95 |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52020 |
NCP95 |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52020 |
NCP95 |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-58010B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 72477 - SPACER, VERTICAL ADJUSTER | ||||
| 72477-58010 |
KSP90,NCP9#,SCP90 |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-52020B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-58030B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 91673-10820 | ||||
| Linked diagrams | ||||
| 7104 | ||||

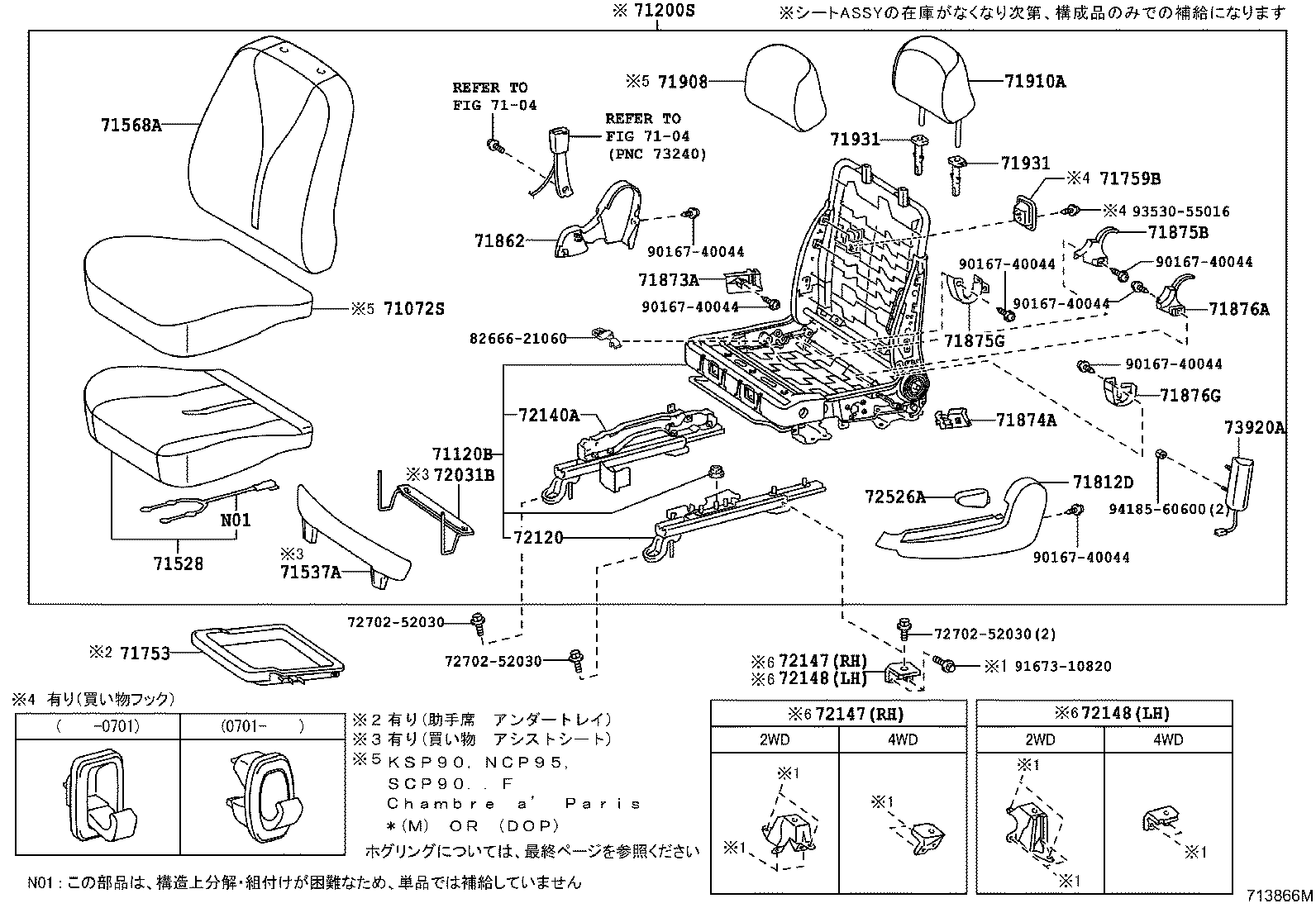

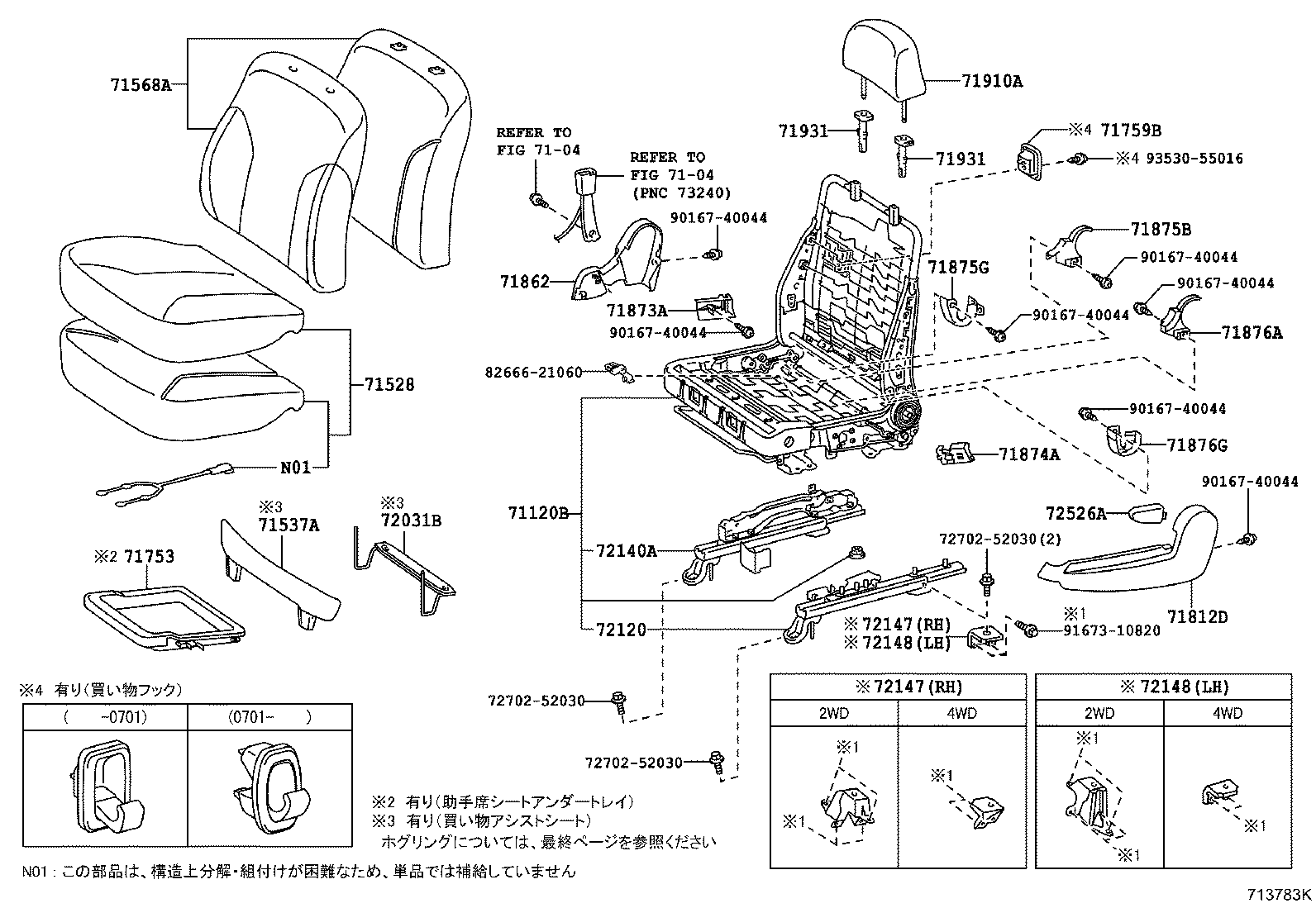

(0501-0708)B,F,RS,U,X ; (0708-0808)B,RS
ｼﾞｮｼｭｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-52390 |
KSP90,NCP9#,SCP90..F,X |
1 | ||
| 71120-52710 |
KSP90,NCP9#,SCP90..F,X |
1 | ||
| 71120-52840 |
KSP90,NCP9#,SCP90..F,X |
1 | ||
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71528-52D70C0 |
KSP90,NCP9#,SCP90..B,F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM1# |
1 | ||
| 71528-52D70E0 |
KSP90,NCP9#,SCP90..B,F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GREGE,TRIM4# |
1 | ||
| 71528-52D60C0 |
KSP90,NCP9#,SCP90..B,F,X BLACK,TRIM1# |
1 | ||
| 71528-52D60E0 |
KSP90,NCP9#,SCP90..B,F,X GREGE,TRIM4# |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-52030B0 |
KSP90,NCP9#,SCP90..F,X DK.GRAY,TRIM1#,42 |
1 | ||
| 71537-52030E0 |
KSP90,NCP9#,SCP90..F,X GREGE,TRIM42 |
1 | ||
| 71568A - PAD, FRONT SEAT BACK W/COVER, LH | ||||
| 71568-52B20C0 |
KSP90,NCP9#,SCP90..F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM1# |
1 | ||
| 71568-52B10C0 |
KSP90,NCP9#,SCP90..F,X BLACK,TRIM1# |
1 | ||
| 71568-52B10E0 |
KSP90,NCP9#,SCP90..F,X GREGE,TRIM4# |
1 | ||
| 71568-52B21E0 |
KSP90,NCP9#,SCP90..F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GREGE,TRIM4# |
1 | ||
| 71568-52B21C0 |
KSP90,NCP9#,SCP90..F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM1# |
1 | ||
| 71568-52B12C0 |
KSP90,NCP9#,SCP90..F,X BLACK,TRIM1# |
1 | ||
| 71568-52B12E0 |
KSP90,NCP9#,SCP90..F,X GREGE,TRIM4# |
1 | ||
| 71568-52B20E0 |
KSP90,NCP9#,SCP90..F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GREGE,TRIM4# |
1 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-13020E2 |
KSP90,NCP9#,SCP90..F,X GREGE,TRIM4# |
1 | ||
| 71759-13020B0 |
KSP90,NCP9#,SCP90..F,U,X DK.GRAY,TRIM1# |
1 | ||
| 71759-28050E0 |
KSP90,NCP9#,SCP90..F,U,X GREGE,TRIM4# |
1 | ||
| 71759-28050B0 |
KSP90,NCP9#,SCP90..F,U,X DK.GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52190B2 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52140B2 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-52070B2 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52100B2 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52090B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-52170B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52090B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-52160B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52510C0 |
KSP90,NCP95,SCP90..F ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),BLACK,TRIM1# |
1 | ||
| 71910-52510E0 |
KSP90,NCP95,SCP90..F ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71910-52510C0 |
KSP90,NCP95,SCP90..F ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),BLACK,TRIM1# |
1 | ||
| 71910-52510E0 |
KSP90,NCP9#,SCP90..B,F,X GREGE,TRIM4# |
2 | ||
| 71910-52510C0 |
KSP90,NCP9#,SCP90..B,F,X BLACK,TRIM1# |
2 | ||
| 71910-52510E0 |
KSP90,NCP95,SCP90..F ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71930-47010E3 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-47010B2 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010E4 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
KSP90,NCP9#,SCP90..B,F,ILL,X ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-44020B0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71930-47010E3 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-44020B0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71931-47010E4 |
KSP90,NCP9#,SCP90..B,F,ILL,X ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71930-44020E0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71931-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71930-44020E0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-44020B0 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71931-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71930-47010E3 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-47010B2 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010E4 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
KSP90,NCP9#,SCP90..B,F,ILL,X ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-44020B0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71930-47010E3 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-44020B0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71931-47010E4 |
KSP90,NCP9#,SCP90..B,F,ILL,X ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71930-44020E0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71931-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71930-44020E0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-44020B0 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71931-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 72031B - LEG, FRONT SEAT SET | ||||
| 72031-52030 |
KSP90,NCP9#,SCP90..F,ILL,U,X |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-52050 |
KSP90,NCP9#,SCP90 |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-52060 |
KSP90,NCP9#,SCP90 |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52030 |
NCP95 |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52030 |
NCP95 |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52020 |
NCP95 |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52020 |
NCP95 |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58040B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 82666-21060 | ||||
| 90167-40044 | ||||
| 91673-10820 | ||||
| 93530-55016 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0501-0708)B,F,RS,U,X ; (0708-0808)B,F,RS
ｳﾝﾃﾝｾｷ-ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-52G90E1 |
KSP90,NCP9#,SCP90..B,F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GREGE,TRIM4# |
1 | ||
| 71100-52G90B3 |
KSP90,NCP9#,SCP90..B,F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,DK.GRAY,TRIM1# |
1 | ||
| 71100-5CF80B0 |
KSP90,NCP9#,SCP90..B,F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,DK.GRAY,TRIM1# |
1 | ||
| 71100-5CF80E0 |
KSP90,NCP9#,SCP90..B,F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GREGE,TRIM4# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-52350 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 71110-52660 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH | ||||
| 71518-52D00E0 |
KSP90,NCP9#,SCP90..B,F,X GREGE,TRIM4# |
1 | ||
| 71518-52D10C0 |
KSP90,NCP9#,SCP90..B,F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM1# |
1 | ||
| 71518-52D10E0 |
KSP90,NCP9#,SCP90..B,F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GREGE,TRIM4# |
1 | ||
| 71518-52D00C0 |
KSP90,NCP9#,SCP90..B,F,X BLACK,TRIM1# |
1 | ||
| 71558B - PAD, FRONT SEAT BACK W/COVER, RH | ||||
| 71558-52B40E0 |
KSP90,NCP9#,SCP90..B,F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GREGE,TRIM4# |
1 | ||
| 71558-52B30E0 |
KSP90,NCP9#,SCP90..B,F,X GREGE,TRIM4# |
1 | ||
| 71558-52B30C1 |
KSP90,NCP9#,SCP90..B,F,X BLACK,TRIM1# |
1 | ||
| 71558-52B40C0 |
KSP90,NCP9#,SCP90..B,F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52210B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52200B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-52090B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52110B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52090B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-52170B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52090B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-52160B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52510C0 |
KSP90,NCP95,SCP90..F ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),BLACK,TRIM1# |
1 | ||
| 71910-52510E0 |
KSP90,NCP95,SCP90..F ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71910-52510C0 |
KSP90,NCP95,SCP90..F ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),BLACK,TRIM1# |
1 | ||
| 71910-52510E0 |
KSP90,NCP9#,SCP90..B,F,X GREGE,TRIM4# |
2 | ||
| 71910-52510C0 |
KSP90,NCP9#,SCP90..B,F,X BLACK,TRIM1# |
2 | ||
| 71910-52510E0 |
KSP90,NCP95,SCP90..F ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71930-47010E3 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-47010B2 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010E4 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
KSP90,NCP9#,SCP90..B,F,ILL,X ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-44020B0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71930-47010E3 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-44020B0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71931-47010E4 |
KSP90,NCP9#,SCP90..B,F,ILL,X ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71930-44020E0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71931-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71930-44020E0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-44020B0 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71931-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71930-47010E3 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-47010B2 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010E4 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
KSP90,NCP9#,SCP90..B,F,ILL,X ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-44020B0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71930-47010E3 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-44020B0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71931-47010E4 |
KSP90,NCP9#,SCP90..B,F,ILL,X ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71930-44020E0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71931-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71930-44020E0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-44020B0 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71931-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-52020 |
KSP90,NCP9#,SCP90 |
1 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-52030 |
KSP90,NCP95,SCP90..F ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ) |
4 | ||
| 72129-52030 |
KSP90,NCP95,SCP90..F ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ) |
4 | ||
| 72129-52030 |
KSP90,NCP9#,SCP90 |
8 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-52030 |
KSP90,NCP95,SCP90..F ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ) |
4 | ||
| 72129-52030 |
KSP90,NCP95,SCP90..F ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ) |
4 | ||
| 72129-52030 |
KSP90,NCP9#,SCP90 |
8 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-52110 |
KSP90,NCP9#,SCP90 |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52030 |
NCP95 |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52030 |
NCP95 |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52020 |
NCP95 |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52020 |
NCP95 |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-58010B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 72477 - SPACER, VERTICAL ADJUSTER | ||||
| 72477-58010 |
KSP90,NCP9#,SCP90 |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-52020B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-58030B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-52060 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 91673-10820 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0501-0708)B,F,RS,U,X ; (0708-0808)B,F,RS
ｼﾞｮｼｭｾｷ-ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-52390 |
KSP90,NCP9#,SCP90..F,X |
1 | ||
| 71120-52710 |
KSP90,NCP9#,SCP90..F,X |
1 | ||
| 71120-52840 |
KSP90,NCP9#,SCP90..F,X |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-52P20E1 |
KSP90,NCP9#,SCP90..F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GREGE,TRIM4# |
1 | ||
| 71200-52P22E0 |
KSP90,NCP9#,SCP90..F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GREGE,TRIM4# |
1 | ||
| 71200-5CG10B0 |
KSP90,NCP9#,SCP90..F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,DK.GRAY,TRIM1# |
1 | ||
| 71200-52P20B1 |
KSP90,NCP9#,SCP90..F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,DK.GRAY,TRIM1# |
1 | ||
| 71200-5CG10E0 |
KSP90,NCP9#,SCP90..F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GREGE,TRIM4# |
1 | ||
| 71200-52P22B0 |
KSP90,NCP9#,SCP90..F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,DK.GRAY,TRIM1# |
1 | ||
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71528-52D70C0 |
KSP90,NCP9#,SCP90..B,F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM1# |
1 | ||
| 71528-52D70E0 |
KSP90,NCP9#,SCP90..B,F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GREGE,TRIM4# |
1 | ||
| 71528-52D60C0 |
KSP90,NCP9#,SCP90..B,F,X BLACK,TRIM1# |
1 | ||
| 71528-52D60E0 |
KSP90,NCP9#,SCP90..B,F,X GREGE,TRIM4# |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-52030B0 |
KSP90,NCP9#,SCP90..F,X DK.GRAY,TRIM1#,42 |
1 | ||
| 71537-52030E0 |
KSP90,NCP9#,SCP90..F,X GREGE,TRIM42 |
1 | ||
| 71568A - PAD, FRONT SEAT BACK W/COVER, LH | ||||
| 71568-52B20C0 |
KSP90,NCP9#,SCP90..F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM1# |
1 | ||
| 71568-52B10C0 |
KSP90,NCP9#,SCP90..F,X BLACK,TRIM1# |
1 | ||
| 71568-52B10E0 |
KSP90,NCP9#,SCP90..F,X GREGE,TRIM4# |
1 | ||
| 71568-52B21E0 |
KSP90,NCP9#,SCP90..F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GREGE,TRIM4# |
1 | ||
| 71568-52B21C0 |
KSP90,NCP9#,SCP90..F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,BLACK,TRIM1# |
1 | ||
| 71568-52B12C0 |
KSP90,NCP9#,SCP90..F,X BLACK,TRIM1# |
1 | ||
| 71568-52B12E0 |
KSP90,NCP9#,SCP90..F,X GREGE,TRIM4# |
1 | ||
| 71568-52B20E0 |
KSP90,NCP9#,SCP90..F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GREGE,TRIM4# |
1 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-13020E2 |
KSP90,NCP9#,SCP90..F,X GREGE,TRIM4# |
1 | ||
| 71759-13020B0 |
KSP90,NCP9#,SCP90..F,U,X DK.GRAY,TRIM1# |
1 | ||
| 71759-28050E0 |
KSP90,NCP9#,SCP90..F,U,X GREGE,TRIM4# |
1 | ||
| 71759-28050B0 |
KSP90,NCP9#,SCP90..F,U,X DK.GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52190B2 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52140B2 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-52070B2 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52100B2 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52090B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-52170B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52090B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-52160B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52510C0 |
KSP90,NCP95,SCP90..F ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),BLACK,TRIM1# |
1 | ||
| 71910-52510E0 |
KSP90,NCP95,SCP90..F ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71910-52510C0 |
KSP90,NCP95,SCP90..F ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),BLACK,TRIM1# |
1 | ||
| 71910-52510E0 |
KSP90,NCP9#,SCP90..B,F,X GREGE,TRIM4# |
2 | ||
| 71910-52510C0 |
KSP90,NCP9#,SCP90..B,F,X BLACK,TRIM1# |
2 | ||
| 71910-52510E0 |
KSP90,NCP95,SCP90..F ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71930-47010E3 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-47010B2 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010E4 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
KSP90,NCP9#,SCP90..B,F,ILL,X ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-44020B0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71930-47010E3 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-44020B0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71931-47010E4 |
KSP90,NCP9#,SCP90..B,F,ILL,X ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71930-44020E0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71931-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71930-44020E0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-44020B0 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71931-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71930-47010E3 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-47010B2 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010E4 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
KSP90,NCP9#,SCP90..B,F,ILL,X ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-44020B0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71930-47010E3 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71930-44020B0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71931-47010E4 |
KSP90,NCP9#,SCP90..B,F,ILL,X ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71930-44020E0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71931-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71930-44020E0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-44020B0 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
KSP90,NCP95,SCP90..F ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),GREGE,TRIM4# |
1 | ||
| 71931-47010B2 |
KSP90,NCP95,SCP90..F ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),DK.GRAY,TRIM1# |
1 | ||
| 72031B - LEG, FRONT SEAT SET | ||||
| 72031-52030 |
KSP90,NCP9#,SCP90..F,ILL,U,X |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-52050 |
KSP90,NCP9#,SCP90 |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-52060 |
KSP90,NCP9#,SCP90 |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52030 |
NCP95 |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52030 |
NCP95 |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52020 |
NCP95 |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52020 |
NCP95 |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58040B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-52060 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 82666-21060 | ||||
| 90167-40044 | ||||
| 91673-10820 | ||||
| 93530-55016 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0501- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
