NCP95-AHPNK (2005)
Toyota Vitz
Production
Jan 2005
-
Aug 2007
Engine
2NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0501- )NCP95

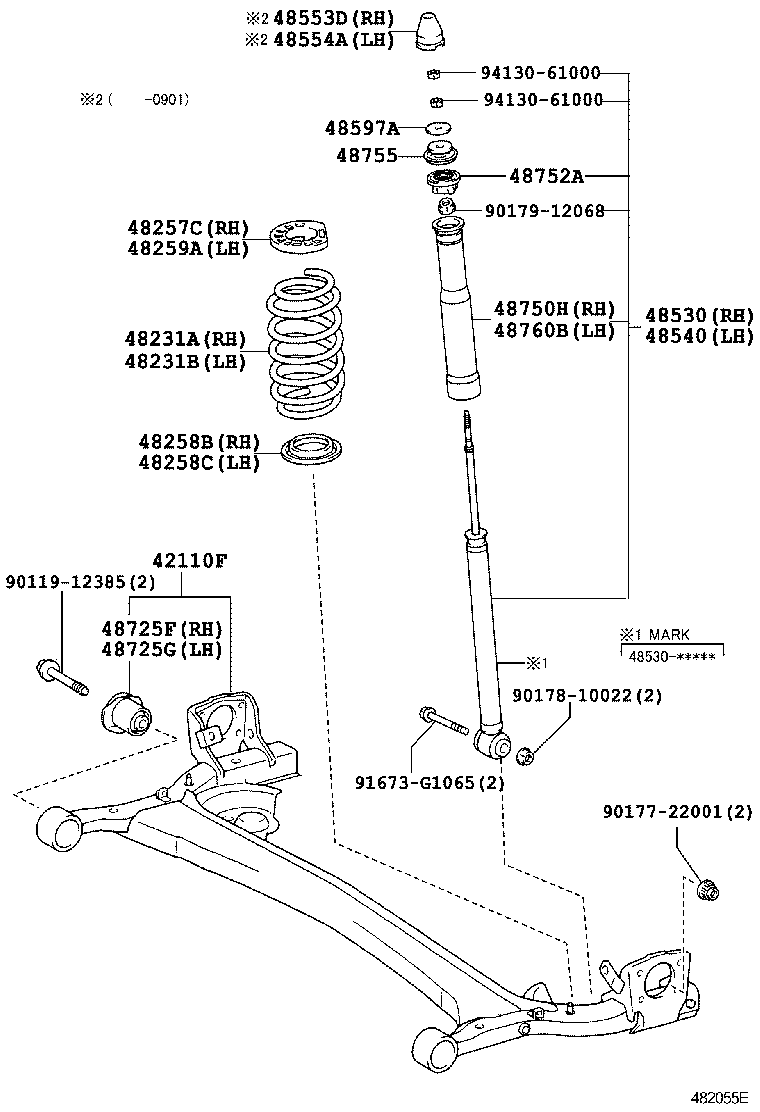

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42110F - BEAM ASSY, REAR AXLE | ||||
| 42110-52281 |
NCP95 |
1 | ||
| 42110-52280 |
NCP95 |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-52A70 |
NCP95..F ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−185/60R15 5.5J ｱﾙﾐ |
1 | ||
| 48231-52A60 |
NCP95..F |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-52A60 |
NCP95..F |
1 | ||
| 48231-52A70 |
NCP95..F ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−185/60R15 5.5J ｱﾙﾐ |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-52010 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-52030 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-52030 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-52010 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-80220 |
NCP95 ﾏｰｸ 48530−52B40 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-80220 |
NCP95 ﾏｰｸ 48530−52B40 |
1 | ||
| 48553D - CAP, REAR SHOCK ABSORBER, RH | ||||
| 48553-52010 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48554A - CAP, REAR SHOCK ABSORBER, LH | ||||
| 48553-52010 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48597A - RETAINER, REAR SHOCK ABSORBER CUSHION | ||||
| 90201-10320 |
KSP90,NCP9#,SCP90 |
2 | ||
| 48725F - BUSH, REAR AXLE CARRIER, RH | ||||
| 48725-52090 |
NCP95 |
1 | ||
| 48725G - BUSH, REAR AXLE CARRIER, LH | ||||
| 48725-52090 |
NCP95 |
1 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-52110 |
NCP95 |
1 | ||
| 48752A - STOPPER, REAR SUSPENSION SUPPORT | ||||
| 48752-52020 |
NCP95 |
2 | ||
| 48755 - SUPPORT, REAR SUSPENSION | ||||
| 48755-52010 |
KSP90,NCP9#,SCP90 |
2 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-52110 |
NCP95 |
1 | ||
| Common parts | ||||
| 90119-12385 | ||||
| 90177-22001 | ||||
| 90178-10022 | ||||
| 90179-12068 | ||||
| 91673-G1065 | ||||
| 94130-61000 | ||||
