NCP95-AHPGK (2005)
Toyota Vitz
Production
Dec 2005
-
Aug 2007
Engine
2NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

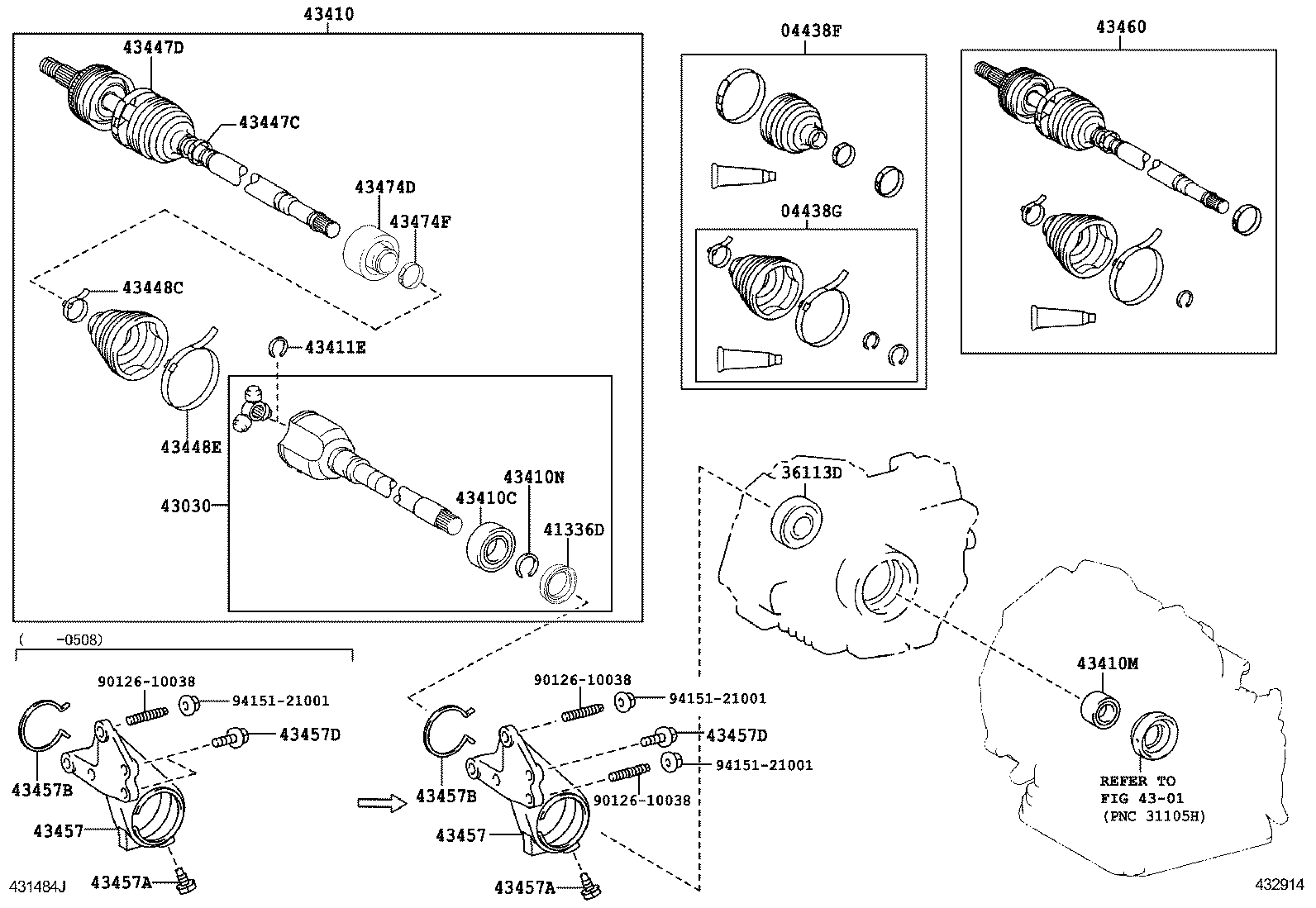

(0501-0601)NCP95
Click highlighted areas on diagram
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04427-52700 |
NCP95 |
1 | ||
| 04427-52310 |
NCP95 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-52230 |
NCP95 |
1 | ||
| 36113D - SEAL, OIL (FOR TRANSFER CASE RH) | ||||
| 90311-35056 |
NCP95 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-52020 |
NCP95 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-52050 |
NCP95 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-52220 |
NCP95 |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90363-36006 |
NCP95 |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90316-28003 |
NCP95 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90520-33008 |
NCP95 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-22005 |
NCP95 |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-52260 |
NCP9# |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-52250 |
NCP9# |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01078 |
NCP9# |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-12160 |
NCP95 |
1 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43457-52010 |
NCP95 |
1 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43457-52010 |
NCP95 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90109-10180 |
NCP95 *10−1.25PX32−22 |
2 | ||
| 90119-10461 |
NCP95 *10−1.25PX19.8−8.3 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90109-10180 |
NCP95 *10−1.25PX32−22 |
2 | ||
| 90119-10461 |
NCP95 *10−1.25PX19.8−8.3 |
1 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-75002 |
NCP95 |
1 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-75002 |
NCP95 |
1 | ||
| 43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2) | ||||
| 90105-10381 |
NCP95 |
2 | ||
| 90105-10381 |
NCP95 |
1 | ||
| 43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2) | ||||
| 90105-10381 |
NCP95 |
2 | ||
| 90105-10381 |
NCP95 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-59425 |
NCP95 |
1 | ||
| 43474D - DAMPER, FRONT DRIVE SHAFT, RH | ||||
| 43474-52050 |
NCP95 |
1 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 42345-14010 |
NCP9#,SCP90 |
1 | ||
| Common parts | ||||
| 90126-10038 | ||||
| 94151-21001 | ||||
| Linked diagrams | ||||
| 4301 | ||||

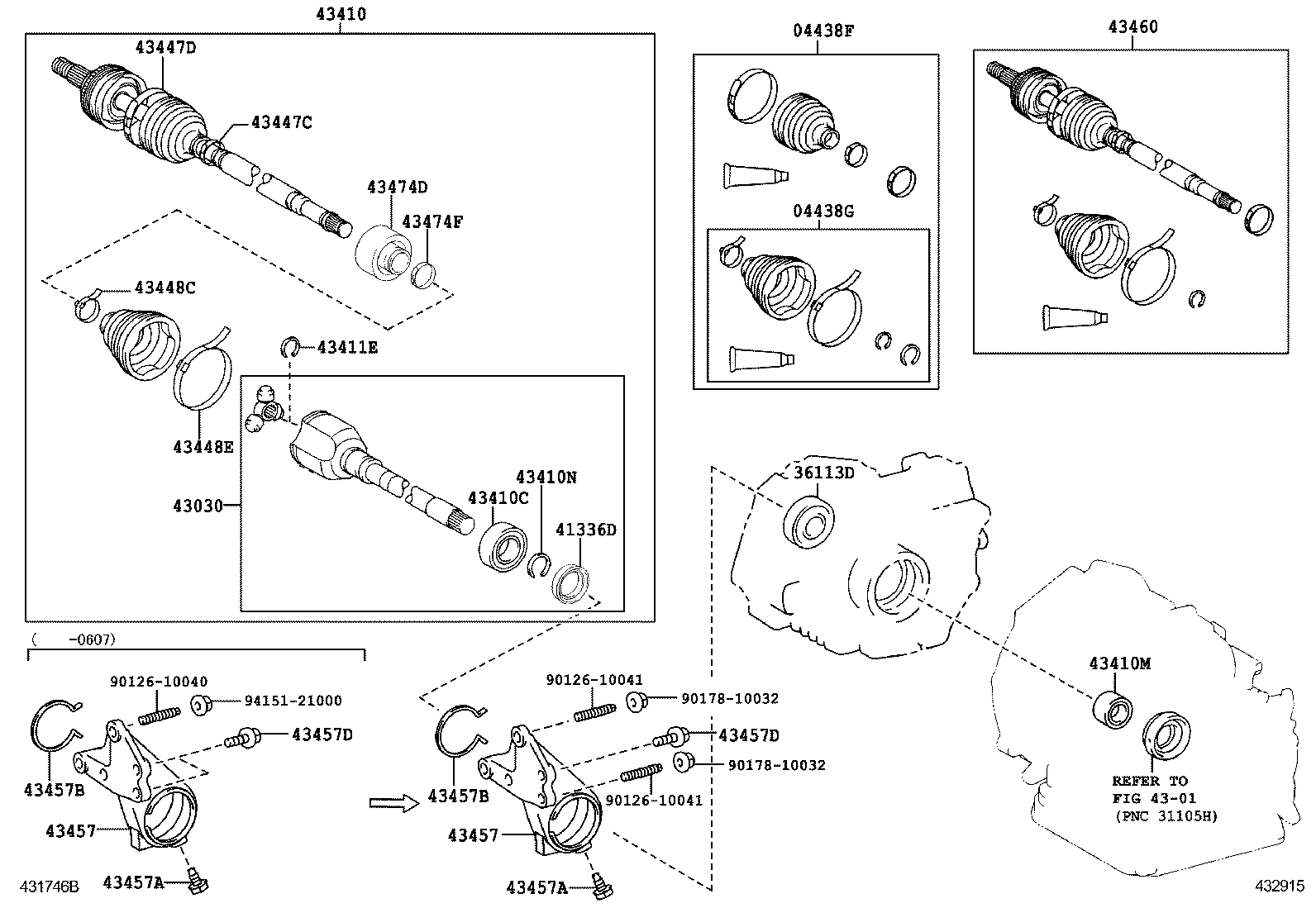

(0601- )NCP95
Click highlighted areas on diagram
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04427-52700 |
NCP95 |
1 | ||
| 04427-52310 |
NCP95 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-52230 |
NCP95 |
1 | ||
| 36113D - SEAL, OIL (FOR TRANSFER CASE RH) | ||||
| 90311-35056 |
NCP95 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-52020 |
NCP95 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-52050 |
NCP95 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-52220 |
NCP95 |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90363-36006 |
NCP95 |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90316-28003 |
NCP95 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90520-33008 |
NCP95 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-22005 |
NCP95 |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-52260 |
NCP9# |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-52250 |
NCP9# |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01078 |
NCP9# |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-12160 |
NCP95 |
1 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43457-52010 |
NCP95 |
1 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43457-52010 |
NCP95 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90109-10180 |
NCP95 *10−1.25PX32−22 |
2 | ||
| 90119-10461 |
NCP95 *10−1.25PX19.8−8.3 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90109-10180 |
NCP95 *10−1.25PX32−22 |
2 | ||
| 90119-10461 |
NCP95 *10−1.25PX19.8−8.3 |
1 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-75002 |
NCP95 |
1 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-75002 |
NCP95 |
1 | ||
| 43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2) | ||||
| 90105-10381 |
NCP95 |
2 | ||
| 90105-10381 |
NCP95 |
1 | ||
| 43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2) | ||||
| 90105-10381 |
NCP95 |
2 | ||
| 90105-10381 |
NCP95 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-59425 |
NCP95 |
1 | ||
| 43474D - DAMPER, FRONT DRIVE SHAFT, RH | ||||
| 43474-52050 |
NCP95 |
1 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 42345-14010 |
NCP9#,SCP90 |
1 | ||
| Common parts | ||||
| 90126-10040 | ||||
| 90126-10041 | ||||
| 90178-10032 | ||||
| 94151-21000 | ||||
| Linked diagrams | ||||
| 4301 | ||||
