NCP95-AHPEK (2005)
Toyota Vitz
ILLUST NO. 1 OF 7(0501- )
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-52C50 |
NCP95 |
1 | ||
| 82111-52M10 |
NCP95 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-52C51 |
NCP95 |
1 | ||
| 82111-52C50 |
NCP95 |
1 | ||
| 82111-52M10 |
NCP95 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-52C51 |
NCP95 |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-52010 |
KSP90,NCP9#,SCP90..B,F,U,X |
1 | ||
| 82112-52040 |
KSP90,NCP9#,SCP90..B,F,U,X |
1 | ||
| 82112-52300 |
KSP90,NCP9#,SCP90..F,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-52511 |
KSP90,NCP9#,SCP90 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 8401 | ||||

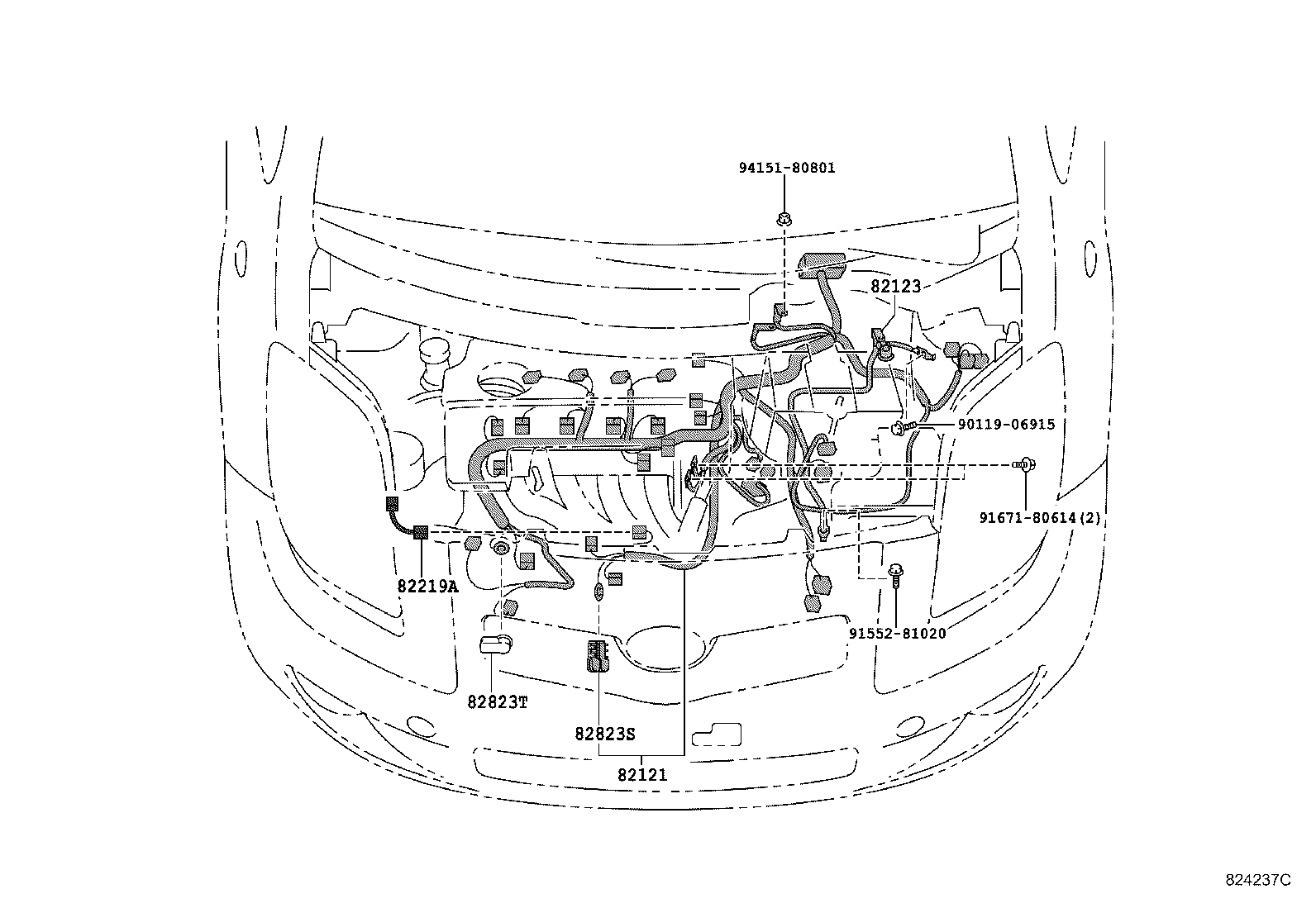

ILLUST NO. 2 OF 7(0501- )NCP95
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82139-52040 |
NCP95 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-52270 |
NCP95 |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-52040 |
NCP9# |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-20080 |
KSP90,NCP9#,SCP90 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
KSP90,NCP9#,SCP90 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91552-81020 | ||||
| 91671-80614 | ||||
| 94151-80801 | ||||
ILLUST NO. 3 OF 7(0501- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-52T90 |
NCP9#,SCP90..F,RS,X |
1 | ||
| 82141-52U00 |
NCP95,SCP90..U |
1 | ||
| 82141-52U00 |
KSP90,NCP9#,SCP90..F,RS,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 82141-52T91 |
NCP9#,SCP90..F,RS,X |
1 | ||
| 82141-52U01 |
NCP95,SCP90..U |
1 | ||
| 82141-52U01 |
KSP90,NCP9#,SCP90..F,RS,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 82141-52T92 |
NCP9#,SCP90..F,RS,X |
1 | ||
| 82141-52U02 |
NCP95,SCP90..U |
1 | ||
| 82141-52U02 |
KSP90,NCP9#,SCP90..F,RS,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 82141-52U00 |
KSP90,NCP9#,SCP90..F,RS,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 82141-52U00 |
NCP95,SCP90..U |
1 | ||
| 82141-52T90 |
NCP9#,SCP90..F,RS,X |
1 | ||
| 82141-52U01 |
KSP90,NCP9#,SCP90..F,RS,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 82141-52T91 |
NCP9#,SCP90..F,RS,X |
1 | ||
| 82141-52U01 |
NCP95,SCP90..U |
1 | ||
| 82141-52U02 |
KSP90,NCP9#,SCP90..F,RS,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 82141-52T92 |
NCP9#,SCP90..F,RS,X |
1 | ||
| 82141-52U02 |
NCP95,SCP90..U |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-52080 |
KSP90,NCP9#,SCP90..B,F,RS 寒冷地仕様 |
1 | ||
| 82142-52090 |
NCP9#,SCP90..U,X |
1 | ||
| 82142-52071 |
KSP90,NCP9#,SCP90..B,F,RS |
1 | ||
| 82142-52101 |
KSP90,NCP9#,SCP90..ILL,U,X 寒冷地仕様 |
1 | ||
| 82142-52081 |
KSP90,NCP9#,SCP90..B,F,RS 寒冷地仕様 |
1 | ||
| 82142-52070 |
KSP90,NCP9#,SCP90..B,F,RS |
1 | ||
| 82142-52091 |
KSP90,NCP9#,SCP90..ILL,U,X |
1 | ||
| 82142-52100 |
NCP9#,SCP90..U,X 寒冷地仕様 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-52080 |
KSP90,NCP9#,SCP90 |
2 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-52080 |
KSP90,NCP9#,SCP90 |
2 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-52100 |
KSP90,NCP9#,SCP90 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-52280 |
KSP90,NCP9#,SCP90 NO.3 |
1 | ||
| 82824-21030 |
KSP90,NCP9#,SCP90 NO.5 |
1 | ||
| 82824-52290 |
KSP90,NCP9#,SCP90 NO.4 |
2 | ||
| 82824-47210 |
KSP90,NCP9#,SCP90 NO.2 |
2 | ||
| 82824-22070 |
KSP90,NCP9#,SCP90 NO.1 |
1 | ||
| 82824-52080 |
KSP90,NCP9#,SCP90 NO.6 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-52280 |
KSP90,NCP9#,SCP90 NO.3 |
1 | ||
| 82824-21030 |
KSP90,NCP9#,SCP90 NO.5 |
1 | ||
| 82824-52290 |
KSP90,NCP9#,SCP90 NO.4 |
2 | ||
| 82824-47210 |
KSP90,NCP9#,SCP90 NO.2 |
2 | ||
| 82824-22070 |
KSP90,NCP9#,SCP90 NO.1 |
1 | ||
| 82824-52080 |
KSP90,NCP9#,SCP90 NO.6 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-52280 |
KSP90,NCP9#,SCP90 NO.3 |
1 | ||
| 82824-21030 |
KSP90,NCP9#,SCP90 NO.5 |
1 | ||
| 82824-52290 |
KSP90,NCP9#,SCP90 NO.4 |
2 | ||
| 82824-47210 |
KSP90,NCP9#,SCP90 NO.2 |
2 | ||
| 82824-22070 |
KSP90,NCP9#,SCP90 NO.1 |
1 | ||
| 82824-52080 |
KSP90,NCP9#,SCP90 NO.6 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-52280 |
KSP90,NCP9#,SCP90 NO.3 |
1 | ||
| 82824-21030 |
KSP90,NCP9#,SCP90 NO.5 |
1 | ||
| 82824-52290 |
KSP90,NCP9#,SCP90 NO.4 |
2 | ||
| 82824-47210 |
KSP90,NCP9#,SCP90 NO.2 |
2 | ||
| 82824-22070 |
KSP90,NCP9#,SCP90 NO.1 |
1 | ||
| 82824-52080 |
KSP90,NCP9#,SCP90 NO.6 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-52280 |
KSP90,NCP9#,SCP90 NO.3 |
1 | ||
| 82824-21030 |
KSP90,NCP9#,SCP90 NO.5 |
1 | ||
| 82824-52290 |
KSP90,NCP9#,SCP90 NO.4 |
2 | ||
| 82824-47210 |
KSP90,NCP9#,SCP90 NO.2 |
2 | ||
| 82824-22070 |
KSP90,NCP9#,SCP90 NO.1 |
1 | ||
| 82824-52080 |
KSP90,NCP9#,SCP90 NO.6 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-52280 |
KSP90,NCP9#,SCP90 NO.3 |
1 | ||
| 82824-21030 |
KSP90,NCP9#,SCP90 NO.5 |
1 | ||
| 82824-52290 |
KSP90,NCP9#,SCP90 NO.4 |
2 | ||
| 82824-47210 |
KSP90,NCP9#,SCP90 NO.2 |
2 | ||
| 82824-22070 |
KSP90,NCP9#,SCP90 NO.1 |
1 | ||
| 82824-52080 |
KSP90,NCP9#,SCP90 NO.6 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-52280 |
KSP90,NCP9#,SCP90 NO.3 |
1 | ||
| 82824-21030 |
KSP90,NCP9#,SCP90 NO.5 |
1 | ||
| 82824-52290 |
KSP90,NCP9#,SCP90 NO.4 |
2 | ||
| 82824-47210 |
KSP90,NCP9#,SCP90 NO.2 |
2 | ||
| 82824-22070 |
KSP90,NCP9#,SCP90 NO.1 |
1 | ||
| 82824-52080 |
KSP90,NCP9#,SCP90 NO.6 |
1 | ||
| 82825L - CONNECTOR, WIRING HARNESS | ||||
| 82824-52310 |
NCP9#,SCP90..F,RS,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
2 | ||
| 82824-52310 |
NCP9#,SCP90..F,RS |
2 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-70004 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF 7(0501- )
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-52A20 |
NCP95,SCP90..U |
1 | ||
| 82151-52A10 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X |
1 | ||
| 82151-52A20 |
KSP90,NCP9#,SCP90..F,ILL,RS,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-52630 |
NCP95,SCP90..U |
1 | ||
| 82152-52630 |
KSP90,NCP9#,SCP90..F,ILL,RS,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 82152-52620 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82153-52300 |
KSP90,NCP9#,SCP90 |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82153-52300 |
KSP90,NCP9#,SCP90 |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-52020 |
NCP95 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-52350 |
KSP90,NCP9#,SCP90..F,ILL,RS,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 82184-52340 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X |
1 | ||
| 82184-52350 |
NCP95,SCP90..U |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-52290 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X |
1 | ||
| 82185-52300 |
KSP90,NCP9#,SCP90..F,ILL,RS,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 82185-52300 |
NCP95,SCP90..U |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-52090 |
KSP90,NCP9#,SCP90 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-16100 |
NCP95..F ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
3 | ||
| 82817-16100 |
NCP95..F ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
3 | ||
| 82817-52710 |
NCP95..F,ILL |
2 | ||
| 82817-16100 |
NCP95..U |
3 | ||
| 82817-16100 |
NCP95..F |
2 | ||
| 82817-52710 |
NCP95..F,ILL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
3 | ||
| 82817-52710 |
NCP95..U |
3 | ||
| 82817-52710 |
NCP95..F,ILL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
3 | ||
| 82817-52710 |
KSP90,NCP9#,SCP90..F,ILL,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
3 | ||
| Common parts | ||||
| 90119-06915 | ||||
ILLUST NO. 5 OF 7(0501- )
ﾌﾛｱ & ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-52C90 |
NCP95..F ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 82161-52C70 |
NCP95..F |
1 | ||
| 82161-52D00 |
NCP95..F ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 82161-52C80 |
NCP95..F SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 82161-52D00 |
NCP95..U |
1 | ||
| 82161-52C91 |
NCP95..F,ILL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 82161-52D01 |
NCP95..U |
1 | ||
| 82161-52C71 |
NCP95..F,ILL |
1 | ||
| 82161-52C81 |
NCP95..F,ILL SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 82161-52D01 |
NCP95..F,ILL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-52290 |
NCP95,SCP90..U ｵｰﾃﾞｨｵ−G−BOOK,4ｽﾋﾟｰｶ |
1 | ||
| 82171-52290 |
KSP90,NCP9#,SCP90..F,RS,X ｵｰﾃﾞｨｵ−G−BOOK,2ｽﾋﾟｰｶ |
1 | ||
| 82171-52360 |
KSP90,NCP9#,SCP90..F,ILL,RS ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｵ/BT/2ｽﾋﾟｰｶ/異型 2DIN |
1 | ||
| 82171-52280 |
KSP90,NCP9#,SCP90 |
1 | ||
| 82171-52360 |
NCP9#,SCP90..U,X ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｵ/BT/4ｽﾋﾟｰｶ/異型 2DIN |
1 | ||
| 82171-52290 |
KSP90,NCP9#,SCP90..F,ILL,RS ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 2ｽﾋﾟｰｶ(G−BOOK) |
1 | ||
| 82171-52290 |
NCP9#,SCP90..U,X ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 4ｽﾋﾟｰｶ(G−BOOK) |
1 | ||
| 82345A - DIODE | ||||
| 82345-32010 |
KSP90,NCP9#,SCP90 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-16100 |
NCP95..F ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
3 | ||
| 82817-16100 |
NCP95..F ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
3 | ||
| 82817-52710 |
NCP95..F,ILL |
2 | ||
| 82817-16100 |
NCP95..U |
3 | ||
| 82817-16100 |
NCP95..F |
2 | ||
| 82817-52710 |
NCP95..F,ILL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
3 | ||
| 82817-52710 |
NCP95..U |
3 | ||
| 82817-52710 |
NCP95..F,ILL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
3 | ||
| 82817-52710 |
KSP90,NCP9#,SCP90..F,ILL,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
3 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-44030 |
KSP90,NCP9#,SCP90 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-08A96 | ||||
| 90179-06178 | ||||
| Linked diagrams | ||||
| 8121 | ||||
ILLUST NO. 6 OF 7(0501- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-47170 | ||||
| 82715-52050 | ||||
| 82715-52090 | ||||
| 82715-52110 | ||||
| 82715-52130 | ||||
| 82715-52140 | ||||
| 82715-52210 | ||||
| 82715-52220 | ||||
| 82715-52230 | ||||
| 82715-52A20 | ||||
| 82715-52B50 | ||||
| 82715-52B60 | ||||
| 82715-52B70 | ||||
| 82715-52B80 | ||||
| 82715-52B90 | ||||
| 82715-52C50 | ||||
| 82715-52C60 | ||||
| 82715-52C70 | ||||
| 82715-52C80 | ||||
| 82715-52C90 | ||||
| 82715-52D00 | ||||
| 82715-52D50 | ||||
| 82715-52E00 | ||||
| 82715-52E10 | ||||
| 82715-52E20 | ||||
| 82715-52E30 | ||||
| 82715-5C050 | ||||
| 82715-5C060 | ||||
| 82715-5C080 | ||||
| 82715-5C160 | ||||
| 82715-5C170 | ||||
| 82715-5C180 | ||||
| 82715-5C210 | ||||
| 90116-06166 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80812 | ||||
| 91671-80816 | ||||
| 91673-80612 | ||||
| 94151-80600 | ||||
ILLUST NO. 6 OF 7(0501- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-52A70 | ||||
| 82715-52B00 | ||||
| 82715-52D80 | ||||
| 82715-52J60 | ||||
| 91671-80610 | ||||
| Linked diagrams | ||||
| 5804 | ||||
ILLUST NO. 7 OF 7(0501- )
ｺﾈｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-52050 | ||||
| 82824-52130 | ||||
| 82824-60460 | ||||
| 90080-98028 | ||||
| 90080-98298 | ||||
| 90980-10619 | ||||
| 90980-10860 | ||||
| 90980-10942 | ||||
| 90980-10957 | ||||
| 90980-11019 | ||||
| 90980-11162 | ||||
| 90980-11314 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
