NCP95-AHPEK (2005)
Toyota Vitz
Production
Jan 2005
-
Aug 2007
Engine
2NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0501- )NCP95

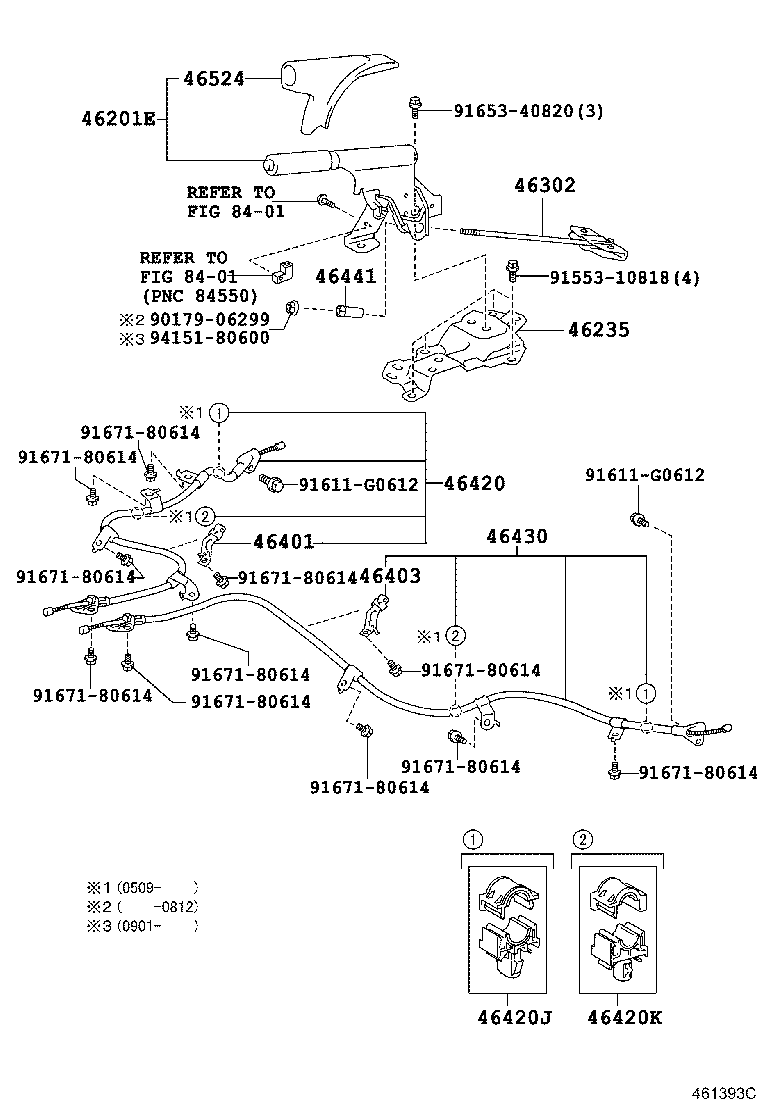

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-52070B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 46235 - BRACKET, PARKING BRAKE LEVER SUPPORT | ||||
| 46235-52030 |
NCP95 |
1 | ||
| 46302 - ROD SUB-ASSY, PARKING BRAKE PULL, NO.1 | ||||
| 46302-52030 |
KSP90,NCP9#,SCP90 |
1 | ||
| 46401 - BRACKET SUB-ASSY, CABLE SUPPORT | ||||
| 46401-52010 |
NCP95 |
1 | ||
| 46403 - BRACKET SUB-ASSY, CABLE SUPPORT, LH | ||||
| 46403-52010 |
NCP95 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-52171 |
NCP95 |
1 | ||
| 46420-52170 |
NCP95 |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 46402-52030 |
KSP90,NCP9#,SCP90 |
2 | ||
| 46402-52010 |
KSP90,NCP9#,SCP90 |
2 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 46402-52020 |
NCP95 |
2 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-52171 |
NCP95 |
1 | ||
| 46430-52170 |
NCP95 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-52010 |
KSP90,NCP9#,SCP90 |
1 | ||
| 46524 - COVER, PARKING BRAKE DUST | ||||
| 46524-52020 |
KSP90,NCP9#,SCP90 |
1 | ||
| Common parts | ||||
| 90179-06299 | ||||
| 91553-10818 | ||||
| 91611-G0612 | ||||
| 91653-40820 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
