NCP91-AHXVK (2005)

Toyota Vitz

Production Jan 2005 - Aug 2007
Engine 1NZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )X ; (0501- )KSP90..B,F,ILL ; (0501- )NCP95,SCP90..ILL,U

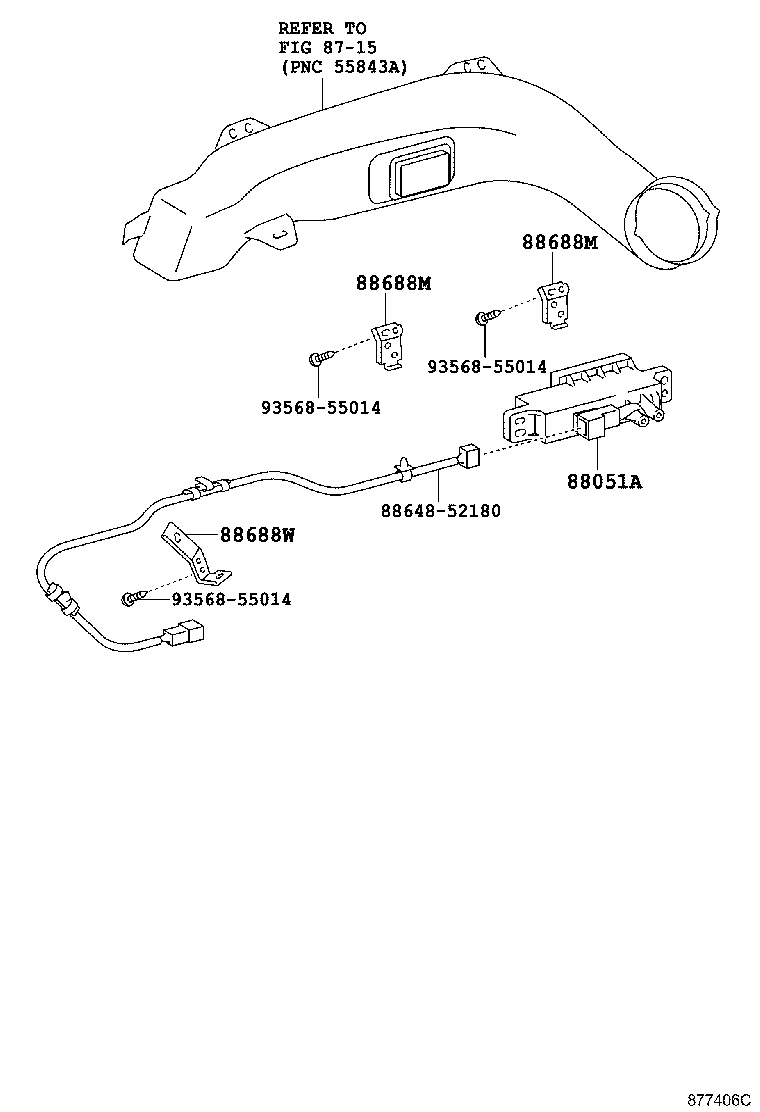

Click highlighted areas on diagram

diagram 8715 88051A 8864852180 88688M 88688M 88688W 9356855014 9356855014 9356855014
Part # Description Qty Price
88051A - GENERATOR SUB-ASSY,ION
88051-22010

KSP90,NCP9#,SCP90..ILL,U,X

 1
88688M - BRACKET, AIR PURIFIER, NO.2
88688-52280

KSP90,NCP9#,SCP90..ILL,U,X

 2
88688M - BRACKET, AIR PURIFIER, NO.2
88688-52280

KSP90,NCP9#,SCP90..ILL,U,X

 2
88688W - BRACKET, AIR PURIFIER, NO.1
88688-52250

KSP90,NCP9#,SCP90..ILL,U,X

 1
Common parts
88648-52180
93568-55014
Linked diagrams
8715
