NCP91-AHXVK (2005)

Toyota Vitz

Production Jan 2005 - Aug 2007
Engine 1NZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )

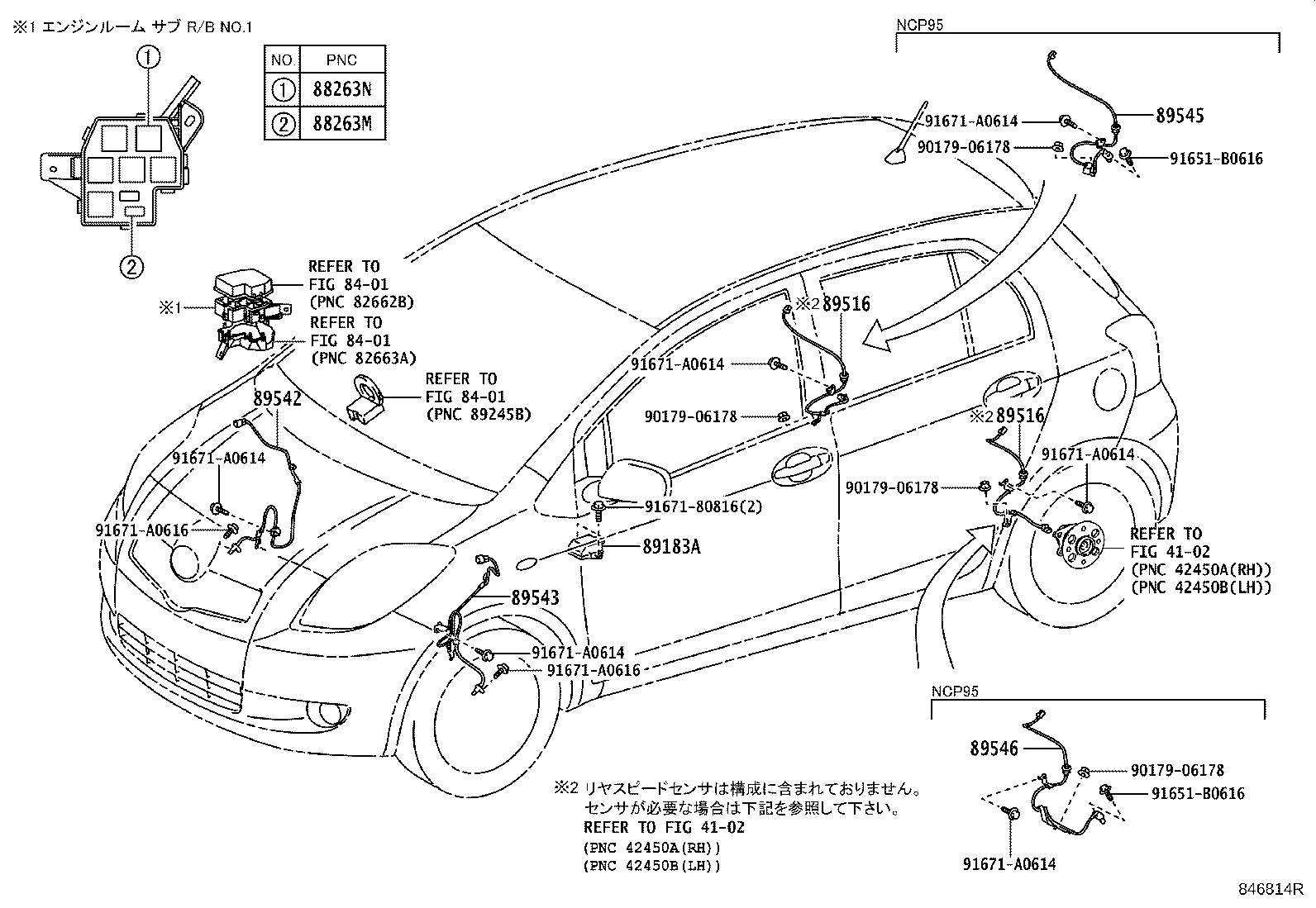

Click highlighted areas on diagram

diagram 4102 4102 8401 8401 8401 88263M 88263N 89183A 89516 89516 89542 89543 89545 89546 9017906178 9017906178 9017906178 9017906178 91651B0616 91651B0616 9167180816 91671A0614 91671A0614 91671A0614 91671A0614 91671A0614 91671A0614 91671A0616 91671A0616
Part # Description Qty Price
88263M - RELAY, ABS SOLENOID
88263-32070

NCP91..RS

VSC−有り

 1
88263N - RELAY, ABS MOTOR
88263-21010

NCP91..RS

VSC−有り

 1
89183A - SENSOR, YAWRATE
89183-60020

NCP91..RS

VSC−有り

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-52090

KSP90,NCP91,SCP90

右側

 1
89516-52100

KSP90,NCP91,SCP90

左側

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-52090

KSP90,NCP91,SCP90

右側

 1
89516-52100

KSP90,NCP91,SCP90

左側

 1
89542 - SENSOR, SPEED, FRONT RH
89542-52030

KSP90,NCP9#,SCP90

 1
89543 - SENSOR, SPEED, FRONT LH
89543-52030

KSP90,NCP9#,SCP90

 1
Common parts
90179-06178
91651-B0616
91671-80816
91671-A0614
91671-A0616
Linked diagrams
4102
8401
