NCP91-AHXVK (2005)

Toyota Vitz

Production Jan 2005 - Aug 2007
Engine 1NZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )NCP9#

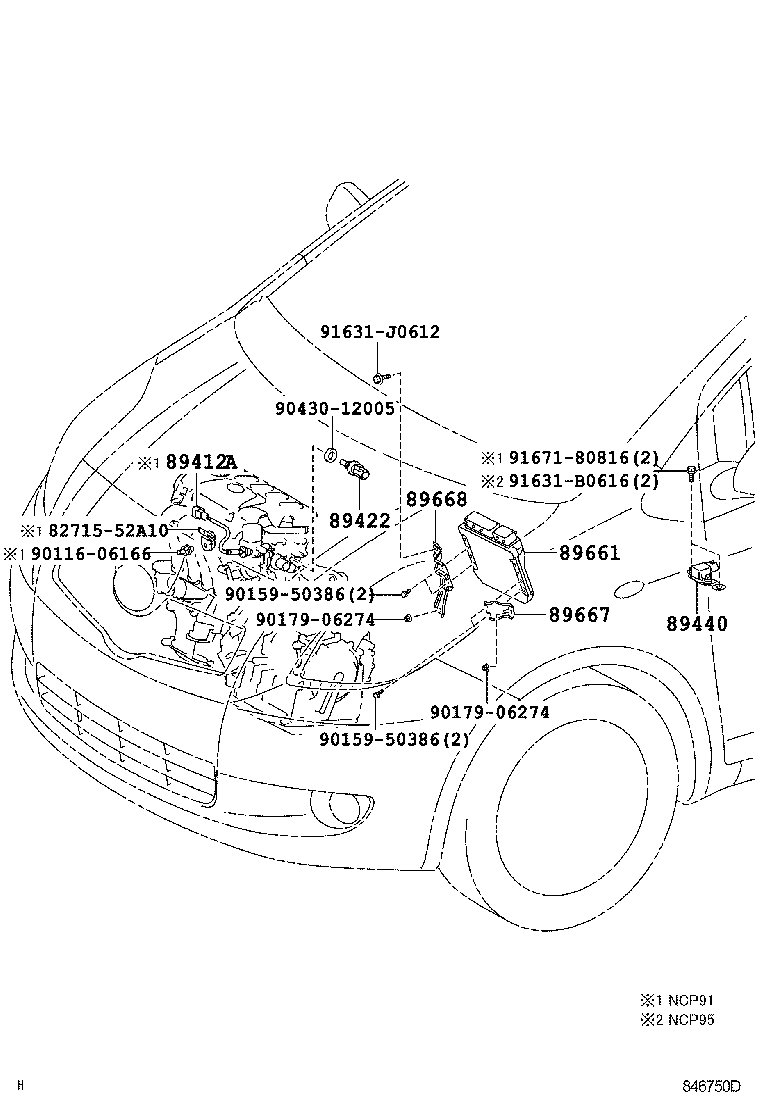

Click highlighted areas on diagram

diagram 8271552A10 89412A 89422 89440 89661 89667 89668 9011606166 9015950386 9015950386 9017906274 9017906274 9043012005 91631B0616 91631J0612 9167180816
Part # Description Qty Price
89412A - SENSOR, E.G.R GAS TEMPERATURE
89412-35020

NCP91

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

KSP90,NCP9#,SCP90

 1
89440 - SENSOR ASSY, DECELERATION
89440-52050

KSP90,NCP91,SCP90..CVFC

 1
89440-52020

KSP90,NCP91,SCP90..CVFC

 1
89440-52070

KSP90,NCP91,SCP90..CVFC

 1
89661 - COMPUTER, ENGINE CONTROL
89661-52B00

NCP91..CVFC

FUJITSU TEN

 1
89661-52F20

NCP91..CVFC

FUJITSU TEN

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-52190

KSP90,NCP9#,SCP90

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-52210

KSP90,NCP9#,SCP90

 1
Common parts
82715-52A10
90116-06166
90159-50386
90179-06274
90430-12005
91631-B0616
91631-J0612
91671-80816
