NCP91-AHXVK (2005)
Toyota Vitz

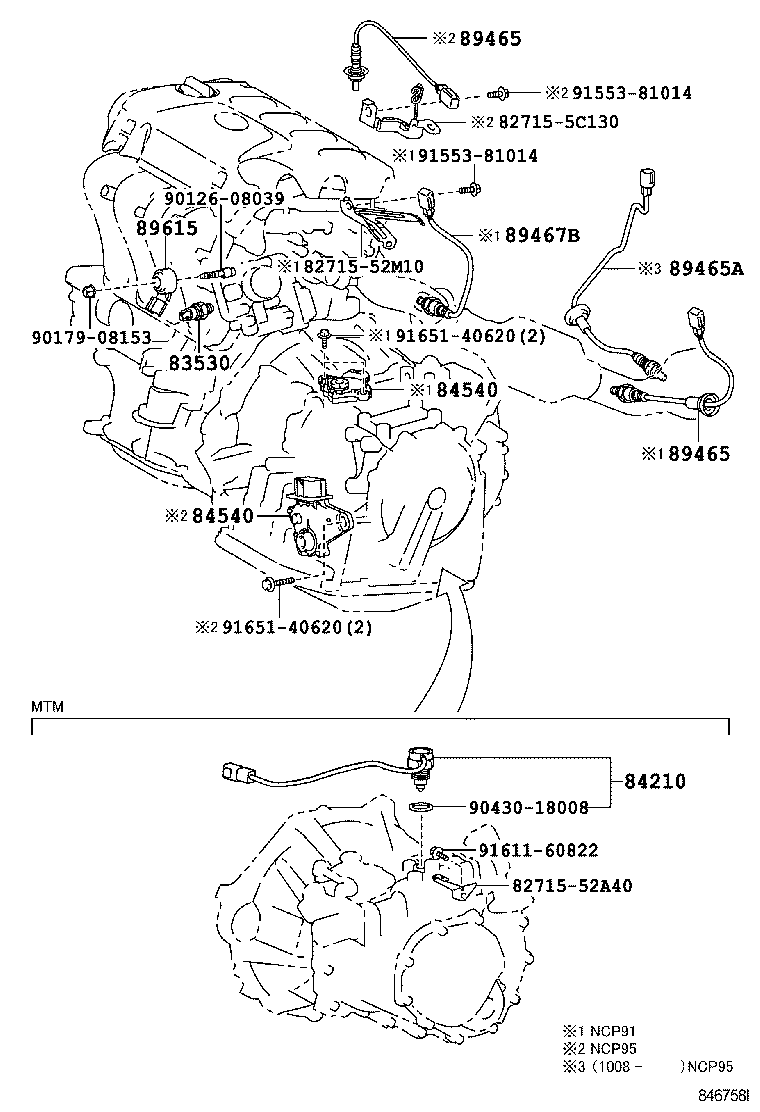

ILLUST NO. 1 OF 7(0501- )NCP9#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
KSP90,NCP9#,SCP90 YAZAKI |
1 | ||
| 83530-28020 |
KSP90,NCP9#,SCP90 DENSO |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52070 |
KSP90,NCP91,SCP90..CVFC |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52070 |
KSP90,NCP91,SCP90..CVFC |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-52400 |
NCP91 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-52400 |
NCP91 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-52010 |
NCP91 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
KSP90,NCP9#,SCP90 |
1 | ||
| Common parts | ||||
| 82715-52A40 | ||||
| 82715-52M10 | ||||
| 82715-5C130 | ||||
| 90126-08039 | ||||
| 90179-08153 | ||||
| 90430-18008 | ||||
| 91553-81014 | ||||
| 91611-60822 | ||||
| 91651-40620 | ||||

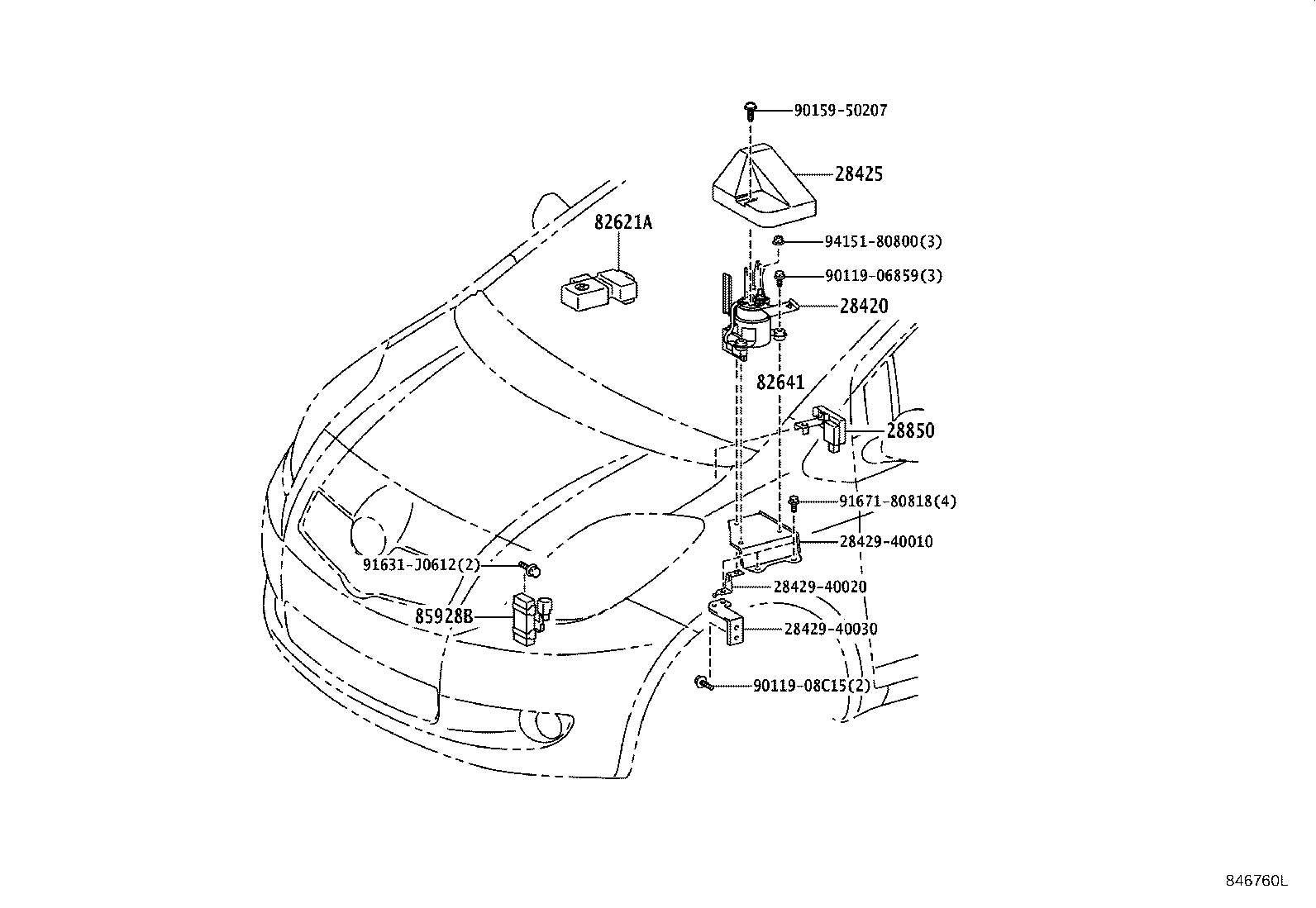

ILLUST NO. 2 OF 7(0501- )
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-40010 |
1KRFE,1NZFE,2NZFE,2SZFE..KSP90,NCP9#,SCP90 |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-52120 |
KSP90,NCP9#,SCP90 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47020 |
KSP90,NCP9#,SCP90 |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-52030 |
KSP90,NCP9#,SCP90 |
1 | ||
| Common parts | ||||
| 28429-40010 | ||||
| 28429-40020 | ||||
| 28429-40030 | ||||
| 90119-06859 | ||||
| 90119-08C15 | ||||
| 90159-50207 | ||||
| 91631-J0612 | ||||
| 91671-80818 | ||||
| 94151-80800 | ||||

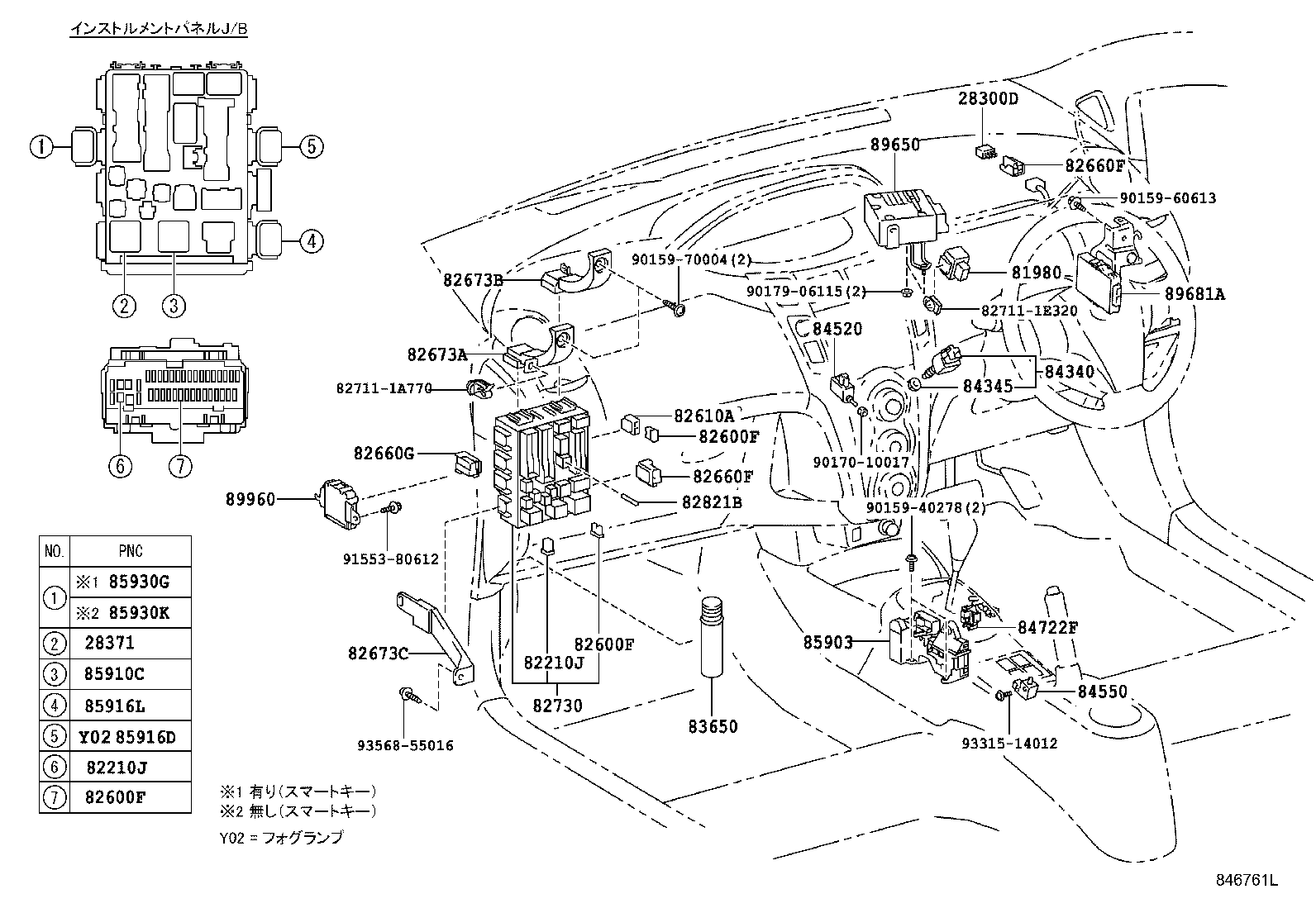

ILLUST NO. 4 OF 7(0501- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300D - RELAY, STARTER CUT | ||||
| 90987-02027 |
1KRFE,1NZFE,2NZFE,2SZFE..KSP90,NCP9#,SCP90..F,ILL,RS,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02025 |
1KRFE,1NZFE,2NZFE,2SZFE..KSP90,NCP9#,SCP90 |
1 | ||
| 90987-02030 |
1KRFE,1NZFE,2NZFE,2SZFE..KSP90,NCP9#,SCP90 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-46010 |
KSP90,NCP9#,SCP90 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08296 |
KSP90,NCP9#,SCP90 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08294 |
KSP90,NCP9#,SCP90 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08295 |
KSP90,NCP9#,SCP90 30A,ﾒｽ端子,桃 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08296 |
KSP90,NCP9#,SCP90 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08294 |
KSP90,NCP9#,SCP90 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08295 |
KSP90,NCP9#,SCP90 30A,ﾒｽ端子,桃 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09022 |
KSP90,NCP9#,SCP90 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
KSP90,NCP9#,SCP90 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09020 |
KSP90,NCP9#,SCP90 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
KSP90,NCP9#,SCP90 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09024 |
KSP90,NCP9#,SCP90 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09025 |
KSP90,NCP9#,SCP90 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09022 |
KSP90,NCP9#,SCP90 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
KSP90,NCP9#,SCP90 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09020 |
KSP90,NCP9#,SCP90 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
KSP90,NCP9#,SCP90 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09024 |
KSP90,NCP9#,SCP90 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09025 |
KSP90,NCP9#,SCP90 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09022 |
KSP90,NCP9#,SCP90 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
KSP90,NCP9#,SCP90 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09020 |
KSP90,NCP9#,SCP90 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
KSP90,NCP9#,SCP90 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09024 |
KSP90,NCP9#,SCP90 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09025 |
KSP90,NCP9#,SCP90 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-52010 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-52030 |
NCP95,SCP90..F,ILL;KSP90,NCP91..ILL,RS,X |
2 | ||
| 82660-52030 |
KSP90,NCP9#,SCP90..F,ILL,RS,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
3 | ||
| 82660-52030 |
NCP91..RS VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
3 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-52030 |
NCP95,SCP90..F,ILL;KSP90,NCP91..ILL,RS,X |
2 | ||
| 82660-52030 |
KSP90,NCP9#,SCP90..F,ILL,RS,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
3 | ||
| 82660-52030 |
NCP91..RS VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
3 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-52030 |
KSP90,NCP9#,SCP90..F,ILL,RS,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 82660-52030 |
NCP91..RS VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 82660-52040 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-52080 |
KSP90,NCP9#,SCP90 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-52090 |
KSP90,NCP9#,SCP90 |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-52100 |
KSP90,NCP9#,SCP90 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-52570 |
KSP90,NCP9#,SCP90..ATM..(F,RS,X) ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 82730-52570 |
NCP91..CVFC..RS 寒冷地仕様&VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ&ｵｰﾃﾞｨｵ−CDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ,2ｽﾋﾟｰｶ&ETC−有り |
1 | ||
| 82730-52580 |
NCP91..CVFC..RS 寒冷地仕様&VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ&ｵｰﾃﾞｨｵ−CDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ,2ｽﾋﾟｰｶ |
1 | ||
| 82730-52570 |
NCP91..CVFC..RS 寒冷地仕様&VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ&ｵｰﾃﾞｨｵ−G−BOOK,2ｽﾋﾟｰｶ&ETC−有り |
1 | ||
| 82730-52580 |
NCP91..CVFC..RS 寒冷地仕様&VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ&ｵｰﾃﾞｨｵ−G−BOOK,2ｽﾋﾟｰｶ |
1 | ||
| 82730-52530 |
NCP95,SCP90..F,ILL;KSP90,NCP91..ILL,RS,X |
1 | ||
| 82730-52571 |
KSP90,NCP9#,SCP90..ATM..(F,ILL,RS,X) ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-52020 |
KSP90,NCP9#,SCP90 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
KSP90,NCP9#,SCP90 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69025 |
KSP90,NCP9#,SCP90 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
KSP90,NCP9#,SCP90 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
KSP90,NCP9#,SCP90 |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-60010 |
KSP90,NCP9#,SCP90..ATM..(B,F,ILL,RS,X) |
1 | ||
| 85903-30060 |
KSP90,NCP9#,SCP90..ATM..(F,ILL,RS,X) ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
KSP90,NCP9#,SCP90..B,F,RS |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
KSP90,NCP9#,SCP90..ILL,RS |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
NCP91..RS ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾊﾞﾝﾊﾟ付け) |
1 | ||
| 90987-02027 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵) |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02027 |
KSP90,NCP9#,SCP90..F,ILL,RS,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 85930K - RELAY, ACC, NO.2 | ||||
| 90987-04004 |
KSP90,NCP9#,SCP90..F,ILL,RS,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 90987-04004 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-52061 |
KSP90,NCP9#,SCP90 JTEKT/DENSO |
1 | ||
| 89650-52060 |
KSP90,NCP9#,SCP90 JTEKT |
1 | ||
| 89650-52340 |
KSP90,NCP9#,SCP90 JTEKT/DENSO |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-52010 |
KSP90,NCP91,SCP90..F,ILL,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 89960-52010 |
NCP91..RS |
1 | ||
| Common parts | ||||
| 82711-1A770 | ||||
| 82711-1E320 | ||||
| 90159-40278 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| 90170-10017 | ||||
| 90179-06115 | ||||
| 91553-80612 | ||||
| 93315-14012 | ||||
| 93568-55016 | ||||
ILLUST NO. 5 OF 7(0501-0808)B,F,ILL,U,X ; (0501-0809)RS
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52080 |
NCP91..RS |
1 | ||
| 84152-52070 |
KSP90,NCP9#,SCP90..F,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 84152-52070 |
KSP90,NCP9#,SCP90..B,F,U,X |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-52020 |
KSP90,NCP9#,SCP90 |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84794-52020 |
KSP90,NCP9#,SCP90..ILL,RS 寒冷地仕様 |
1 | ||
| 84794-52010 |
KSP90,NCP9#,SCP90..B,F,U,X 寒冷地仕様 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-28020 |
KSP90,NCP9#,SCP90..F,ILL,RS,U,X |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-26040 |
KSP90,NCP9#,SCP90 ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し) |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
KSP90,NCP9#,SCP90 ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し) |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
KSP90,NCP9#,SCP90 ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し) |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-42010 |
KSP90,NCP9#,SCP90 |
1 | ||
| 85530-42010 |
KSP90,NCP9#,SCP90 ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し) |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30060 |
KSP90,NCP9#,SCP90 ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し) |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-52050 |
KSP90,NCP9#,SCP90 ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し) |
1 | ||
| 85535-52050 |
KSP90,NCP9#,SCP90 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52010 |
KSP90,NCP9#,SCP90..F,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 89611-52020 |
KSP90,NCP9#,SCP90..ILL,RS ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||
| 8410 | ||||
| 8601 | ||||
ILLUST NO. 6 OF 7(0501-0708) ; (0708- )B,F,ILL,U
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
KSP90,NCP9#,SCP90..F,RS,X Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 84052-71010 |
KSP90,NCP9#,SCP90..F,ILL,RS,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 84052-71010 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-52120 |
NCP91..RS ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾊﾞﾝﾊﾟ付け) |
1 | ||
| 84140-52180 |
KSP90,NCP9#,SCP90..B,F,U,X |
1 | ||
| 84140-12590 |
KSP90,NCP9#,SCP90..F,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 84140-12600 |
KSP90,NCP9#,SCP90..F,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵) |
1 | ||
| 84140-52130 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵) |
1 | ||
| 84140-52100 |
NCP91..RS |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-52010B0 |
NCP9#,SCP90..U,X ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｵ/BT/4ｽﾋﾟｰｶ/異型 2DIN,LT.SILVER,TRIM1#,4# |
1 | ||
| 84250-52010B0 |
NCP9#,SCP90..U,X ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 4ｽﾋﾟｰｶ(G−BOOK),LT.SILVER,TRIM1#,4# |
1 | ||
| 84250-52010C0 |
NCP91..RS ｵｰﾃﾞｨｵ−G−BOOK,2ｽﾋﾟｰｶ,BLACK,TRIM1# |
1 | ||
| 84250-52010C0 |
NCP91..RS ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 2ｽﾋﾟｰｶ(G−BOOK),BLACK,TRIM1# |
1 | ||
| 84250-52010B0 |
KSP90,NCP9#,SCP90..F,X ｵｰﾃﾞｨｵ−G−BOOK,2ｽﾋﾟｰｶ,LT.SILVER,TRIM1#,4# |
1 | ||
| 84250-52010C0 |
NCP91..RS ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｵ/BT/2ｽﾋﾟｰｶ/異型 2DIN,BLACK,TRIM1# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-52090 |
NCP91..RS VSC−有り&ｵｰﾃﾞｨｵ−G−BOOK,2ｽﾋﾟｰｶ |
1 | ||
| 84306-52090 |
KSP90,NCP9#,SCP90..F,RS,X ｵｰﾃﾞｨｵ−G−BOOK,2ｽﾋﾟｰｶ |
1 | ||
| 84306-52100 |
KSP90,NCP9#,SCP90 |
1 | ||
| 84306-52090 |
KSP90,NCP9#,SCP90..F,ILL,RS ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｵ/BT/2ｽﾋﾟｰｶ/異型 2DIN |
1 | ||
| 84306-52090 |
NCP9#,SCP90..U,X ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 4ｽﾋﾟｰｶ(G−BOOK) |
1 | ||
| 84306-52090 |
NCP91..RS VSC−有り&ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｵ/BT/2ｽﾋﾟｰｶ/異型 2DIN |
1 | ||
| 84306-52090 |
KSP90,NCP9#,SCP90..F,ILL,RS ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 2ｽﾋﾟｰｶ(G−BOOK) |
1 | ||
| 84306-52090 |
NCP91..RS VSC−有り&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 2ｽﾋﾟｰｶ(G−BOOK) |
1 | ||
| 84306-52090 |
NCP9#,SCP90..U,X ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｵ/BT/4ｽﾋﾟｰｶ/異型 2DIN |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-71010 |
KSP90,NCP9#,SCP90..F,RS,X Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 84450-71010 |
KSP90,NCP9#,SCP90..F,ILL,RS,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 84450-71010 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-52190 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-71010 |
KSP90,NCP9#,SCP90..ATM..(B,F,ILL,RS,X) |
1 | ||
| 85432-71010 |
KSP90,NCP9#,SCP90..ATM..(F,ILL,RS,X) ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 85432-71010 |
KSP90,NCP9#,SCP90..ATM..(F,RS,X) Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-52030 |
NCP91..RS VSC−有り |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||

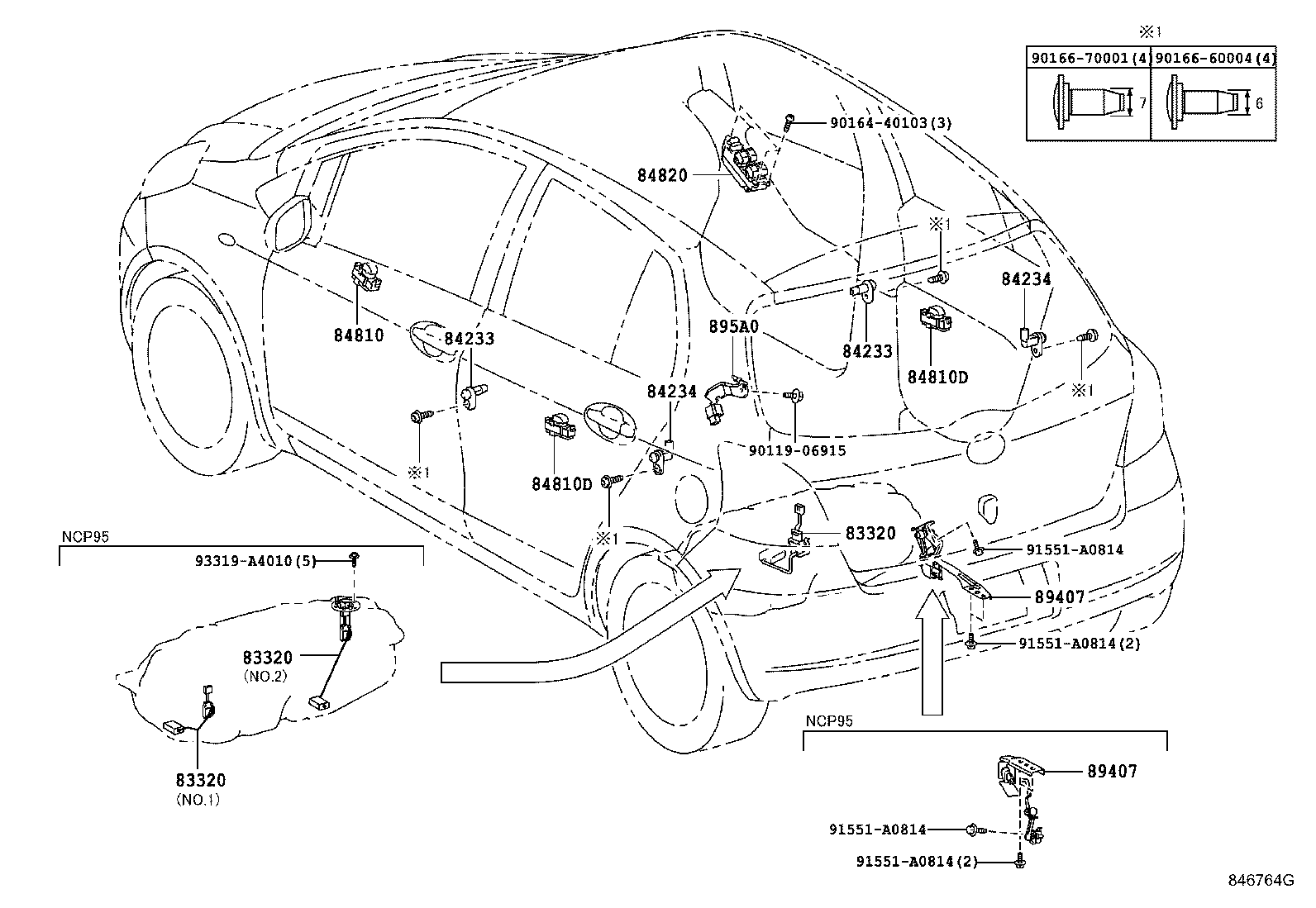

ILLUST NO. 7 OF 7(0501- )
ﾄﾞｱ,ﾙｰﾌ,ﾌﾛｱ & ﾗｯｹﾞｰｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52180 |
KSP90,NCP91,SCP90 |
1 | ||
| 83320-52181 |
KSP90,NCP91,SCP90 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52180 |
KSP90,NCP91,SCP90 |
1 | ||
| 83320-52181 |
KSP90,NCP91,SCP90 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52180 |
KSP90,NCP91,SCP90 |
1 | ||
| 83320-52181 |
KSP90,NCP91,SCP90 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
KSP90,NCP9#,SCP90 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
KSP90,NCP9#,SCP90 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52020 |
KSP90,NCP9#,SCP90 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52020 |
KSP90,NCP9#,SCP90 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
KSP90,NCP9#,SCP90 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
KSP90,NCP9#,SCP90 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
KSP90,NCP9#,SCP90 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-52270 |
KSP90,NCP9#,SCP90..ILL,RS |
1 | ||
| 84820-52200 |
KSP90,NCP9#,SCP90..B,F,U,X |
1 | ||
| 89407 - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH | ||||
| 89407-52011 |
KSP90,NCP91,SCP90..F,ILL,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 89407-52011 |
NCP91..RS |
1 | ||
| 89407-52010 |
NCP91..RS |
1 | ||
| 89407-52010 |
KSP90,NCP91,SCP90..F,ILL,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 89407 - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH | ||||
| 89407-52011 |
KSP90,NCP91,SCP90..F,ILL,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 89407-52011 |
NCP91..RS |
1 | ||
| 89407-52010 |
NCP91..RS |
1 | ||
| 89407-52010 |
KSP90,NCP91,SCP90..F,ILL,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90164-40103 | ||||
| 90166-60004 | ||||
| 90166-70001 | ||||
| 91551-A0814 | ||||
| 93319-A4010 | ||||

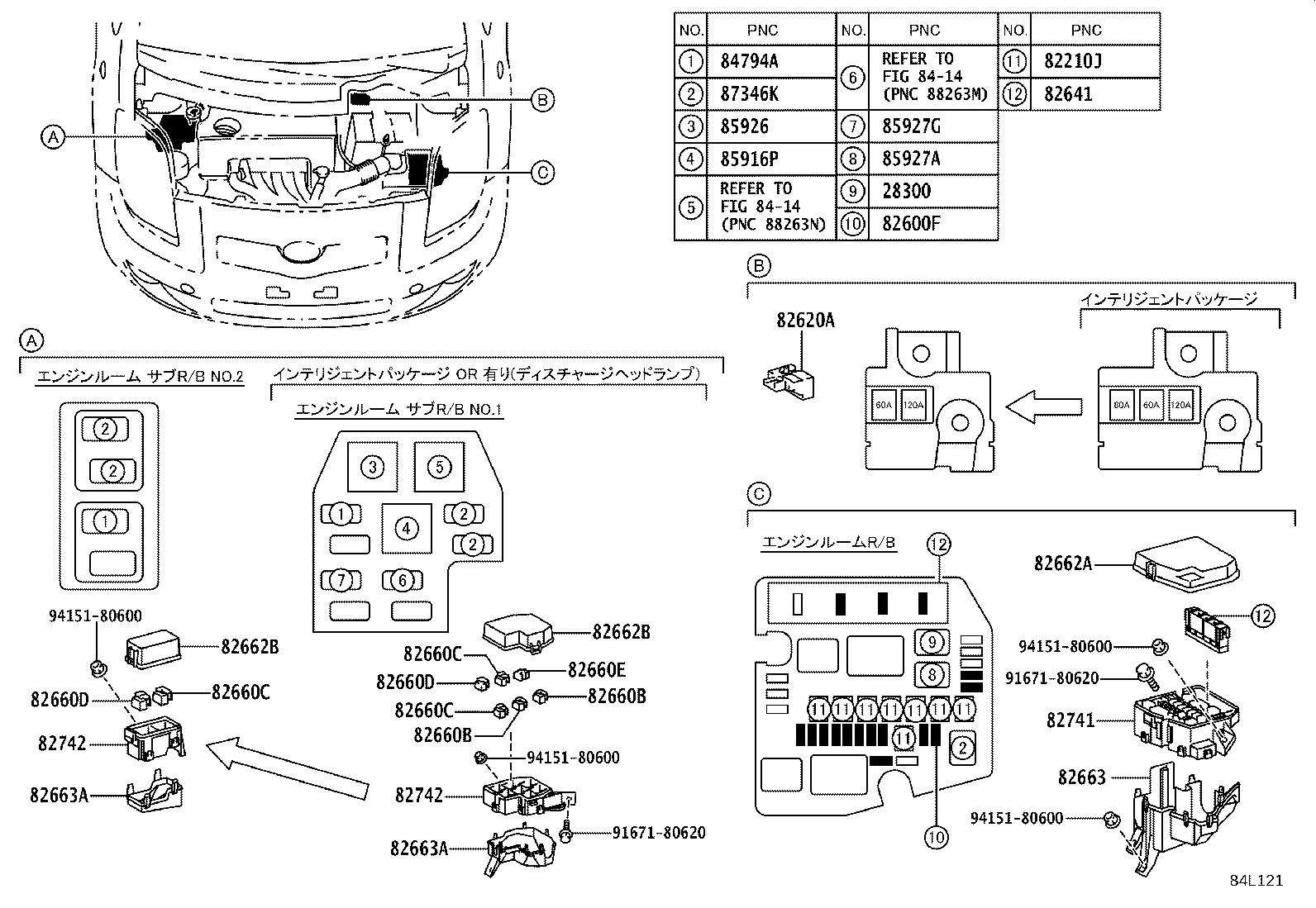

ILLUST NO. 3 OF 7(0501- )
ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1KRFE,1NZFE,2NZFE,2SZFE..KSP90,NCP9#,SCP90 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08296 |
KSP90,NCP9#,SCP90 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08294 |
KSP90,NCP9#,SCP90 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08295 |
KSP90,NCP9#,SCP90 30A,ﾒｽ端子,桃 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09022 |
KSP90,NCP9#,SCP90 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
KSP90,NCP9#,SCP90 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09020 |
KSP90,NCP9#,SCP90 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
KSP90,NCP9#,SCP90 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09024 |
KSP90,NCP9#,SCP90 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09025 |
KSP90,NCP9#,SCP90 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-52050 |
KSP90,NCP9#,SCP90 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47020 |
KSP90,NCP9#,SCP90 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
NCP91..RS VSC−有り |
2 | ||
| 82660-0H070 |
KSP90,NCP9#,SCP90..F,ILL,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-0H070 |
NCP91..RS |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
NCP91..RS VSC−有り |
2 | ||
| 82660-0H070 |
KSP90,NCP9#,SCP90..F,ILL,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-0H070 |
NCP91..RS |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-52020 |
NCP95,SCP90;KSP90,NCP91..ILL,X |
1 | ||
| 82660-52020 |
NCP91..RS |
2 | ||
| 82660-52020 |
KSP90,NCP9#,SCP90..F,ILL,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-52020 |
NCP95,SCP90;KSP90,NCP91..ILL,X |
1 | ||
| 82660-52020 |
NCP91..RS |
2 | ||
| 82660-52020 |
KSP90,NCP9#,SCP90..F,ILL,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-52020 |
NCP95,SCP90;KSP90,NCP91..ILL,X |
1 | ||
| 82660-52020 |
NCP91..RS |
2 | ||
| 82660-52020 |
KSP90,NCP9#,SCP90..F,ILL,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
NCP95,SCP90;KSP90,NCP91..ILL,RS,X |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
NCP95,SCP90;KSP90,NCP91..ILL,RS,X |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-26270 |
KSP90,NCP9#,SCP90..F,ILL,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-26270 |
NCP91..RS |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-52280 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 82662-52290 |
NCP91..RS |
1 | ||
| 82662-52290 |
KSP90,NCP9#,SCP90..F,ILL,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-52320 |
NCP91..RS |
1 | ||
| 82662-52350 |
NCP95,SCP90;KSP90,NCP91..ILL,X |
1 | ||
| 82662-52320 |
KSP90,NCP9#,SCP90..F,ILL,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-52320 |
NCP91..RS |
1 | ||
| 82662-52350 |
NCP95,SCP90;KSP90,NCP91..ILL,X |
1 | ||
| 82662-52320 |
KSP90,NCP9#,SCP90..F,ILL,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-52031 |
KSP90,NCP9#,SCP90 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-52060 |
NCP95,SCP90;KSP90,NCP91..ILL,X |
1 | ||
| 82663-52070 |
KSP90,NCP9#,SCP90..F,ILL,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663-52070 |
NCP91..RS |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-52060 |
NCP95,SCP90;KSP90,NCP91..ILL,X |
1 | ||
| 82663-52070 |
KSP90,NCP9#,SCP90..F,ILL,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663-52070 |
NCP91..RS |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-52041 |
KSP90,NCP9#,SCP90..F,ILL,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82741-52041 |
NCP91..RS |
1 | ||
| 82741-52031 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-52050 |
NCP95,SCP90;KSP90,NCP91..ILL,X |
1 | ||
| 82741-52060 |
NCP91..RS |
1 | ||
| 82741-52060 |
KSP90,NCP9#,SCP90..F,ILL,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-52050 |
NCP95,SCP90;KSP90,NCP91..ILL,X |
1 | ||
| 82741-52060 |
NCP91..RS |
1 | ||
| 82741-52060 |
KSP90,NCP9#,SCP90..F,ILL,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02027 |
KSP90,NCP9#,SCP90 寒冷地仕様 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
NCP91..RS |
1 | ||
| 90987-02025 |
KSP90,NCP9#,SCP90..F,ILL,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-04010 |
KSP90,NCP9#,SCP90..F,ILL,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 90987-04010 |
NCP91..RS |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
KSP90,NCP9#,SCP90 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02027 |
KSP90,NCP9#,SCP90 寒冷地仕様 |
3 | ||
| Common parts | ||||
| 91671-80620 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
