NCP91-AHXVK (2005)
Toyota Vitz

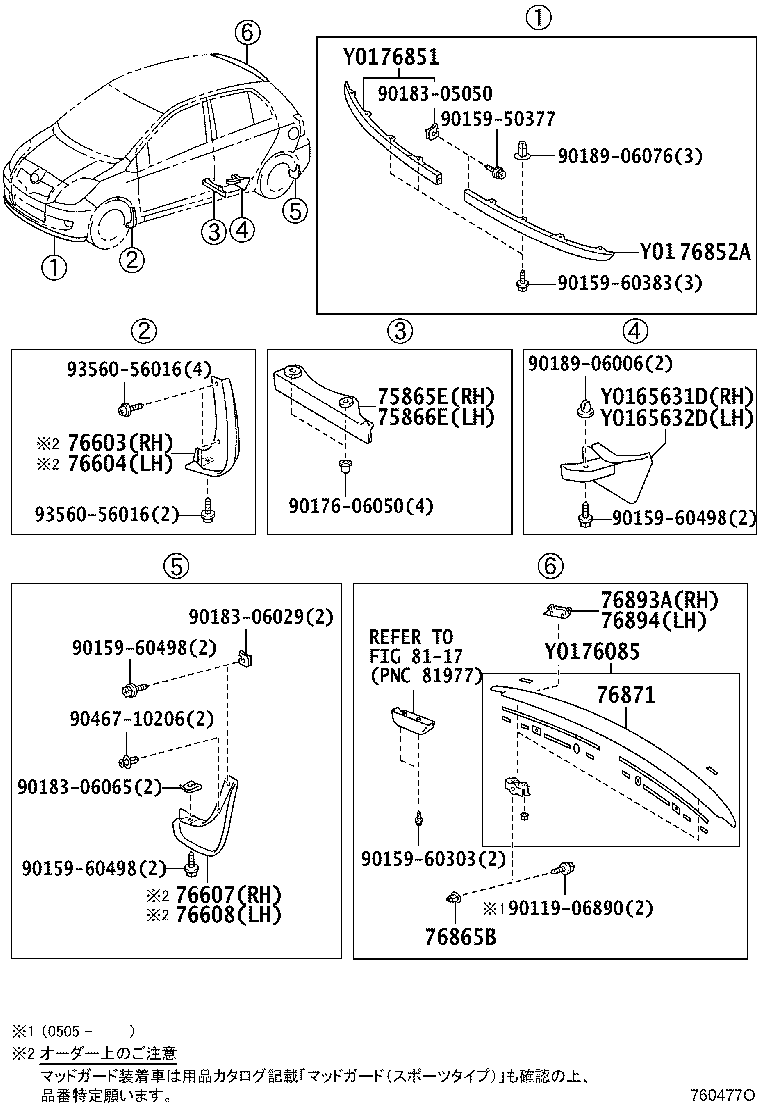

(0501- )B,F,ILL,U,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-52110E2 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,PALE ORANGE MICA METALLIC,4S3 |
1 | ||
| 76085-52110B0 |
NCP91..RS MEDIUM SILVER ME.,1F8 |
1 | ||
| 76085-52110C0 |
NCP91..RS BLACK MC.,209 |
1 | ||
| 76085-52110G0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,GREEN M.M.,6U1 |
1 | ||
| 76085-52110A0 |
NCP91..RS WHITE,068 |
1 | ||
| 76085-52110A0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,WHITE,068 |
1 | ||
| 76085-52110C0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,BLACK MC.,209 |
1 | ||
| 76085-52110K0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,REDDISH PURPLE M.M.,9AC |
1 | ||
| 76085-52110E1 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,BEIGE PM.,4S8 |
1 | ||
| 76085-52110G0 |
NCP91..RS GREEN M.M.,6U1 |
1 | ||
| 76085-52110J1 |
NCP91..RS BLUE M.M.,8T0 |
1 | ||
| 76085-52110D2 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,ROSE ME.OP.,3P3 |
1 | ||
| 76085-52110B1 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,SILVER M.M.,1E7 |
1 | ||
| 76085-52110D0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,SUPER RED 5,3P0 |
1 | ||
| 76085-52110D0 |
NCP91..RS SUPER RED 5,3P0 |
1 | ||
| 76085-52110B0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,MEDIUM SILVER ME.,1F8 |
1 | ||
| 76085-52110J3 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,LT. BLUE M.M.,8S9 |
1 | ||
| 76085-52110J0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,DK.BLUE M.M.,8P4 |
1 | ||
| 76085-52110B2 |
NCP91..RS DK.GRAY M.M.,1F6 |
1 | ||
| 76085-52110G2 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,LT.GREEN ME.,6U0 |
1 | ||
| 76085-52110J1 |
KSP90,NCP9#,SCP90..F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,BLUE M.M.,8T0 |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76621-52060 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾌﾛﾝﾄ&ﾘﾔ),材着 黒 |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76622-52060 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾌﾛﾝﾄ&ﾘﾔ),材着 黒 |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76625-52090 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X 塗装不要,ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾌﾛﾝﾄ&ﾘﾔ),材着 黒 |
1 | ||
| 76625-52110 |
NCP91..RS 塗装不要,ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾘﾔのみ) |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76626-52090 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X 塗装不要,ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾌﾛﾝﾄ&ﾘﾔ),材着 黒 |
1 | ||
| 76626-52110 |
NCP91..RS 塗装不要,ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾘﾔのみ) |
1 | ||
| 76865B - RETAINER, REAR SPOILER | ||||
| 76865-52030 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り |
2 | ||
| 76899-52020 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り |
2 | ||
| 76865-52030 |
NCP91..RS |
2 | ||
| 76871 - SPOILER, REAR | ||||
| 76871-52110G0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,GREEN M.M.,6U1 |
1 | ||
| 76871-52110G0 |
NCP91..RS GREEN M.M.,6U1 |
1 | ||
| 76871-52110E2 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,PALE ORANGE MICA METALLIC,4S3 |
1 | ||
| 76871-52110D0 |
NCP91..RS SUPER RED 5,3P0 |
1 | ||
| 76871-52110K0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,REDDISH PURPLE M.M.,9AC |
1 | ||
| 76871-52110D0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,SUPER RED 5,3P0 |
1 | ||
| 76871-52110C0 |
NCP91..RS BLACK MC.,209 |
1 | ||
| 76871-52110E1 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,BEIGE PM.,4S8 |
1 | ||
| 76871-52110A0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,WHITE,068 |
1 | ||
| 76871-52110B0 |
NCP91..RS MEDIUM SILVER ME.,1F8 |
1 | ||
| 76871-52110J1 |
NCP91..RS BLUE M.M.,8T0 |
1 | ||
| 76871-52110B0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,MEDIUM SILVER ME.,1F8 |
1 | ||
| 76871-52110J3 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,LT. BLUE M.M.,8S9 |
1 | ||
| 76871-52110C0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,BLACK MC.,209 |
1 | ||
| 76871-52110B1 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,SILVER M.M.,1E7 |
1 | ||
| 76871-52110J0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,DK.BLUE M.M.,8P4 |
1 | ||
| 76871-52110A0 |
NCP91..RS WHITE,068 |
1 | ||
| 76871-52110J1 |
KSP90,NCP9#,SCP90..F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,BLUE M.M.,8T0 |
1 | ||
| 76871-52110B2 |
NCP91..RS DK.GRAY M.M.,1F6 |
1 | ||
| 76871-52110D2 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,ROSE ME.OP.,3P3 |
1 | ||
| 76871-52110G2 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,LT.GREEN ME.,6U0 |
1 | ||
| 76893A - COVER, REAR SPOILER, RH | ||||
| 76893-52050B0 |
NCP91..RS MEDIUM SILVER ME.,1F8 |
1 | ||
| 76893-52050G0 |
NCP91..RS GREEN M.M.,6U1 |
1 | ||
| 76893-52050A0 |
NCP91..RS WHITE,068 |
1 | ||
| 76893-52050C0 |
NCP91..RS BLACK MC.,209 |
1 | ||
| 76893-52050B0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,MEDIUM SILVER ME.,1F8 |
1 | ||
| 76893-52050K0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,REDDISH PURPLE M.M.,9AC |
1 | ||
| 76893-52050G0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,GREEN M.M.,6U1 |
1 | ||
| 76893-52050B1 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,SILVER M.M.,1E7 |
1 | ||
| 76893-52050D0 |
NCP91..RS SUPER RED 5,3P0 |
1 | ||
| 76893-52050D0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,SUPER RED 5,3P0 |
1 | ||
| 76893-52050E2 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,PALE ORANGE MICA METALLIC,4S3 |
1 | ||
| 76893-52050D2 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,ROSE ME.OP.,3P3 |
1 | ||
| 76893-52050J0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,DK.BLUE M.M.,8P4 |
1 | ||
| 76893-52050B2 |
NCP91..RS DK.GRAY M.M.,1F6 |
1 | ||
| 76893-52050C0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,BLACK MC.,209 |
1 | ||
| 76893-52050A0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,WHITE,068 |
1 | ||
| 76893-52050G2 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,LT.GREEN ME.,6U0 |
1 | ||
| 76893-52050J3 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,LT. BLUE M.M.,8S9 |
1 | ||
| 76893-52050J1 |
NCP91..RS BLUE M.M.,8T0 |
1 | ||
| 76893-52050J1 |
KSP90,NCP9#,SCP90..F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,BLUE M.M.,8T0 |
1 | ||
| 76893-52050E1 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,BEIGE PM.,4S8 |
1 | ||
| 76894 - COVER, REAR SPOILER, LH | ||||
| 76894-52030K0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,REDDISH PURPLE M.M.,9AC |
1 | ||
| 76894-52030E2 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,PALE ORANGE MICA METALLIC,4S3 |
1 | ||
| 76894-52030G0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,GREEN M.M.,6U1 |
1 | ||
| 76894-52030A0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,WHITE,068 |
1 | ||
| 76894-52030D0 |
NCP91..RS SUPER RED 5,3P0 |
1 | ||
| 76894-52030C0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,BLACK MC.,209 |
1 | ||
| 76894-52030D0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,SUPER RED 5,3P0 |
1 | ||
| 76894-52030B1 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,SILVER M.M.,1E7 |
1 | ||
| 76894-52030A0 |
NCP91..RS WHITE,068 |
1 | ||
| 76894-52030J3 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,LT. BLUE M.M.,8S9 |
1 | ||
| 76894-52030B0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,MEDIUM SILVER ME.,1F8 |
1 | ||
| 76894-52030C0 |
NCP91..RS BLACK MC.,209 |
1 | ||
| 76894-52030E1 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,BEIGE PM.,4S8 |
1 | ||
| 76894-52030J1 |
NCP91..RS BLUE M.M.,8T0 |
1 | ||
| 76894-52030J0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,DK.BLUE M.M.,8P4 |
1 | ||
| 76894-52030J1 |
KSP90,NCP9#,SCP90..F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,BLUE M.M.,8T0 |
1 | ||
| 76894-52030B2 |
NCP91..RS DK.GRAY M.M.,1F6 |
1 | ||
| 76894-52030B0 |
NCP91..RS MEDIUM SILVER ME.,1F8 |
1 | ||
| 76894-52030G2 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,LT.GREEN ME.,6U0 |
1 | ||
| 76894-52030G0 |
NCP91..RS GREEN M.M.,6U1 |
1 | ||
| 76894-52030D2 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,ROSE ME.OP.,3P3 |
1 | ||
| Common parts | ||||
| 90119-06890 | ||||
| 90159-50377 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-60498 | ||||
| 90176-06050 | ||||
| 90183-05050 | ||||
| 90183-06029 | ||||
| 90183-06065 | ||||
| 90189-06006 | ||||
| 90189-06076 | ||||
| 90467-10206 | ||||
| 93560-56016 | ||||
| Linked diagrams | ||||
| 8117 | ||||

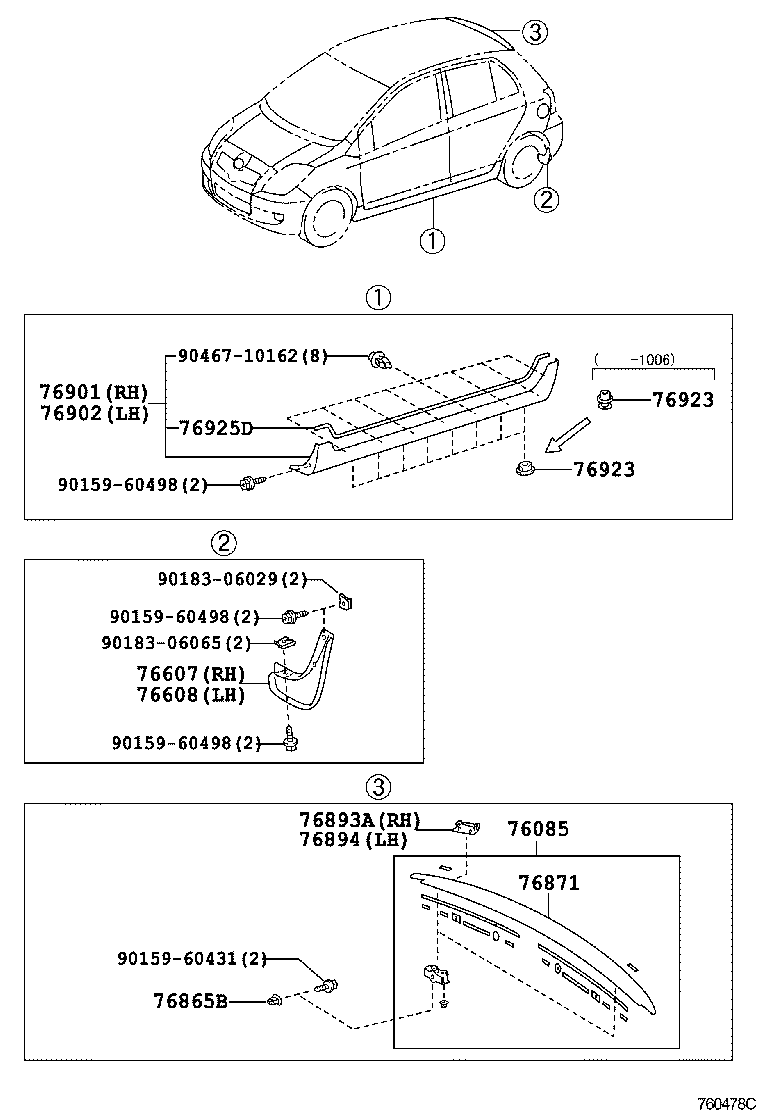

(0501- )RS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-52110E2 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,PALE ORANGE MICA METALLIC,4S3 |
1 | ||
| 76085-52110B0 |
NCP91..RS MEDIUM SILVER ME.,1F8 |
1 | ||
| 76085-52110C0 |
NCP91..RS BLACK MC.,209 |
1 | ||
| 76085-52110G0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,GREEN M.M.,6U1 |
1 | ||
| 76085-52110A0 |
NCP91..RS WHITE,068 |
1 | ||
| 76085-52110A0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,WHITE,068 |
1 | ||
| 76085-52110C0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,BLACK MC.,209 |
1 | ||
| 76085-52110K0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,REDDISH PURPLE M.M.,9AC |
1 | ||
| 76085-52110E1 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,BEIGE PM.,4S8 |
1 | ||
| 76085-52110G0 |
NCP91..RS GREEN M.M.,6U1 |
1 | ||
| 76085-52110J1 |
NCP91..RS BLUE M.M.,8T0 |
1 | ||
| 76085-52110D2 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,ROSE ME.OP.,3P3 |
1 | ||
| 76085-52110B1 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,SILVER M.M.,1E7 |
1 | ||
| 76085-52110D0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,SUPER RED 5,3P0 |
1 | ||
| 76085-52110D0 |
NCP91..RS SUPER RED 5,3P0 |
1 | ||
| 76085-52110B0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,MEDIUM SILVER ME.,1F8 |
1 | ||
| 76085-52110J3 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,LT. BLUE M.M.,8S9 |
1 | ||
| 76085-52110J0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,DK.BLUE M.M.,8P4 |
1 | ||
| 76085-52110B2 |
NCP91..RS DK.GRAY M.M.,1F6 |
1 | ||
| 76085-52110G2 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,LT.GREEN ME.,6U0 |
1 | ||
| 76085-52110J1 |
KSP90,NCP9#,SCP90..F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,BLUE M.M.,8T0 |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76625-52090 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X 塗装不要,ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾌﾛﾝﾄ&ﾘﾔ),材着 黒 |
1 | ||
| 76625-52110 |
NCP91..RS 塗装不要,ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾘﾔのみ) |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76626-52090 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X 塗装不要,ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾌﾛﾝﾄ&ﾘﾔ),材着 黒 |
1 | ||
| 76626-52110 |
NCP91..RS 塗装不要,ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾘﾔのみ) |
1 | ||
| 76865B - RETAINER, REAR SPOILER | ||||
| 76865-52030 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り |
2 | ||
| 76899-52020 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り |
2 | ||
| 76865-52030 |
NCP91..RS |
2 | ||
| 76871 - SPOILER, REAR | ||||
| 76871-52110G0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,GREEN M.M.,6U1 |
1 | ||
| 76871-52110G0 |
NCP91..RS GREEN M.M.,6U1 |
1 | ||
| 76871-52110E2 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,PALE ORANGE MICA METALLIC,4S3 |
1 | ||
| 76871-52110D0 |
NCP91..RS SUPER RED 5,3P0 |
1 | ||
| 76871-52110K0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,REDDISH PURPLE M.M.,9AC |
1 | ||
| 76871-52110D0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,SUPER RED 5,3P0 |
1 | ||
| 76871-52110C0 |
NCP91..RS BLACK MC.,209 |
1 | ||
| 76871-52110E1 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,BEIGE PM.,4S8 |
1 | ||
| 76871-52110A0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,WHITE,068 |
1 | ||
| 76871-52110B0 |
NCP91..RS MEDIUM SILVER ME.,1F8 |
1 | ||
| 76871-52110J1 |
NCP91..RS BLUE M.M.,8T0 |
1 | ||
| 76871-52110B0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,MEDIUM SILVER ME.,1F8 |
1 | ||
| 76871-52110J3 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,LT. BLUE M.M.,8S9 |
1 | ||
| 76871-52110C0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,BLACK MC.,209 |
1 | ||
| 76871-52110B1 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,SILVER M.M.,1E7 |
1 | ||
| 76871-52110J0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,DK.BLUE M.M.,8P4 |
1 | ||
| 76871-52110A0 |
NCP91..RS WHITE,068 |
1 | ||
| 76871-52110J1 |
KSP90,NCP9#,SCP90..F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,BLUE M.M.,8T0 |
1 | ||
| 76871-52110B2 |
NCP91..RS DK.GRAY M.M.,1F6 |
1 | ||
| 76871-52110D2 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,ROSE ME.OP.,3P3 |
1 | ||
| 76871-52110G2 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,LT.GREEN ME.,6U0 |
1 | ||
| 76893A - COVER, REAR SPOILER, RH | ||||
| 76893-52050B0 |
NCP91..RS MEDIUM SILVER ME.,1F8 |
1 | ||
| 76893-52050G0 |
NCP91..RS GREEN M.M.,6U1 |
1 | ||
| 76893-52050A0 |
NCP91..RS WHITE,068 |
1 | ||
| 76893-52050C0 |
NCP91..RS BLACK MC.,209 |
1 | ||
| 76893-52050B0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,MEDIUM SILVER ME.,1F8 |
1 | ||
| 76893-52050K0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,REDDISH PURPLE M.M.,9AC |
1 | ||
| 76893-52050G0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,GREEN M.M.,6U1 |
1 | ||
| 76893-52050B1 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,SILVER M.M.,1E7 |
1 | ||
| 76893-52050D0 |
NCP91..RS SUPER RED 5,3P0 |
1 | ||
| 76893-52050D0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,SUPER RED 5,3P0 |
1 | ||
| 76893-52050E2 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,PALE ORANGE MICA METALLIC,4S3 |
1 | ||
| 76893-52050D2 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,ROSE ME.OP.,3P3 |
1 | ||
| 76893-52050J0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,DK.BLUE M.M.,8P4 |
1 | ||
| 76893-52050B2 |
NCP91..RS DK.GRAY M.M.,1F6 |
1 | ||
| 76893-52050C0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,BLACK MC.,209 |
1 | ||
| 76893-52050A0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,WHITE,068 |
1 | ||
| 76893-52050G2 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,LT.GREEN ME.,6U0 |
1 | ||
| 76893-52050J3 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,LT. BLUE M.M.,8S9 |
1 | ||
| 76893-52050J1 |
NCP91..RS BLUE M.M.,8T0 |
1 | ||
| 76893-52050J1 |
KSP90,NCP9#,SCP90..F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,BLUE M.M.,8T0 |
1 | ||
| 76893-52050E1 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,BEIGE PM.,4S8 |
1 | ||
| 76894 - COVER, REAR SPOILER, LH | ||||
| 76894-52030K0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,REDDISH PURPLE M.M.,9AC |
1 | ||
| 76894-52030E2 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,PALE ORANGE MICA METALLIC,4S3 |
1 | ||
| 76894-52030G0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,GREEN M.M.,6U1 |
1 | ||
| 76894-52030A0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,WHITE,068 |
1 | ||
| 76894-52030D0 |
NCP91..RS SUPER RED 5,3P0 |
1 | ||
| 76894-52030C0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,BLACK MC.,209 |
1 | ||
| 76894-52030D0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,SUPER RED 5,3P0 |
1 | ||
| 76894-52030B1 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,SILVER M.M.,1E7 |
1 | ||
| 76894-52030A0 |
NCP91..RS WHITE,068 |
1 | ||
| 76894-52030J3 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,LT. BLUE M.M.,8S9 |
1 | ||
| 76894-52030B0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,MEDIUM SILVER ME.,1F8 |
1 | ||
| 76894-52030C0 |
NCP91..RS BLACK MC.,209 |
1 | ||
| 76894-52030E1 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,BEIGE PM.,4S8 |
1 | ||
| 76894-52030J1 |
NCP91..RS BLUE M.M.,8T0 |
1 | ||
| 76894-52030J0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,DK.BLUE M.M.,8P4 |
1 | ||
| 76894-52030J1 |
KSP90,NCP9#,SCP90..F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,BLUE M.M.,8T0 |
1 | ||
| 76894-52030B2 |
NCP91..RS DK.GRAY M.M.,1F6 |
1 | ||
| 76894-52030B0 |
NCP91..RS MEDIUM SILVER ME.,1F8 |
1 | ||
| 76894-52030G2 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,LT.GREEN ME.,6U0 |
1 | ||
| 76894-52030G0 |
NCP91..RS GREEN M.M.,6U1 |
1 | ||
| 76894-52030D2 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔ ｽﾎﾟｲﾗ−有り,ROSE ME.OP.,3P3 |
1 | ||
| 76901 - MUDGUARD SUB-ASSY, SIDE, RH | ||||
| 76901-52070B0 |
NCP91..RS MEDIUM SILVER ME.,1F8 |
1 | ||
| 76901-52070G0 |
NCP91..RS GREEN M.M.,6U1 |
1 | ||
| 76901-52070A0 |
NCP91..RS WHITE,068 |
1 | ||
| 76901-52070D0 |
NCP91..RS SUPER RED 5,3P0 |
1 | ||
| 76901-52071A0 |
NCP91..RS WHITE,068 |
1 | ||
| 76901-52070C0 |
NCP91..RS BLACK MC.,209 |
1 | ||
| 76901-52071J1 |
NCP91..RS BLUE M.M.,8T0 |
1 | ||
| 76901-52071C0 |
NCP91..RS BLACK MC.,209 |
1 | ||
| 76901-52071B4 |
NCP91..RS DK.GRAY M.M.,1F6 |
1 | ||
| 76901-52071B0 |
NCP91..RS MEDIUM SILVER ME.,1F8 |
1 | ||
| 76901-52071D0 |
NCP91..RS SUPER RED 5,3P0 |
1 | ||
| 76901-52070J1 |
NCP91..RS BLUE M.M.,8T0 |
1 | ||
| 76902 - MUDGUARD SUB-ASSY, SIDE, LH | ||||
| 76902-52071G0 |
NCP91..RS GREEN M.M.,6U1 |
1 | ||
| 76902-52071J1 |
NCP91..RS BLUE M.M.,8T0 |
1 | ||
| 76902-52072D0 |
NCP91..RS SUPER RED 5,3P0 |
1 | ||
| 76902-52072A0 |
NCP91..RS WHITE,068 |
1 | ||
| 76902-52071C0 |
NCP91..RS BLACK MC.,209 |
1 | ||
| 76902-52071B0 |
NCP91..RS MEDIUM SILVER ME.,1F8 |
1 | ||
| 76902-52072C0 |
NCP91..RS BLACK MC.,209 |
1 | ||
| 76902-52072B0 |
NCP91..RS MEDIUM SILVER ME.,1F8 |
1 | ||
| 76902-52071A0 |
NCP91..RS WHITE,068 |
1 | ||
| 76902-52072B4 |
NCP91..RS DK.GRAY M.M.,1F6 |
1 | ||
| 76902-52071D0 |
NCP91..RS SUPER RED 5,3P0 |
1 | ||
| 76902-52072J1 |
NCP91..RS BLUE M.M.,8T0 |
1 | ||
| 76923 - RETAINER, SIDE MUDGUARD | ||||
| 76923-52021 |
NCP91..RS |
16 | ||
| 76923 - RETAINER, SIDE MUDGUARD | ||||
| 76923-52021 |
NCP91..RS |
16 | ||
| 76925D - PROTECTOR, SIDE MUDGUARD, RH | ||||
| 76925-52101C0 |
NCP91..RS BLACK,1F6 ,209 ,3P0 ,8T0 |
2 | ||
| 76925-52100C0 |
NCP91..RS BLACK,209 ,3P0 ,6U1 ,8T0 |
2 | ||
| 76925-52101B1 |
NCP91..RS MEDIUM GRAY,068 ,1F8 |
2 | ||
| 76925-52100B1 |
NCP91..RS MEDIUM GRAY,068 ,1F8 |
2 | ||
| Common parts | ||||
| 90159-60431 | ||||
| 90159-60498 | ||||
| 90183-06029 | ||||
| 90183-06065 | ||||
| 90467-10162 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
