NCP91-AHXVK (2005)

Toyota Vitz

Production Jan 2005 - Aug 2007
Engine 1NZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )

Click highlighted areas on diagram

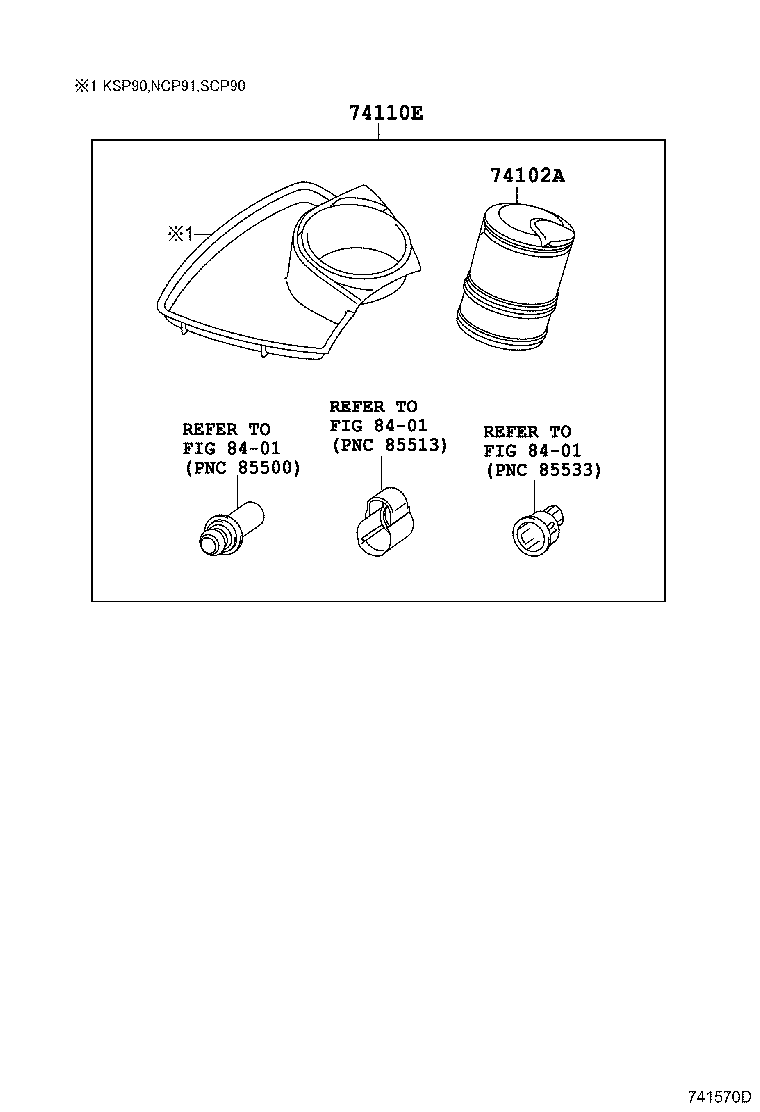

diagram 74102A 74110E 8401 8401 8401
Part # Description Qty Price
74102A - RECEPTACLE ASSY, FRONT ASH
74130-28040C0

KSP90,NCP9#,SCP90

灰皿−有り(分離式),BLACK

 1
74110E - RECEPTACLE ASSY, FRONT ASH
74110-52030B0

NCP91..RS

灰皿−有り(分離式),DK.GRAY,TRIM1#

 1
74110-52030B0

KSP90,NCP91,SCP90..B,F,U,X

灰皿−有り(分離式),DK.GRAY,TRIM1#,4#

 1
Linked diagrams
8401
