NCP91-AHXVK (2005)

Toyota Vitz

Production Jan 2005 - Aug 2007
Engine 1NZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0501- )

Click highlighted areas on diagram

ﾄﾞｱﾄﾘﾑ

diagram 64746K 67750 67754G 6777158010 9046710161
Part # Description Qty Price
64746K - COVER, DECK TRIM SIDE LAMP HOLE
64746-52110B0

NCP91..RS

DK.GRAY,TRIM1#

 1
64746-52110B0

KSP90,NCP9#,SCP90..B,F,U,X

DK.GRAY,TRIM1#,4#

 1
67750 - BOARD ASSY, BACK DOOR TRIM
67750-52070B0

KSP90,NCP9#,SCP90..B,F,X

DK.GRAY,TRIM1#,4#

 1
67750-52080B0

NCP91..RS

DK.GRAY,TRIM1#

 1
67754G - SPACER, BACK DOOR TRIM
67754-52050B0

KSP90,NCP9#,SCP90..B,F,U,X

DK.GRAY,TRIM1#,4#

 1
67754-52050B0

NCP91..RS

DK.GRAY,TRIM1#

 1
Common parts
67771-58010
90467-10161

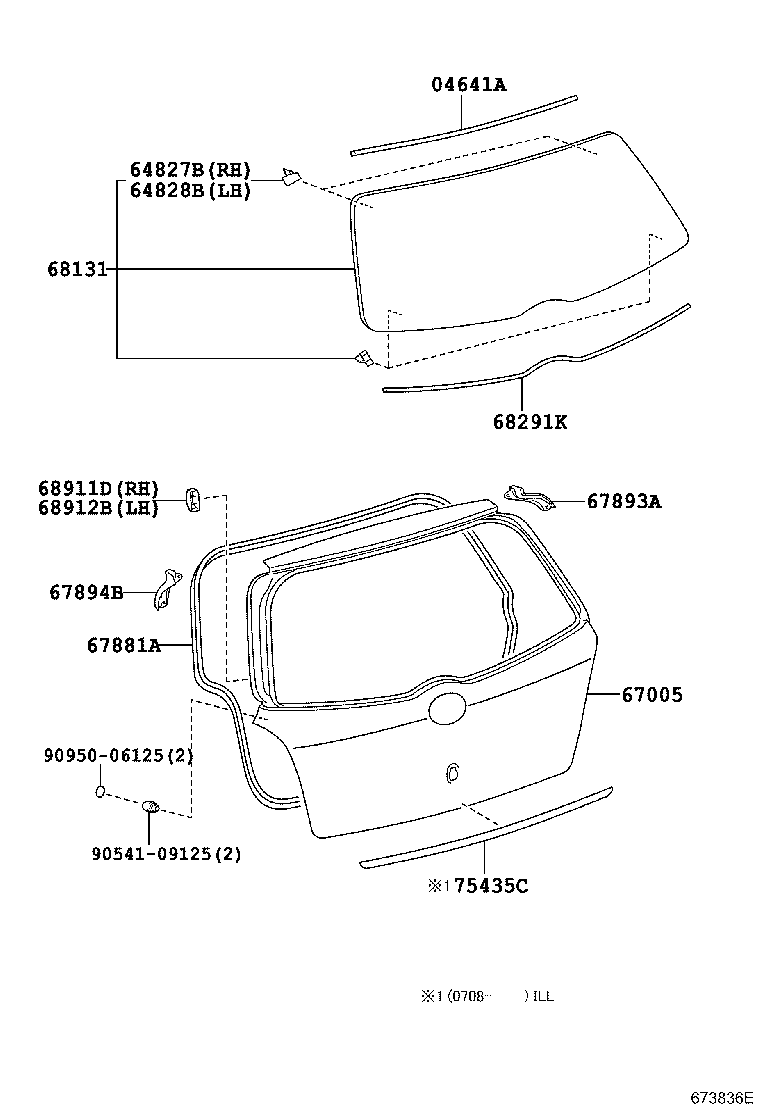

ILLUST NO. 1 OF 2(0501- )

Click highlighted areas on diagram

ﾄﾞｱﾊﾟﾈﾙ

diagram 04641A 64827B 64828B 67005 67881A 67893A 67894B 68131 68291K 68911D 68912B 75435C 9054109125 9095006125
Part # Description Qty Price
04641A - DAM KIT, BACK WINDOW GLASS ADHESIVE
64813-52070

KSP90,NCP9#,SCP90

 1
64827B - CLIP, BACK WINDOW GLASS, RH
64827-52070

KSP90,NCP9#,SCP90

 1
64828B - CLIP, BACK WINDOW GLASS, LH
64828-52050

KSP90,NCP9#,SCP90

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-52720

NCP91..RS

 1
67005-52720

KSP90,NCP9#,SCP90..B,F,ILL,U,X

ﾘﾔ ｽﾎﾟｲﾗ−有り

 1
67005-52730

KSP90,NCP9#,SCP90..B,F,ILL,U,X

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-52110

KSP90,NCP9#,SCP90

 1
67893A - PROTECTOR, BACK DOOR PANEL, NO.1
67893-52040

KSP90,NCP9#,SCP90

 1
67894B - PROTECTOR, BACK DOOR PANEL, NO.2
67894-52040

KSP90,NCP9#,SCP90

 1
68131 - GLASS, BACK DOOR
68105-52450

KSP90,NCP9#,SCP90..F,ILL,RS,U,X

*UVCEHT厚さ=3.1ｸｰﾙｸﾞﾘｰﾝ

 1
68105-52451

KSP90,NCP9#,SCP90..F,ILL,RS,U,X

*UVCEHT厚さ=3.1ｸｰﾙｸﾞﾘｰﾝ

 1
68291K - DAM KIT, BACK WINDOW GLASS
64814-52040

KSP90,NCP9#,SCP90

 1
68911D - COVER, BACK DOOR STAY, RH
68911-52010

KSP90,NCP9#,SCP90

 1
68912B - COVER, BACK DOOR STAY, LH
68912-52010

KSP90,NCP9#,SCP90

 1
Common parts
90541-09125
90950-06125
