NCP91-AHXVK (2005)

Toyota Vitz

Production Jan 2005 - Aug 2007
Engine 1NZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )

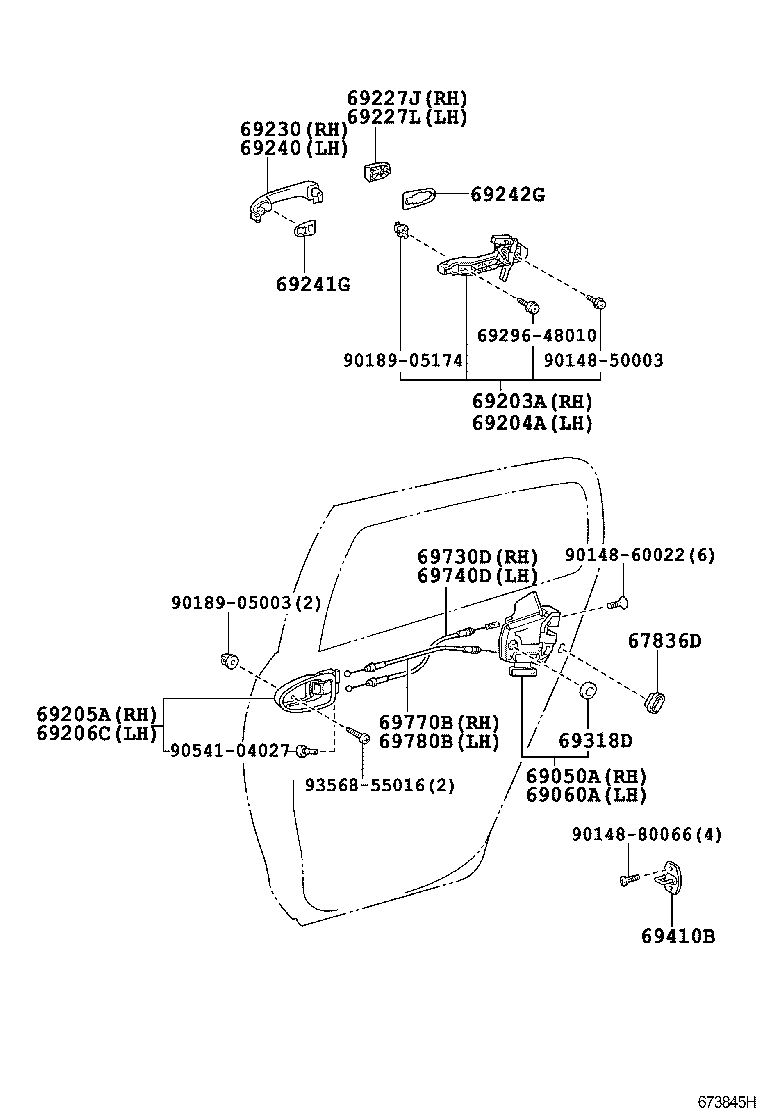

Click highlighted areas on diagram

diagram 67836D 69050A 69060A 69203A 69204A 69205A 69206C 69227J 69227L 69230 69240 69241G 69242G 6929648010 69318D 69410B 69730D 69740D 69770B 69780B 9014850003 9014860022 9014880066 9018905003 9018905174 9054104027 9356855016
Part # Description Qty Price
67836D - COVER, REAR DOOR LOCK CHILD PROTECTION
67836-12040

KSP90,NCP9#,SCP90

 2
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-52190

KSP90,NCP9#,SCP90

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-52200

KSP90,NCP9#,SCP90

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-52040

KSP90,NCP9#,SCP90

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-52050

KSP90,NCP9#,SCP90

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-52070B1

KSP90,NCP9#,SCP90..B,F,RS,U,X

DK.GRAY,TRIM1#

 1
69205-52070E0

KSP90,NCP9#,SCP90..B,F,U,X

GREGE,TRIM4#

 1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-52110B1

KSP90,NCP9#,SCP90..B,F,RS,U,X

DK.GRAY,TRIM1#

 1
69206-52110E0

KSP90,NCP9#,SCP90..B,F,U,X

GREGE,TRIM4#

 1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-42070A8

KSP90,NCP9#,SCP90..B,F,RS,U,X

WHITE,068

 1
69227-42070G6

KSP90,NCP9#,SCP90

GREEN M.M.,6U1

 1
69227-42070E8

KSP90,NCP9#,SCP90..B,F,U,X

PALE ORANGE MICA METALLIC,4S3

 1
69227-42070R4

KSP90,NCP9#,SCP90..B,F,U,X

LT. BLUE M.M.,8S9

 1
69227-42070X0

KSP90,NCP9#,SCP90..B,F,RS,U,X

SUPER RED 5,3P0

 1
69227-42070X1

KSP90,NCP9#,SCP90..B,F,U,X

ROSE ME.OP.,3P3

 1
69227-42070C2

KSP90,NCP9#,SCP90..B,F,RS,U,X

BLACK MC.,209

 1
69227-42070J2

KSP90,NCP9#,SCP90..B,F,U,X

DK.BLUE M.M.,8P4

 1
69227-42070P3

KSP90,NCP9#,SCP90

MEDIUM SILVER ME.,1F8

 1
69227-42070Q3

KSP90,NCP9#,SCP90..B,F,U,X

LT.GREEN ME.,6U0

 1
69227-42070K1

KSP90,NCP9#,SCP90..B,F,ILL,U,X

REDDISH PURPLE M.M.,9AC

 1
69227-42070P7

NCP91..RS

DK.GRAY M.M.,1F6

 1
69227-42070R5

KSP90,NCP9#,SCP90..F,RS,U,X

BLUE M.M.,8T0

 1
69227-42070P0

KSP90,NCP9#,SCP90..B,F,U,X

SILVER M.M.,1E7

 1
69227-42070E9

KSP90,NCP9#,SCP90..B,F,ILL,U,X

BEIGE PM.,4S8

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69227-42070C2

KSP90,NCP9#,SCP90..B,F,RS,U,X

BLACK MC.,209

 1
69227-42070K1

KSP90,NCP9#,SCP90..B,F,ILL,U,X

REDDISH PURPLE M.M.,9AC

 1
69227-42070G6

KSP90,NCP9#,SCP90

GREEN M.M.,6U1

 1
69227-42070E9

KSP90,NCP9#,SCP90..B,F,ILL,U,X

BEIGE PM.,4S8

 1
69227-42070E8

KSP90,NCP9#,SCP90..B,F,U,X

PALE ORANGE MICA METALLIC,4S3

 1
69227-42070A8

KSP90,NCP9#,SCP90..B,F,RS,U,X

WHITE,068

 1
69227-42070P3

KSP90,NCP9#,SCP90

MEDIUM SILVER ME.,1F8

 1
69227-42070P0

KSP90,NCP9#,SCP90..B,F,U,X

SILVER M.M.,1E7

 1
69227-42070R4

KSP90,NCP9#,SCP90..B,F,U,X

LT. BLUE M.M.,8S9

 1
69227-42070R5

KSP90,NCP9#,SCP90..F,RS,U,X

BLUE M.M.,8T0

 1
69227-42070J2

KSP90,NCP9#,SCP90..B,F,U,X

DK.BLUE M.M.,8P4

 1
69227-42070X1

KSP90,NCP9#,SCP90..B,F,U,X

ROSE ME.OP.,3P3

 1
69227-42070X0

KSP90,NCP9#,SCP90..B,F,RS,U,X

SUPER RED 5,3P0

 1
69227-42070P7

NCP91..RS

DK.GRAY M.M.,1F6

 1
69227-42070Q3

KSP90,NCP9#,SCP90..B,F,U,X

LT.GREEN ME.,6U0

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-12220E8

KSP90,NCP9#,SCP90..B,F,U,X

PALE ORANGE MICA METALLIC,4S3

 1
69211-12220G6

KSP90,NCP9#,SCP90

GREEN M.M.,6U1

 1
69211-12220A8

KSP90,NCP9#,SCP90..B,F,RS,U,X

WHITE,068

 1
69211-12220P3

KSP90,NCP9#,SCP90

MEDIUM SILVER ME.,1F8

 1
69211-12220P0

KSP90,NCP9#,SCP90..B,F,U,X

SILVER M.M.,1E7

 1
69211-12220J0

KSP90,NCP9#,SCP90..B,F,U,X

DK.BLUE M.M.,8P4

 1
69211-12220R4

KSP90,NCP9#,SCP90..B,F,U,X

LT. BLUE M.M.,8S9

 1
69211-12220X1

KSP90,NCP9#,SCP90..B,F,U,X

ROSE ME.OP.,3P3

 1
69211-12220C2

KSP90,NCP9#,SCP90..B,F,RS,U,X

BLACK MC.,209

 1
69211-12220K1

KSP90,NCP9#,SCP90..B,F,ILL,U,X

REDDISH PURPLE M.M.,9AC

 1
69211-12220E9

KSP90,NCP9#,SCP90..B,F,ILL,U,X

BEIGE PM.,4S8

 1
69211-12220R5

KSP90,NCP9#,SCP90..F,RS,U,X

BLUE M.M.,8T0

 1
69211-12220X0

KSP90,NCP9#,SCP90..B,F,RS,U,X

SUPER RED 5,3P0

 1
69211-12220Q3

KSP90,NCP9#,SCP90..B,F,U,X

LT.GREEN ME.,6U0

 1
69211-12220P7

NCP91..RS

DK.GRAY M.M.,1F6

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69211-12220E8

KSP90,NCP9#,SCP90..B,F,U,X

PALE ORANGE MICA METALLIC,4S3

 1
69211-12220C2

KSP90,NCP9#,SCP90..B,F,RS,U,X

BLACK MC.,209

 1
69211-12220K1

KSP90,NCP9#,SCP90..B,F,ILL,U,X

REDDISH PURPLE M.M.,9AC

 1
69211-12220G6

KSP90,NCP9#,SCP90

GREEN M.M.,6U1

 1
69211-12220X1

KSP90,NCP9#,SCP90..B,F,U,X

ROSE ME.OP.,3P3

 1
69211-12220P3

KSP90,NCP9#,SCP90

MEDIUM SILVER ME.,1F8

 1
69211-12220P0

KSP90,NCP9#,SCP90..B,F,U,X

SILVER M.M.,1E7

 1
69211-12220E9

KSP90,NCP9#,SCP90..B,F,ILL,U,X

BEIGE PM.,4S8

 1
69211-12220R4

KSP90,NCP9#,SCP90..B,F,U,X

LT. BLUE M.M.,8S9

 1
69211-12220X0

KSP90,NCP9#,SCP90..B,F,RS,U,X

SUPER RED 5,3P0

 1
69211-12220R5

KSP90,NCP9#,SCP90..F,RS,U,X

BLUE M.M.,8T0

 1
69211-12220P7

NCP91..RS

DK.GRAY M.M.,1F6

 1
69211-12220A8

KSP90,NCP9#,SCP90..B,F,RS,U,X

WHITE,068

 1
69211-12220Q3

KSP90,NCP9#,SCP90..B,F,U,X

LT.GREEN ME.,6U0

 1
69211-12220J0

KSP90,NCP9#,SCP90..B,F,U,X

DK.BLUE M.M.,8P4

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-48020

KSP90,NCP9#,SCP90

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-42010

KSP90,NCP9#,SCP90

 2
69242-52020

KSP90,NCP9#,SCP90

 2
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-47010

KSP90,NCP9#,SCP90

 2
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-33010

KSP90,NCP9#,SCP90

 2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-52110

KSP90,NCP9#,SCP90

 1
69730-52150

KSP90,NCP9#,SCP90

 1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-52110

KSP90,NCP9#,SCP90

 1
69730-52150

KSP90,NCP9#,SCP90

 1
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-52030

KSP90,NCP9#,SCP90

 1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69770-52030

KSP90,NCP9#,SCP90

 1
Common parts
69296-48010
90148-50003
90148-60022
90148-80066
90189-05003
90189-05174
90541-04027
93568-55016
