NCP91-AHXVK (2005)
Toyota Vitz

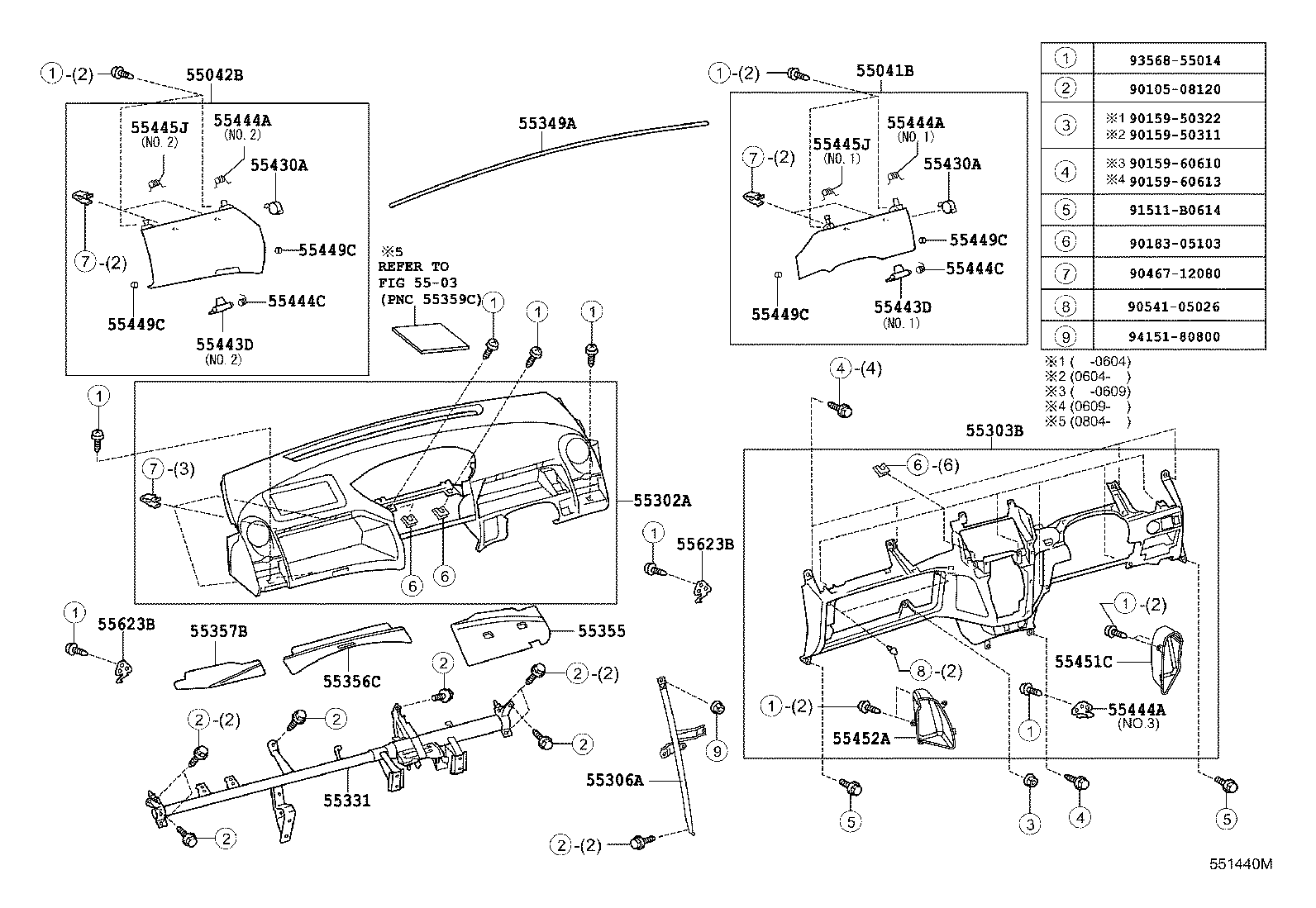

ILLUST NO. 1 OF 2(0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 | ||||
| 55041-52020B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 55041-52020B0 |
NCP91..RS DK.GRAY,TRIM1# |
1 | ||
| 55042B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2 | ||||
| 55042-52020B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 55042-52020B0 |
NCP91..RS DK.GRAY,TRIM1# |
1 | ||
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-52030B0 |
NCP91..RS DK.GRAY,TRIM1# |
1 | ||
| 55302-52030B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-52130B0 |
NCP91..RS DK.GRAY,TRIM1# |
1 | ||
| 55303-52130B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-52180 |
KSP90,NCP9#,SCP90 |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-52470 |
KSP90,NCP9#,SCP90 |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-52060 |
KSP90,NCP9#,SCP90 |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-52100 |
KSP90,NCP9#,SCP90..ILL,RS,U |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-52110 |
KSP90,NCP9#,SCP90..ILL,RS,U |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-52080 |
KSP90,NCP9#,SCP90..ILL,RS,U |
2 | ||
| 55430A - DAMPER ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55430-52020 |
KSP90,NCP9#,SCP90 |
2 | ||
| 55430A - DAMPER ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55430-52020 |
KSP90,NCP9#,SCP90 |
2 | ||
| 55443D - KNOB, INSTRUMENT PANEL BOX DOOR | ||||
| 55443-52060B0 |
NCP91..RS DK.GRAY,TRIM1#,NO.1 |
1 | ||
| 55443-52080B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4#,NO.2 |
1 | ||
| 55443-52060B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4#,NO.1 |
1 | ||
| 55443-52080B0 |
NCP91..RS DK.GRAY,TRIM1#,NO.2 |
1 | ||
| 55443D - KNOB, INSTRUMENT PANEL BOX DOOR | ||||
| 55443-52060B0 |
NCP91..RS DK.GRAY,TRIM1#,NO.1 |
1 | ||
| 55443-52080B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4#,NO.2 |
1 | ||
| 55443-52060B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4#,NO.1 |
1 | ||
| 55443-52080B0 |
NCP91..RS DK.GRAY,TRIM1#,NO.2 |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-52230 |
KSP90,NCP9#,SCP90 NO.1 |
1 | ||
| 55444-52270 |
KSP90,NCP9#,SCP90 NO.2 |
1 | ||
| 55444-52250 |
KSP90,NCP9#,SCP90 NO.3 |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-52230 |
KSP90,NCP9#,SCP90 NO.1 |
1 | ||
| 55444-52270 |
KSP90,NCP9#,SCP90 NO.2 |
1 | ||
| 55444-52250 |
KSP90,NCP9#,SCP90 NO.3 |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-52230 |
KSP90,NCP9#,SCP90 NO.1 |
1 | ||
| 55444-52270 |
KSP90,NCP9#,SCP90 NO.2 |
1 | ||
| 55444-52250 |
KSP90,NCP9#,SCP90 NO.3 |
1 | ||
| 55444C - SPRING, INSTRUMENT PANEL BOX | ||||
| 55478-52020 |
KSP90,NCP9#,SCP90 |
2 | ||
| 55444C - SPRING, INSTRUMENT PANEL BOX | ||||
| 55478-52020 |
KSP90,NCP9#,SCP90 |
2 | ||
| 55445J - SPRING, INSTRUMENT PANEL BOX | ||||
| 55445-52160 |
KSP90,NCP9#,SCP90 NO.1 |
1 | ||
| 55445-52180 |
KSP90,NCP9#,SCP90 NO.2 |
1 | ||
| 55445J - SPRING, INSTRUMENT PANEL BOX | ||||
| 55445-52160 |
KSP90,NCP9#,SCP90 NO.1 |
1 | ||
| 55445-52180 |
KSP90,NCP9#,SCP90 NO.2 |
1 | ||
| 55449C - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2 | ||||
| 55449-28020 |
KSP90,NCP9#,SCP90 |
4 | ||
| 55449C - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2 | ||||
| 55449-28020 |
KSP90,NCP9#,SCP90 |
4 | ||
| 55449C - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2 | ||||
| 55449-28020 |
KSP90,NCP9#,SCP90 |
4 | ||
| 55449C - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2 | ||||
| 55449-28020 |
KSP90,NCP9#,SCP90 |
4 | ||
| 55451C - BOX, INSTRUMENT PANEL, NO.1 | ||||
| 55451-52140B0 |
NCP91..RS DK.GRAY,TRIM1# |
1 | ||
| 55451-52140B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 55452A - BOX, INSTRUMENT PANEL, NO.2 | ||||
| 55452-52130B0 |
NCP91..RS DK.GRAY,TRIM1# |
1 | ||
| 55452-52130B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 55623B - SPRING, INSTRUMENT PANEL CUP HOLDER | ||||
| 55623-52020 |
KSP90,NCP9#,SCP90 |
2 | ||
| 55623B - SPRING, INSTRUMENT PANEL CUP HOLDER | ||||
| 55623-52020 |
KSP90,NCP9#,SCP90 |
2 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90159-50311 | ||||
| 90159-50322 | ||||
| 90159-60610 | ||||
| 90159-60613 | ||||
| 90183-05103 | ||||
| 90467-12080 | ||||
| 90541-05026 | ||||
| 91511-B0614 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 5503 | ||||

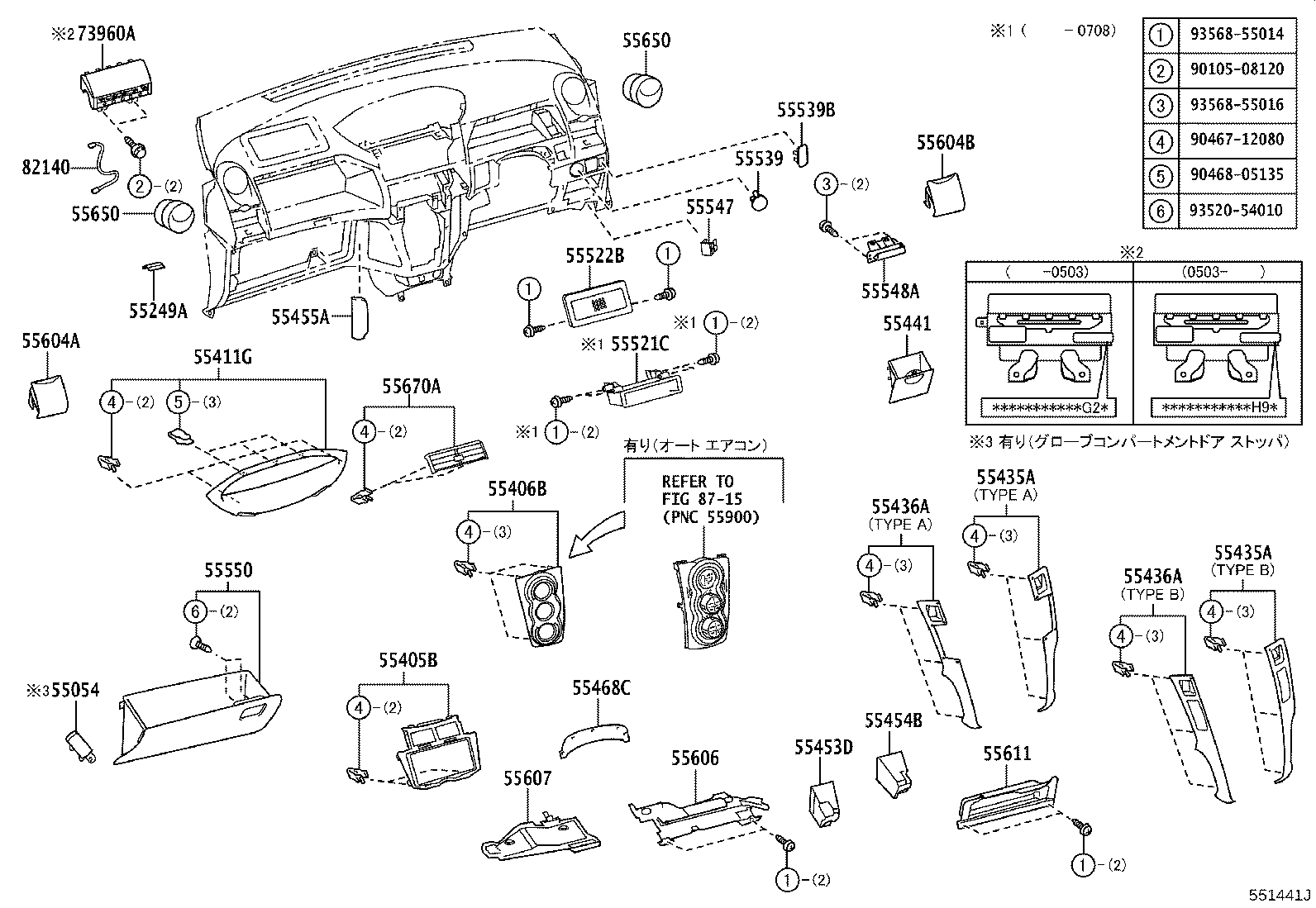

ILLUST NO. 2 OF 2(0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-52020 |
NCP9#,SCP90..RS,U |
1 | ||
| 55249A - SEAL, FRONT PANEL | ||||
| 55249-52010 |
KSP90,NCP9#,SCP90..F,ILL,RS,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-52580B0 |
NCP91..X ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,2ｽﾋﾟｰｶ,LT.SILVER,TRIM1#,4# |
1 | ||
| 55405-52580B0 |
KSP90,NCP9#,SCP90..F,X ｵｰﾃﾞｨｵ−G−BOOK,2ｽﾋﾟｰｶ,LT.SILVER,TRIM1#,4# |
1 | ||
| 55405-52590C0 |
NCP91..RS ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,2ｽﾋﾟｰｶ,BLACK,TRIM1# |
1 | ||
| 55405-52580B0 |
NCP91..X ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,4ｽﾋﾟｰｶ,LT.SILVER,TRIM1#,4# |
1 | ||
| 55405-52590C0 |
NCP91..RS ｵｰﾃﾞｨｵ−G−BOOK,2ｽﾋﾟｰｶ,BLACK,TRIM1# |
1 | ||
| 55405-52580B0 |
NCP9#,SCP90..U,X ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 4ｽﾋﾟｰｶ(G−BOOK),LT.SILVER,TRIM1#,4# |
1 | ||
| 55405-52590C0 |
NCP91..RS ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 2ｽﾋﾟｰｶ(G−BOOK),BLACK,TRIM1# |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-52140C0 |
NCP91..RS BLACK,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-52190B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 55411-52190B0 |
NCP91..RS DK.GRAY,TRIM1# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-52010B0 |
KSP90,NCP9#,SCP90..F,X ｵｰﾃﾞｨｵ−G−BOOK,2ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55435-52010B0 |
NCP91..RS ｵｰﾃﾞｨｵ−G−BOOK,2ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55435-52020B0 |
KSP90,NCP9#,SCP90..F,U,X DK.GRAY,TRIM1#,4#,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 55435-52010B0 |
NCP91..X ｵｰﾃﾞｨｵ−CDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ,2ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#,TYPE A:Cﾗｽﾄ参照 |
1 | ||
| 55435-52010B0 |
NCP91..RS ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,2ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55435-52010B0 |
NCP91..RS ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 2ｽﾋﾟｰｶ(G−BOOK),DK.GRAY,TRIM1#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55435-52010B0 |
NCP91..RS ｵｰﾃﾞｨｵ−CDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ,2ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55435-52010B0 |
NCP91..X ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,4ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55435-52010B0 |
NCP91..X ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,2ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55435-52010B0 |
NCP91..X ｵｰﾃﾞｨｵ−CDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ,4ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#,TYPE A:Cﾗｽﾄ参照 |
1 | ||
| 55435-52010B0 |
NCP9#,SCP90..U,X ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 4ｽﾋﾟｰｶ(G−BOOK),DK.GRAY,TRIM1#,4#,TxPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55435-52020B0 |
NCP91..RS DK.GRAY,TRIM1#,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-52010B0 |
KSP90,NCP9#,SCP90..F,X ｵｰﾃﾞｨｵ−G−BOOK,2ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55435-52010B0 |
NCP91..RS ｵｰﾃﾞｨｵ−G−BOOK,2ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55435-52020B0 |
KSP90,NCP9#,SCP90..F,U,X DK.GRAY,TRIM1#,4#,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 55435-52010B0 |
NCP91..X ｵｰﾃﾞｨｵ−CDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ,2ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#,TYPE A:Cﾗｽﾄ参照 |
1 | ||
| 55435-52010B0 |
NCP91..RS ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,2ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55435-52010B0 |
NCP91..RS ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 2ｽﾋﾟｰｶ(G−BOOK),DK.GRAY,TRIM1#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55435-52010B0 |
NCP91..RS ｵｰﾃﾞｨｵ−CDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ,2ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55435-52010B0 |
NCP91..X ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,4ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55435-52010B0 |
NCP91..X ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,2ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55435-52010B0 |
NCP91..X ｵｰﾃﾞｨｵ−CDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ,4ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#,TYPE A:Cﾗｽﾄ参照 |
1 | ||
| 55435-52010B0 |
NCP9#,SCP90..U,X ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 4ｽﾋﾟｰｶ(G−BOOK),DK.GRAY,TRIM1#,4#,TxPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55435-52020B0 |
NCP91..RS DK.GRAY,TRIM1#,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-52010B0 |
NCP91..RS ｵｰﾃﾞｨｵ−G−BOOK,2ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55436-52010B0 |
NCP91..RS ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,2ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55436-52010B0 |
NCP91..X ｵｰﾃﾞｨｵ−CDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ,2ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#,TYPE A:Cﾗｽﾄ参照 |
1 | ||
| 55436-52010B0 |
KSP90,NCP9#,SCP90..F,X ｵｰﾃﾞｨｵ−G−BOOK,2ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55436-52010B0 |
NCP91..RS ｵｰﾃﾞｨｵ−CDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ,2ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55436-52010B0 |
NCP91..X ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,2ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55436-52020B0 |
KSP90,NCP9#,SCP90..F,U,X DK.GRAY,TRIM1#,4#,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 55436-52010B0 |
NCP91..X ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,4ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55436-52010B0 |
NCP91..RS ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 2ｽﾋﾟｰｶ(G−BOOK),DK.GRAY,TRIM1#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55436-52010B0 |
NCP91..X ｵｰﾃﾞｨｵ−CDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ,4ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#,TYPE A:Cﾗｽﾄ参照 |
1 | ||
| 55436-52010B0 |
NCP9#,SCP90..U,X ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 4ｽﾋﾟｰｶ(G−BOOK),DK.GRAY,TRIM1#,4#,TxPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55436-52020B0 |
NCP91..RS DK.GRAY,TRIM1#,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-52010B0 |
NCP91..RS ｵｰﾃﾞｨｵ−G−BOOK,2ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55436-52010B0 |
NCP91..RS ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,2ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55436-52010B0 |
NCP91..X ｵｰﾃﾞｨｵ−CDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ,2ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#,TYPE A:Cﾗｽﾄ参照 |
1 | ||
| 55436-52010B0 |
KSP90,NCP9#,SCP90..F,X ｵｰﾃﾞｨｵ−G−BOOK,2ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55436-52010B0 |
NCP91..RS ｵｰﾃﾞｨｵ−CDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ,2ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55436-52010B0 |
NCP91..X ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,2ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55436-52020B0 |
KSP90,NCP9#,SCP90..F,U,X DK.GRAY,TRIM1#,4#,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 55436-52010B0 |
NCP91..X ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,4ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55436-52010B0 |
NCP91..RS ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 2ｽﾋﾟｰｶ(G−BOOK),DK.GRAY,TRIM1#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55436-52010B0 |
NCP91..X ｵｰﾃﾞｨｵ−CDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ,4ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#,TYPE A:Cﾗｽﾄ参照 |
1 | ||
| 55436-52010B0 |
NCP9#,SCP90..U,X ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 4ｽﾋﾟｰｶ(G−BOOK),DK.GRAY,TRIM1#,4#,TxPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55436-52020B0 |
NCP91..RS DK.GRAY,TRIM1#,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-52100B0 |
NCP9#,SCP90..RS,U DK.GRAY,TRIM1# |
1 | ||
| 55441-52101B0 |
NCP91..RS DK.GRAY,TRIM1# |
1 | ||
| 55441-52100B0 |
KSP90,NCP9#,SCP90..B,F,X DK.GRAY,TRIM1#,4# |
1 | ||
| 55441-52101B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 55453D - PAD, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55453-52060 |
KSP90,NCP9#,SCP90 |
1 | ||
| 55454B - PAD, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55454-52050 |
KSP90,NCP9#,SCP90 |
1 | ||
| 55455A - PAD, INSTRUMENT, LOWER CENTER | ||||
| 55455-52010 |
KSP90,NCP9#,SCP90 |
1 | ||
| 55455-52011 |
KSP90,NCP9#,SCP90 |
1 | ||
| 55468C - SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55468-52010 |
KSP90,NCP9#,SCP90 |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
NCP91..X ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,2ｽﾋﾟｰｶ |
1 | ||
| 55522-52020 |
KSP90,NCP9#,SCP90..F,ILL,RS ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,2ｽﾋﾟｰｶ |
1 | ||
| 55522-52020 |
NCP91..X ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,4ｽﾋﾟｰｶ |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52040B0 |
KSP90,NCP9#,SCP90..F,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ,DK.GRAY,TRIM1#,4# |
1 | ||
| 55539-52040B0 |
KSP90,NCP9#,SCP90..F,X Lﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1#,4# |
1 | ||
| 55539-52040B0 |
NCP91..RS ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ,DK.GRAY,TRIM1# |
1 | ||
| 55539-52040B0 |
KSP90,NCP9#,SCP90..B,F,X DK.GRAY,TRIM1#,4# |
1 | ||
| 55539-52040B0 |
NCP91..RS Lﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 55539-52040B0 |
NCP91..RS DK.GRAY,TRIM1# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-52060B0 |
NCP91..RS DK.GRAY,TRIM1# |
1 | ||
| 55539-52070B0 |
KSP90,NCP9#,SCP90..F,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,DK.GRAY,TRIM1#,4# |
1 | ||
| 55539-52070B0 |
NCP91..RS DK.GRAY,TRIM1# |
1 | ||
| 55539-52060B0 |
KSP90,NCP9#,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 55539-52060B0 |
KSP90,NCP9#,SCP90..F,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,DK.GRAY,TRIM1#,4# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-52030B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 55548-52030B0 |
NCP91..RS ETC−有り,DK.GRAY,TRIM1# |
1 | ||
| 55548-52030B0 |
NCP91..RS DK.GRAY,TRIM1# |
1 | ||
| 55548-52030B0 |
KSP90,NCP9#,SCP90..B,F,U,X ETC−有り,DK.GRAY,TRIM1#,4# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-52150B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 55550-52150B0 |
NCP91..RS DK.GRAY,TRIM1# |
1 | ||
| 55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55618-52040B0 |
NCP91..RS DK.GRAY,TRIM1# |
1 | ||
| 55618-52040B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 55604B - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55619-52020B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 55619-52020B0 |
NCP91..RS DK.GRAY,TRIM1# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-52030 |
NCP9#,SCP90..RS,U |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-52030 |
NCP9#,SCP90..RS,U |
1 | ||
| 55611 - TRAY, INSTRUMENT PANEL UNDER | ||||
| 55611-52120B0 |
KSP90,NCP9#,SCP90..B,F,X DK.GRAY,TRIM1#,4# |
1 | ||
| 55611-52121B0 |
NCP91..RS DK.GRAY,TRIM1# |
1 | ||
| 55611-52120B0 |
NCP9#,SCP90..RS,U DK.GRAY,TRIM1# |
1 | ||
| 55611-52121B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 55611-52120B0 |
KSP90,NCP9#,SCP90..B,F,X DK.GRAY,TRIM1# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-52140B0 |
NCP91..RS DK.GRAY,TRIM1# |
2 | ||
| 55650-52140B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-52140B0 |
NCP91..RS DK.GRAY,TRIM1# |
2 | ||
| 55650-52140B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
2 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-52010B0 |
KSP90,NCP9#,SCP90..B,F,U,X GRAY,TRIM1#,4# |
1 | ||
| 55670-52010C0 |
NCP91..RS BLACK,TRIM1# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-52100 |
KSP90,NCP9#,SCP90 |
1 | ||
| 73960-52050 |
KSP90,NCP9#,SCP90 |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-52020 |
KSP90,NCP9#,SCP90 |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90467-12080 | ||||
| 90468-05135 | ||||
| 93520-54010 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
