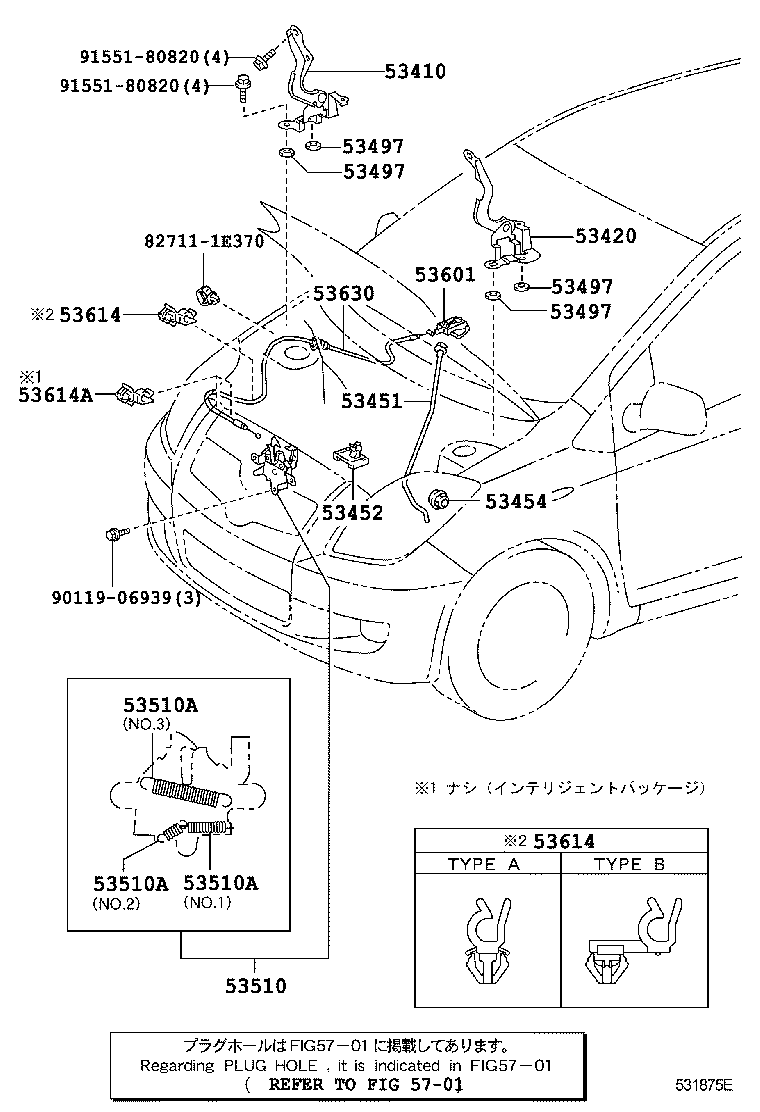

NCP91-AHXVK (2005)
Toyota Vitz
(0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-52180 |
KSP90,NCP9#,SCP90 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-52180 |
KSP90,NCP9#,SCP90 |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53440-52120 |
KSP90,NCP9#,SCP90 |
1 | ||
| 53452 - HOLDER, HOOD STAY | ||||
| 53452-52010 |
KSP90,NCP9#,SCP90 |
1 | ||
| 53454 - CLIP, HOOD SUPPORT ROD | ||||
| 53454-52020 |
KSP90,NCP9#,SCP90 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
KSP90,NCP9#,SCP90 厚さ=0.5 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
KSP90,NCP9#,SCP90 厚さ=0.5 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
KSP90,NCP9#,SCP90 厚さ=0.5 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
KSP90,NCP9#,SCP90 厚さ=0.5 |
4 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-52290 |
KSP90,NCP9#,SCP90 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-14085 |
KSP90,NCP9#,SCP90 線径=1.4,ｺｲﾙ巻数=12,NO.3 |
1 | ||
| 90506-12063 |
KSP90,NCP9#,SCP90 線径=1.2,ｺｲﾙ巻数=8.5,NO.2 |
1 | ||
| 90506-09055 |
KSP90,NCP9#,SCP90 線径=0.9,ｺｲﾙ巻数=21,NO.1 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-14085 |
KSP90,NCP9#,SCP90 線径=1.4,ｺｲﾙ巻数=12,NO.3 |
1 | ||
| 90506-12063 |
KSP90,NCP9#,SCP90 線径=1.2,ｺｲﾙ巻数=8.5,NO.2 |
1 | ||
| 90506-09055 |
KSP90,NCP9#,SCP90 線径=0.9,ｺｲﾙ巻数=21,NO.1 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-14085 |
KSP90,NCP9#,SCP90 線径=1.4,ｺｲﾙ巻数=12,NO.3 |
1 | ||
| 90506-12063 |
KSP90,NCP9#,SCP90 線径=1.2,ｺｲﾙ巻数=8.5,NO.2 |
1 | ||
| 90506-09055 |
KSP90,NCP9#,SCP90 線径=0.9,ｺｲﾙ巻数=21,NO.1 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-52010B3 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 53601-52010B3 |
NCP91..RS DK.GRAY,TRIM1# |
1 | ||
| 53614 - CLAMP, HOOD LOCK CONTROL CABLE | ||||
| 53614-52020 |
KSP90,NCP9#,SCP90 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 53614-52010 |
KSP90,NCP9#,SCP90 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 53614 - CLAMP, HOOD LOCK CONTROL CABLE | ||||
| 53614-52020 |
KSP90,NCP9#,SCP90 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 53614-52010 |
KSP90,NCP9#,SCP90 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 53614A - CLAMP, HOOD LOCK CONTROL CABLE, NO.1 | ||||
| 53614-52010 |
KSP90,NCP9#,SCP90 |
2 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-52110 |
KSP90,NCP9#,SCP90 |
1 | ||
| Common parts | ||||
| 82711-1E370 | ||||
| 90119-06939 | ||||
| 91551-80820 | ||||
| Linked diagrams | ||||
| 5701 | ||||
