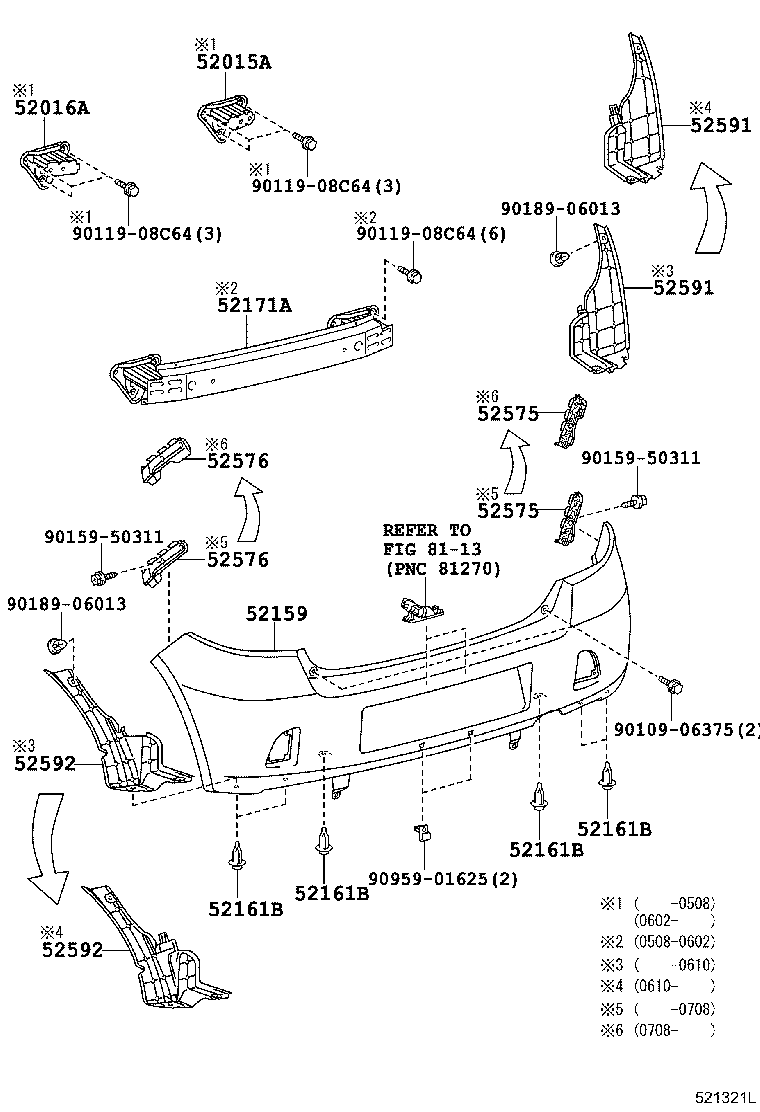

NCP91-AHXVK (2005)
Toyota Vitz
(0501-0708)B,F,ILL,U,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-52030 |
NCP91..RS |
1 | ||
| 52015-52030 |
NCP91..RS |
1 | ||
| 52015-52030 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 52016A - ARM SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-52030 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 52016-52030 |
NCP91..RS |
1 | ||
| 52016-52030 |
NCP91..RS |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-52490G0 |
KSP90,NCP9#,SCP90..B,F,U,X GREEN M.M.,6U1 |
1 | ||
| 52159-52490K0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X REDDISH PURPLE M.M.,9AC |
1 | ||
| 52159-52490B0 |
KSP90,NCP9#,SCP90..B,F,U,X SILVER M.M.,1E7 |
1 | ||
| 52159-52520A0 |
NCP91..RS WHITE,068 |
1 | ||
| 52159-52520B0 |
NCP91..RS MEDIUM SILVER ME.,1F8 |
1 | ||
| 52159-52490A0 |
KSP90,NCP9#,SCP90..B,F,U,X WHITE,068 |
1 | ||
| 52159-52490J1 |
KSP90,NCP9#,SCP90..B,F,U,X LT. BLUE M.M.,8S9 |
1 | ||
| 52159-52490E0 |
KSP90,NCP9#,SCP90..B,F,U,X PALE ORANGE MICA METALLIC,4S3 |
1 | ||
| 52159-52490D0 |
KSP90,NCP9#,SCP90..B,F,U,X SUPER RED 5,3P0 |
1 | ||
| 52159-52490B1 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X MEDIUM SILVER ME.,1F8 |
1 | ||
| 52159-52520C0 |
NCP91..RS BLACK MC.,209 |
1 | ||
| 52159-52490C0 |
KSP90,NCP9#,SCP90..B,F,U,X BLACK MC.,209 |
1 | ||
| 52159-52490J3 |
KSP90,NCP9#,SCP90..F,U,X BLUE M.M.,8T0 |
1 | ||
| 52159-52490D2 |
KSP90,NCP9#,SCP90..B,F,U,X ROSE ME.OP.,3P3 |
1 | ||
| 52159-52520J0 |
NCP91..RS BLUE M.M.,8T0 |
1 | ||
| 52159-52520D0 |
NCP91..RS SUPER RED 5,3P0 |
1 | ||
| 52159-52490J0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.BLUE M.M.,8P4 |
1 | ||
| 52159-52490E1 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X BEIGE PM.,4S8 |
1 | ||
| 52159-52520B1 |
NCP91..RS DK.GRAY M.M.,1F6 |
1 | ||
| 52159-52520G0 |
NCP91..RS GREEN M.M.,6U1 |
1 | ||
| 52159-52490G1 |
KSP90,NCP9#,SCP90..B,F,U,X LT.GREEN ME.,6U0 |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
5 | ||
| 52161-16010 |
NCP91..RS |
6 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
5 | ||
| 52161-16010 |
NCP91..RS |
6 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
5 | ||
| 52161-16010 |
NCP91..RS |
6 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
5 | ||
| 52161-16010 |
NCP91..RS |
6 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
5 | ||
| 52161-16010 |
NCP91..RS |
6 | ||
| 52565D - RETAINER, REAR BUMPER, LOWER RH | ||||
| 52565-52030 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-52110 |
KSP90,NCP9#,SCP90 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-52090 |
KSP90,NCP9#,SCP90 |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-52191 |
NCP91..RS |
1 | ||
| 52591-52190 |
NCP91..RS |
1 | ||
| 52591-52180 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 52591-52181 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-52191 |
NCP91..RS |
1 | ||
| 52591-52190 |
NCP91..RS |
1 | ||
| 52591-52180 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 52591-52181 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-52180 |
NCP91..RS |
1 | ||
| 52592-52170 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 52592-52181 |
NCP91..RS |
1 | ||
| 52592-52171 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-52180 |
NCP91..RS |
1 | ||
| 52592-52170 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 52592-52181 |
NCP91..RS |
1 | ||
| 52592-52171 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| Common parts | ||||
| 90109-06375 | ||||
| 90119-08C64 | ||||
| 90159-50311 | ||||
| 90189-06013 | ||||
| Linked diagrams | ||||
| 8113 | ||||
(0501-0809)RS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-52030 |
NCP91..RS |
1 | ||
| 52015-52030 |
NCP91..RS |
1 | ||
| 52015-52030 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 52016A - ARM SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-52030 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 52016-52030 |
NCP91..RS |
1 | ||
| 52016-52030 |
NCP91..RS |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-52490G0 |
KSP90,NCP9#,SCP90..B,F,U,X GREEN M.M.,6U1 |
1 | ||
| 52159-52490K0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X REDDISH PURPLE M.M.,9AC |
1 | ||
| 52159-52490B0 |
KSP90,NCP9#,SCP90..B,F,U,X SILVER M.M.,1E7 |
1 | ||
| 52159-52520A0 |
NCP91..RS WHITE,068 |
1 | ||
| 52159-52520B0 |
NCP91..RS MEDIUM SILVER ME.,1F8 |
1 | ||
| 52159-52490A0 |
KSP90,NCP9#,SCP90..B,F,U,X WHITE,068 |
1 | ||
| 52159-52490J1 |
KSP90,NCP9#,SCP90..B,F,U,X LT. BLUE M.M.,8S9 |
1 | ||
| 52159-52490E0 |
KSP90,NCP9#,SCP90..B,F,U,X PALE ORANGE MICA METALLIC,4S3 |
1 | ||
| 52159-52490D0 |
KSP90,NCP9#,SCP90..B,F,U,X SUPER RED 5,3P0 |
1 | ||
| 52159-52490B1 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X MEDIUM SILVER ME.,1F8 |
1 | ||
| 52159-52520C0 |
NCP91..RS BLACK MC.,209 |
1 | ||
| 52159-52490C0 |
KSP90,NCP9#,SCP90..B,F,U,X BLACK MC.,209 |
1 | ||
| 52159-52490J3 |
KSP90,NCP9#,SCP90..F,U,X BLUE M.M.,8T0 |
1 | ||
| 52159-52490D2 |
KSP90,NCP9#,SCP90..B,F,U,X ROSE ME.OP.,3P3 |
1 | ||
| 52159-52520J0 |
NCP91..RS BLUE M.M.,8T0 |
1 | ||
| 52159-52520D0 |
NCP91..RS SUPER RED 5,3P0 |
1 | ||
| 52159-52490J0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.BLUE M.M.,8P4 |
1 | ||
| 52159-52490E1 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X BEIGE PM.,4S8 |
1 | ||
| 52159-52520B1 |
NCP91..RS DK.GRAY M.M.,1F6 |
1 | ||
| 52159-52520G0 |
NCP91..RS GREEN M.M.,6U1 |
1 | ||
| 52159-52490G1 |
KSP90,NCP9#,SCP90..B,F,U,X LT.GREEN ME.,6U0 |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
5 | ||
| 52161-16010 |
NCP91..RS |
6 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
5 | ||
| 52161-16010 |
NCP91..RS |
6 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
5 | ||
| 52161-16010 |
NCP91..RS |
6 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
5 | ||
| 52161-16010 |
NCP91..RS |
6 | ||
| 52171A - REINFORCEMENT, REAR BUMPER, NO.1 | ||||
| 52023-52020 |
NCP91..RS |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-52110 |
KSP90,NCP9#,SCP90 |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-52110 |
KSP90,NCP9#,SCP90 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-52090 |
KSP90,NCP9#,SCP90 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-52090 |
KSP90,NCP9#,SCP90 |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-52191 |
NCP91..RS |
1 | ||
| 52591-52190 |
NCP91..RS |
1 | ||
| 52591-52180 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 52591-52181 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-52191 |
NCP91..RS |
1 | ||
| 52591-52190 |
NCP91..RS |
1 | ||
| 52591-52180 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 52591-52181 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-52180 |
NCP91..RS |
1 | ||
| 52592-52170 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 52592-52181 |
NCP91..RS |
1 | ||
| 52592-52171 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-52180 |
NCP91..RS |
1 | ||
| 52592-52170 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 52592-52181 |
NCP91..RS |
1 | ||
| 52592-52171 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| Common parts | ||||
| 90109-06375 | ||||
| 90119-08C64 | ||||
| 90159-50311 | ||||
| 90189-06013 | ||||
| 90959-01625 | ||||
| Linked diagrams | ||||
| 8113 | ||||
