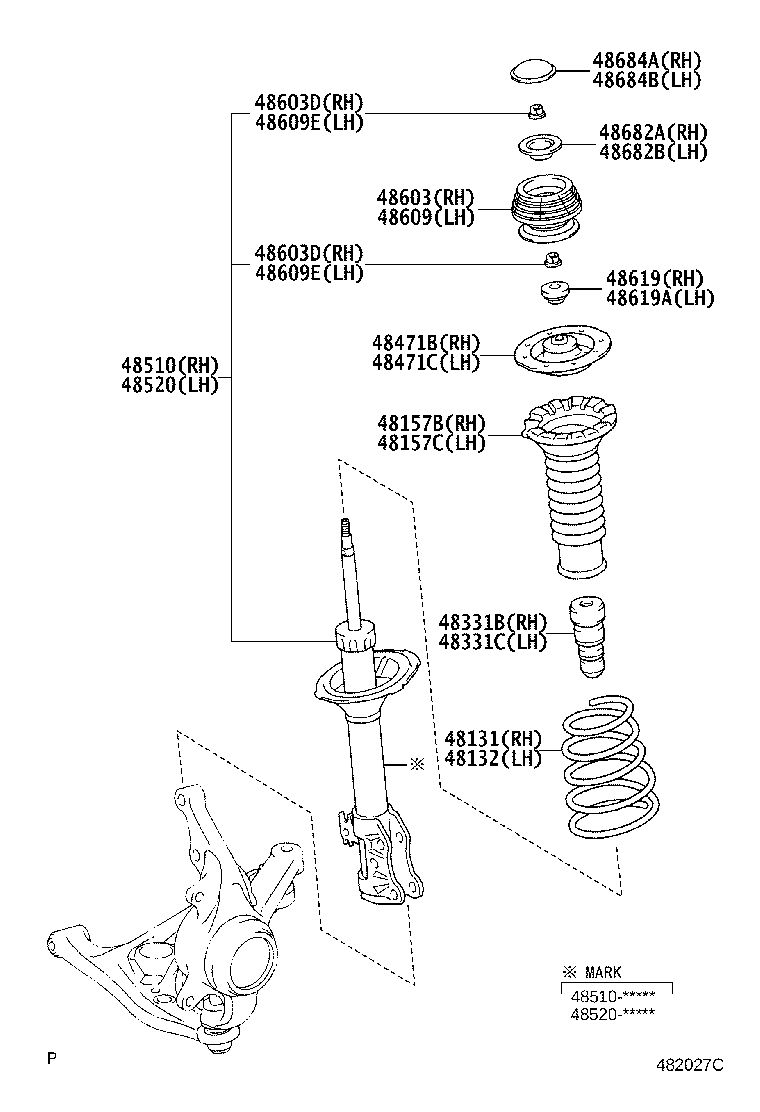

NCP91-AHXVK (2005)
Toyota Vitz
(0501- )NCP91..RS,X ; (0501- )KSP90..B,F,ILL ; (0501- )NCP95,SCP90..F,ILL,
ﾅｼ(ｽﾀﾋﾞﾗｲｻﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-52A60 |
NCP91..RS |
1 | ||
| 48131-52A50 |
NCP91,SCP90..F,ILL,U,X |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-52A50 |
NCP91,SCP90..F,ILL,U,X |
1 | ||
| 48131-52A60 |
NCP91..RS |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-52030 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-52030 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-52100 |
NCP91..RS |
1 | ||
| 48331-52080 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-52100 |
NCP91..RS |
1 | ||
| 48331-52080 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48471-52030 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48471-52030 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80194 |
NCP91..RS ﾏｰｸ 48510−52890 |
1 | ||
| 48510-80294 |
KSP90,NCP91,SCP90..B,F,ILL,U,X ﾏｰｸ 48510−52821 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-59175 |
NCP91..RS ﾏｰｸ 48520−52030 |
1 | ||
| 48520-59365 |
KSP90,NCP91,SCP90..B,F,ILL,U,X ﾏｰｸ 48520−52021 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-52100 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90179-12145 |
KSP90,NCP9#,SCP90 |
2 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90179-12145 |
KSP90,NCP9#,SCP90 |
2 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-52100 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90179-12145 |
KSP90,NCP9#,SCP90 |
2 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90179-12145 |
KSP90,NCP9#,SCP90 |
2 | ||
| 48619 - BEARING, STRUT MOUNTING, RH | ||||
| 48619-0D011 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48619-0D010 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48619A - BEARING, STRUT MOUNTING, LH | ||||
| 48619-0D010 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48619-0D011 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48682A - SUPPORT, FRONT SUSPENSION, NO.2 RH | ||||
| 48682-52020 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48682-52040 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48682B - SUPPORT, FRONT SUSPENSION, NO.2 LH | ||||
| 48682-52040 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48682-52020 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-52020 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-52020 |
KSP90,NCP9#,SCP90 |
1 | ||

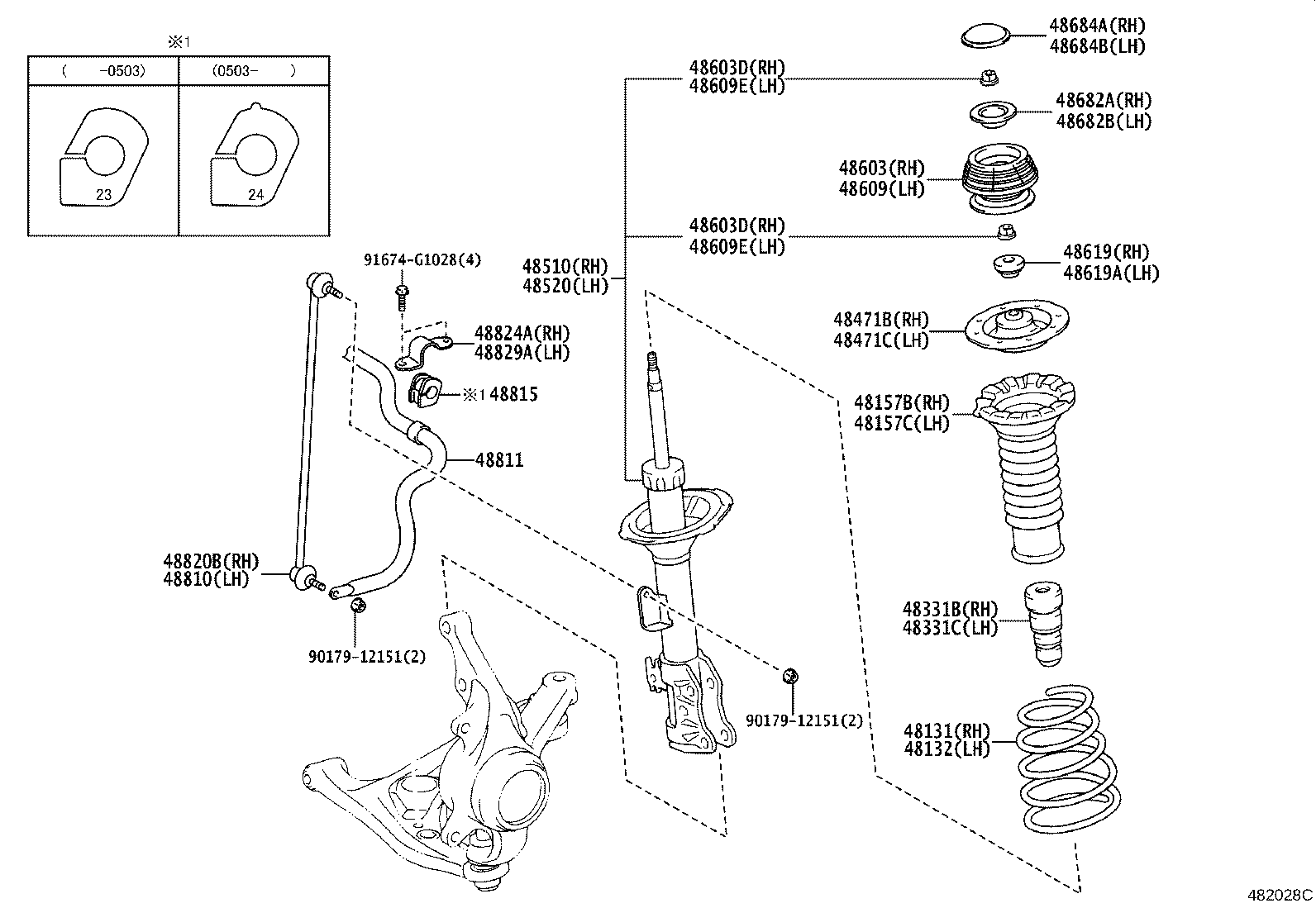

(0501- )
ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-52A60 |
NCP91..RS |
1 | ||
| 48131-52A50 |
NCP91,SCP90..F,ILL,U,X |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-52A50 |
NCP91,SCP90..F,ILL,U,X |
1 | ||
| 48131-52A60 |
NCP91..RS |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-52030 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-52030 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-52100 |
NCP91..RS |
1 | ||
| 48331-52080 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-52100 |
NCP91..RS |
1 | ||
| 48331-52080 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48471-52030 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48471-52030 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80194 |
NCP91..RS ﾏｰｸ 48510−52890 |
1 | ||
| 48510-80294 |
KSP90,NCP91,SCP90..B,F,ILL,U,X ﾏｰｸ 48510−52821 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-59175 |
NCP91..RS ﾏｰｸ 48520−52030 |
1 | ||
| 48520-59365 |
KSP90,NCP91,SCP90..B,F,ILL,U,X ﾏｰｸ 48520−52021 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-52100 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90179-12145 |
KSP90,NCP9#,SCP90 |
2 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90179-12145 |
KSP90,NCP9#,SCP90 |
2 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-52100 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90179-12145 |
KSP90,NCP9#,SCP90 |
2 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90179-12145 |
KSP90,NCP9#,SCP90 |
2 | ||
| 48619 - BEARING, STRUT MOUNTING, RH | ||||
| 48619-0D011 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48619-0D010 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48619A - BEARING, STRUT MOUNTING, LH | ||||
| 48619-0D010 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48619-0D011 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48682A - SUPPORT, FRONT SUSPENSION, NO.2 RH | ||||
| 48682-52020 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48682-52040 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48682B - SUPPORT, FRONT SUSPENSION, NO.2 LH | ||||
| 48682-52040 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48682-52020 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-52020 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-52020 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-52030 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-52170 |
KSP90,NCP91,SCP90..B,F,U,X |
1 | ||
| 48811-52170 |
KSP90,NCP91,SCP90..ILL,RS |
1 | ||
| 48811-52160 |
KSP90,NCP91,SCP90..B,F,U,X |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-52090 |
KSP90,NCP91,SCP90..ILL,RS |
2 | ||
| 48815-52090 |
KSP90,NCP91,SCP90..B,F,U,X |
2 | ||
| 48815-52080 |
KSP90,NCP91,SCP90..B,F,U,X |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-52030 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-52060 |
KSP90,NCP9#,SCP90 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-52060 |
KSP90,NCP9#,SCP90 |
1 | ||
| Common parts | ||||
| 90179-12151 | ||||
| 91674-G1028 | ||||
