NCP91-AHXVK (2005)

Toyota Vitz

Production Jan 2005 - Aug 2007
Engine 1NZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0501-0708)

Click highlighted areas on diagram

diagram 44510 44545D 44545D 44546A 44546A 44546A 44590 9009905278 9009905278 9163160825 9163160825 9163160825
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-52440

NCP91..RS

 1
44050-52460

NCP91..RS

VSC−有り

 1
44050-52570

NCP91,SCP90..ILL,U,X

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-63010

KSP90,NCP9#,SCP90

 2
44545-42090

NCP91..RS

VSC−有り

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-63010

KSP90,NCP9#,SCP90

 2
44545-42090

NCP91..RS

VSC−有り

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-63010

KSP90,NCP9#,SCP90

 3
44546-17050

NCP91..RS

VSC−有り

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-63010

KSP90,NCP9#,SCP90

 3
44546-17050

NCP91..RS

VSC−有り

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-63010

KSP90,NCP9#,SCP90

 3
44546-17050

NCP91..RS

VSC−有り

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-52120

KSP90,NCP9#,SCP90

 1
44590-52150

NCP91..RS

VSC−有り

 1
Common parts
90099-05278
91631-60825

ILLUST NO. 2 OF 2(0501- )NCP91..RS

Click highlighted areas on diagram

ｱﾘ(VSC)

diagram 44510 44545D 44545D 44546A 44546A 44546A 44590 9009905278 9009905278 9163160825 9163160825 9163160825
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-52440

NCP91..RS

 1
44050-52460

NCP91..RS

VSC−有り

 1
44050-52570

NCP91,SCP90..ILL,U,X

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-63010

KSP90,NCP9#,SCP90

 2
44545-42090

NCP91..RS

VSC−有り

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-63010

KSP90,NCP9#,SCP90

 2
44545-42090

NCP91..RS

VSC−有り

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-63010

KSP90,NCP9#,SCP90

 3
44546-17050

NCP91..RS

VSC−有り

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-63010

KSP90,NCP9#,SCP90

 3
44546-17050

NCP91..RS

VSC−有り

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-63010

KSP90,NCP9#,SCP90

 3
44546-17050

NCP91..RS

VSC−有り

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-52120

KSP90,NCP9#,SCP90

 1
44590-52150

NCP91..RS

VSC−有り

 1
Common parts
90099-05278
91631-60825

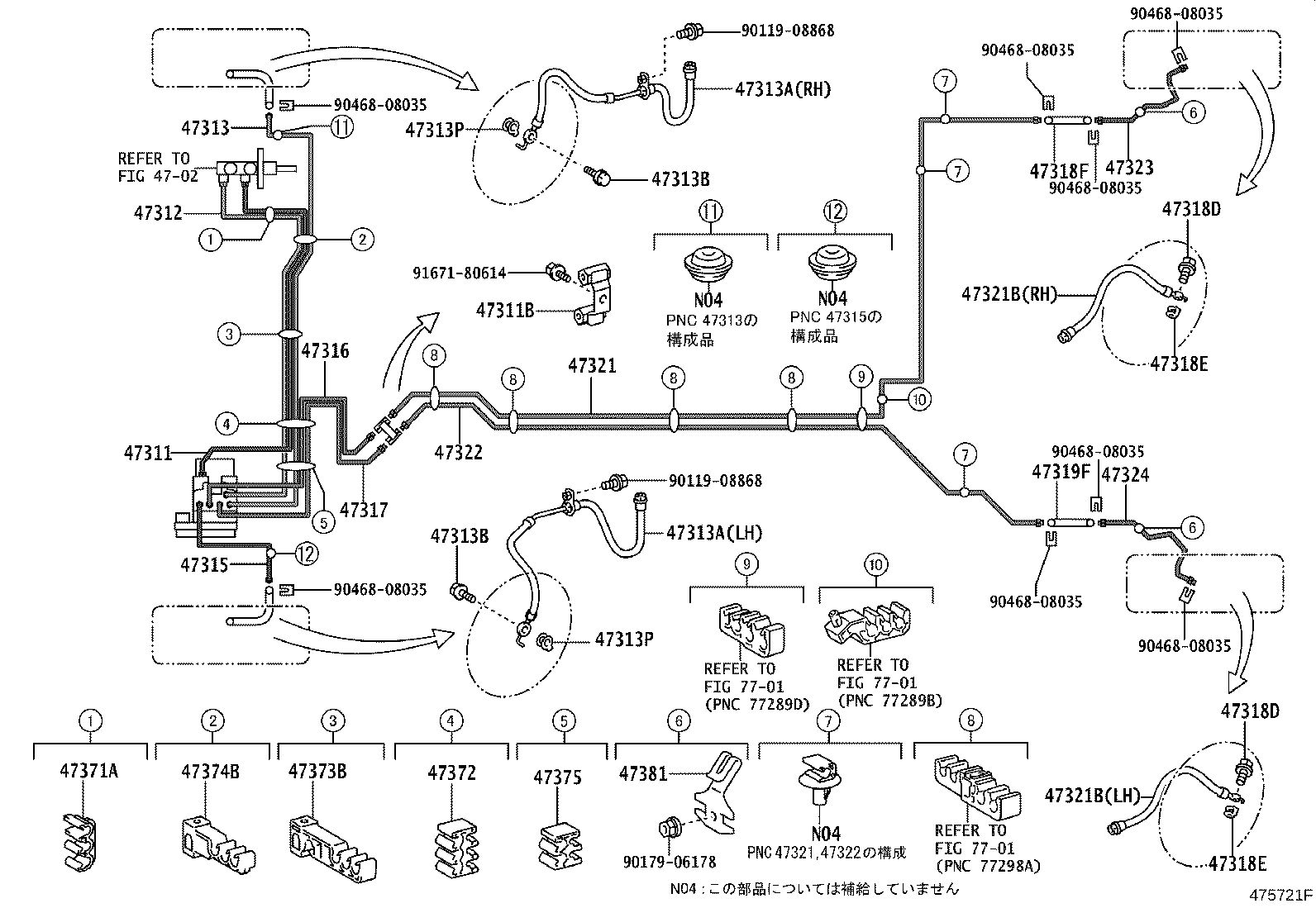

ILLUST NO. 1 OF 2(0501- )SCP90 ; (0501- )KSP90,NCP91..B,F,ILL,U,X

Click highlighted areas on diagram

diagram 4702 47311 47311B 47312 47313 47313A 47313A 47313B 47313B 47313P 47313P 47315 47316 47317 47318F 47319F 47321 47322 47323 47324 47371A 47371C 47372 47373B 47374B 47381 7701 7701 7701 9011908868 9011908868 9017906178 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9167180614
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-52231

NCP91..RS

VSC−有り

 1
47311-52221

KSP90,NCP9#,SCP90

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10260

KSP90,NCP9#,SCP90

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-52201

KSP90,NCP9#,SCP90

 1
47312-52211

NCP91..RS

VSC−有り

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-52110

KSP90,NCP9#,SCP90

 1
47313-52120

NCP91..RS

VSC−有り

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E07

KSP90,NCP9#,SCP90

右側

 1
90947-02E08

KSP90,NCP9#,SCP90

左側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E07

KSP90,NCP9#,SCP90

右側

 1
90947-02E08

KSP90,NCP9#,SCP90

左側

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

KSP90,NCP9#,SCP90

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

KSP90,NCP9#,SCP90

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

KSP90,NCP9#,SCP90

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

KSP90,NCP9#,SCP90

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-52150

NCP91..RS

VSC−有り

 1
47315-52140

KSP90,NCP9#,SCP90

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-52100

KSP90,NCP9#,SCP90

 1
47316-52110

NCP91..RS

VSC−有り

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-52110

NCP91..RS

VSC−有り

 1
47317-52100

KSP90,NCP9#,SCP90

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02E09

KSP90,NCP91,SCP90

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02E10

KSP90,NCP91,SCP90

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-52270

KSP90,NCP91,SCP90

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-52250

KSP90,NCP91,SCP90

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-52110

NCP91..RS

 1
47323-52100

KSP90,NCP91,SCP90..B,F,ILL,U,X

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-52100

NCP91..RS

 1
47324-52090

KSP90,NCP91,SCP90..B,F,ILL,U,X

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00868

NCP91..RS

VSC−有り

 1
90464-00868

KSP90,NCP9#,SCP90

 2
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01969

KSP90,NCP9#,SCP90

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D27

KSP90,NCP9#,SCP90

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D02

KSP90,NCP9#,SCP90

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-52020

KSP90,NCP91,SCP90

 2
Common parts
90119-08868
90179-06178
90468-08035
91671-80614
Linked diagrams
4702
7701

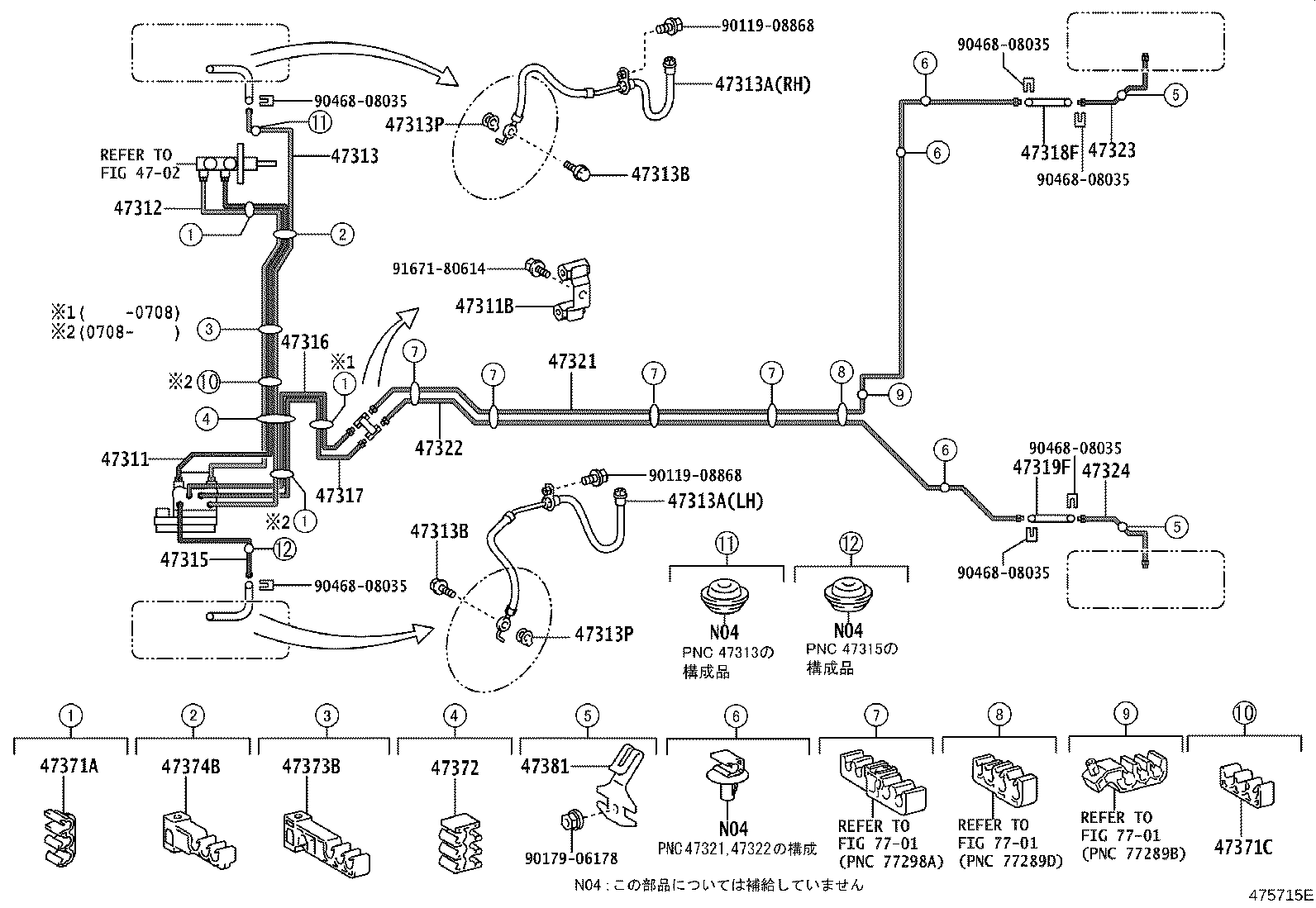

ILLUST NO. 1 OF 2(0501- )NCP91..RS

Click highlighted areas on diagram

diagram 4702 47311 47311B 47312 47313 47313A 47313A 47313B 47313B 47313P 47313P 47315 47316 47317 47318D 47318D 47318E 47318E 47318F 47319F 47321 47321B 47321B 47322 47323 47324 47371A 47371C 47372 47373B 47374B 47381 7701 7701 7701 9011908868 9011908868 9017906178 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9167180614
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-52231

NCP91..RS

VSC−有り

 1
47311-52221

KSP90,NCP9#,SCP90

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10260

KSP90,NCP9#,SCP90

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-52201

KSP90,NCP9#,SCP90

 1
47312-52211

NCP91..RS

VSC−有り

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-52110

KSP90,NCP9#,SCP90

 1
47313-52120

NCP91..RS

VSC−有り

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E07

KSP90,NCP9#,SCP90

右側

 1
90947-02E08

KSP90,NCP9#,SCP90

左側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E07

KSP90,NCP9#,SCP90

右側

 1
90947-02E08

KSP90,NCP9#,SCP90

左側

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

KSP90,NCP9#,SCP90

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

KSP90,NCP9#,SCP90

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

KSP90,NCP9#,SCP90

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

KSP90,NCP9#,SCP90

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-52150

NCP91..RS

VSC−有り

 1
47315-52140

KSP90,NCP9#,SCP90

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-52100

KSP90,NCP9#,SCP90

 1
47316-52110

NCP91..RS

VSC−有り

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-52110

NCP91..RS

VSC−有り

 1
47317-52100

KSP90,NCP9#,SCP90

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

NCP91..RS

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

NCP91..RS

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

NCP91..RS

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

NCP91..RS

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02E09

KSP90,NCP91,SCP90

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02E10

KSP90,NCP91,SCP90

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-52270

KSP90,NCP91,SCP90

 1
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02E11

NCP91..RS

 2
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02E11

NCP91..RS

 2
47322 - TUBE, REAR BRAKE, NO.2
47322-52250

KSP90,NCP91,SCP90

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-52110

NCP91..RS

 1
47323-52100

KSP90,NCP91,SCP90..B,F,ILL,U,X

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-52100

NCP91..RS

 1
47324-52090

KSP90,NCP91,SCP90..B,F,ILL,U,X

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00868

NCP91..RS

VSC−有り

 1
90464-00868

KSP90,NCP9#,SCP90

 2
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01969

KSP90,NCP9#,SCP90

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D27

KSP90,NCP9#,SCP90

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D02

KSP90,NCP9#,SCP90

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-52020

KSP90,NCP91,SCP90

 2
Common parts
90119-08868
90179-06178
90468-08035
91671-80614
Linked diagrams
4702
7701

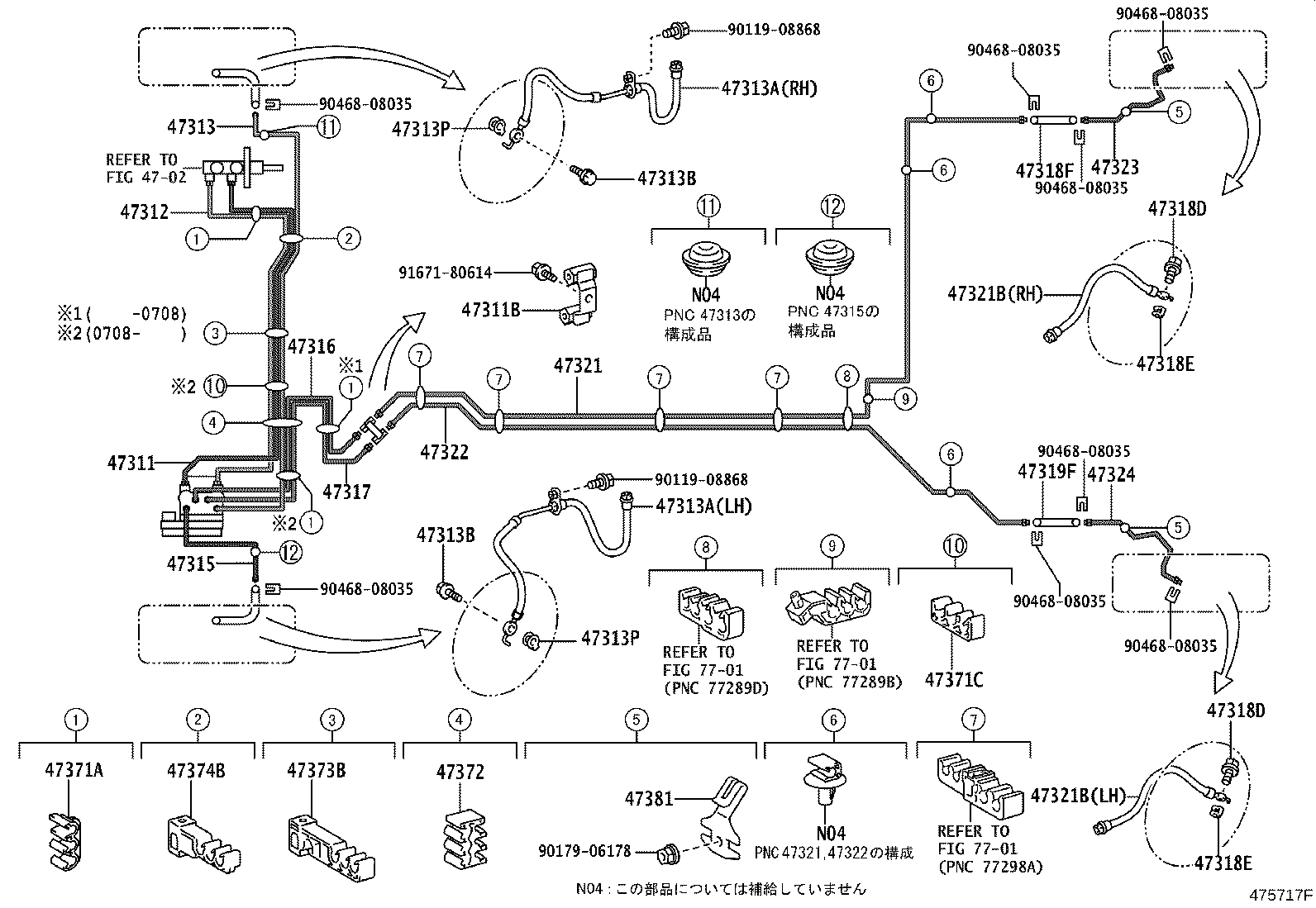

ILLUST NO. 1 OF 2(0501- )NCP91..RS

Click highlighted areas on diagram

ｱﾘ(VSC)

diagram 4702 47311 47311B 47312 47313 47313A 47313A 47313B 47313B 47313P 47313P 47315 47316 47317 47318D 47318D 47318E 47318E 47318F 47319F 47321 47321B 47321B 47322 47323 47324 47371A 47372 47373B 47374B 47375 47381 7701 7701 7701 9011908868 9011908868 9017906178 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9167180614
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-52231

NCP91..RS

VSC−有り

 1
47311-52221

KSP90,NCP9#,SCP90

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10260

KSP90,NCP9#,SCP90

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-52201

KSP90,NCP9#,SCP90

 1
47312-52211

NCP91..RS

VSC−有り

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-52110

KSP90,NCP9#,SCP90

 1
47313-52120

NCP91..RS

VSC−有り

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E07

KSP90,NCP9#,SCP90

右側

 1
90947-02E08

KSP90,NCP9#,SCP90

左側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E07

KSP90,NCP9#,SCP90

右側

 1
90947-02E08

KSP90,NCP9#,SCP90

左側

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

KSP90,NCP9#,SCP90

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

KSP90,NCP9#,SCP90

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

KSP90,NCP9#,SCP90

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

KSP90,NCP9#,SCP90

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-52150

NCP91..RS

VSC−有り

 1
47315-52140

KSP90,NCP9#,SCP90

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-52100

KSP90,NCP9#,SCP90

 1
47316-52110

NCP91..RS

VSC−有り

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-52110

NCP91..RS

VSC−有り

 1
47317-52100

KSP90,NCP9#,SCP90

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

NCP91..RS

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

NCP91..RS

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

NCP91..RS

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

NCP91..RS

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02E09

KSP90,NCP91,SCP90

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02E10

KSP90,NCP91,SCP90

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-52270

KSP90,NCP91,SCP90

 1
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02E11

NCP91..RS

 2
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02E11

NCP91..RS

 2
47322 - TUBE, REAR BRAKE, NO.2
47322-52250

KSP90,NCP91,SCP90

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-52110

NCP91..RS

 1
47323-52100

KSP90,NCP91,SCP90..B,F,ILL,U,X

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-52100

NCP91..RS

 1
47324-52090

KSP90,NCP91,SCP90..B,F,ILL,U,X

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00868

NCP91..RS

VSC−有り

 1
90464-00868

KSP90,NCP9#,SCP90

 2
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01969

KSP90,NCP9#,SCP90

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D27

KSP90,NCP9#,SCP90

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D02

KSP90,NCP9#,SCP90

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90464-00883

NCP91..RS

VSC−有り

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-52020

KSP90,NCP91,SCP90

 2
Common parts
90119-08868
90179-06178
90468-08035
91671-80614
Linked diagrams
4702
7701
