NCP91-AHXVK (2005)

Toyota Vitz

Production Jan 2005 - Aug 2007
Engine 1NZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

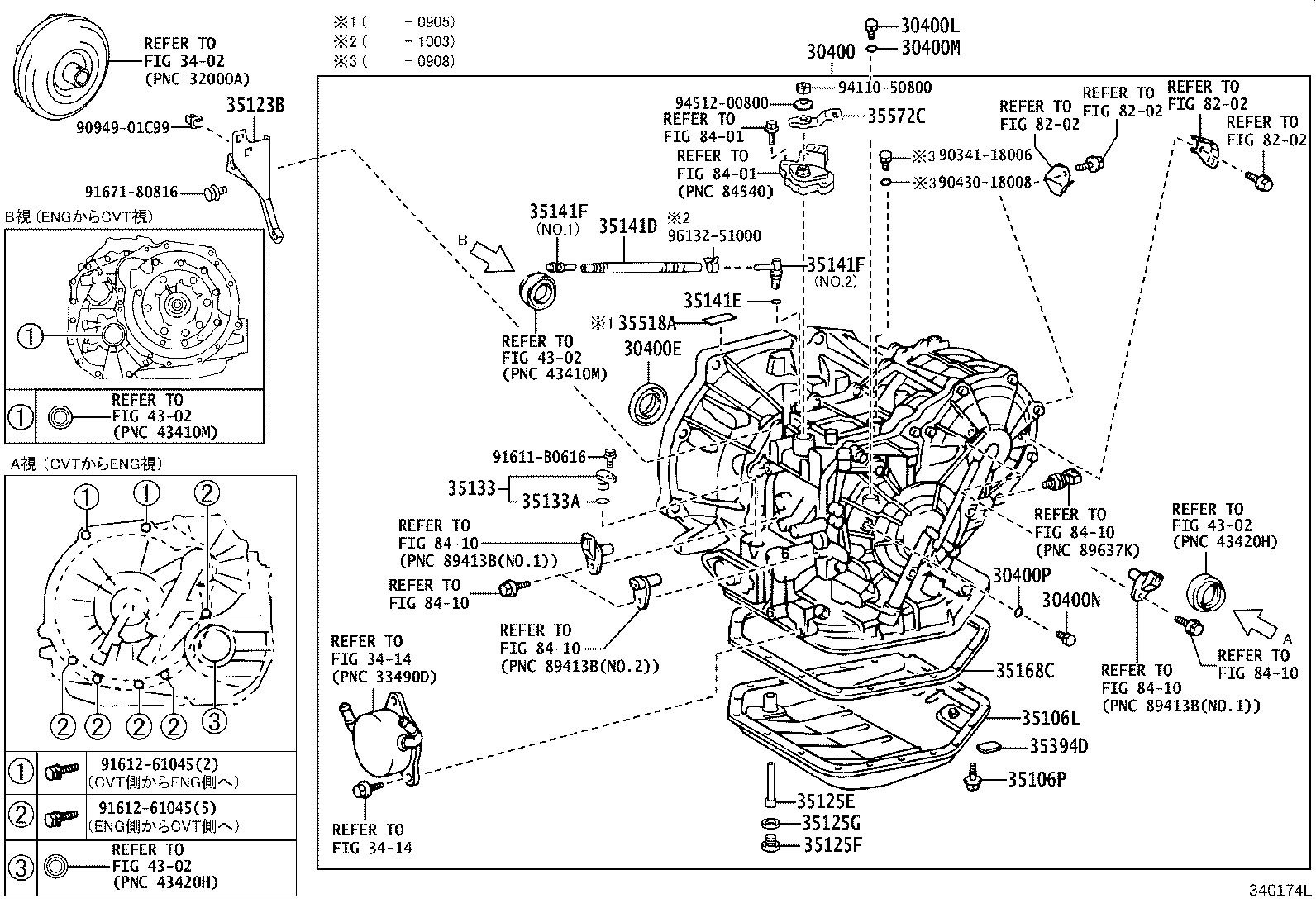

ILLUST NO. 2 OF 2(0501- )NCP91..CVFC

Click highlighted areas on diagram

K210

diagram 30400 30400E 30400L 30400M 30400N 30400P 3402 3414 3414 35106L 35106P 35123B 35125E 35125F 35125G 35133 35133A 35141D 35141E 35141F 35141F 35168C 35394D 35518A 35572C 4302 4302 4302 4302 8202 8202 8202 8202 8401 8401 8410 8410 8410 8410 8410 8410 9034118006 9043018008 9094901C99 91611B0616 9161261045 9161261045 9167180816 9411050800 9451200800 9613251000
Part # Description Qty Price
30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
30400-52070

NCP91..CVFC

K210

 1
30400-52071

NCP91..CVFC

K210

 1
30400E - SEAL, TYPE T OIL(FOR CVT OIL PUMP)
90311-45027

NCP91..CVFC

 1
30400L - PLUG , FILLER(CVT)
90341-12025

NCP91..CVFC

 1
30400M - GASKET , FILLER PLUG(CVT)
90430-12221

NCP91..CVFC

 1
30400N - PLUG, REFILL(CVT)
90341-18061

KSP90,NCP91,SCP90..CVFC

 1
30400P - GASKET, REFILL PLUG(CVT)
90430-18008

KSP90,NCP91,SCP90..CVFC

 1
35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT)
35106-52060

KSP90,NCP91,SCP90..CVFC

 1
35106P - BOLT(FOR TRANSAXLE OIL PAN)
90119-06173

KSP90,NCP91,SCP90..CVFC

 15
35123B - SKIRT,TRANSMISSION BREATHER
35123-52020

NCP91..CVFC

 1
35123-52021

NCP91..CVFC

 1
35125E - TUBE, OVERFLOW(CVT)
35125-52140

NCP91..CVFC

 1
35125F - PLUG, OVERFLOW(CVT)
90341-12034

KSP90,NCP91,SCP90..CVFC

 1
35125G - GASKET, OVERFLOW PLUG(CVT)
90430-12008

KSP90,NCP91,SCP90..CVFC

 1
35133 - PLUG, TRANSMISSION OIL FILLER
35133-52010

KSP90,NCP91,SCP90..CVFC

 1
35133A - RING, O (FOR TRANSMISSION OIL FILLER PLUG)
90301-11001

KSP90,NCP91,SCP90..CVFC

 1
35141D - HOSE(FOR BREATHER PLUG)
90447-11055

KSP90,NCP91,SCP90..CVFC

 1
35141E - RING, O(FOR BREATHER PLUG)
90301-08015

KSP90,NCP91,SCP90..CVFC

 1
35141F - PLUG, BREATHER, NO.1(CVT)
90930-03149

KSP90,NCP91,SCP90..CVFC

NO.1

 1
90930-03156

KSP90,NCP91,SCP90..CVFC

NO.2

 1
35141F - PLUG, BREATHER, NO.1(CVT)
90930-03149

KSP90,NCP91,SCP90..CVFC

NO.1

 1
90930-03156

KSP90,NCP91,SCP90..CVFC

NO.2

 1
35168C - GASKET, TRANSAXLE OIL PAN(CVT)
35168-52040

KSP90,NCP91,SCP90..CVFC

 1
35394D - MAGNET, OIL CLEANER(CVT)
35394-48010

KSP90,NCP91,SCP90..CVFC

 3
35518A - LABEL, AUTOMATIC TRANSAXLE INFORMATION, NO.2
35518-63010

KSP90,NCP91,SCP90..CVFC

 1
35572C - LEVER, TRANSMISSION CONTROL SHAFT
35572-52070

KSP90,NCP91,SCP90..CVFC

 1
Common parts
90341-18006
90430-18008
90949-01C99
91611-B0616
91612-61045
91671-80816
94110-50800
94512-00800
96132-51000
Linked diagrams
3402
3414
4302
8202
8401
8410

ILLUST NO. 1 OF 2(0501- )CVFC

Click highlighted areas on diagram

K210,K410

diagram 30140
Part # Description Qty Price
30140 - TRANSAXLE ASSY, CVT, REBUILT(W/O TORQUE CONVERTER)
30140-52070

NCP91..CVFC

K210

 1
30140-52110

NCP91..CVFC

K210

 1
