NCP91-AHXVK (2005)

Toyota Vitz

Production Jan 2005 - Aug 2007
Engine 1NZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )1NZFE

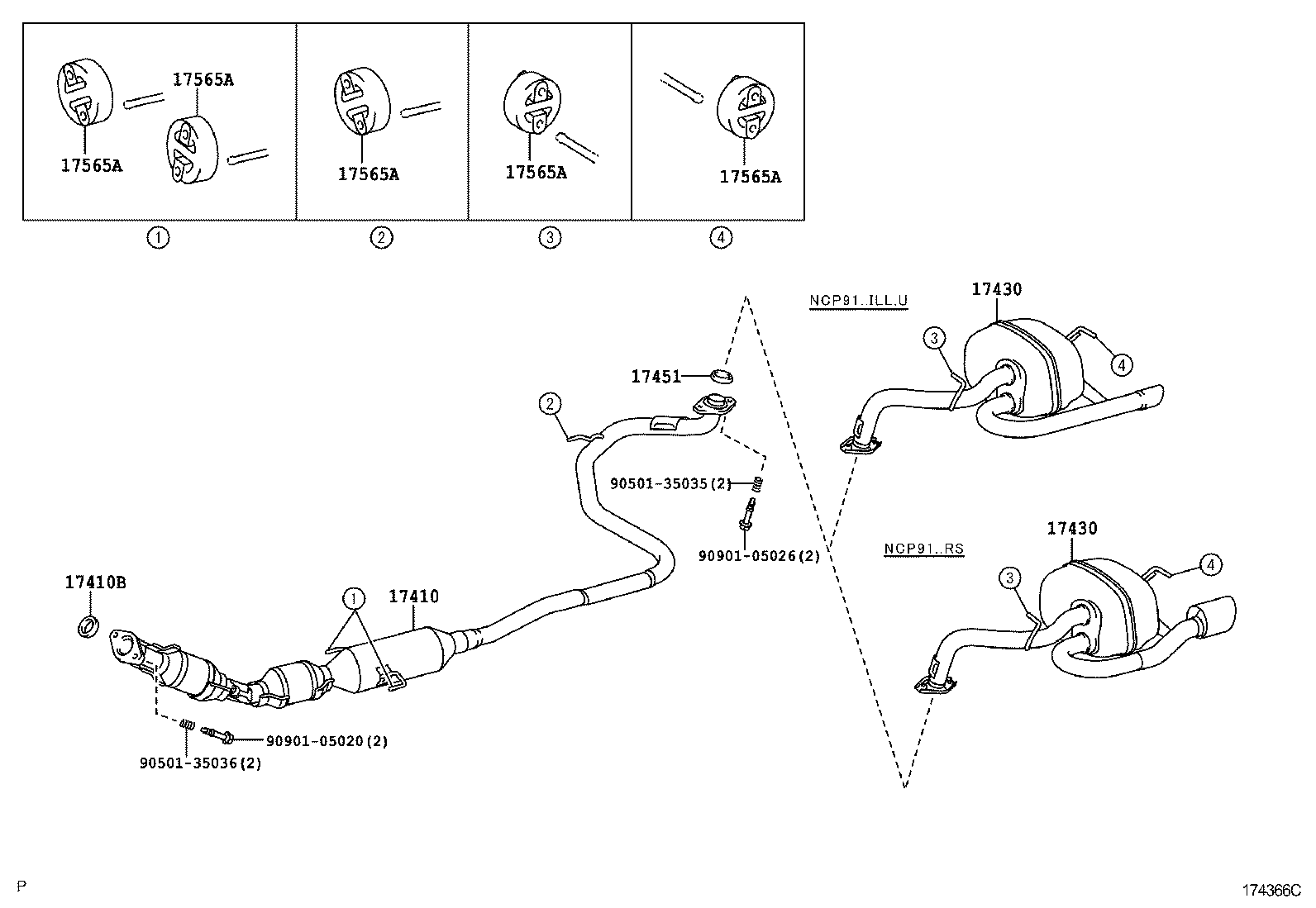

Click highlighted areas on diagram

diagram 17410 17410B 17430 17430 17451 17565A 17565A 17565A 17565A 17565A 9050135035 9050135036 9090105020 9090105026
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-21630

1NZFE..NCP91

 1
17410B - GASKET, EXHAUST PIPE
17451-21070

1NZFE,2NZFE,2SZFE..NCP9#,SCP90

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-21500

1NZFE,2SZFE..NCP91,SCP90..F,ILL,U,X

 1
17430-21550

1NZFE..NCP91..RS

 1
17430-21501

1NZFE,2SZFE..NCP91,SCP90..F,ILL,U,X

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-21500

1NZFE,2SZFE..NCP91,SCP90..F,ILL,U,X

 1
17430-21550

1NZFE..NCP91..RS

 1
17430-21501

1NZFE,2SZFE..NCP91,SCP90..F,ILL,U,X

 1
17451 - GASKET, EXHAUST PIPE
17451-23040

1NZFE,2SZFE..NCP91,SCP90

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-40010

1KRFE,1NZFE,2SZFE..KSP90,NCP91,SCP90

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-40010

1KRFE,1NZFE,2SZFE..KSP90,NCP91,SCP90

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-40010

1KRFE,1NZFE,2SZFE..KSP90,NCP91,SCP90

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-40010

1KRFE,1NZFE,2SZFE..KSP90,NCP91,SCP90

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-40010

1KRFE,1NZFE,2SZFE..KSP90,NCP91,SCP90

 5
Common parts
90501-35035
90501-35036
90901-05020
90901-05026
